Yamaha YZF-R3 / ABS

.

Make Model

Yamaha YZF-R3 / ABS

Year

2020

Engine

Four stroke, parallel twin cylinder, DOHC, 4 valve per cylinder

Capacity

321 cc / 19.5 cu-in
Bore x Stroke 68.0 x 44.1mm
Cooling System Liquid cooled
Compression Ratio 11.2:1

Induction

Electronic Fuel Injection, 32 mm throttle body
Lubrication Wet sump

Ignition

TCI: Transistor Controlled Ignition
Starting Electric

Max Power

30.9 kW 41.4 hp @ 10750 rpm

Max Torque

29.6 Nm / 3.0 kg-m @ 9000 rpm
Clutch Wet, multiple-disc coil spring

Transmission

Constant Mesh, 6-speed
Final Drive “O” ring chain
Frame Delta box

Front Suspension

37 mm USD Inverted telescopic fork

Rear Suspension

Monocross single Kayaba shock, adjustable preload

Front Brakes

Single 298mm disc 2 piston caliper, ABS available

Rear Brakes

Single 220mm disc 1 piston caliper, ABS available
Wheels 10-spoke cast aluminum wheels

Front Tyre

110/70-17M/C 54H

Rear Tyre

140/70-17M/C 66H
Caster 25°
Trail 93.9 mm / 3.7 in
Dimension Length 2090.4 mm / 82.3 in
Width     718.8 mm / 28.3 in
Height  1110.4 mm / 43.7 in
Wheelbase 1379.2 mm / 54.3 in
Seat Height 780 mm / 30.7 in
Ground Clearance 160 mm / 6.2 in

Wet Weight

167 kg / 368 lbs  /  170 kg / 374.7 lbs ABS

Fuel Capacity

14 Litres / 3.7 US gal
.

Welcome to R World

Yamaha has a rich heritage of building the most sought after Supersport motorcycles designed to deliver the pinnacle of performance on and off the track. From the rider-friendly YZF-R3 to the competition-focused YZF-R1M, the Yamaha R-series model lineup provides options for riders of all skill levels to experience the pure exhilaration of R World.

2020 YZF-R3 – R World is Calling

The YZF-R3 (R3) is the ultimate entry-level Supersport bike with Yamaha’s iconic aggressive design and outstanding performance, making it the perfect choice for first-time riders or experienced sportbike pilots who prefer a lightweight, nimble machine.

Powered by a reliable 321cc engine, the R3 delivers excellent performance for navigating cross-town traffic, carving twisty roads, or participating in a track day. Featuring the latest combustion technology, lightweight forged aluminum pistons, and all-aluminum DiASil cylinders with an offset design, the smooth-running and quick-revving R3 engine produces easy-to-manage power.

A lightweight steel frame cradles the engine’s crankcase within the chassis, resulting in approximately 50/50 front-rear weight distribution for the perfect balance of rigidity and weight. An asymmetric swingarm efficiently delivers engine power to the rear wheel, while a preload-adjustable KYB rear shock mounted in a Monocross suspension design contributes to a mass centralization of weight. To help achieve the right balance of comfort and sport riding performance for both street and track, the R3 features a KYB 37mm inverted front fork to provide the rider with outstanding handling during cornering and braking. ABS is also available, adding to confidence-boosting stopping performance.

The 2020 YZF-R3 will be available in Team Yamaha Blue. Models equipped with ABS will be available in Team Yamaha Blue, Matte Black, and Matte Silver.

Engine

  • Lightweight, compact, 321 cc, liquid-cooled, DOHC, 8-valve (4-valves/cyl), fuel injected, inline-twin cylinder engine. The engine has been designed to provide solid performance right across the rev range, with very linear throttle response, low vibration & excellent fuel economy.
  • Downdraft style, compact combustion chamber
    • 4 valves per cylinder to enhance low-to mid-range torque
    • straight intake path into the combustion chamber for excellent power output
  • The YZF-R3 uses regular 87 octane gas.
  • Valves are 26 mm (intake) and 22.5 mm (exhaust) in diameter.
    • Isonite surface treatment on the valve stems for improved durability & wear resistance
    • valves feature carbon cutters on the valve stems to help reduce carbon build-up during slower speed operation
  • Valve adjustment interval is every 42,000 km.
  • Automatic cam chain tensioner.
    • reduces mechanical engine noise & maintenance
  • Lightweight, all aluminum DiASil cylinder (die cast all aluminum cylinder with silicone content).
    • offers outstanding cooling performance / heat dissipation for consistent power delivery
    • reduces weight since there are no heavy liners & cylinder is made completely of aluminum
  • Offset cylinder design.
    • cylinder is offset 7 mm relative to the crankshaft (to the exhaust side)
    • reduces frictional losses between the pistons & cylinder wall during the power stroke
    • improved power output & improved fuel economy
  • 180-degree crankshaft with uneven firing order.
    • helps reduce “pumping losses” for maximum power output
    • provides an interesting exhaust note

  • Gear driven “primary coupled-force” balancer shaft.
    • reduces engine vibration for excellent rider comfort
  • Lightweight forged aluminum pistons.
    • provide fast engine response
    • reduce weight
    • reduce mechanical vibration for excellent durability
  • Carburized connecting rods (carburizing is a form heat treating).
    • excellent strength & durability
  • “Closed loop” 32 mm throttle body fuel injection system.
    • system uses an idle speed controller (ISC) to maintain a steady idle regardless of engine temperature
    • 12-hole injectors for optimum fuel atomization
    • system is tuned to provide excellent rideability and linear throttle control.
    • close-loop system uses an oxygen sensor to “sniff” spent exhaust & automatically adjust the fuel / air ratio for reduced emissions

  • Airbox utilizes a viscous paper-type air filter.
  • Compact, 6-speed transmission.
    • ratios specially designed to suit the character (torque & power) of the engine
    • 5th & 6th gears are overdrive gears to reduce engine rpm at highway speeds
  • Compact, wet-type, multi-plate clutch.
    • ensures consistent, positive shifting
    • light, easy clutch lever pull.
  • Low-mounted, 2-into-1 exhaust system.
    • utilizes a short design muffler fitted with a 3-way catalyzer to reduce exhaust emissions
    • low mounted design centralizes mass for agile handling & lightweight feeling
  • Maintenance-free transistor controlled ignition (TCI).
    • produces a strong spark for fast starts
    • provides precise ignition timing / mapping for optimum engine performance at any rpm
  • Easy access spin-on type oil filter & engine oil drain plug.
    • fast & easy oil changes
    • oil change interval is 5,000 kms after the initial 1,000 km break-in oil change
  • Air Induction System (AIS… not ram air).
    • reduces harmful exhaust emissions
    • injects fresh air into exhaust ports to fully burn any unburnt fuel, further reducing exhaust emissions

Chassis

  • Lightweight, diamond-type, high-tensile, steel frame
    • features optimized rigidity balance for light, agile handling with excellent stability
    • engine is a stressed member of the chassis, allowing a lighter, more compact main frame design
    • frame features a mix of both solid & rubber engine mounts
    • Electrostatic paint helps prevent corrosion
  • The riding position is one of the most important features of the R3. Despite its supersport styling, the R3 offers excellent rider comfort thanks to its upright riding position.
  • Key chassis geometry figures include:
    • 1380 mm (54.3″) wheelbase
    • 25 degrees of rake & 95 mm of trail
    • 50 / 50 front to rear weight distribution
    • chassis dimensions and shape have been designed to centralize mass & lower the centre of gravity to provide the rider with light, agile handling
  • Tapered, long design, high tensile steel swingarm.
    • lightweight design reduces unsprung weight for superior suspension performance
    • excellent rear wheel traction & control

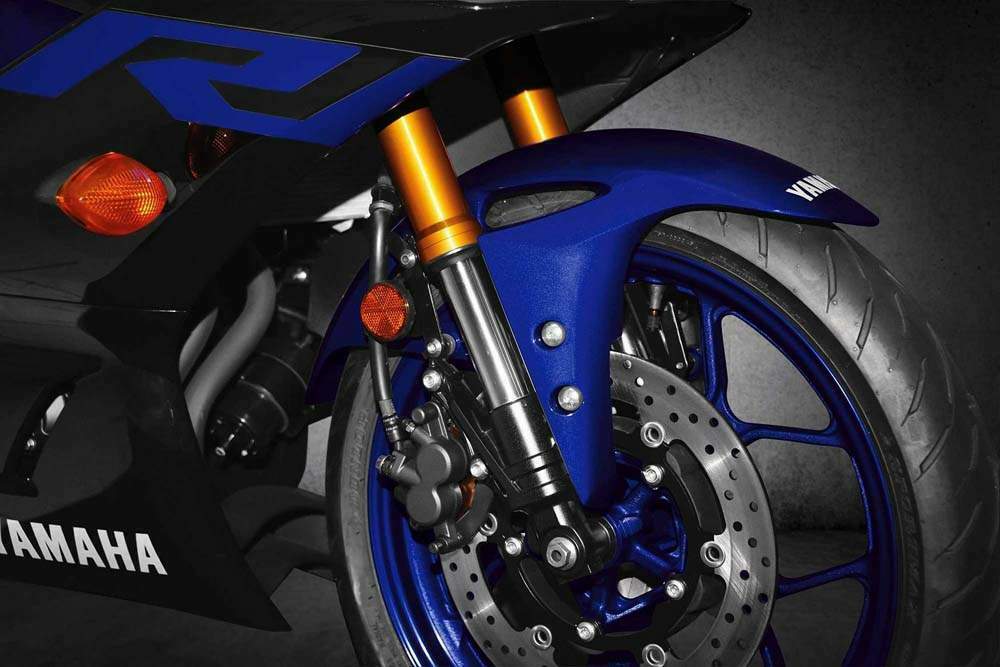

  • 37 mm KYB upside-down (inverted) fork offers 130 mm (5.1″) of wheel travel.
    • plastic chip guards help prevent damage to the fork tubes & seals
  • Adjustable Monocross link-less rear suspension with 125 mm (4.9″) of wheel travel.
    • features a single KYB rear shock with 7 levels of preload adjustability
    • adjustable design allows rider to tailor preload settings to match load & road condition
  • ABS-equipped 298 mm floating front disc brake squeezed by a twin-piston caliper.
    • provides solid stopping power
    • brake force & feel are tailored towards new riders

  • ABS-equipped 220 mm floating rear disc is squeezed by a lightweight, single-piston, slide-type caliper.
  • Anti-lock braking system (ABS).
    • controlling ECU & hydraulic unit are combined into a single compact unit to reduce weight & centralize mass
    • when ABS system senses impending wheel lock-up (via active type wheel sensors) it regulates hydraulic braking pressure to the point just before the wheel or wheels lock-up
    • ABS provides excellent control under hard braking or when braking on wet, slippery or loose surfaces
  • Lightweight, cast-aluminum 10-spoke mag wheels.
    • front wheel size is MT2.75-17 fitted with a 110/70-17 tire
    • rear wheel is MT4.00 fitted with a 140/70-17 tire
    • Lightweight hollow axles front & rear.
  • Clip-on style handlebars.
    • provide a supersport image but offer a comfortable, more upright riding position since they are mounted above the top triple clamp
    • Handlebar position is 22 mm lower than previous model
  • 14-litre fuel tank with styling adopted from R1 and R6 models.
    • offers a slim design with great knee grip
    • “reserve” portion of the tank is 3 litres (low fuel light will illuminate)
    • tank is steel with plastic covers, which can reduce costs in the event of damage
  • Separate rider & passenger seats with low 780 mm (30.7″) seat height.
    • offer excellent comfort
    • narrow-design rider seat makes it easier to touch feet flat on the ground
    • passenger seat can be removed & replaced by the optional Genuine Yamaha Accessory rear seat cowl if desired
  • Feature-rich liquid crystal (LCD) multi-function meter.
    • data includes speedometer, bar tachometer, fuel meter, odometer, tripmeters (2), fuel trip meter, gear position, flasher indicators, clock, temperature meter, fuel economy, oil trip meter, ABS indicator, adjustable shift timing light and high beam indicator
    • Warning lights: oil pressure and engine trouble
    • back lighting is adjustable
  • Race inspired full fairing.
    • New design inspired by larger R-series models
    • New design translates to a 7 percent reduction in drag and an 8 km/h (5 mph) increase in top speed
  • Race-derived air intake duct directs flow to the radiator
  • LED headlights with updated design.
    • Brilliant rear LED tail light
    • unique running / brake light display

Details

  • Helmet holder
  • Lightweight aluminum footrests & mounts
  • Threaded mounts on swingarm for rear race stand
  • Excessive lean angle sensor… if unit is on its side the engine will shut down
  • Lockable steering
  • Folding mirrors with chrome plating
  • Stylish rear fender extension helps reduce splash in wet conditions
  • Lightweight, low-maintenance sealed battery (batteries should be charged during winter storage)
  • Yamaha Diagnostic Tool coupler is located under the passenger seat. This system can significantly reduce diagnostic time in the event of a problem.
