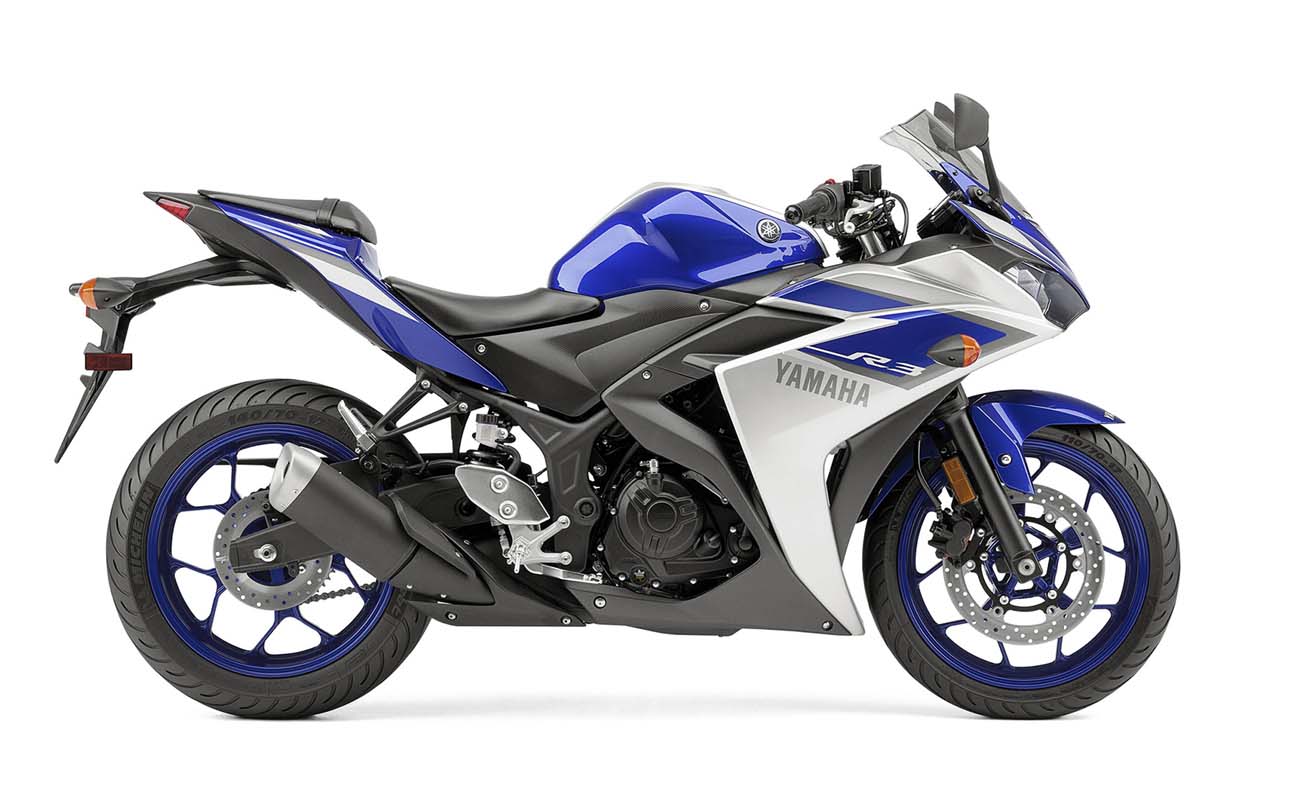

2016 Yamaha YZF-R3

Make Model	Yamaha YZF-R3
Year	2016
Engine	Four stroke, parallel twin cylinder, DOHC, 4 valve per cylinder
Capacity	321 cc / 19.5 cu-in
Bore x Stroke	68.0 x 44.1mm
Cooling System	Liquid cooled
Compression Ratio	11.2:1
Induction	Electronic Fuel Injection
Lubrication	Wet sump
Ignition	TCI: Transistor Controlled Ignition
Starting	Electric
Max Power	30.9 kW 41.4 hp @ 10750 rpm
Max Torque	29.6 Nm / 3.0 kg-m @ 9000 rpm
Clutch	Wet, multiple-disc coil spring
Transmission	Constant Mesh, 6-speed
Final Drive	Chain
Frame	Delta box
Front Suspension	41mm KYB® telescopic fork
Front Wheel Travel	130 mm / 5.1 in
Rear Suspension	KYB® single shock
Rear Wheel Travel	124.4 mm / 4.9 in
Front Brakes	Single 298mm disc 2 piston caliper
Rear Brakes	Single 220mm disc 1 piston caliper
Front Tyre	110/70-17M/C 54H
Rear Tyre	140/70-17M/C 66H
Caster	25°
Trail	93.9 mm / 3.7 in
Dimension	Length 2090.4 mm / 82.3 in Width 718.8 mm / 28.3 in Height 1 135.3 mm / 44.7 in
Wheelbase	1379.2 mm / 54.3 in
Seat Height	779.7 mm / 30.7 in
Ground Clearance	160 mm / 6.2 in
Wet Weight	167 kg / 368 lbs
Fuel Capacity	14 Litres / 3.7 US gal

Yamaha YZF-R3The all-new YZF-R3 features a class-leading, fuel-injected 321cc engine, slim, ultra-light chassis and legendary Yamaha superbike styling for the ultimate 300cc sportbike...
The all-new R3 features class-leading performance and legendary Yamaha superbike styling.

Yamaha YZF-R3 Features and Benefits

ENGINE:

• Newly developed 321cc, liquid-cooled, in-line 2-cylinder DOHC, 4 valves per cylinder, fuel-injected engine delivers excellent power and performance throughout the powerband.
• With a compression ratio of 11.2:1 the engine develops maximum power at 10,750 rpm for an exciting ride.
• With a 180 degree crank design the machine provides a compact engine design and superior feeling when accelerating through the rpm range.
• Downdraft induction fuel injection provides easy starts and smooth performance in all conditions.
• Yamaha’s all-aluminum DiASil cylinder is used to ensure excellent heat dissipation and the unique design reduces horsepower loss.
• Forged aluminum pistons, same technology used for the R1 and R6 means lighter weight and excellent strength at higher temperatures while the offset cylinder helps reduce horsepower loss at the point of combustion.

CHASSIS/SUSPENSION:

• Newly designed steel frame and swingarm.
• Powerful 298mm floating mount front disc brake ensure excellent stopping power while a 220mm floating disc handles the braking performance on the back.
• 41mm KYB® front suspension offers 5.1 inches of travel for rider comfort and control.
• 10 spoke cast aluminum wheels are both strong and high in style while reducing unsprung weight.
• The multi-function meter informs the rider of gear position, fuel capacity, real time and average fuel economy, water temp, clock, two tripmeters and an oil change indicator light.

ADDITIONAL FEATURES:

• Legendary R-series styling and performance are inherent with the YZF-R3. Great styling matched to excellent engine performance and chassis design are the hallmarks of Yamaha’s R-series and YZF-R3 carries on the heritage with great results.
