YamahaYBR 125G Dual Sport

.

Make Model

Yamaha YBR 125G Dual Sport

Year

2010 -

Engine

Four stroke, single cylinder, SOHC, 2 valves

Capacity

124 cc / 7.6 cu-in
Bore x Stroke 54 x 54 mm
Cooling System Air cooled
Compression Ratio 10.0:1

Induction

Fuel infection

Ignition

CDI
Starting Electric

Max Power

10.1 hp / 7.4 kW @  7800 rrpm

Max Torque

10 Nm @  7400 rpm

Transmission

5 Speed
Final Drive Chain
Frame Steel double cradle

Front Suspension

Telescopic forks

Rear Suspension

Bottom link swingarm

Front Brakes

Single 245mm disc

Rear Brakes

Drum

Front Tyre

90/90-M21

Rear Tyre

90/90-M18
Rake 26°
Trail 90 mm / 3.5 in
Wheelbase 1290 mm / 51 in
Seat Height 780 mm / 31.0 in

Wet Weight

106 kg / 234 lbs

Fuel Capacity

12 Litres / 3.4 US gal

 Introduced in 2005, It comes in naked,[1] faired and 'custom'[2] variants. It has a single-cylinder, air-cooled, four-stroke engine, displacing 124 cc (7.6 cu in). Pre 2007 models use a carburetor system, with post 2007 models using a fuel injection system.

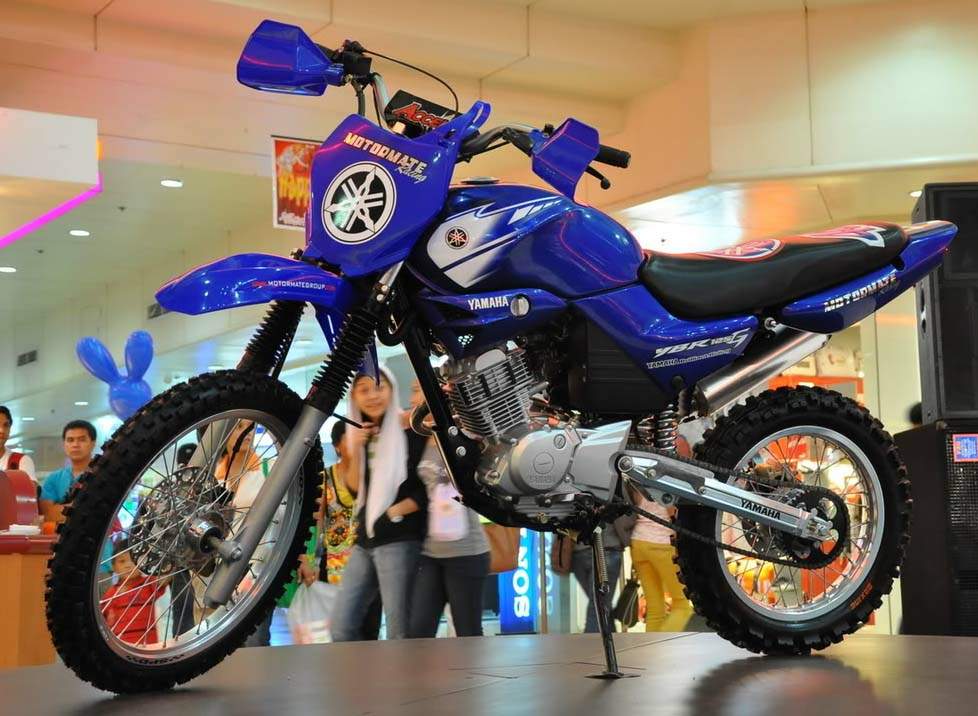

Around 2010, Yamaha introduced the dual sport version of the Yamaha YBR 125. The new model was named Yamaha YBR 125 G, and it featured several off-road improvements. These include: engine and hand guards, higher front fender, anti-collision fender for the head light and new block pattern tires.
