Make Model |

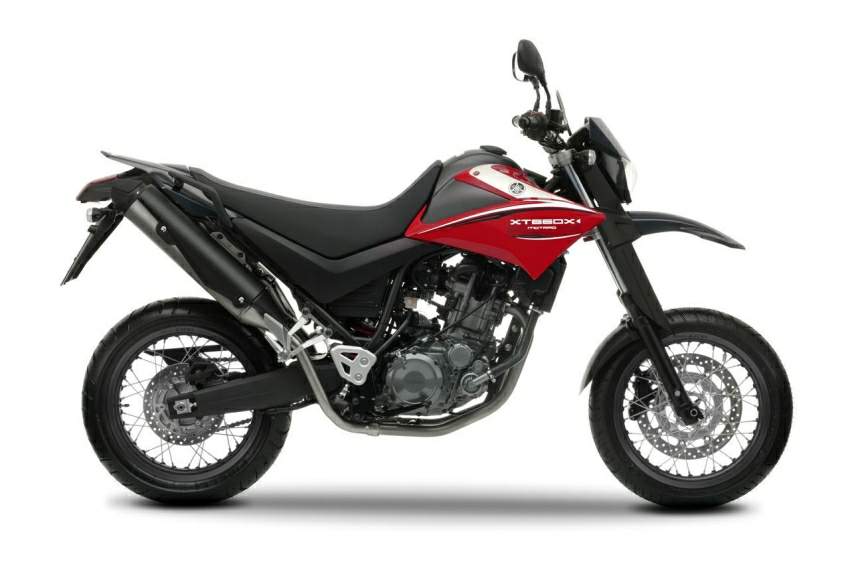

Yamaha XT 660X |
|
Year |
2010 |
|
Engine |
Four stroke, single cylinder, SOHC, 4 valve |
|
Capacity |
659 cc/ 40.2 cu-in |
| Bore x Stroke | 100 x 84 mm |
| Compression Ratio | 10: 1 |
| Cooling System | Liquid cooled |
|
Induction |
Fuel injection, 44 mm throttle body |
| Lubrication | Dry sump |
| Oil Capacity | 2.9 Litres / 0.19 quarts |
|
Ignition |
TCI |
| Starting | Electric |
|
Max Power |
33.8 kW / 48 hp @ 6000 rpm |
|
Max Torque |
58.4 Nm / 5.7 kgf-m @ 5250 rpm |
| Clutch | Wet, multiple-disc coil spring |
|
Transmission |
5 Speed |
| Final Drive | Chain |
| Frame | Steel tubular diamond frame with dual tank rails |
|
Front Suspension |
43 mm Telescopic forks, |
| Front Wheel Travel | 225 mm / 8.8 in |
|
Rear Suspension |
Oscillating arm standard Monocross. |
| Rear Wheel Travel | 200 mm / 7.9 in |
|
Front Brakes |
Single 320mm disc 4 piston caliper |
|
Rear Brakes |
Single 245mm disc 1 piston caliper |
|
Front Tyre |
120/700-17 |
|
Rear Tyre |
160/60-17 |
| Rake | 26.0° |
| Trail | 94 mm / 3.7 in |
| Dimensions |
Height 1170 mm / 461 in Length 2175 mm / 85.6 in Width: 860 mm / 33.9 in |
| Wheelbase | 1505 mm / 59.3 in |
| Ground Clearance | 210 mm / 8.3 in |
| Seat Height | 875mm / 34.4 in |
|
Dry Weight |
173 kg / 318.4 lbs |
| Wet Weight | 186 kg / 410.1 lbs |
|
Fuel Capacity |
15 Litres / 3.9 gal |
