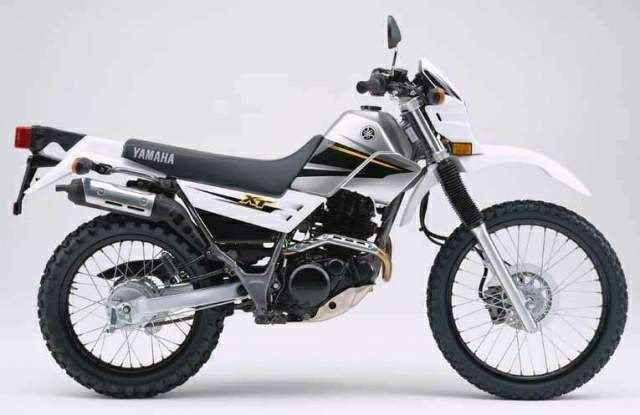

Yamaha XT 250

.

Make Model

Yamaha XT 250

Year

2000 - 03

Engine

Four stroke, single cylinder. SOHC, 2 valve

Capacity

249 cc / 15.2 cu-in
Bore x Stroke 74.0 x 58.0mm
Cooling System Air cooled
Compression Ratio 9.5;1

Induction

34mm Mikuni carburetor

Ignition

CDI
Starting Electric

Max Power

21 hp / 16.6 kW @ 6500 rpm

Max Torque

2.1 kgf-m / 15.1 lb-ft @ 6500 rpm
Clutch Wet, multiple discs, cable operated

Transmission

5 Speed
Final Drive Chain

Front Suspension

35mm Telescopic forks
Front Wheel Travel 216 mm / 8.9 in

Rear Suspension

Monocross, Swingarm rebound-adjustable single shock
Rear Wheel Travel 180 mm / 7.1 in

Front Brakes

Single 220mm disc

Rear Brakes

Single 110mm drum

Front Tyre

80/70-21

Rear Tyre

120/80-18
Rake 26.0°
Wheelbase 1359 mm / 53.5 in
Seat Height 810 mm / 31.9 in

Dry Weight

108 kg / 238 lbs

Fuel Capacity

9.8 Litres / 2.6 US gal
