Make Model |

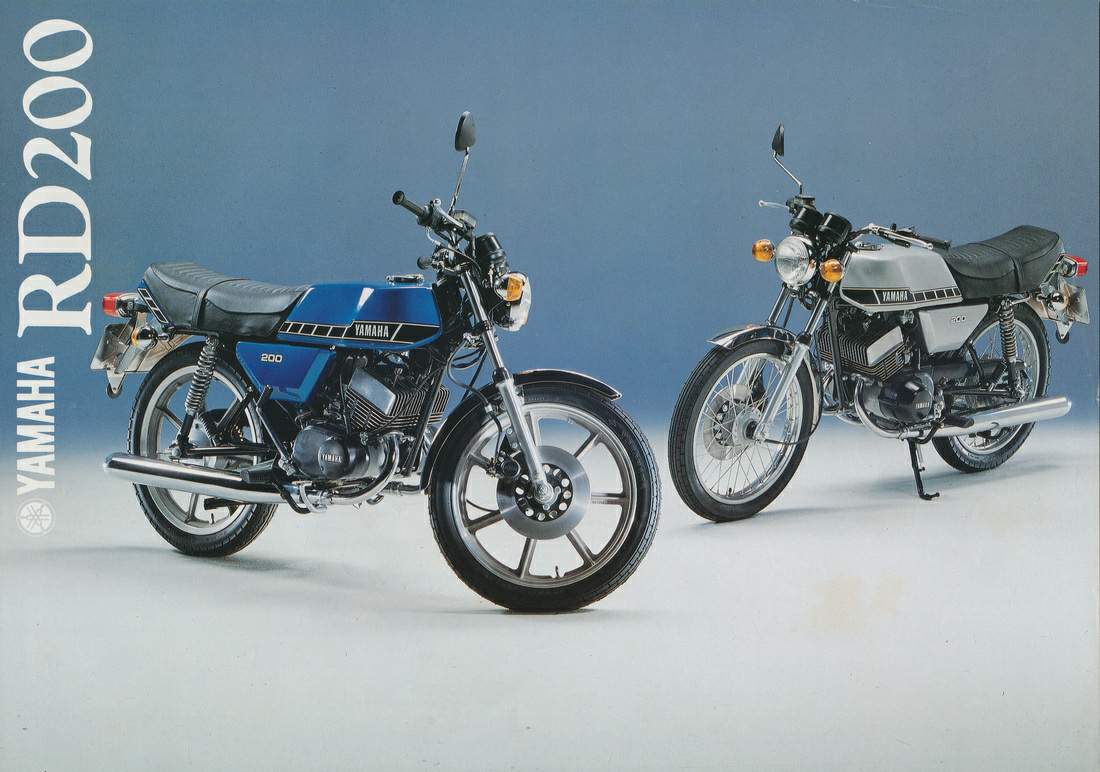

Yamaha RD 200 |
|
Year |
1977 - 78 |
|
Engine |
Two stroke, torque induction, parallel twin |
|
Capacity |
195 cc / 11.8 cu-in |
| Bore x Stroke | 52 х 46 mm |
| Cooling System | Air cooled |
| Compression Ratio | 7.1:1 |
| Lubrication | Autolube |
| Oil Capacity | 1.2 L |
|
Induction |
2x Y20P Carburetors |
|
Ignition |
Battery coil |
| Starting | Electric & Kick |
|
Max Power |
20 hp / 14.7 kW @ 8000 rpm |
|
Max Torque |
1.9 kgf-m / 8.6 Nm @ 7000 rpm |
| Clutch | Wet multi-plate |
|
Transmission |
5 Speed |
| Final Drive | Chain |
|
Front Suspension |
Telescopic forks |
|
Rear Suspension |
Dual shocks |
|
Front Brakes |
Single 245 mm disc |
|
Rear Brakes |
Drum |
|
Front Tyre |
2.75-18-4PR |
|
Rear Tyre |
3.25-18-4PR |
| Dimensions |
Length 1945 mm / 76.5 in Width 755 mm / 29.7 in Height 980 mm / 38.5 in |
| Wheelbase | 1240 mm / 48.8 in |
| Seat Height | 780 mm / 30.7 in |
| Ground Clearance | 155 mm / 6.1 in |
|
Wet Weight |
140.0 kg / 308.6 lbs |
|
Fuel Capacity |
11.5 Litres / 3.0 US gal |
