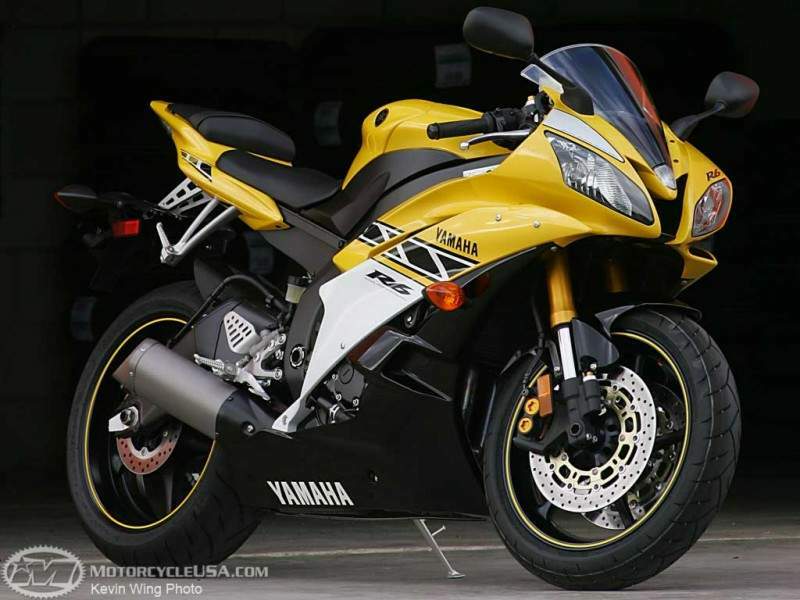

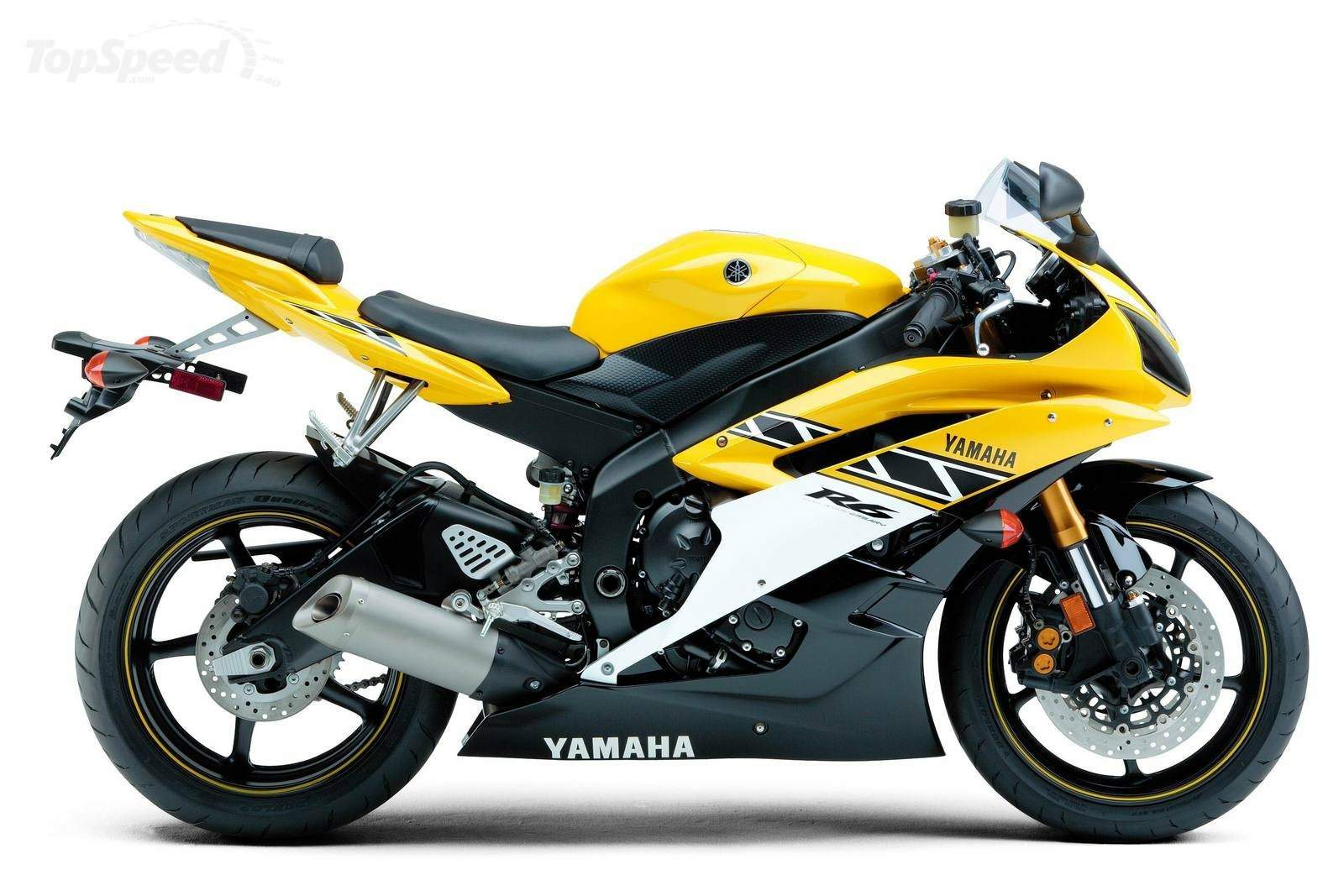

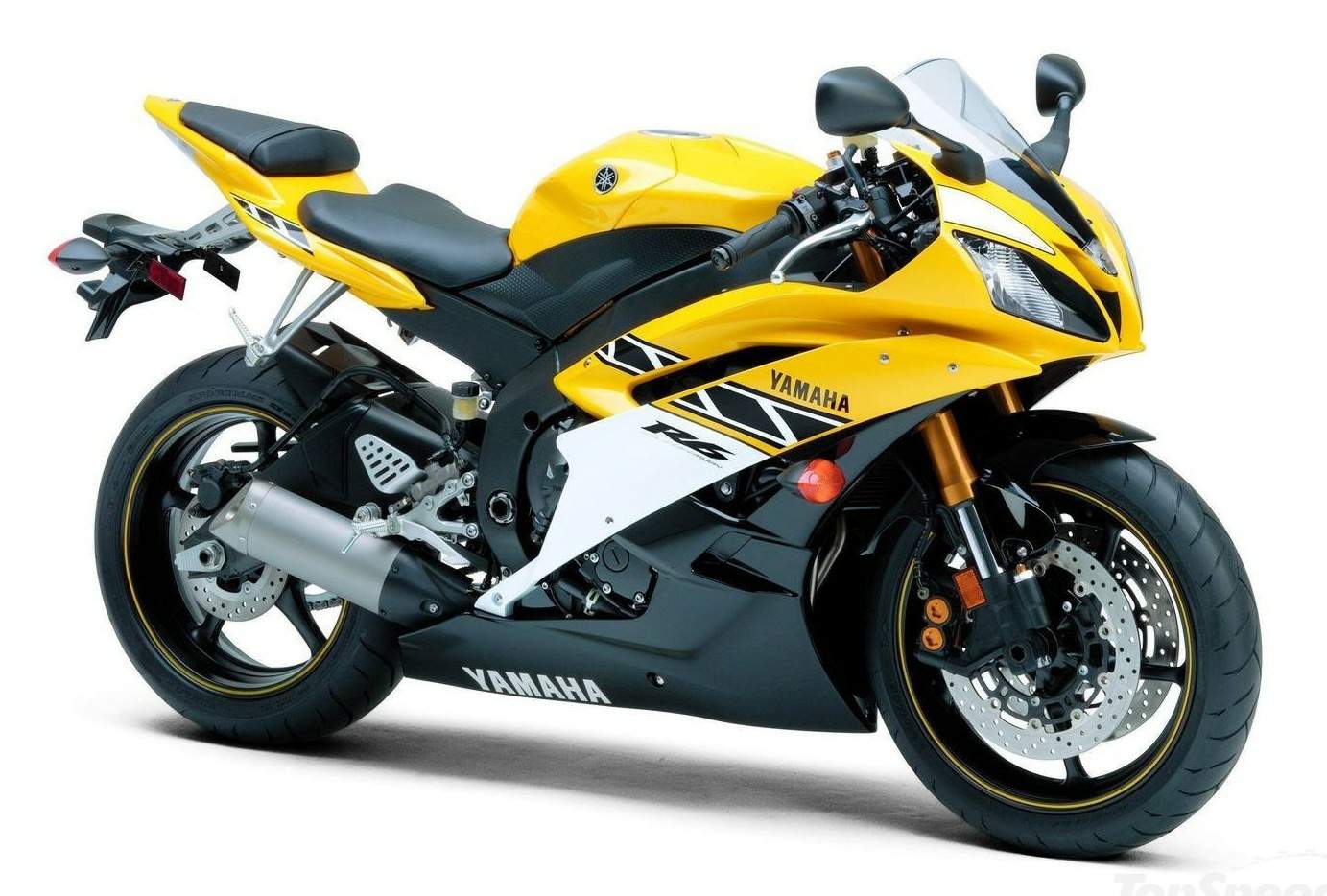

Yamaha YZF 600 R6 50th Anniversary

.

Make Model

Yamaha YZF 600 R6

Year

2006

Engine

Four stroke, transverse four cylinder, DOHC, 4 valves per cylinder

Capacity

599 cc / 36.5 cu-in
Bore x Stroke 67 x 42.5 mm
Compression Ratio 12.8:1
Cooling System Liquid cooled
Lubrication Wet sump

Induction

Fuel injection with YCCT (Yamaha Chip Controlled Throttle)

Ignition

TCI (Transistor Controlled Ignition)
Starting Electric

Max Power

125.3 hp / 93.4 kW @ @14500 rpm

Max Torque

59.4 Nm / 43.8 lb-ft @ 11500 rpm
Clutch Back torque-limiting slipper clutch

Transmission

6 Speed
Final Drive O-ring Chain
Frame Deltabox aluminium frame with revised rigidity balance

Front Suspension

41 mm inverted telescopic fork w/adjustable preload, separate high & low-speed compression damping, rebound damping
Front Wheel  Travel 120 mm / 4.7 in

Rear Suspension

Fully adjustable rear shock absorber with 2-way compression damping
Rear Wheel  Travel 120 mm / 4.7 in

Front Brakes

2x 310mm floating discs

Rear Brakes

Single 220mm disc

Front Tyre

120/70 ZR17

Rear Tyre

180/55 ZR17
Dimensions Length 2040 mm / 80.3 in
Width    700 mm / 27.6 in
Height 1090 mm / 42.9 in
Wheelbase 1380 mm /  53.4 in
Ground Clearance 130 mm / 5.1 in
Seat Height  850 mm / 33.5 in

Dry Weight

162 kg / 357 lbs  (single seat 161 kg)

Fuel Capacity

17 Litres / 4.5 gal

Standing ¼ Mile

11.1 sec

Top Speed

255.1 km/h
.

YZF-R6 50th Anniversary Edition - Middleweight Supersport Class Reinvented

The all new R6 is full of Yamaha-exclusive innovations and new technologies that make it the most advanced production motorcycle ever built.

An all new titanium valved four cylinder engine capable of an amazing 17,500rpm and controlled by the first fly by wire system on a production bike powers it. A MotoGP derived "straight frame" chassis houses it - and Formula 1 style aerodynamics and a titanium MotoGP style exhaust are just two of the things that complete it. In celebration of Yamaha's 50 years in the motorsports business, we have dressed this limited availability 50Th anniversary model in our famous yellow & black paint scheme. The R6 is not intended for novice or inexperienced riders.



Features:



YCC-T : Yamaha - exclusive Electronic Throttle Control - industry first on a production motorcycle

Titanium "mid ship" muffler with EXUP

Back torque limiting slipper clutch

Inverted fork with 2-way compression damping adjustment

Single shock rear suspension with 2-way compression damping adjustment

Dual 310mm floating front discs squeezed by radial mounted 4-piston calipers

Ride Review

The days when we dreamt that a stock, super sport 600 might break 100 wheel horsepower are not so far behind us, but the R6 takes us into a new era. With a fully believable 133 horsepower delivered at 14,500 rpm (including RAM air effect -- at the crank), this new R6 should deliver rear wheel horsepower equivalent to the healthiest stock 750cc machine available just a few years ago.

The new R6 features an extremely over-square engine, with a bore of 67mm and a stroke of 42.5mm. The compression ratio is high for a street-legal machine at 12.8 to 1. This 599cc DOHC 16-valve (titanium valves) engine transfers power to the rear wheel through a six-speed transmission aided by a slipper clutch.

The 41mm inverted fork is adjustable for preload, both high and low speed compression damping and rebound damping, while the rear shock also features preload, high and low speed compression adjustment and rebound adjustment.

At a claimed dry weight of 357 pounds, Yamaha brings the R6 to a halt with two 310mm floating discs up front gripped by radial mount, forged four-piston calipers. A single 220mm disc brake resides out back.

Frame geometry is aggressive with a wheel base of 54.3 inches, a rake of 24 degrees and trail of 3.8 inches.

When you first sit on the new R6, you notice a fairly radical "rider triangle". The ergonomics are clearly those of a sport bike/racer. Wind protection is clearly designed to be available primarily while the rider assumes a race tuck.

Instrumentation includes programmable shift light, digital speedometer, analog tachometer, dual tripmeters with miles-on-reserve function, odometer, water temperature guage and lights for neutral, high beam, low fuel and turn signals.



Once underway, the new R6 handles superbly. Yamaha's great efforts to centralize mass coupled with the new suspension (which, as stated, features both low-speed and high-speed compression adjustment at both ends) and all-new frame result in handling characteristics that allow the R6 to turn in more quickly, steer more precisely, and remain more stable than its predecessor. A brilliant combination.

The new R6 simply felt like it was on rails circulating the Qatar track, while remaining stable and precise even under hard braking entering corners and hard acceleration exiting them.

A slight wiggle from the bars was felt exiting some corners, but nothing unusual, and nothing that dedicated racers would not automatically deal with by installing an after-market steering damper. Corner entry is obviously improved by the addition of the slipper clutch this year, it keeps the rear wheel from decelerating too quickly or suddenly while downshifting, allowing a smoother and more controlled entry to the corner. Although the feel provided by the new-for-2006, drive-by-wire throttle is a bit odd at first, I was able to adapt rather quickly.

The acceleration produced by the new R6 on the long straight at Qatar is clearly impressive -- pulling very hard from 11,000 rpm through the peak horsepower at 14,500 rpm and still pulling with authority before flattening out at 17,000 rpm. A very broad spread of serious thrust. Although a high revving motor, the power is delivered smoothly and seamlessly, which was an important goal of the Yamaha engineers.

Yamaha's prior-generation R6 was a very capable machine. The new R6 is a large leap forward, however, with more power, more precise handling, and more stability. The addition of a slipper clutch and the drive-by-wire throttle are a step forward technologically. This was a track test, but it appears the R6 has moved more toward the race track, and away from practical, everyday street use. Perhaps this is why Yamaha now produces three separate 600s (and has left last year's R6 in the line-up at a lower price). On the street, the new R6 will surely be a scalpel in a world populated largely by blunt knives and hammers. If you are a surgeon, this could be the right tool.

Source Motorcycle Daily
