Yamaha FZ1 N Abarth Assetto Corse

Make Model	Yamaha FZ-1 N Abarth Assetto Corse
Year	2009
Engine	Four stroke, transverse four cylinder, DOHC, 5 valve per cylinder
Capacity	998 cc / 60.9 cu-in
Bore x Stroke	77 X 53.6 mm
Cooling System	Liquid cooled
Compression Ratio	11.5:1
Lubrication	Wet sump
Engine Oil	Synthetic, 20W/40
Induction	Fuel injection
Ignition	Digital TCI: Transistor Controlled Ignition with 32-bit ECU
Spark Plug	NGK, CR9EK
Starting	Electric
Max Power	146.84 hp / 108 kW @ 11000 rpm
Max Torque	106 Nm /10.5 kgf-m / 76.7 ft-lb @ 8000 rpm
Clutch	Wet, multiple discs, hydraulic operated
Transmission	6 Speed
Final Drive	O-ring chain
Frame	Aluminium die-cast, diamond shaped
Front Suspension	Telescopic upside forks,
Rear Wheel Travel	130 mm / 5.1 in
Rear Suspension	Link-type swingarm,
Rear Wheel Travel	130 mm / 5.1 in
Front Brakes	2x 320mm discs 4 piston calipers
Rear Brakes	Single 245mm disc 1 piston caliper
Front Tyre	120/70 ZR17
Rear Tyre	190/50 ZR17
Rake	25.0°
Trail	109 mm / 4.3 in
Dimensions	Height 1204 mm / 47.4 in Length 2141 mm / 84.3 in Width 770 mm / 30.3 in
Wheelbase	1461 mm / 57.5 in
Ground Clearance	135 mm / 5.3 in
Seat Height	815 mm / 32.1 in
Dry Weight	198 kg / 436.5 lbs
Wet Weight	221 kg / 487 lbs
Fuel Capacity	18 Liters / 4.76 US gal
Standing ¼ Mile	11.1 sec
Top Speed	246.1 km/h

Karl Abarth was born in Viena on the 15th of November 1908 and moved to Italy in 1931 where he became an auto designer and five-time European motorcycling champion.

He also established Abarth & C. in 1949 where he manufactured racing cars and performance exhaust systems, some of them being present on the market to this day, the best way to distinguish an Abarth product being the scorpion logo his birth sign.

Tuning and racing with motorcycles were young Carlos career choices, and in 1930 he made his first motorcycle under aBarth name. An accident during a race in Linz, however, forced him to stop with the solo racing.

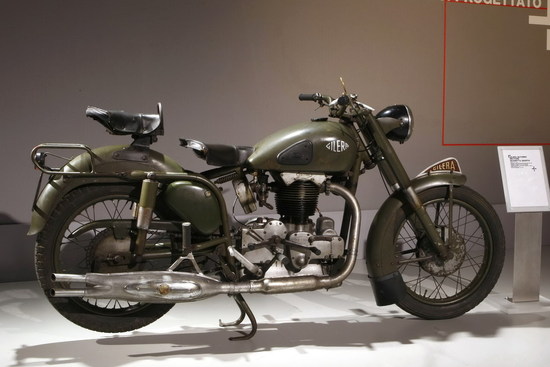

Gilera Saturno from1953 with Abarth exhaust

Given the tight connection between Abarth and Fiat, who bought Abarth & C. in 1971, and also the successful collaboration between Fiat and Yamaha, the celebration of 100 years from the birth of the great designer is made through a special edition FZ1 Abarth Assetto Corse.

Yamaha Italy has presented the FZ1 within a special exhibit dedicated to Karl Abarth and the bike stands out due to the Öhlins suspensions package, Marchesini rims and sleek tires, Brembo brakes, Akrapovic titan exhaust system as well as the multitude of Rizoma pieces. Also, the Red and White color scheme and Abarth style graphics enhance the performance look of this naked, leaving us wondering if it is ever going to be produced in a limited edition as the bike in the pictures is only a prototype.
