Yamaha FZ-1 Fazer TE

.

Make Model

Yamaha FZ-1 Fazer TE

Year

2007

Engine

Four stroke, transverse four cylinder, DOHC, 5 valve per cylinder

Capacity

998 cc / 60.9 ci-in
Bore x Stroke 77 X 53.6 mm
Cooling System Liquid cooled
Compression Ratio 11.5:1
Lubrication Wet sump
Engine Oil Synthetic, 20W/40

Induction

Fuel injection

Ignition

Digital TCI: Transistor Controlled Ignition with 32-bit ECU
Spark Plug NGK, CR9EK
Starting Electric

Max Power

146.8 hp / 108 kW @ 11000 rpm

Max Torque

106 Nm /10.5 kgf-m / 76.7 ft-lb @ 8000 rpm
Clutch Wet, multiple discs, hydraulic operated

Transmission

6 Speed
Final Drive O-ring chain
Frame Aluminium die-cast, diamond shaped

Front Suspension

Telescopic upside forks,
Front Wheel Travel 130 mm / 5.1 in
Rear Suspension Link-type swingarm,
Rear Wheel Travel 130 mm / 5.1 in
Front Brakes 2x 320mm discs 4 piston calipers

Rear Brakes

Single 245mm disc 1 piston caliper

Front Tyre

120/70 ZR17

Rear Tyre

190/50 ZR17
Rake 25.0°
Trail 109 mm / 4.3 in
Dimensions Height  1204 mm / 47.4 in
Length  2141 mm / 84.3 in
Width  770 mm / 30.3 in
Wheelbase 1461 mm / 57.5 in
Ground Clearance 135 mm / 5.3 in
Seat Height 815 mm / 32.1 in
Dry Weight 198 kg / 436.5 lbs

Wet Weight

221 kg  /  487 lbs

Fuel Capacity

18 Litres / 4.76 gal

Standing ¼ Mile

11.1 sec

Consumption Average 13.4 km/lit

Top Speed

246.1  km/h

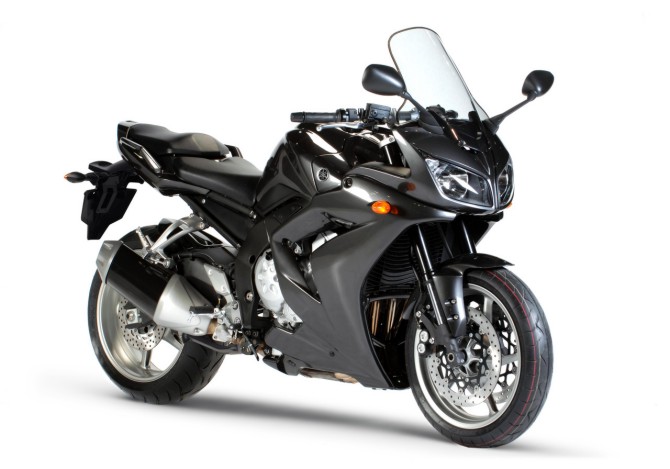

Yamaha FZ1 TE is an dress up bike from the standard Yamaha FZ1. It comes with full cowling, extended windscreen, side cases, and corresponding mounting and locking kit. It was clearly that Yamaha FZ1 TE was designed for long road trips as sport tourer. But it is good for everyday using too.

Yamaha FZ1 TE is powered by a liquid cooled 998cc with 3rd generation fuel-injection based on the previous generation Yamaha racing R1. With 10.8kgf-m (78.2 ft-lb) @ 8,000 rpm of torque is more than enough to move rear 190/50 ZR17 wheel via 6-speed transmission and durable “O”-ring-sealed drive chain. Riding on Yamaha FZ1 TE is comfortable with adjustable suspensions. While 51% front and 49 % rear weight balance is more than enoughto say the amazing handling. Braking also nice with adjustable 5-position front brake lever.
