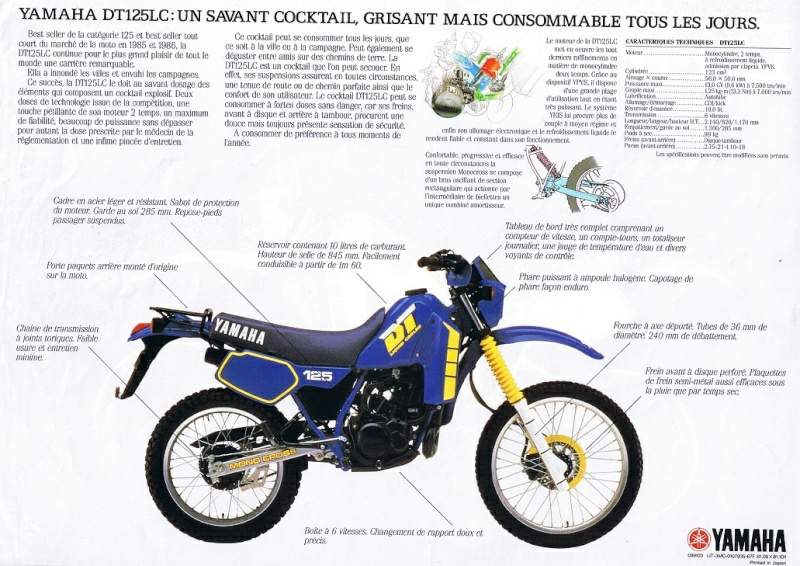

Yamaha DT 125

.

Make Model

Yamaha DT 125LC

Year

1985

Engine

Two stroke, single cylinder, reed-valve

Capacity

123 cc / 7.5 cu-in
Bore x Stroke 56 х 50 mm
Cooling System Liquid cooled
Compression Ratio 6.8:1
Lubrication Autolube
Oil Capacity  1.2 Litres

Induction

Single 24 mm Mikuni VM26SS carburetor

Ignition

CDI
Starting Kick

Max Power

14 hp / 10.3 kW @ 6500 rpm

Max Torque

1.5 kgf-m / 15.2 Nm @ 6500 rpm
Clutch Wet multiplate

Transmission

6 speed
Final Drive Chain

Front Suspension

Telescopic Forks

Rear Suspension

Monocross

Front Brakes

Single 230mm disc

Rear Brakes

Single 220mm disc

Front Tyre

2.75-21

Rear Tyre

4.10-18
Dimensions

Length 2140 mm / 84.2 in

Width    820 mm / 32.2 in

Height  1170 mm / 46.0 in

Wheelbase 1360 mm / 53.5 in
Seat Height 845 mm / 33.2 in
Ground Clearance 285 mm / 11.0 in

Dry Weight

99 kg / 218 lbs
Wet Weight 108.0 kg / 238.1 lbs

Fuel Capacity

10 Litres / 2.2 gal

Consumption Average

79 mpg

Standing ¼ Mile

19.9 sec

Top Speed

74 mph
