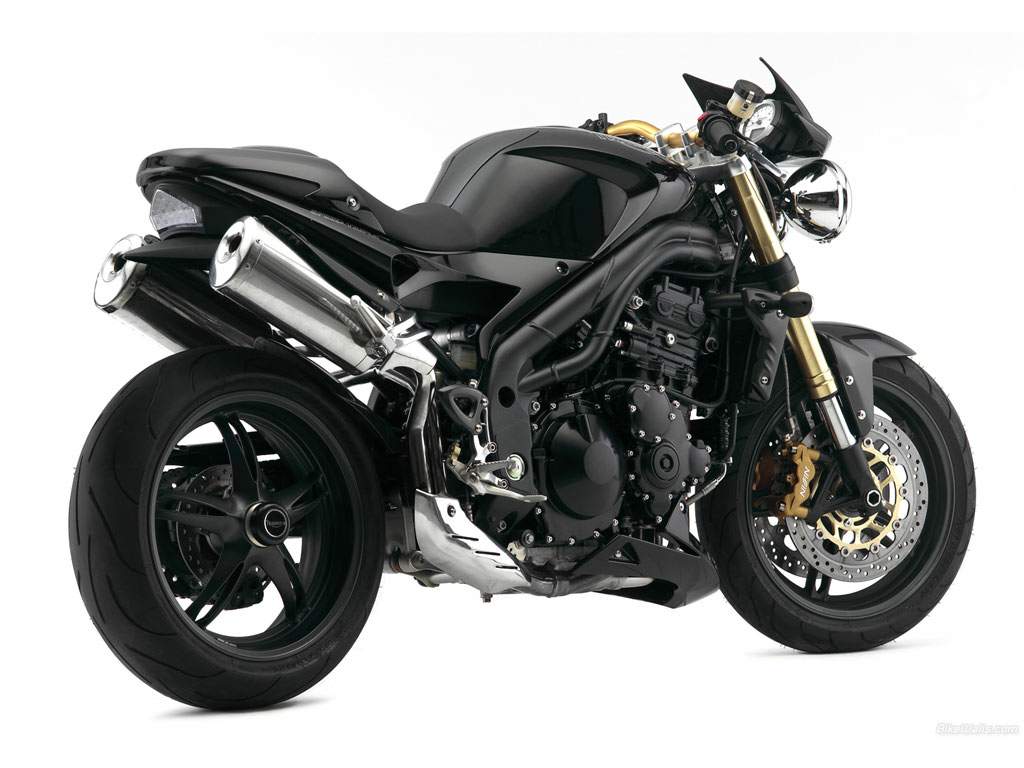

Triumph Speed Triple Carbon Edition

Make Model	Triumph Speed Triple Carbon Edition
Year	2007
Engine	Four stroke, transverse three cylinder. DOHC, 4 valves per cylinder
Capacity	1050 cc / 64.07 cu-in
Bore x Stroke	79 x 71.4 mm
Cooling System	Liquid-cooled
Compression Ratio	12.0:1
Lubrication	Wet sump
Engine Oil	10W/40 Synthetic
Induction	Multipoint sequential electronic fuel injection
Ignition	Digital inductive type
Spark Plug	NGK, CR9EK
Starting	Electric
Max Power	94.9 Nm / 131 hp @ 9100 rpm
Max Torque	105 Nm / 10.7 kgf-m / 78 ft-lb @ 5100 rpm
Clutch	Wet, multi-plate
Transmission	6 Speed
Final Drive	Chain
Frame	Tubular, fabricated aluminum alloy, perimeter
Front Suspension	Showa 45 mm upside down forks with dual rate springs and adjustable preload, compression and rebound damping
Front Wheel Travel	120 mm / 4.7
Rear Suspension	Showa monoshock with adjustable preload, compression and rebound damping
Rear Wheel Travel	140 mm / 5.7 in
Front Brakes	2 x 320 mm Discs, 4 piston calipers, Brembo
Rear Brakes	Single 220 mm disc, 2 piston caliper, Brembo
Front Tyre	120/70 ZR17
Rear Tyre	190/50 ZR17
Rake	24°
Trail	84 mm / 3.3 in
Dimensions	Length 2115 mm / 83.3 in Width 780 mm / 30.7 in Height 1250 mm / 49.2 in
Wheelbase	1429 mm / 56.3 in
Seat Height	815 mm / 32.1 in
Dry Weight	189 kg / 416.7 lbs
Fuel Capacity	18 Litres / 4.89 gal
Standing ¼ Mile	11.8 sec
Top Speed	248.7 km/h / 154.5 in
Reviews	Cycle World

Triumph Street Triple Carbon Edition

Like the Street Triple R, but even more harder and rarer. Triumph are pleased to introduce a new edition to their current range in the form of the Speed Triple Carbon Limited Edition model. Dominating the class for over a decade the Speed Triple is the ulimate, hard as nails streetfighter. Minimalist the styling may be, but when it comes to specification maximum is a better description.

At the heart is a 1050cc triple engine delivering 130 bhp, while twin Brembo 4-piston 4-pad radial calipers, fully adjustable black anodised Showa USD forks and fully adjustable Showa monoshock rear suspension completes the sports bike spec. Available only in Matt Black this limited addition features a carbon flyscreen, seat cowl, infil panels, heat shield, front mudguard and sprocket cover, plus black chunky handlebars and anodised mirrors.
