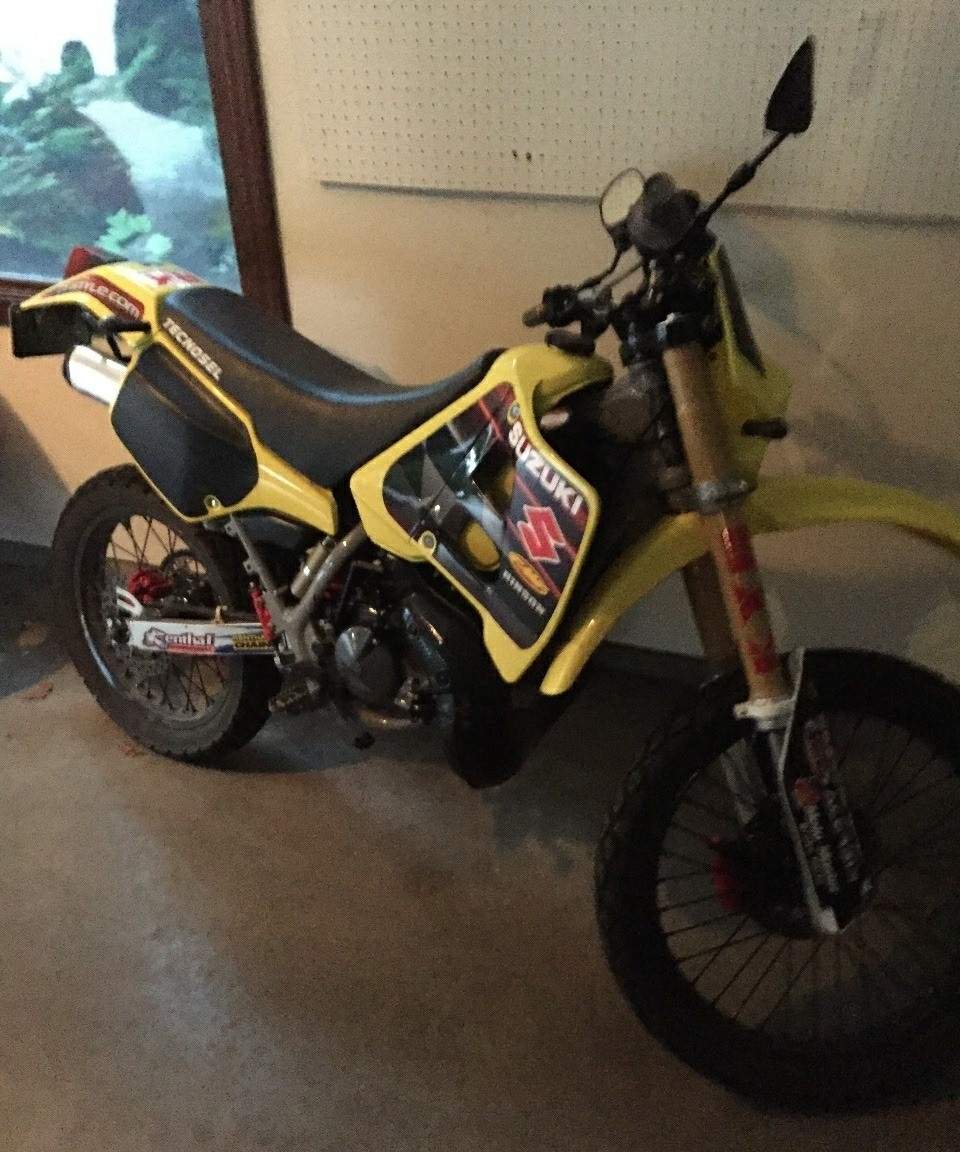

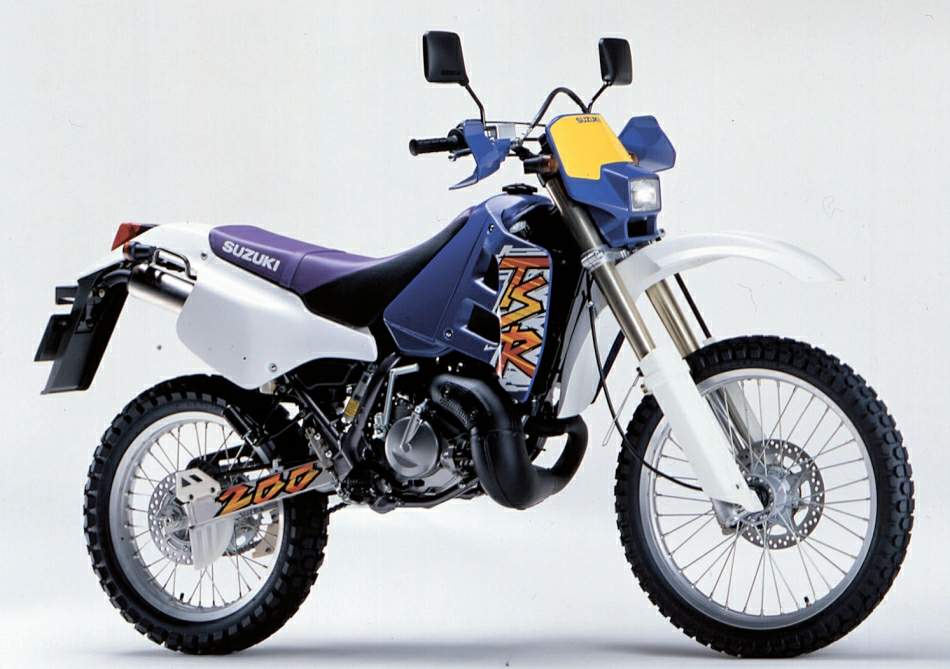

Suzuki TS 200R

.

Make Model

Suzuki TS 200R

Year

1996

Engine

Two stroke, single cylinder, reed valve

Capacity

195 cc / 11.9 cu in
Bore x Stroke 66 х 57 mm
Compression Ratio 8.5:1
Cooling System Liquid cooled
Lubrication System Suzuki CCI

Induction

Mikuni TM30SS

Ignition

Suzuki PEI (CDI)

Starting

Kick

Spark plug

NGK, BR9ES or ND W27ESR

Battery

12V, 3Ah

Max Power

26.1 kW / 35 hp @ 8500 rpm

Max Torque

29.4 Nm / 3 kgf-m / 21.7 lb-ft @ 7500 rpm

Clutch

Wet, cable operated

Transmission

6-Speed, constant mesh

Final Drive

Chain, TAKASAGO RK520SO, 106 links

Primary Reduction

3.350 (67/20)
Gear Ratios 1st 2.636 (29/11) / 2nd 1.857 (26/14) / 3rd 1.400 (21/15) / 4th 1.095 (23/21) / 5th 0.916 ( 22/24) / 6th 0.800 (20/25)

Frame

Steel, single cradle

Front Suspension

Telescopic fork, coil spring, oil damped

Front Wheel Travel

270 mm / 10.6 in

Rear Suspension

Swingarm, monoshock, gas/oil damped, damping force adjustable, spring freeway adjustable

Rear Wheel Travel

270 mm / 10.6 in

Front Brakes

Single disc

Rear Brakes

Single disc

Front Wheel

3.00-21

Rear Wheel

4.60-18

Front Tyre

80/100-21 51P

Rear Tyre

110/90-18 61P

Steering Angle

43o (left and right)

Caster

62o 30'

Trail

117 mm / 4.6 in

Dimensions

Length: 2185 mm / 86.0 in
Width:     880 mm / 34.6 in
Height:  1245 mm / 49.0 in

Wheelbase

1425 mm / 56.1 in

Ground Clearance

320 mm / 12.6 in

Seat Height

880 mm / 34.6 in

Turning Radius

2.3 m / 7.5 ft

Dry Weight

115 kg / 253 lbs

Engine Oil Capacity

1.2 L / 1.3 US qt / 1.1 Imp qt

Transmission Oil Capacity

950 ml / 1.00 US qt / 0.84 Imp qt

Fuel Capacity

9.5 L / 2.5 US gal / 2.1 Imp gal

Fuel Reserve

1.4 L / 0.4 US gal / 0.3 Imp gal
