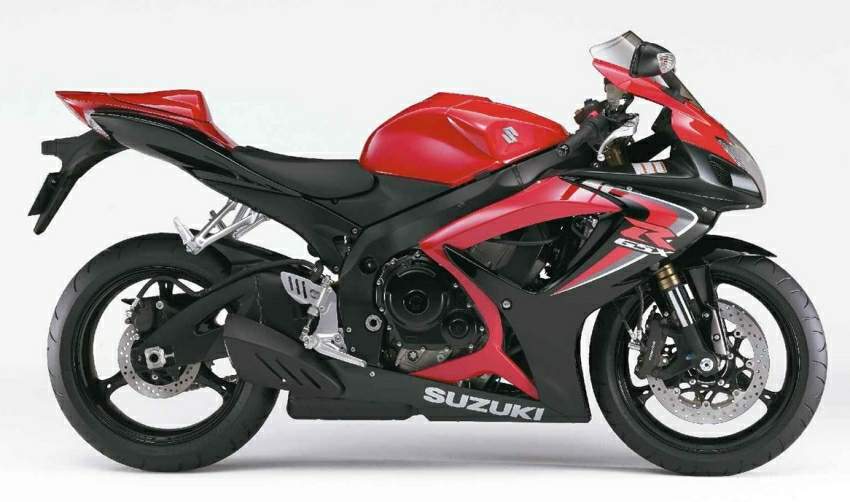

Suzuki GSX-R 600

.

Make Model

Suzuki GSX-R 600

Year

2006

Engine

Four stroke, transverse four cylinder, DOHC, 4 valves per cylinder

Capacity

599 c / 36.6 cub. in.

Bore x Stroke

67.0 x 42.5 mm

Compression Ratio

12.5:1

Cooling System

Liquid cooled

Oil

10W40

Lubrication

Wet sump

Induction

Fuel injection, Four 41 mm in, 38 mm out throttle bodies, 2 valves per body

Ignition

Digital transistorised

Spark Plug

NGK CR9E

Starting

Electric

Max Power

92.5 kW / 124 hp @ 13000 rpm with maximum RAM air

Max Torque

69.6 Nm / 7.1 kgf-m / 51.3 ft-lb @ 10800 rpm, RAM air

Clutch

Wet, multiple discs, cable operated

Transmission

6 Speed, constant mesch
Final Drive #525 Chain
Frame Aluminium, twin spar extrusion frame
Rake 23.25°
Trail 93 mm / 3.7 in

Front Suspension

Telescopic, fully adjustable spring preload, rebound and compression damping, 45 mm, Showa.

Rear Suspension

Monoshock, fully adjustable spring preload, rebound and compression damping, 46 mm, Showa

Front Wheel Travel

125 mm / 4.9 in.

Rear Wheel Travel

130 mm / 5.1 in.

Front Brakes

2 x 310 mm Discs, 4 piston calipers

Rear Brakes

Single 220 mm disc, 2 piston caliper

Wheels

Alloy, 3 spoke

Front Tyre

120/70 ZR17

Rear Tyre

180/55 ZR17
Wheelbase 1390 mm / 54.7 in.

Dimensions

Length  2075mm / 81.7 in.

Width      715 mm / 28.1 in.

Height   1145 mm / 45.1 in.

Seat Height 825 mm / 32.5 in.
Ground clearance 128 mm / 5.0 in.

Dry Weight

161kg / 355 lbs

Wet Weight

193kg / 425 lbs

Fuel Capacity

17 Litres / 4.5 US gal / 3.7 Imp gal

Average Fuel Consumption

5.6 L/100 km / 18 km/l / 42 US mpg / 50 Imp mpg

Standing ¼ mile

11.2 sec

Top Speed

255 km/h / 158 mph

Colours

Blue/White, Red/Black

All new ultra-compact and lightweight 4-stroke, 4-cylinder, liquid-cooled engine designed to be narrower and lighter with increased performance and responsiveness.

Improved electronic fuel injection system features Suzuki Dual Throttle Valve (SDTV) system - with dual fuel injectors per cylinder for smooth throttle response and high torque output.

New cylinder head features titanium intake valves and exhaust valves utilizing a narrow valve angle for a compact combustion chamber and a 12.5:1 compression ratio

Forged aluminum-alloy pistons feature short skirts with cutaway sides. New reshaped stronger chrome moly steel connecting rods are shotpeened to improve strength.

Valve bucket diameters are increased to work with more aggressive camshaft specifications.
The crankshaft and transmission shaft positions are revised to make the crankcases more compact front to rear and the engine has been rotated forward in the chassis for maximum performance.

Ventilation holes located between the cylinder bores are now larger measuring 39mm for reduced internal pumping pressure and reduced mechanical losses.
New larger trapezoidal shaped radiator increases cooling capacity without increasing frontal area, plus compact cooling fan design further improves efficiency.

A new back torque limiting clutch helps make quick downshifts smoother working in conjunction with an six speed transmission with updated internal gear ratios and redesigned shift forks providing better acceleration and superb shifting performance.
All new stainless steel Suzuki Advanced Exhaust System utilizing an innovative under engine layout for optimum aerodynamics and improved mass centralization.
Suzuki Exhaust Tuning system is built into the mid-pipe using a servo-controlled butterfly valve to tune the exhaust system to match engine rpm and improving low end torque.


New forged steel crankshaft features increased inertia by 16% to optimize traction while cornering.

New Chassis

All new aluminum-alloy frame utilizing five cast sections is engineered to deliver the ideal balance of rigidity for improved handling and less weight.
New aluminum alloy swingarm is more rigid with a larger 25mm swingarm pivot and the swingarm assembly is 38mm longer for improved suspension feedback and rear wheel traction.
New rear suspension linkage features a forged aluminum alloy link and one piece forged aluminum alloy link rod designed to increase traction and reduce side loads.
Inverted 41mm Showa front forks are fully adjustable for rebound, compression and preload settings with updated rake and trail dimensions for improved cornering performance.
Showa rear shock utilizes a 46mm piston and a larger 16mm rod and is completely adjustable for rebound, compression and preload.

Bridgestone tires mounted on new cast aluminum wheels featuring thinner spokes are optimized to reduce unsprung weight.
Radial mount four piston front brake calipers with larger 310mm rotors and a new lightweight single piston rear brake caliper
New adjustable footpegs can be moved into three different positions with a 14mm horizontal and vertical range
More compact overall chassis dimensions including a shorter fuel tank, narrower width, lower seat height and shorter overall height for improved rider comfort and mobility.
The compact lightweight instrument cluster features a step motor controlled analog tach, LCD speedometer, dual tripmeters, clock, fuel reserve and all new gear position indicator
