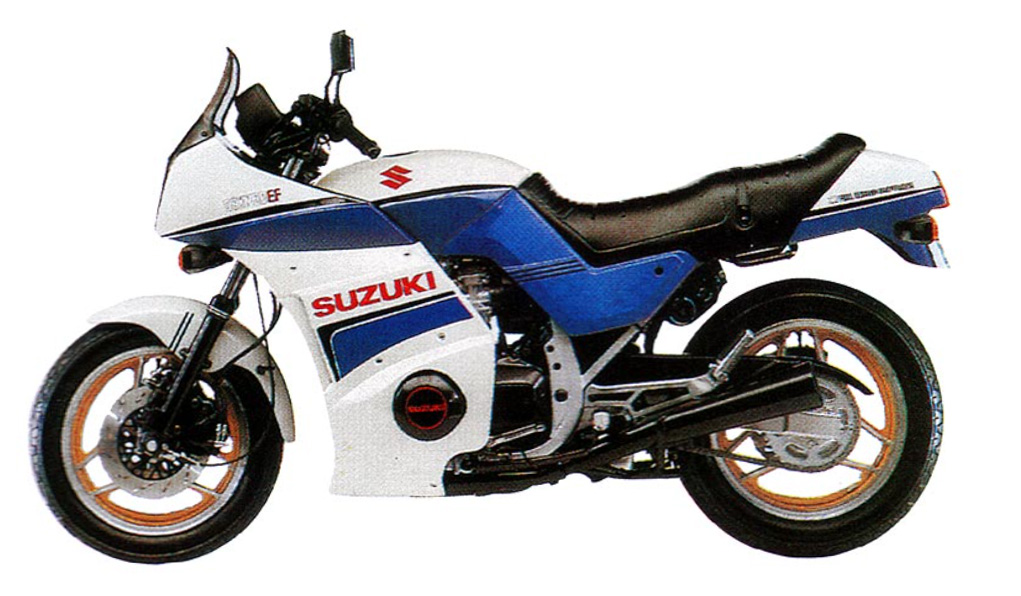

Suzuki GSX 750ES

.

Make Model

Suzuki GSX 750ES

Year

1985

Engine

Four stroke, transverse four cylinders, DOHC, 4 valve per cylinder.

Capacity

747 cc / 45.5 cu-in
Bore x Stroke 67 x 53 mm
Cooled System Air/Oil cooled
Compression Ratio 9.6:1
Lubrication Wet sump

Induction

4 x Mikuni 32 mm carburetors

Ignition

Transistorized
Headlight type 55/60W H4 halogen
Starting Electric

Max Power

69.2 kW / 86 hp @ 9500 rpm

Max Torque

68 Nm / 6.9 kgf-m / 50.2 lb-ft @ 8500 rpm
Clutch Wet multiple plates, coil spring

Transmission

5 Speed
Final Drive #530 Chain
Primary Drive Ratio 1.895 :1
Final Drive Ratio 3.071 :1
Gear Ratio 1st 2.50 / 2nd 1.75 / 3rd 1.37 / 4th 1.13 / 5th 0.96
Frame Steel pipe and profile cradle

Front Suspension

Telescopic fork, preload adjustable and hydraulic anti-dive.
Front Wheel Travel 150 mm / 5.9 in

Rear Suspension

Full floater, preload and 4-way rebound damping adjustable.
Rear Wheel Travel 107 mm / 4.2 in

Front Brakes

2 x 275mm Discs, 2 piston calipers

Rear Brakes

Single 255mm disc, 1 piston caliper
Front Wheel Cast alloy wheel, 2.15 x 16
Rear Wheel Cast alloy wheel, 2.50 x 17

Front Tyre

100/90-16, Bridgestone L303

Rear Tyre

120/90-17, Bridgestone G514
Rake 27.8°
Trail 105 mm / 4.13 in
Dimensions Length: 2 155 mm / 84.8 in
Width:      765 mm / 30.1 in
Height:  1 260 mm / 49.6 in
Wheelbase 1480 mm / 58.3 in
Seat Height 780 mm / 30. in
Ground Clearance 155 mm / 6.1 in

Dry Weight

210 kg / 462 lbs

Fuel Capacity

19.5 Litres / 5.1 US gal / 4.3 Imp gal

Consumption Average

4.9 L/100 km / 20.4km/l / 48 US mpg / 57.6 Imp mpg

Standing ¼ Mile

12.0 sec / 174 km/h / 108 mph

Top Speed

217.2 km/h / 135 mph
