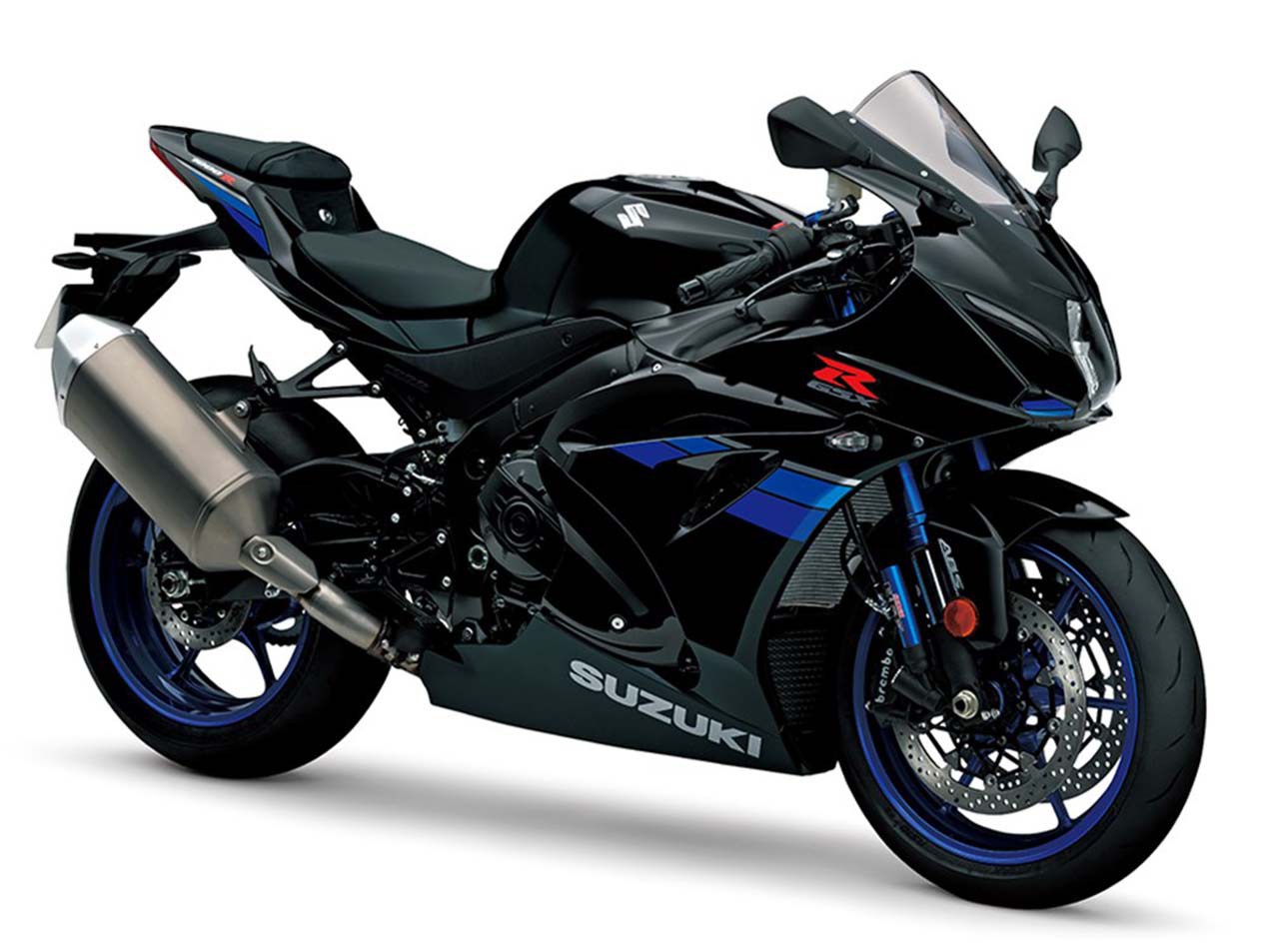

Suzuki GSX-R 1000R

.

Make Model

Suzuki GSX-R 1000R

Year

2017

Engine

Four stroke, transverse four cylinder, DOHC, 4 valves per cylinder, TSCC

Capacity

998.6 cc / 60.9 cub. in
Bore x Stroke 76.0 x 55.1 mm
Compression Ratio 13.2:1
Cooling System Liquid cooled
Lubrication Wet sump

Exhaust

Titanium

Induction

Fuel Injection

Ignition

Electronic ignition Transistorized

Starting

Electric

Max Power

148.6 kW / 199.2 hp @ 13200rpm

Max Torque

117.6 Nm / 86.7 lb-ft @ 10800rpm
Clutch Hydraulically-actuated multiplate wet clutch.

Transmission

6 Speed, constant mesh
Final Drive Chain, DID50VAZ, 114 links
Frame Aluminum

Front Suspension

IInverted telescopic, coil spring, oil damped

Rear Suspension

Link type, coil spring, oil damped

Front Brakes

2 x 320mm Discs radial mount Brembo 4-piston calipers

Rear Brakes

Single 220mm disc, Nissin, 1-piston

Front Tyre

120/70ZR17M/C (58W) tubeless

Rear Tyre

190/50 ZR17 M/C (73W), tubeless

Rake

23.2°
Trail 94 mm / 3.7 in

Dimensions

Length 2075mm / 81.7in
Width 710mm / 28 in
Height 1150mm / 45.3 in
Wheelbase 1410mm / 55.5 in
Seat Height 825 mm / 32.5 in.
Ground Clearance 130 mm / 5.1 in

Wet Weight

203.0kg / 447.5lbs

Fuel Capacity

16 Litres / 3.5 US gal
.

It has been three decades, with more than a million editions sold, since the GSX-R line was born. And a decade and a half has elapsed since the first GSX-R1000 transformed the open sportbike class forever. Now, the 2017 GSX-R1000R is redefining what it means to be The King of Sportbikes.

This motorcycle’s chassis forms the lightest, the most compact, the most aerodynamic and the best-handling GSX-R1000 ever. Cradled in the new aluminum frame is an all-new engine that uses an exclusive Variable Valve Timing and Ride-by-Wire throttle bodies for a wide spread of power while delivering smooth and precise throttle response

Using an Inertial Measuring Unit (IMU) the GSX-R1000R’s advanced electronics package includes selectable performance modes so the motorcycle enhances and fine tunes rider inputs. The six-axis IMU lets the GSX-R1000R recognize its position on the street or race track to help the rider achieve an extraordinary level of riding performance.

Up front, new style BREMBO T-drive brake rotors grasped by Monobloc calipers connected to the exclusive Suzuki Motion Track Anti-lock Brake system provides strong, controlled braking. The precise and smooth SHOWA Balance Free suspension keeps the sticky Bridgestone RS10 tires in touch with the road. All of this forward-looking motorcycle technology is covered in all-new, wind tunnel-developed bodywork that’s uniquely GSX-R.

THE KING OF THE SPORTBIKES!

This is your invitation to Own The Racetrack.

All new 999.8cc liquid-cooled DOHC inline-four cylinder engine produces exceptionally high top-end power without sacrificing low to mid-range power thanks to a Variable Valve Timing (VVT) system, Ride-by-Wire Throttle Bodies and more.

Advanced electronics such as an Inertia Measurement Unit (IMU), S-DMS adjustable power output, and Suzuki traction control, plus other performance features, increase racetrack and street performance.

New design, twin-spar type aluminum frame is 10% lighter and more compact, with optimized rigidity for nimble handling and a high level of grip when cornering.

GSX-R1000R EXCLUSIVE
Advanced suspension uses a SHOWA Balance Free Fork and Balance Free Rear Cushion to combine with new Motion Track ABS-equipped BREMBO T-drive 320mm dual front brake rotors and Monobloc 4-piston calipers for extraordinary handling and stopping performance.

GSX-R1000R EXCLUSIVE
Aerodynamic bodywork is sleek and stylish while housing a new, bright LED headlight and Suzuki Ram Air Direct (SRAD) ducts that feed a high volume of intake air for astonishing top speed muscle. Blacked out instrument panel and GSX-R1000R logo warns others that your bike is something extraordinary.

ADVANCED ELECTRONIC FEATURES
New 32-bit Dual Processor Engine Control Module (ECM) blends Suzuki’s vast street-going EFI knowledge with the intelligence from Suzuki’s race-winning MotoGP program. GSX-R1000 riders will get sportbike performance without peer while simultaneously receiving polished street manners.

Using MotoGP knowledge, Suzuki has fitted an Inertial Measurement Unit (IMU) on the new GSX-R1000. The IMU provides six direction, three axis motion and position information to the ECM so instantaneous adjustments can be made electronically to the engine and chassis components that influence performance.

New Ride-by-Wire electronic throttle bodies are precisely opened by the ECM to match the throttle grip rotation of the rider’s hand and the refinement from the IMU-influenced electronics. The result is a strong, seamless engine power delivery from idle to redline.

The new and exclusive ten-mode, Motion Track Traction Control System (MT-TCS)*, with IMU influence, increases rider confidence by allowing adjustments to amount of intervention to match riding ability and surface conditions.

Exclusive to Suzuki, the new Motion Track Anti-lock Brake System brings additional control to anti-lock braking (ABS)*. Like a conventional ABS system, the Motion Track Brake System provides the appropriate amount of braking force for the available traction. When the IMU detects the rear wheel lifting up from extreme braking forces, the ABS control module will adjust the front brake pressure to reduce the rear wheel lift. If the IMU senses the motorcycle is leaned over when the brakes are used, the ABS unit will adjust the brake pressure to an optimal amount to help maintain good braking force and tire grip.

The new LCD Multi-function Instrument Panel was inspired by the GSX-RR MotoGP dash. This panel is laid out so the rider can easily see the tachometer bar, speedometer digits, and other essential operational information. This effective display is critical as it is the rider’s interface to the GSX-R1000R’s advanced electronics.

A new version of the three mode, Suzuki Drive Mode Selector (S-DMS) system lets the rider select the power output levels of the engine to match riding ability and conditions.

The Suzuki Easy Start System simplifies start up for the GSX-R1000R rider as the ECM automatically cranks the engine for 1.5 seconds (or until it starts) with a momentary press of the starter button. There is no need to pull in the clutch lever if the transmission is in neutral. Once started, the ECM will control the electronic throttle bodies to maintain a consistent engine idle speed, whether the engine is cold or warm.

The innovative Suzuki Low RPM Assist System smooths take-offs and reduces the chance of the rider stalling the motorcycle. If necessary, the ECM raises engine RPM slightly for a smoother start when the clutch is released so it’s easier to ride away from a stop or navigate at very low speeds in traffic.

GSX-R1000R EXCLUSIVE
The new Suzuki Launch Control System provides GSX-R1000R riders a competitive advantage when launching their motorcycle at the start of the race. This system will modulate power so the rider can concentrate on clutch operation.

GSX-R1000R EXCLUSIVE
The new Suzuki Bi-directional Quick-shift System lets GSX-R1000R racers shift faster than ever before. By ignition timing manipulation on upshifts and electronic throttle body manipulation on downshifts; clutch-less shifting helps deliver faster and more consistent lap times.

Engine Features
The all-new, four-stroke, liquid-cooled, DOHC, 999.8cc inline-four cylinder engine is designed with a high level of top end performance plus strong low to mid-range power.

The crankshaft retains Suzuki’s Even Firing Order Engine legacy. Un-even firing order engines used in other motorcycles vibrate more while the GSX-R1000R makes good power at all engine speeds, runs smoother and reliably while emitting a screamer exhaust note.

The short stroke engine has a 76.0 mm bore versus a 55.1mm stroke, yet is narrower than the prior generation GSX-R1000R thanks to effective design.

The fresh-design engine has been rotated back and positioned in the frame to create optimal chassis dimensions for precise handling and to balance the motorcycle’s weight.

The new and exclusive Suzuki Racing Variable Valve Timing System (SR-VVT) uses a centrifugal actuated mechanism on the intake camshaft sprocket to increase high engine RPM power without losing low-to mid-range power.

The new design Suzuki Racing Finger Follower valve train weights less than a tappet-style valve train for reduced friction and increased valve response at higher engine speeds.

Titanium valves, two 31.5mm intake and two 24mm exhaust valves, are used for each cylinder. The lighter valves respond well to the finger follower’s arms and permit a 14,500 RPM redline that helps produce very high peak horsepower.

Aluminum pistons, 76.0 mm in diameter, were engineered with use of FEM (Finite Element Method) analysis, and are cast for optimal rigidity and weight.

Suzuki Composite Electrochemical Material (SCEM) coated cylinders are integrated into the upper crankcase to reduce friction and improve heat transfer and durability.

The high 13.2:1 compression ratio helps produce high horsepower. The cylinder head’s shallow combustion chamber minimize heat produced during operation.

The EFI system uses Suzuki’s new Ride-by-Wire Electronic Throttle Bodies where the throttle valves are controlled by a servo motor for fast response to rider throttle grip input while delivering precise and smooth power delivery.

The automatic Idle Speed Control (ISC) improves cold starting and stabilizes the engine idle regardless of engine temperature.

Complementing the four primary fuel injectors in the throttle bodies are four Suzuki Top Feed Injectors (S-TFI) that spray fuel from the top of the air box directly into the intake funnels. This results in higher peak power, more efficient combustion, and a higher level of fueling control.

To increase top end power without losing lower RPM performance, the air box is equipped with Staked Air Intake Funnels for the #1 and #4 cylinders. This simple design allows good air flow at all intake speeds without requiring a mechanism that adds weight or complexity.

New design Suzuki Ram Air Direct (SRAD) intake ducts are used to exponentially increase the volumetric flow of air amount coming in the air box as road speed increases.

The 4-2-1 exhaust system with titanium muffler is designed helps the engine deliver a wide range of performance with an exciting rush up to redline. The titanium muffler has a pleasing appearance while creating an exciting, distinctive sound.

The Suzuki Exhaust Tuning (SET) system valve in the mid-pipe helps control back-pressure and flow to the muffler to widen power delivery and reduce exhaust sounds without needing a larger silencer.

New design SET-Alpha exhaust valves are in the balance tubes between the #1 and #4, and the #2 and #3 head pipes. Actuated by a cable from the main SET-valve, the Alpha valves open at higher engine speeds and close at lower RPM to help the engine create high peak power without losing low and mid-range horsepower.

The cooling system was designed using advanced analysis design so the coolant flows through the engine and radiator more efficiently. This design uses 400cc less coolant than the prior GSX-R1000, but the new system has better cooling efficiency while being more compact and lighter.

The fairing lowers efficiently guide cooling air to the high-capacity curved radiator. Twin cooling fans ensure good cooling at lower road speeds.

Additional heat is removed from the engine via the use of an air-cooled, radiator-style oil cooler mounted directly below the main radiator.



Transmission Features
Based on Suzuki’s race-proven six-speed close-ratio transmissions, the new GSX-R1000 features vertically staggered shafts to reduce overall engine length.

The primary gear ratio is lower compared to the prior GSX-R1000 for stronger acceleration.

A programmable shift light is on the main panel to provide a visual alert to the rider to shift when a certain engine RPM is reached.

GSX-R1000R EXCLUSIVE
The Bi-directional Quick-shift system lets riders, using their motorcycle in competition, shift faster than ever before. The system’s clutch less shifting delivers the rider faster and more consistent lap times.

A new version of the Suzuki Clutch Assist System (SCAS) multi-plate, wet clutch is used. SCAS works like a slipper clutch during downshifts, while increasing pressure on the plates during acceleration. This smooths engine braking and lightens the clutch lever pull.

To reduce weight, a new 525-size drive chain is used with a 45/17 final sprocket ratio that complement the larger, rear tire dimensions.

Chassis Features
Using lessons learning from Suzuki MotoGP chassis development, the engine angle of the GSX-R1000 was rotated backwards 6-degrees. This had the joint effect of reducing the distance of the fork to the center of the chassis by 20mm and increase the swingarm length by 40mm. This increased chassis stability and improves aerodynamics

The new, aluminum twin-spar style frame was designed using FEM analysis technology to place strength is the proper places, the new frame is also 10% lighter than the prior generation GSX-R1000. The spars of the frame are set 20mm closer to help improve aerodynamics, looks and to bring more comfort to the rider.

All-new Aluminum Superbike-braced Swingarm has equalized bracing to the main beams to provide balanced support and movement to the shock absorber to improve racetrack handling while conveying a consistent suspension feel to the rider.



GSX-R1000R EXCLUSIVE
Racetrack-developed links connect the single SHOWA Balance Free Rear Cushion lite (BFRC-lite) shock to the braced swingarm. The BFRC-lite’s innovative design controls damping force outside of the shock body to not only control how the suspension strokes but helps smooth reaction over bumpy surface or when the chassis is pitched during braking. The result in a new level of response in a race track environment, and new standards of rider feedback and comfort during street riding.

GSX-R1000R EXCLUSIVE
The SHOWA Balance Free Fork (BFF) uses race-level technology to bring a new standard of damping force responsiveness to a SuperSport motorcycle. This suspension’s design controls damping force outside of the spring chamber so the fork precisely maintains consistent damping regardless of its stroking action. With the BFF the rider enjoys an unparalleled level of surface feedback and ride compliance.

BREMBO Radial Mount Brake Calipers provide the rider with strong braking performance combined with superb feel.

The new BREMBO T-drive Brake Rotors feature two methods of attaching the 320mm floating disc to the carrier. There are five conventional floating rotor spools that maintain the rotor’s relationship to the caliper and five new-design T-drive fasteners. This combed attachment technique allows the rotor to absorb more energy so more braking force is available to a GSX-R1000 rider than ever before.

The front brakes are complemented by a 240mm rear disc brake with a NISSIN single-piston caliper to help make sure you can have controlled stops.

*Like conventional ABS, the Motion Track Brake System provides the appropriate amount of braking force for the available traction, with additional chassis pitch input from the IMU. When the IMU detects the rear wheel lifting up from extreme braking forces, the ABS control module will adjust the front brake pressure to reduce the rear wheel lift.

Exclusive to Suzuki, new lightweight six-spoke wheels reduce unsprung mass and have been designed to handle the braking and drive forces that a GSX-R1000 can create.

The track-day ready Bridgestone RS10 low mass tires, with a new higher 55% profile in the back, are premium high-grip radials that achieve excellent handling and stability.

NEW Aerodynamic Bodywork was created by Suzuki styling designers and engineers using numerous wind tunnel tests to achieve a slippery shape and compelling appearance. Narrower than ever before, the GSX-R1000’s shape directly aids performance by improved handling and top speed on the racetrack.

The new SRAD intake ducts are positioned closer to the center of the fairing nose, where air pressure is highest. The intake ducts are also larger, thanks to the compact LED headlight.

The reasonable sport riding position is created by a carefully crafted relationship between the clip-on’s, footrests and seat. The top of the fuel tank is lowered 21mm to make it easier for the rider to tuck in on a racetrack straightaway.

The seat height is an appropriate 825 mm (32.48 in.) and contributes the good rider interface that aids in guiding the motorcycle on the road or race track.

The passenger seat can be removed and exchanged with an optional, color-matched solo tail cowl.

The shifter and rear brake pedal are adjustable in relationship to the footrests, and the hand controls are adjustable in relation to the grips. The front brake lever has a slot machined in the end to prevent wind pressure from applying the front brake.

ELECTRICAL Features
The new LCD Multi-function Instrument Panel has an adjustable intensity, white-color backlight for great nighttime visibility and is flanked by LED indicators that include the turn signals, high beam, traction control, shift light, plus coolant temperature and oil pressure alerts.

The new LED headlight is lightweight, bright and distinctive. This low-electric draw light has a narrow, stacked shape to allow the SRAD ducts at the nose of the fair access to the high pressure air created at higher speeds.

GSX-R1000R EXCLUSIVE
A pair of distinctive, arched LED Position Lights accent the top edge of the SRAD ducts in the fairing nose to increase visibility and add to the motorcycle’s unique character.

LED Combination Tail & Brake Light has a very low electrical draw and the vertically stacked shape permits the tail section to be narrow for better air flow at the back of the motorcycle. License plate is also illuminated by an LED light.

The Turn Signals are lightweight and use incandescent bulbs with amber lenses so the motorcycle’s turn indication is highly visible to other traffic.

New poly-function Start/Stop Switch combines the engine stop and start functions. The switch is a fine complement to the Suzuki Easy Start system fitted to the GSX-R1000.

Additional Features
Special GSX-R1000R logos are applied to the tail section of the motorcycle denoting its unique capabilities and status.

The blue GSX-R1000R features a paint and graphics scheme that looks as if it was directly lifted from Suzuki’s race-winning MotoGP bike.

A variety of Genuine Suzuki Accessories are available, plus a large selection of GSX-R logo apparel.

12-month unlimited mileage, limited warranty. Coverage length can be increased and benefits added via Suzuki Extended Protection.
