Suzuki DL V-Strom 1000 XT

.

Make Model

Suzuki DL 1000 V-Strom XT

Year

2017 - 18

Engine

Four stroke, 90°-V-twin, DOHC, 4 valves per cylinder.

Capacity

1037 cc /  63.2 cu-in

Bore x Stroke 100 x 66.0mm
Cooling System Liquid cooled
Compression Ratio 11.3:1
Lubrication Wet sump
Oil capacity (Overhaul) 3.5 Litres / 7.4 US pts /  6.2 Imp pts

Induction

Suzuki Fuel Injection

Ignition

Electronic ignition

Starting Electric

Max Power

73.9 kW / 99.2 hp / @ 8000 rpm

Max Torque

103 Nm / 10.5 kgf-m / 76 lb-ft @ 4000 rpm
Clutch Wet, multiple discs, hydraulic

Transmission

6 Speed

Final Drive Chain
Primary Reduction Ratio 1.838 (57/31)
Final Reduction Ratio 2.411 (41/17)
Frame Aluminium, twin spar

Front Suspension

40mm Inverted telescopic, coil spring, oil damped
Front Wheel Travel 160 mm / 6.3 in

Rear Suspension

Link type, coil spring, oil damped
Rear Wheel Travel 160 mm / 6.3 in

Front Brakes

2 x 310 mm discs, 4 piston radial calipers, ABS

Rear Brakes

Single 265 mm disc, 2 piston caliper, ABS

Wheels Wire spoked

Front Tyre

110/80R19M/C 59V

Rear Tyre

150/70R17M/C 69V

Rake 25.7°
Trail 109 mm / 4.3 in
Dimensions Length 2285 mm / 89.96 in
Width 865mm / 34.1in)
Height 1410 mm / 55.5 in
Wheelbase 1,535 mm / 60.4 in
Ground Clearance 165 mm / 6.5 in
Seat Height 840 mm / 33.1 in

Wet Weight

228 kg / 502.6 lbs

Fuel Capacity

20 Litres / 5.3 US gal / 4.4 Imp gal

The V-Strom 1000 gets a range clean-up and a host of small changes – all of which adds up to a better offering. Gone are rambling something-or-other editions, and in come two models, the stock V-Strom 1000, and an XT version. Standard is for road riders, the XT for is for the more adventurous – just like the 650 range.

Both get the same revisions, with a new seat and cowling/windscreen design for improved comfort, while adopting the Motion Track Brake System. The XT is distinguished by laced rims and a more rugged stance. The number of catalysers in the exhaust system has doubled to help meet Euro4 regs, and Suzuki say it has lost no performance as a result.

The Motion Track Brake System is a Bosch ABS system using a 5-Axis Inertial Measurement Unit (IMU), which means cornering ABS in layman speak. The brakes are also linked, automatically applying pressure to the rear when the front brake pressure rises to a certain level.

The windscreen has also been changed – which will hopefully cure its turbulence issues. Three pre-set positions are available. From the lowest position, the screen can be lifted 15mm or 30mm upwards, and is 49mm taller than the previous model’s. The screen angle can also be changed.

The new V-Strom 1000 comes in yellow, black and white.

V-Strom 1000 & V-Strom 1000XT


The V-Strom 1000 and 1000XT’s bold new fairing design is achieved by a straight styling line from the tip of its beak back to the fuel tank. This is a sharp and aggressive refinement of the Suzuki DR-Big inspired appearance. The height- and angle-adjustable windscreen has a new shape and is 49mm taller. The windscreen was developed through extensive wind-tunnel testing to reduce wind noise and rider fatigue. Suzuki’s patented mechanism allows the windscreen angle to be easily adjusted by hand.

The V-Strom 1000 and 1000XT’s Anti-lock Brake System (ABS) has been updated with Suzuki’s new Motion Track & Combination Brake System. This system aids rider control during sudden braking, even in corners, and will help the rider continue cornering on the originally intended line.

  • This advanced ABS system adjusts brake pressure during upright riding with other pressure adjustments when the motorcycle is leaning to either side, so the stopping force matches the available traction.
  • Information about the motorcycle’s attitude is continually measured by a BOSCH five-axis IMU. Sensors on the front and rear wheels continually measure speed. The wheel speed and IMU measurements, plus the amount of brake lever or pedal pressure, are calculated by the ABS control unit to instantly adjust the fluid pressure to the brake calipers as required.
  • Additionally, this combination system can apply rear brake pressure when the front brake pressure reaches a certain point to help stabilize the vehicle. This contributes to increase stability and maneuverability during cornering.
  • The rider has customary, independent control of the front and rear brakes unless a situation occurs to activate the Anti-lock or combination braking features.
  • Thanks to the new, advanced ABS control unit, the amount of kickback from anti-lock function to the lever and pedal has been significantly reduced.

Tokico mono-block front brake calipers are mated with 310mm floating-mount dual discs are connected to the new Motion Track Anti-lock & Combination Brake system for strong stopping performance.

Suzuki’s debuted its first motorcycle traction control system on the V-Strom 1000, which enables the rider to control the throttle with more confidence in a variety of riding conditions.

  • The traction control system continuously monitors front and rear wheel speeds, throttle opening, engine speed, and transmission gear. It quickly reduces engine output when it detects wheel spin by adjusting ignition timing and air delivery.
  • The rider can select one of three modes (1, 2, and OFF). Modes 1 and 2 differ in terms of sensitivity. Mode 1 has lower sensitivity; it allows a certain degree of rear wheel spin for good road conditions. Mode 2 has higher sensitivity; the system engages traction control sooner and is for poor road conditions.

The V-Strom 1000 features lightweight 10-spoke cast-aluminum wheels (manufactured for Suzuki by Enkei) combine nimble handling with sporty looks. Handguards with larger handlebar vibration damper weights and a lower engine protector are now standard.

The V-Strom 1000XT is supplied with new, large diameter, tapered style handlebars which have handguards with large vibration damper weights. The lower engine protector is also standard.

Overview

Engine
The four-stroke, liquid-cooled, DOHC, 1037cc 90-degree V-twin engine is designed to deliver outstanding performance across the entire powerband.

The perfect primary balance provided by the 90-degree L-twin design negates the need for any balancer shafts or rubber mounting as the engine has smooth power pulses.

Pistons were engineered with use of FEM analysis to achieve ideal rigidity and weight.

Suzuki Composite Electrochemical Material (SCEM)-plated cylinder bores are integrated into the upper crankcase for low weight, increased durability, reduced friction and excellent heat dissipation.

Twin throttle bodies with Suzuki Dual Throttle Valve (SDTV) system contribute to better throttle response and torque at the low-to-mid RPM range, while still producing peak performance.

The EFI system employs 10-hole injectors on each throttle body to improve fuel atomization for superior combustion efficiency and frugal fuel consumption.

Advanced 32-bit ECM also operates the Automatic Idle Speed Control (ISC) which improves cold starting and stabilizes the engine idle.

The refined, single-silencer exhaust configuration reduces weight and has a lower center of gravity to enhance handling and maneuverability.

Suzuki Exhaust Tuning (SET) servo-controlled butterfly valve in the exhaust mid-pipe helps enhance torque, response and acceleration, especially at low-to-mid rpm range.

The new exhaust has a pair of inline catalyzers, up from a single catalyzer in the prior model, to achieve an effective level of emission control in the while maintaining flow to preserve engine performance.

Updated to match the exhaust changes, the Suzuki Pulsed-secondary AIR-injection (PAIR) system injects fresh air into the exhaust ports to satisfy a variety of US and international emission standards without sacrificing any performance.

State-of-the-art transistorized digital ignition system contributes to a more complete combustion by igniting the mixture at the ideal moment.

Twin iridium type spark plugs are fitted to each cylinder to provide a more condensed and hotter spark yet last longer than convention plugs.

The output of the six-speed, close-ratio transmission is managed by the Suzuki Clutch Assist System (SCAS). This system works like a slipper clutch by allowing a small amount of clutch slip to enable smooth down shifts. It also works as an assist clutch to make the lever easier to pull.
Advanced Electronic Features
The V-Strom’s Anti-lock Brake System (ABS)* has been updated with Suzuki’s new Motion Track & Combination Brake System. This system aids rider control during sudden braking, even in corners, and will help the rider continue cornering on the originally intended line.

This advanced ABS system adjusts brake pressure during upright riding with other pressure adjustments when the motorcycle is leaning to either side, so the stopping force matches the available traction.

Information about the motorcycle’s attitude is continually measured by a BOSCH five-axis IMU. Sensors on the front and rear wheels continually measure speed. The wheel speed and IMU measurements, plus the amount of brake lever or pedal pressure, are calculated by the ABS control unit to instantly adjust the fluid pressure to the brake calipers as required.

Additionally, this combination system can apply rear brake pressure when the front brake pressure reaches a certain point to help stabilize the vehicle. This contributes to increase stability and maneuverability during cornering.

The rider has customary, independent control of the front and rear brakes unless a situation occurs to activate the Anti-lock or combination braking features.

Thanks to the new, advanced ABS control unit, the amount of kickback from anti-lock function to the lever and pedal has been significantly reduced.
*Depending on road surface conditions, such as wet, loose, or uneven roads, braking distance for an ABS-equipped vehicle may be longer than for a vehicle not equipped with ABS. ABS cannot prevent wheel skidding caused by braking while cornering. Please drive carefully and do not overly rely on ABS.

Suzuki’s debuted its first motorcycle traction control system** on the V-Strom 1000 ABS, which enables the rider to control the throttle with more confidence in a variety of riding conditions.

The traction control system continuously monitors front and rear wheel speeds, throttle opening, engine speed, and transmission gear. It quickly reduces engine output when it detects wheel spin by adjusting ignition timing and air delivery.

The rider can select one of three modes (1, 2, and OFF). Modes 1 and 2 differ in terms of sensitivity. Mode 1 has lower sensitivity; it allows a certain degree of rear wheel spin for good road conditions. Mode 2 has higher sensitivity; the system engages traction control sooner and is for poor road conditions.
*The traction control system is not a substitute for the rider’s throttle control. It cannot prevent loss of traction due to excessive speed when the rider enters a turn and/or applies the brakes. Traction control cannot prevent the front wheel from losing grip.
Chassis Features
A bold new fairing design is achieved by a straight styling line from the tip of its beak back to the fuel tank. This is a sharp and aggressive refinement of the Suzuki DR-Big inspired appearance.

The height- and angle-adjustable windscreen has a new shape and is 49mm taller. The windscreen was developed through extensive wind-tunnel testing to reduce wind noise and rider fatigue. Suzuki’s patented mechanism allows the windscreen angle to be easily adjusted by hand.

The advanced chassis is the foundation of a compact, lightweight adventure-ready package that provides comfort and enjoyment to a variety of riders.

The aluminum, twin-spar frame was designed with the latest FEM analysis technology. It is stiffer and 13% lighter than that of the previous generation V-Strom.

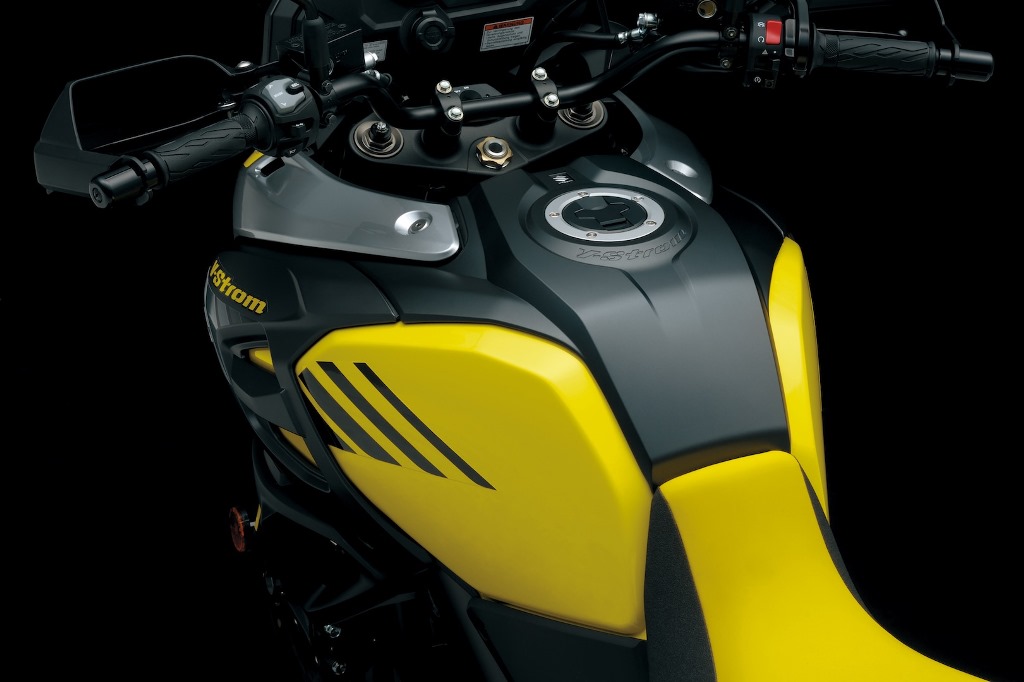

The fuel tank keeps its 5.3 gallon capacity but the back portion has been slimmed where it joins the seat for increased rider comfort. The sides of seat use a high-grip texture cover.

The V-Strom’s slender chassis, thanks to the narrow V-twin engine design and new thin seat, helps the rider’s legs to reach to the ground easier than other models in the class.

43mm KYB inverted front forks provide a sporty yet plush ride in diverse conditions. The front forks have fully adjustable spring preload plus compression and rebound damping force.

The single-shock, link-style rear suspension features rebound damping force adjustment plus remote, hand-operated spring pre-load adjuster.

Tokico mono-block front brake calipers are mated with 310mm floating-mount dual discs are connected to the new Motion Track Anti-lock & Combination Brake system for strong stopping performance.

New spoke-style wheels with tubeless radial dual-purpose tires plus the new, tapered, large diameter handlebars deliver the function that validates their exploration style.

Handguards with larger handlebar vibration damper weights and a lower engine protector are now standard.
Electrical Features
The charging system uses a durable, three-phase stator with an open-style regulator/rectifier that reduces mechanical drag and heat while producing higher output at lower engine speeds.

The refined instruments include an analogue tachometer and a brightness-adjustable LCD speedometer. LCD readouts include an odometer, dual trip meters, the gear position, the coolant and ambient temperatures, the voltage, the riding range, the average fuel consumption, the instantaneous fuel consumption, the traction control mode, a fuel gauge, and a clock.

The rider can switch between traction control modes and LCD readings using the left handlebar switch. The left switch can now reset the trip meter using the left handlebar switch.

12V DC outlet is conveniently located below the instrument panel. The SAE socket is ideal for powering a GPS unit or charging mobile devices.

The bright, halogen 65/55W headlights have the distinctive vertical configuration seen on the Hayabusa and GSX-R sportbikes.

Rear tail and brake light uses LEDs, which offer higher visibility and greater durability than bulbs.
Additional Features
Optional : A wide variety of Genuine Suzuki Accessories for V-Strom owners are available including luggage, heated grips, auxiliary lights, high and low profile seats, case guards, and a large selection of Suzuki logo apparel.

Additional lock tumblers that match the bike’s ignition key are included so you can add Suzuki accessory luggage and have the convenience of one-key operation.

12-month unlimited mileage, limited warranty. Coverage length can be increased and benefits added via Suzuki Extended Protection.

*The Traction Control System is not a substitute for the rider’s throttle control. It cannot prevent loss of traction due to excessive speed when the rider enters a turn and/or applies the brakes. Neither can it prevent the front wheel from losing grip.
* The ABS is a supplemental device for brake operation, not a device for shortening stopping distance. Always remember to reduce speed sufficiently before approaching curves.
