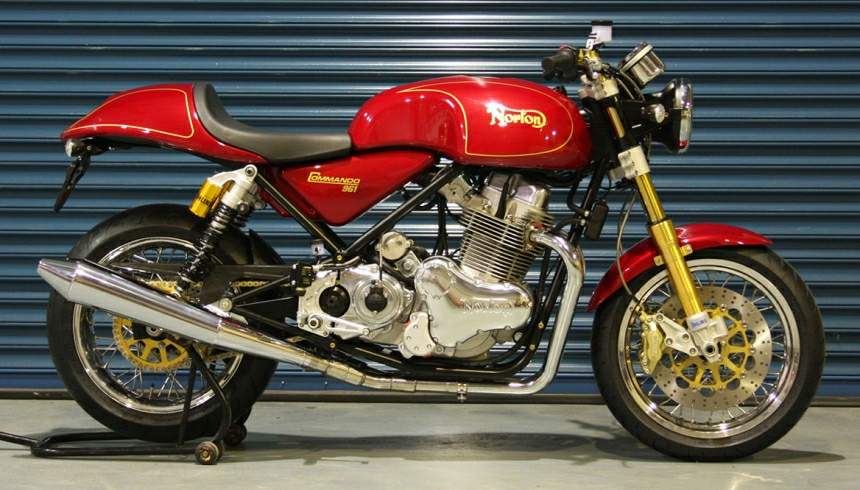

Norton Commando 961 Sport

.

Make Model.

Norton Commando 961 Sport

Year

2010

Engine

Parallel twin with push-rod valve actuation, 3 bearing crank balancer shaft, 2 valves per cylinder

Capacity

961 cc / 58.6 cu in
Bore x Stroke 88 x 79 mm
Compression Ratio 10.1:1
Cooling System Air cooled
Lubrication Dry sump

Induction

Fuel injected

Ignition

Crank fired electronic

Starting

Electric

Max Power

59.7 kW / 80 hp @ 6500 rpm

Max Torque

90 Nm / 9.2 kgf-m / 65 ft-lb @ 5200 rpm

Clutch

Wet multi-plate with hydraulic lifter

Transmission

5 Speed, constant mesh

Final Drive

Chain, 525 "O" ring
Frame Tubular steel with integral oil tank
Rake 24.5°
Trail 99 mm / 3.9 in

Front Suspension

Ø43 mm Öhlins RSU, adjustable preload, compression, and rebound damping.

Front Wheel Travel

115 mm / 4.53 in

Rear Suspension

Öhlins reservoir-style twin shocks, adjustable ride height, preload, compression, and rebound damping.

Rear Wheel Travel

100 mm / 3.94 in

Front Brakes

Brembo 2 x Ø320 mm semi-floating carbon stainless steel discs, 4 piston "Gold Line" axial calipers

Rear Brakes

Brembo single Ø220 mm disc, 2 piston "Gold Line"caliper

Front Wheel

3.50 x 17", BST carbon fibre

Rear Wheel

5.00 x 17", BST carbon fibre

Front Tyre

120/70 -17

Rear Tyre

180/55 -17

Wheelbase

1420 mm / 55.9 in

Dry Weight

188 kg / 414 lbs
Seat Height 813 mm / 32 in

Fuel Capacity

17 Litres / 4.5 US gal

All commando 961 models are available in the dual seat option and available in all colours. The dual seat option gives the rider and pillion seat as well as a single seat configuration. The easy to attach single seat cowl quickly turns the bike back into the stylish single seat form.
