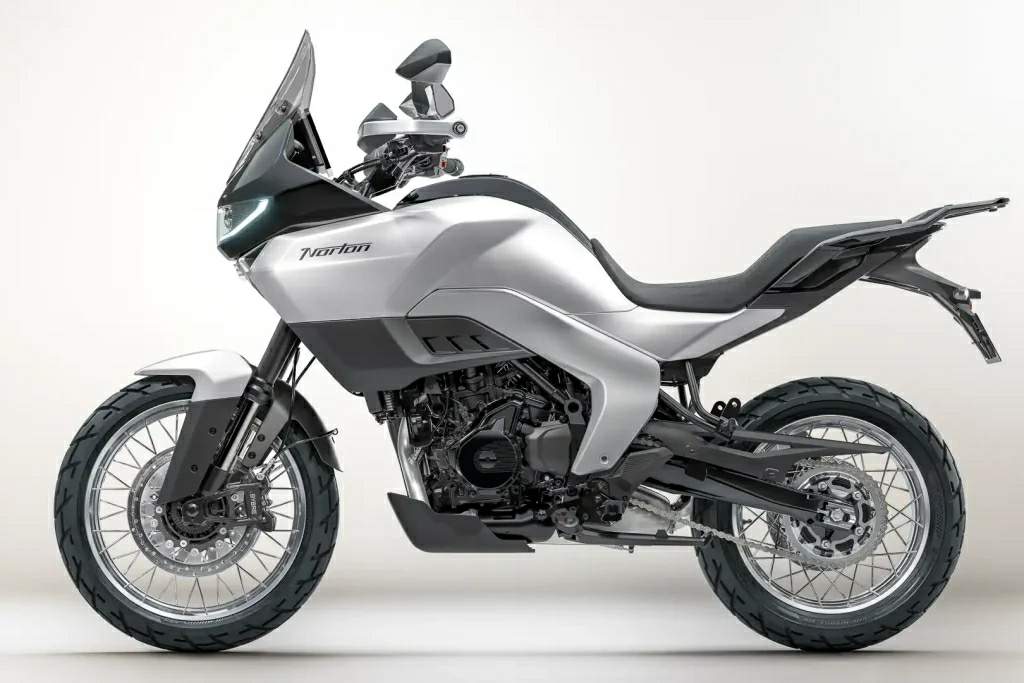

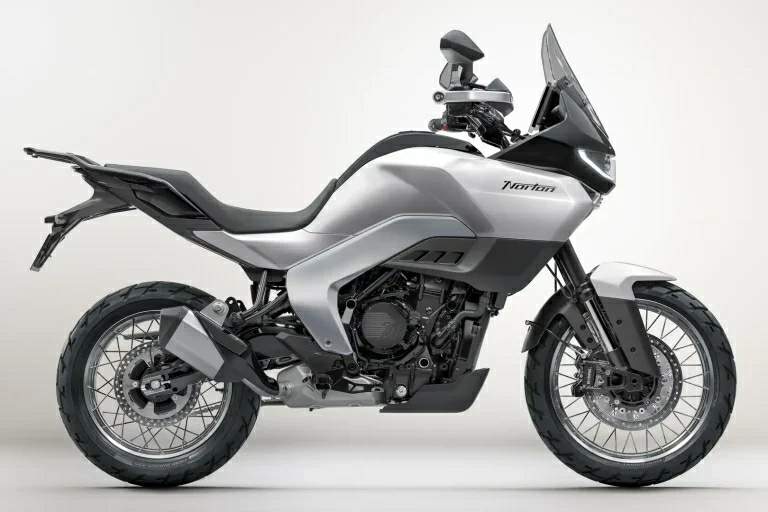

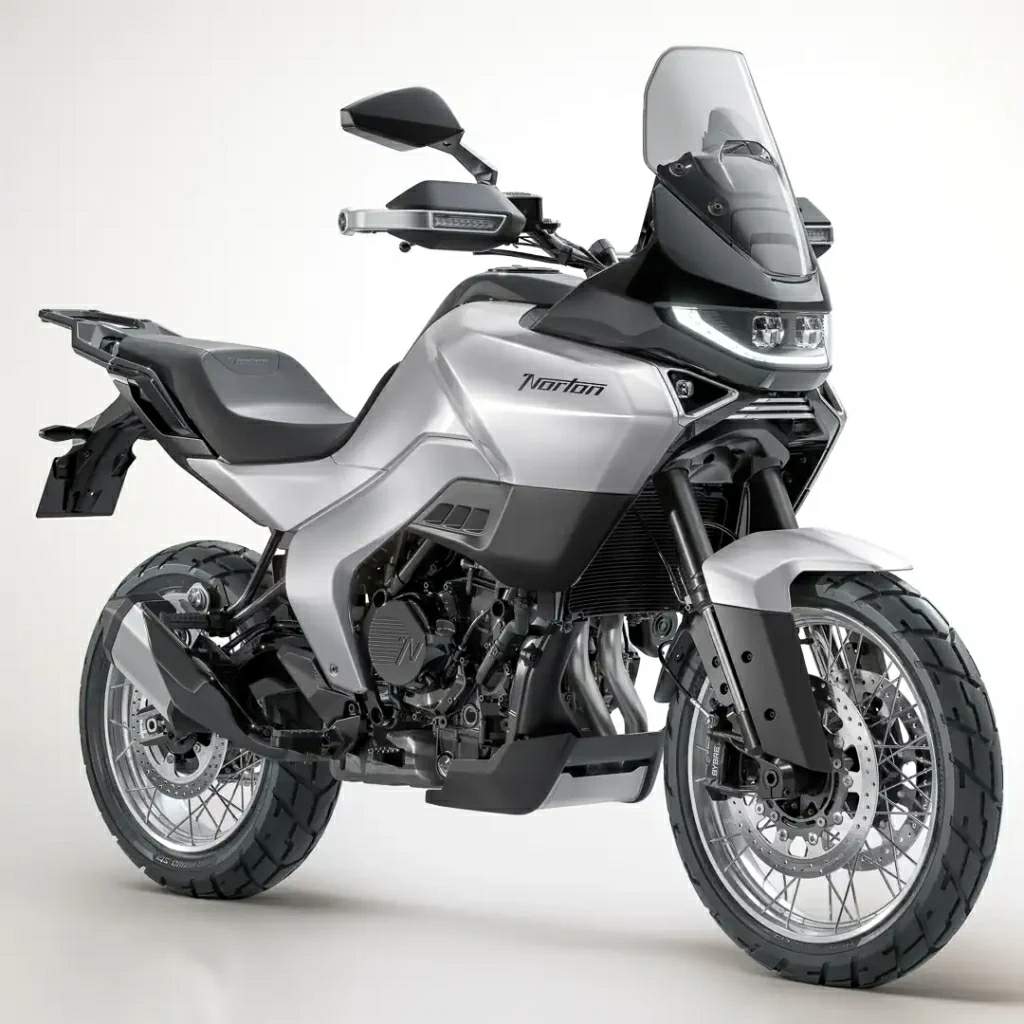

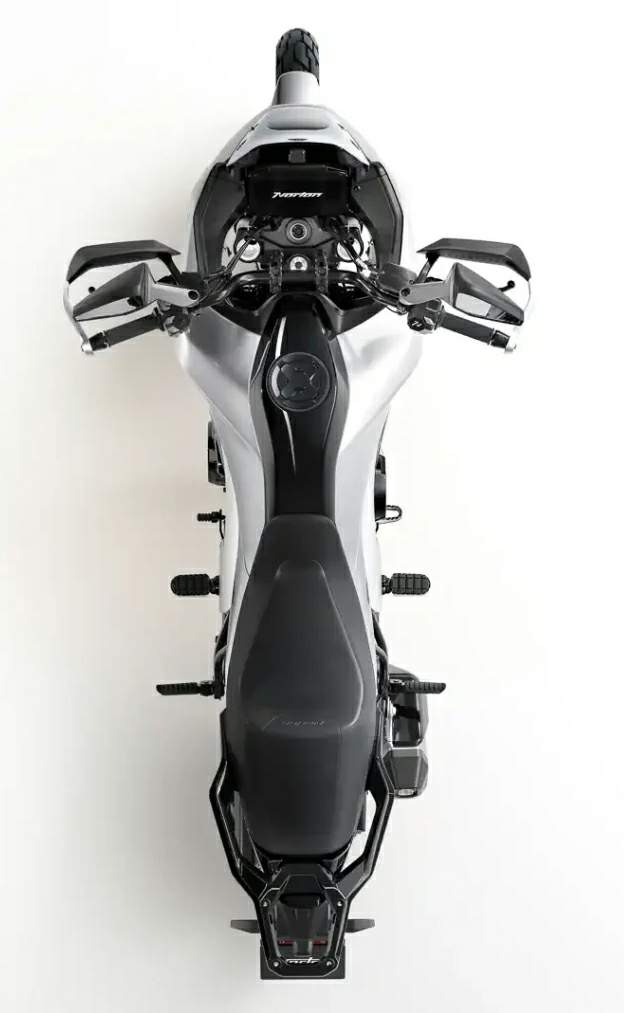

Norton Atlas

Make Model	Norton Atlas
Year	2026
Engine	Four stroke, parallel twin. 270° firing order, 4 valve per cylinder DOHC.
Capacity	585 cc / 35.7 cu-in
Bore x Stroke	78 x 61.2 mm
Compression Ratio	12.2:1
Cooling System	Liquid cooled
Emission	Euro 5+
Induction	Multi-point sequential fuel injection system, ride-by-wire throttle
Exhaust	Steel 2-into-1 system with upswept silencer
Starting	Electric
Max Power	69 hp / 51 kW @ 9000 rpm
Max Torque	57.5 Nm / 42.4 lb-ft @ 7500 rpm
Clutch	Wet multiplate, Assist and slipper functions.
Transmission	6 Speed, bidirectional, quick shifter
Final Drive	Chain X-ring
Frame	Steel trellis cast aluminum swingarm.
Front Suspension	43mm Inverted adjustable KYB forks
Front Wheel Travel	180.4 mm / 7.1 in
Rear Suspension	KYB monoshock RSU, 180mm travel, full hydraulic adjustment
Rear Wheel Travel	180.4 mm / 7.1 in
Front Brakes	2 x 310mm floating discs, radially-mounted Bybre calipers
Rear Brakes	270mm rear disc, Bybre caliper
ABS	Standard
Wheels	Cast alloy or wire spoked.
Front Wheel	19 x 3.00
Rear Wheel	17 x 4.50
Front Tyre	110/80 - ZR19 Eurogrip Explo R Plus
Rear Tyre	150/70 - ZR17 Eurogrip Explo R Plus
Rake	25.7°
Trail	102 mm / 4.0 in
Wheelbase	1466 mm / 57.7 in
Ground Clearance	221 mm / 8.7 in
Seat Height	845 mm / 33.3 in
Wet Weight	188 kg / 414 lbs
Fuel Capacity	15.4 Litres / 4 US gal

From Norton web-site:

The Atlas represents a fusion of rugged capability with modern design, crafted to elevate everyday exploration and enable extraordinary adventures. Pairing its lightweight chassis with a flexible and responsive powerplant, and complemented by an advanced electronics suite, the Atlas instills confidence on any terrain – empowering its rider to push onward toward the next challenge.

Design
The Atlas is built with a modern, integrated, and visually coherent mindset. Every detail embodies the essence of modern adventure and its undeniable appeal. Through the application of visual movement, reductivity, and drama, Norton presents a refined statement of intent.

“The middleweight adventure bike category is defined by practicality more than anything else. Our challenge was to apply our design strategy to enhance the emotional content while retaining this rationality.” – Simon Skinner, Head of Design

The Atlas commands respect from every angle — a fusion of rugged capability and sleek design. Sculpted bodywork blends adventure bike functionality with modern form; every detail — from integrated lighting to surface texturing — delivers confidence, durability, and purpose.

Dynamics
The Atlas is engineered to be compact, capable, and endlessly adaptable—exemplified by its lightweight, robust steel trellis chassis. Its beating heart is an eager and responsive 585cc, 270° crank twin-cylinder engine that feels alive throughout the rev range.

Its flexible powerplant is complemented with comprehensive electronic intelligence. A 6-axis IMU powers the sophisticated Advanced Rider Electronics suite, including lean-angle-sensitive ABS and traction control, slide control, launch control, and cornering cruise control - ensuring confidence in all conditions. The signature 8” touchscreen TFT and tactile switchgears provide intuitive accessibility on the move, while the electronics work quietly in the background.

Detail
The Atlas’ details epitomize its nature as a sophisticated and capable companion for any adventure. Its commanding form positions the rider to maximize confidence during the ride and to provide protection from the elements, while the adjustable levers, footpegs, and windscreen ensure a precise fit.

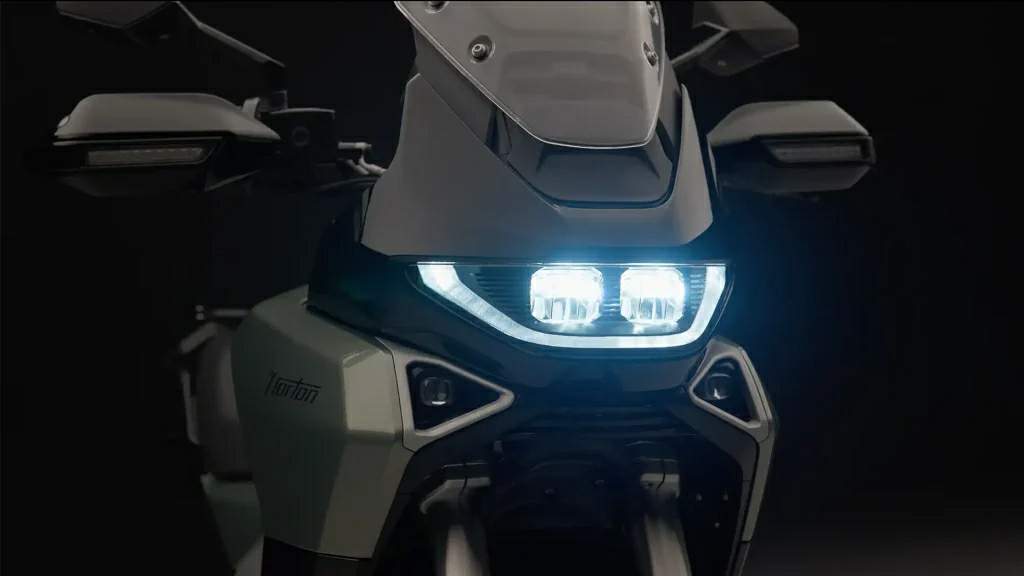

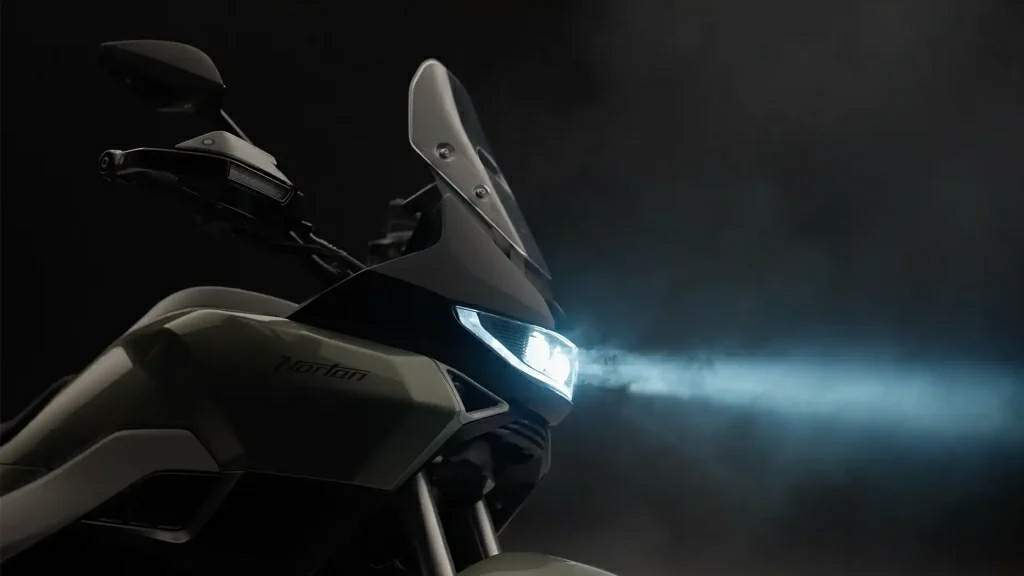

Its dynamic lighting suite provides a unique signature on and off the road, as well as granting the rider superlative visibility. Twin LED projector headlamps adjust their intensity with speed, distinctive DRLs highlight against the powerful silhouette, while cornering lights and puddle lamps crown the illuminating experience.

The Atlas packages these details amongst its clean lines and luscious surface finishes, uninterrupted by fixings and fasteners.

Always connected, always in command.

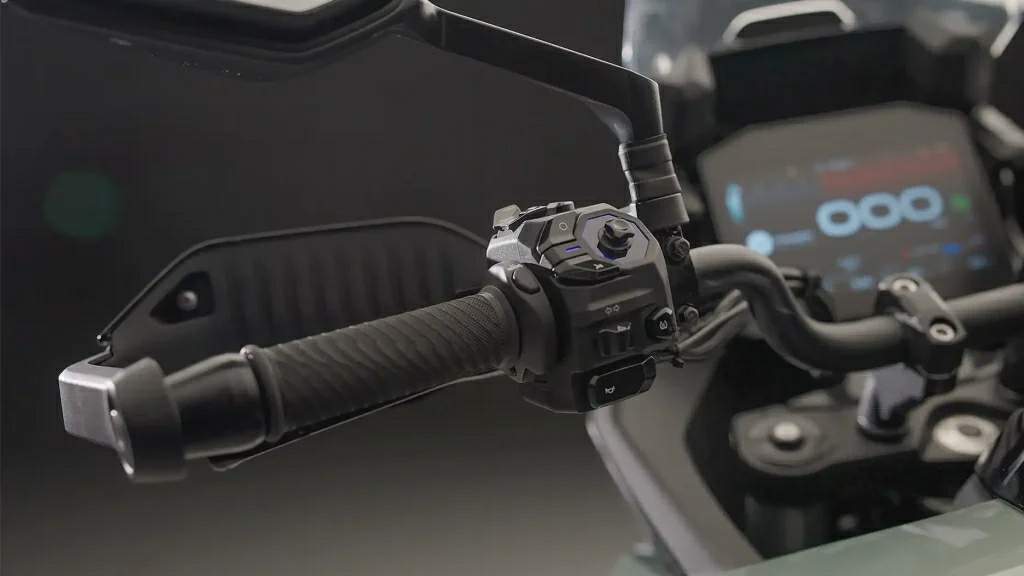

Turn‑by‑turn navigation, music, and calls are projected directly onto the touchscreen via advanced map mirroring and multiway connectivity. Whether using tactile switch cube controls or intuitive touch interaction, every input is designed around real‑world riding.
