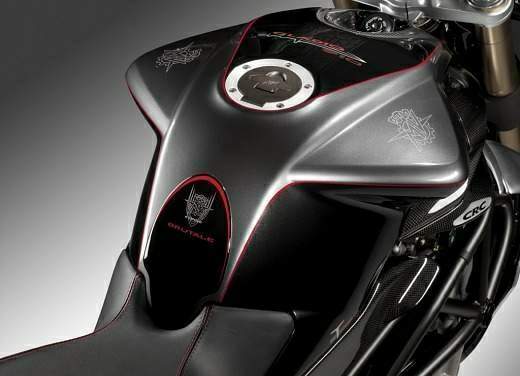

MV Agusta F4 750 Brutale Gladio

.

Make Model

MV Agusta F4 750 Brutale Gladio

Year

2005

Engine

Four stroke, transverse four cylinder. DOHC, 4 valves per cylinder

Capacity

749.4 cc / 45.7 cu-in

Bore x Stroke 73.8 x 43.8 mm
Cooling System Liquid cooled
Compression Ratio 12.0:1
Lubrication Wet sump

Induction

Fuel Injection, Multipoint electronic injection

Ignition

Multipoint electronic

Starting Electric

Max Power

127 hp / 92.6 kW @ 12500 rpm

Max Torque

77.4 Nm / 57.0 lb-ft @ 10500 rpm

Clutch Wet, multi-plate

Transmission

6 Speed

Final Drive Chain
Frame CrMo Steel tubular trellis and magnesium alloy

Front Suspension

Upside-down telescopic hydraulic fork with rebound-compression damping and spring preload adjustment 49mm diameter

Rear Suspension

Progressive, with single sided swingarm, single shock absorber with rebound-compression damping and spring preload adjustment

Front Brakes

2x 310mm discs  6 piston calipers

Rear Brakes

Single 210mm disc 4 piston caliper

Front Tyre

120/65 ZR17

Rear Tyre

190/50 ZR17

Wheelbase 1414 mm / 55.7 in
Seat Height 805 mm / 31.6 in

Dry Weight

185 kg / 407.8 lbs

Fuel Capacity

19 Litres / 5.0 US gal

The kit includes:

Plastic front mudguard in metallized black/grey colour
Plastic fuel tank in metallized black/grey colour
Plastic metallized black/grey right and left side panels beneath seat
Rider seat in black/grey leather with contrasting red stitching
Passenger seat in grey leather
Silver plaque with the name of the customer and the number of the bike
“Limited edition” certificate
MV Agusta alarm with specific wirning
