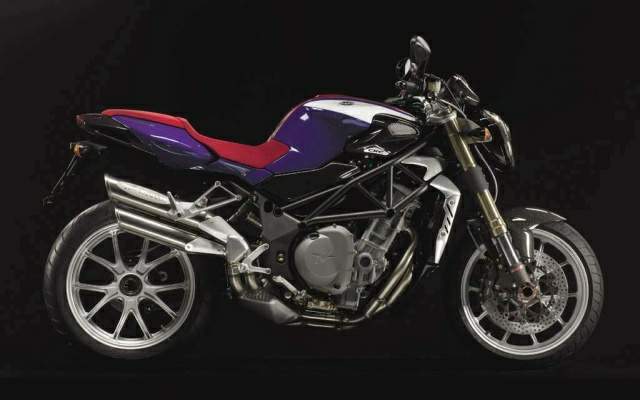

MV Agusta F4 750 Brutale America



.

Make Model

MV Agusta F4 750 Brutale America

Year

2005 - 07

Engine

Four stroke, transverse four cylinder. DOHC, 4 valves per cylinder

Capacity

749.4 cc / 45.7 cu-in

Bore x Stroke 73.8 x 43.8 mm
Cooling System Liquid cooled
Compression Ratio 12.0:1
Lubrication Wet sump

Induction

Fuel Injection, Multipoint electronic injection

Ignition

Multipoint electronic

Starting Electric

Max Power

127 hp / 92.6 kW @ 12500 rpm

Max Torque

77.4 Nm / 57.0 lb-ft @ 10500 rpm

Clutch Wet, multi-plate

Transmission

6 Speed

Final Drive Chain
Frame CrMo Steel tubular trellis and magnesium alloy

Front Suspension

Upside-down telescopic hydraulic fork with rebound-compression damping and spring preload adjustment 49mm diameter

Rear Suspension

Progressive, with single sided swingarm, single shock absorber with rebound-compression damping and spring preload adjustment

Front Brakes

2x 310mm discs  6 piston calipers

Rear Brakes

Single 210mm disc 4 piston caliper

Front Tyre

120/65 ZR17

Rear Tyre

190/50 ZR17

Wheelbase 1414 mm / 55.7 in
Seat Height 805 mm / 31.6 in

Dry Weight

185 kg / 407.8 lbs

Fuel Capacity

19 Litres / 5.0 US gal

MVSP Brutale America Full Option Kit

Limited Edition of 300 Brutale America kits worldwide
The Full Option Kit includes:
Carbon Fiber front mudguard
Carbon Fiber dashboard cover
Carbon Fiber oil cooler guard
Carbon Fiber ignition switch cover
Carbon Fiber right side air-box panel
Carbon Fiber left side air-box panel
Red/White/Blue painted plastic fuel tank
Carbon Fiber right side fuel tank panel
Carbon Fiber left side fuel tank panel
Carbon Fiber right rear cylinder cover
Carbon Fiber left rear cylinder cover
Blue right and left painted plastic tail section panels

Red "Alcantara" front seat
Blue "Alcantara" rear seat
Carbon Fiber taillight surround
Carbon Fiber upper chain guard
Carbon Fiber lower chain guard
Silver Marchesini ten-spoke forged aluminum front wheel rim
Silver Marchesini ten-spoke forged aluminum rear wheel rim
Engraved plaque with the number of the bike and matching "Limited Edition" certificate
