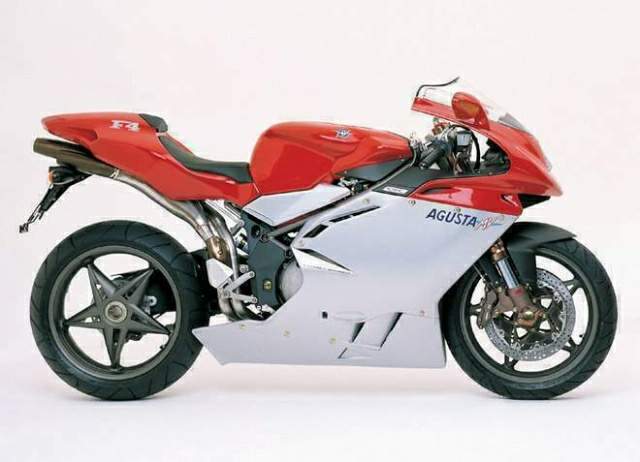

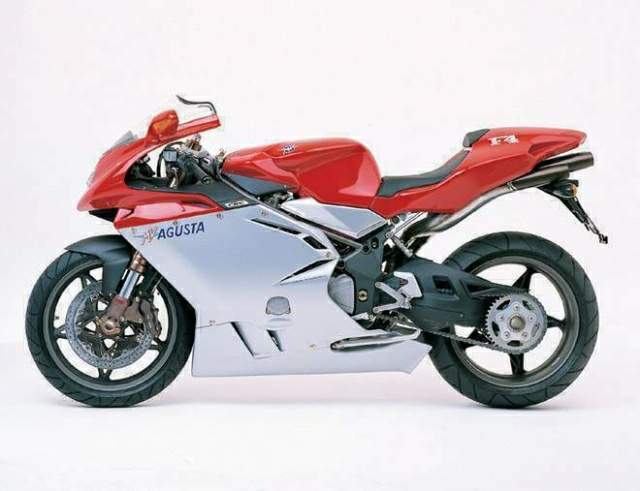

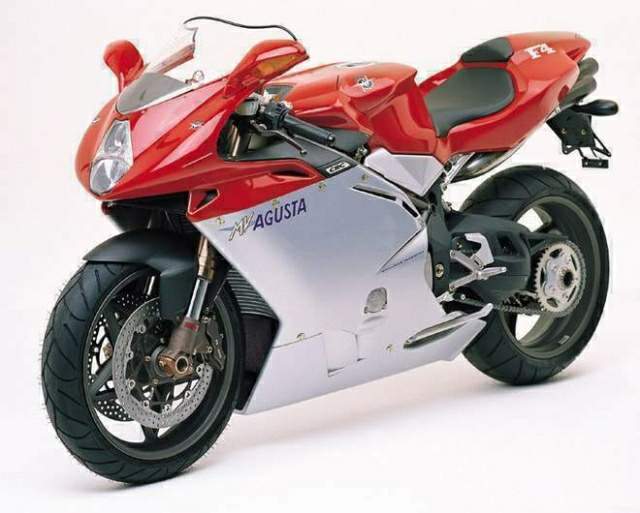

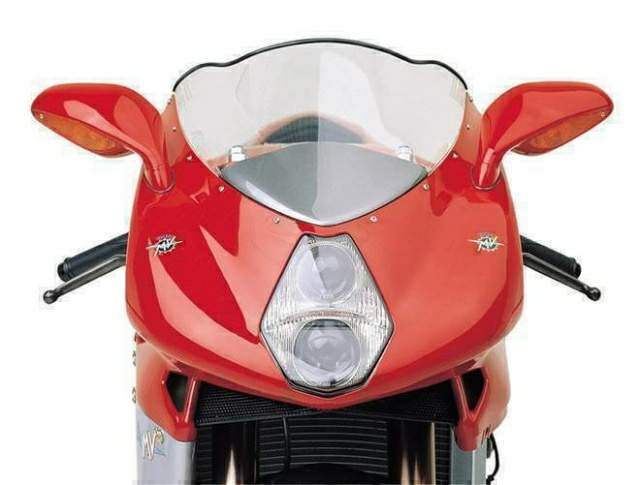

MV Agusta F4 750S EVO 3

.

Make Model

MV Agusta F4 750S EVO 3

Year

2003

Engine

Four stroke, transverse four cylinder. DOHC, 4 valves per cylinder.

Capacity

749.4 cc / 45.7 cu-in

Bore x Stroke 73.8 x 43.8 mm
Cooling System Liquid cooled
Compression Ratio 12.0:1

Induction

Fuel Injection

Ignition

Multipoint electronic

Starting Electric

Max Power

137 hp / 99.9 kW @ 12600 rpm

Max Torque

81.4 Nm / 60.0 lb-ft @ 10500 rpm

Transmission

6 Speed

Final Drive Chain

Front Suspension

Upside-down telescopic hydraulic fork with rebound-compression damping and spring preload adjustment 49mm diameter

Front Wheel TraveL 118 mm / 4.6 in

Rear Suspension

Progressive, with single sided swingarm, single shock absorber with rebound-compression damping and spring preload adjustment

Rear Wheel Travel 120 mm / 4.7 in

Front Brakes

2x 310mm discs 6 piston calipers

Rear Brakes

Single 210mm disc 4 piston caliper

Front Tyre

120/65 ZR17

Rear Tyre

190/50 ZR17

Wheelbase 1412 mm / 55.6 in
Seat Height 790 mm / 31.1 in

Dry Weight

189 kg / 396.8 lbs

Fuel Capacity

21 Litres / 5.8 US gal

F4 S/1+1 EV03: PASSION AND REASON

Cloned from the unrepeatable F4 Serie Oro, the S version is enriched by the initials EVO3 which indicate the Model Year and the presence of the Evolution engine. Having an excellent price versus quality ratio, it represents the entry level to live the pleasure of owning an F4. Available in the commemorative chromatic red and silver version or in the luminous "Diamond" color, the F4S is produced as both a single or double seater. In this latter version, named 1+1, the passenger seat was obtained with the intention of maintaining unaltered the stylistic flow of the spectacular arrow type tail end. In achieving this objective, the passenger seat is the same color as the bodywork and the relative footrests are designed to integrate themselves perfectly within the extraordinary F4 lines.

The modifications for the Model Year 2003

  • Aluminum silver colored wheels like the SPR model
  • Clutch cover painted in MV AGUSTA grey
  • Sprocket cover painted in MV AGUSTA grey
  • Phonic wheel cover painted in MV AGUSTA grey
  • EVO3 identifying initials

Distinguishing features:

  • Instrumentation equipped with rev counter yellow background and the "F4" logo
  • "Tricolore" logo placed on the steering head
  • EV03 Logo

Source MV Agusta
