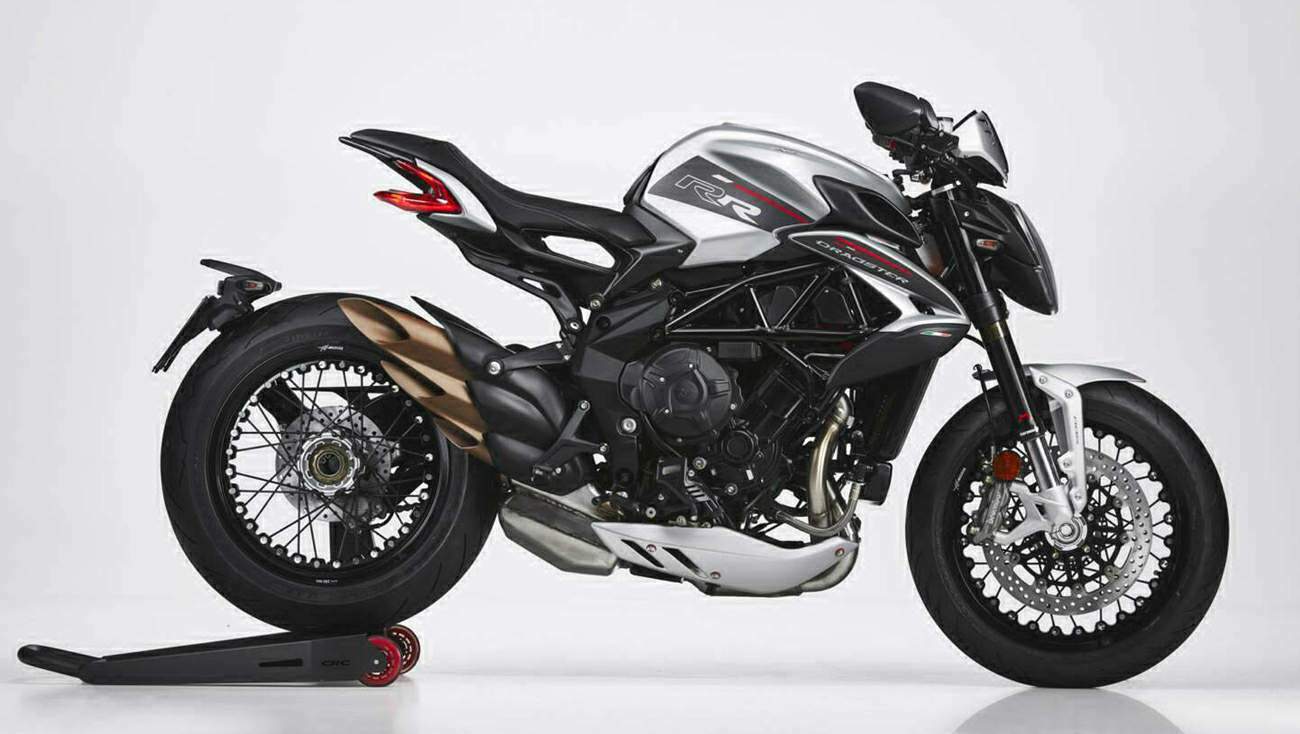

MV Agusta Dragster 800RR

.

Make Model

MV Agusta Dragster 800RR

Year

2021

Engine

Four stroke, transverse three cylinder, DOHC with mechanical chain tensioner and DLC tappet, 4 valves per cylinder

Capacity

798 cc / 48.68 cu-in
Bore x Stroke 79 x 54.3 mm
Cooling System Cooling with separated liquid and oil radiators
Compression Ratio 13.3:1
Engine management system Integrated ignition - injection system MVICS 2.1 (Motor & Vehicle Integrated Control System) with six injectors. Engine control unit Eldor Nemo 2.1, throttle body full ride by wire Mikuni, pencil-coil with ion-sensing technology, control of detonation and misfire. Torque control with four maps. Traction Control with eight levels of intervention with lean angle sensor
Electronic Quick-Shift MV EAS 3.0 (Electronically Assisted Shift up & down)
Environmental Standard Euro 5

Ignition

Multipoint electronic injection
Starting Electric

Max Power

103 kW / 140 hp @ 12300 rpm

Max Torque

87 Nm / 64.1 lb-ft @ 10250 rpm
Electronic Quick-shift MV EAS 2.0 (Electronically Assisted Shift up & down)
Clutch Multi-disc wet clutch with hydraulic actuation and back torque limiting device

Transmission

Cassette style, 6 speed, constant mesh
Final Drive Chain
Final Drive Ratio 16/41
Primary Drive Ratio 22/41
Gear Ratio 1st 13/37  2nd 16/34  3rd 18/32  4th 19/30  5th 21/30  6th 22/29
Frame ALS Steel tubular trellis, aluminium alloy rear swing arm pivot plates

Front Suspension

43mm Marzocchi USD aluminium telescopic hydraulic fork with DLC treated aluminium with anodized fork legs and having rebound-compression damping and spring preload external and separate adjustment
Front Wheel Travel 125 mm / 4.9 in

Rear Suspension

Progressive Sachs, single shock absorber with rebound and compression damping and spring preload adjustment, aluminium alloy single sided swing arm
Rear Wheel Travel 130 mm / 5.1 in

Front Brakes

2x 320mm floating discs, with steel braking disc and flange, Brembo radial-type with 4 piston calipers

Rear Brakes

Single 220mm disc, Brembo 2 piston caliper
ABS Continental MK100 with RLM (Rear Wheel Lift-up Mitigation) and with cornering function
Rim Front Aluminium alloy 3.50 x 17 in
Rim Rear Aluminium alloy 6.00 x 17 in

Front Tyre

120/70 - ZR 17 M/C (58 W)

Rear Tyre

200/55 - ZR 17 M/C (78 W)
Trail 103.5 mm / 4.07 in
Steering Damper Manually adjustable with 8 settings
Dimensions  Length: 2035 mm / 80.1 in
Width:     935 mm / 36.8 in
Wheelbase 1400 mm / 55.1 in
Seat Height 845 mm / 33.3 in
Ground Clarence 135 mm / 5.3 in

Dry Weight

175 kg / 385.8 lbs

Fuel Capacity

16.5 Litres / US 4.36 gal
Exclusive Features MV Ride App - GPS sensor - Bluetooth Mobisat tracker - Cruise control - Launch control
Optional The full Special Parts range is available on the MV Agusta Special Parts website
.

From a press release by MV Augusta:

2021 MV Agusta Dragster RR: MECHANICAL AND ELECTRONIC REVOLUTION.

With the looks of a street fighter, reflecting the powerful three-piston heart, the Dragster RR is a raw blend of technology, design and emotions. No other motorcycle better embodies this concept and the vision inspiring it.

The three-cylinder engine, now Euro 5 approved, has been perfected through modifications aimed at increasing its efficiency in terms of performance and reliability. MV engineers have been able to reduce internal friction even further thanks to the DLC coating on the new tappets and the different materials used for the valve guides. Rounding off the improvements is the complete overhaul of the exhaust system.

WE LOVE BEING REBELS

Aggressive. Imposing. An uncompromising street fighter with an extraordinary 3-cylinder engine and top components.

2021 is the pivotal year for the Dragster family. The most aggressive of the MV Agusta naked bikes has been updated, with a technological breakthrough designed to make riding even more intuitive and comfortable, without sacrificing the emotion that has always characterised all of the motorcycles produced in Schiranna. To achieve this MV Agusta focused on every aspect of the Dragster: frame, engine, gearbox and electronics.

FRAME: EXCELLENCE GETS EVEN BETTER

The excellence of the MV Agusta chassis architecture is world renowned. Excellence is the fruit of constant evolution, and all the bikes in the Dragster MY21 range have received upgrades to the chassis architecture with a redesigned frame plate that increases torsional and longitudinal rigidity.

The new frame is also accompanied by a new rear suspension system featuring a progressive linkage and a monoshock with spring and revised valving. The fork setting has also revised. The goal? To provide performance, comfort and an unparalleled riding experience in all conditions.

EVEN MORE ADVANCED ENGINE

The three-cylinder engine was subject to relentless development activity. The counter rotating crankshaft, unique in the segment, defines its character. With maximum power of 140 HP, the MV Agusta triple remains one of the most powerful in its class. The meticulous fine-tuning work for the 2021 version – Euro 5 compliant – led MV Agusta engineers to further reduce internal friction with DLC treatment with the new tappets and new materials for the valve guides. From the manifold to the silencer, we entirely redesigned the exhaust system to improve power output and consequently obtain even more generous torque and power curves at any engine speed. The injectors are also new, capable of handling an increased injection pressure of 4.0 bar. The ECU firmware was also renewed, as were the engine control algorithms, allowing even more precise and refined throttle management.

MORE PRECISE AND QUICKER GEAR SHIFT

The clutch also received a major upgrade, with a more robust clutch basket that makes the bike more manageable and quieter. Quick-Shift EAS 3.0 with up and down function is now in its third generation, with smoother and more precise shifting courtesy of a new sensor and algorithms.

ELECTRONICS: MORE COMPLETE THAN EVER

From the dashboard to the cornering ABS, as well as the controls and the ECU firmware. The electronics in the new Dragsters represent a significant leap in quality, thanks in part to the arrival of the IMU inertial platform – an entirely Italian-made project by Milan-based e-Novia, and developed expressly for MV Agusta. This system detects the bike’s pitch and roll, allowing extremely accurate management of all the controls based on lean angle.

The ABS, now developed by Continental, features the cornering function, and the TC slip control works as function of lean angle. Also, thanks to the IMU, the revolutionary FLC front lift control can now execute a controlled wheelie instead of entirely preventing it, maximizing acceleration.The future of technology before your eyes.

All the Dragsters benefit from the new 5.5” TFT dashboard which communictes with the MVRide App. This app can be used, not only to customise every aspect of the bike directly from your Smartphone. Also, you can share your trips on your favourite social media platform. The mirroring function allows navigation with corner-by-corner directions in addition to route recording and sharing.

These features were previously only found on the Brutale 1000 RR. The handlebar controls have a new left-hand block with joystick for browsing through the various dashboard menus and FLC + speed limiting functions on the right hand control.

SUPERSTRUCTURE

The saddle was also redesigned with a focus on comfort and features a new foam base. The headlight is full LED and, thanks to the presence of the IMU, has a “cornering” function, lighting up the inside of the turn when the bike tilts, thus increasing active safety. A small dash cover protects the instrument panel and deflects airflow away from the rider’s torso. Its profile has been modified to increase its effectiveness.

The Dragster RR will be available in Grey Matt/Metallic Dark and Silver Matt/Metallic Dark
