MV Agusta Dragster 800 RR TheArsenale Special

Make Model	MV Agusta Dragster 800 RR TheArsenale Special
Year	2020
Engine	Four stroke, transverse three cylinder, DOHC, 4 valve per cylinder
Capacity	798 cc / 48.68 cu-in
Bore x Stroke	79 x 54.3 mm
Cooling System	Cooling with separated liquid and oil radiators
Compression Ratio	13.3:1
Engine management system	Integrated ignition - injection system MVICS 2.0 (Motor & Vehicle Integrated Control System) with six injectors. Engine control unit Eldor EM2.0, throttle body full drive by wire Mikuni, pencil-coil with ion-sensing technology, control of detonation and misfire. Torque control with four maps, Traction Control with eight levels of intervention, Electronic quick-shift MV EAS 2.0 (Electronically Assisted Shift up & down)
Emission	Euro 4
Ignition	Multipoint electronic injection
Starting	Electric
Battery	PERFDRfTIFinCE
Alternator	350 Watt 5000 rpm 12V-8.6Ah
Max Power	103 kW / 140 hp @ 12300 rpm
Max Torque	87 Nm / 8.87 kg-m @ 10100 rpm
Clutch	Wet, multi plate with slipper clutch
Transmission	Cassette style 6 speed constant mesh
Final Drive	Chain
Primary Drive	22/41
Gear Ratio	1st 13/37 / 2nd 16/34 / 3rd 18/32 / 4th 19/30 / 5th 21/30 / 6th 22/29
Final Drive Ratio	6/41
Frame	ALS Steel tubular trellis Aluminium alloy
Front Suspension	43mm Marzocchi upside down telescopic hydraulic fork in DLC treated aluminium, with red colour anodized fork legs and having rebound compression damping and spring preload external and separate adjustment
Front Wheel Travel	125 mm / 4.92 in
Rear Suspension	Progressive Sachs, single shock absorber with rebound and compression damping and spring preload adjustment - Single sided swing arm material Aluminium alloy
Rear Wheel Travel	124 mm / 4.88 in
Front Brakes	2x 320mm floating discs 4 piston Brembo calipers
Rear Brakes	Single 220mm disc 2 piston Brembo caliper
ABS	Bosh 9 Plus with rear wheel lift-up mitigation (RLM)
Rim Front	Material/size With aluminium alloy spokes 3.50 x 17 in
Rim Rear	Material/size With aluminium alloy spokes 6.00 x 17 in
Front Tyre	120/70- ZR 17 M/C (58 W)
Rear Tyre	200/50- ZR 17 M/C (75 W)
Trail	103.5 mm / 4.07 in
Dimensions	Length 2035 mm / 80.1 in Width 935 mm / 36.8 in
Wheelbase	1400 mm / 55.1 in
Seat Height	845 mm / 33.3 in
Ground Clearance	135 mm / 5.3 in
Dry Weight	168 Kg / 370.38 lbs
Fuel Capacity	16.6 Litres / US 4.3 gal
Reserve	5 Litres / 1.3 US gal

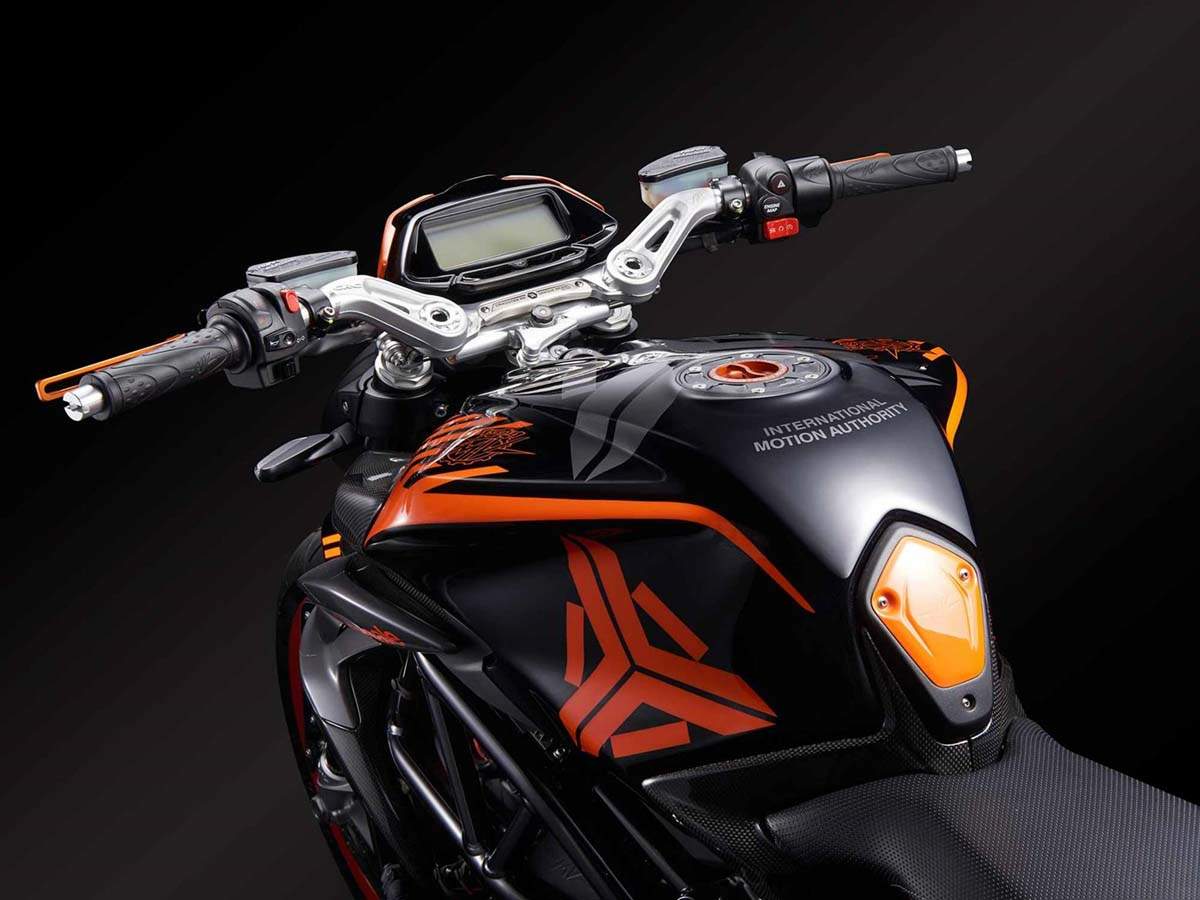

Varese, February 4, 2020 - MV Agusta will be producing a limited edition of the Dragster 800 RR entirely dedicated to TheArsenale, one of the world’s most exclusive online retail concepts. TheArsenale’s unique offer ranges from jet planes to motorbikes, to accessories and luxury apparel.

MV designers concentrated on specific areas of the bike and on the livery to visually align with TheArsenale’s strong identity. The black and orange details create a contrasting colour scheme that brings out all the irreverent, fiery character of the Dragster 800 RR and perfectly connects with TheArsenale’s concept of over-the-top excellence.

The same uncompromising technical specifications of the 800 RR production model were maintained for the TheArsenale edition, which features MV Agusta’s classic inline-3-cylinder 798 cc engine developing 140 HP and a top speed of nearly 250 km/h. The TheArsenale model also features the MVICS full Ride by Wire system, as well as traction control adjustable on 8 levels and an electronic up&down gearbox mated to the hydraulic slipper clutch.

Ratmir Sardarov, Director of MV Agusta Motor S.p.A., commented: “We are excited about this new collaboration with TheArsenale. We were instantly seduced by their pioneering spirit and their extreme approach to luxury retail. Only the best, most exclusive models feature in their online virtual garage and our special TheArsenale edition Dragster 800 RR, a piece of pure motorcycle art, is now one of their brightest gems.”

“We were proud to be working on such a project with an incredible brand and our joint efforts got paid off when we saw the bike in flesh” said Patrice Meignan, CEO and founder of TheArsenale, ”a performance machine that carries the graphical look that we always envisioned our dream bike to be; this MV Agusta Dragster 800 RR x TheArsenale is the embodiment of our transportation dreams.”
