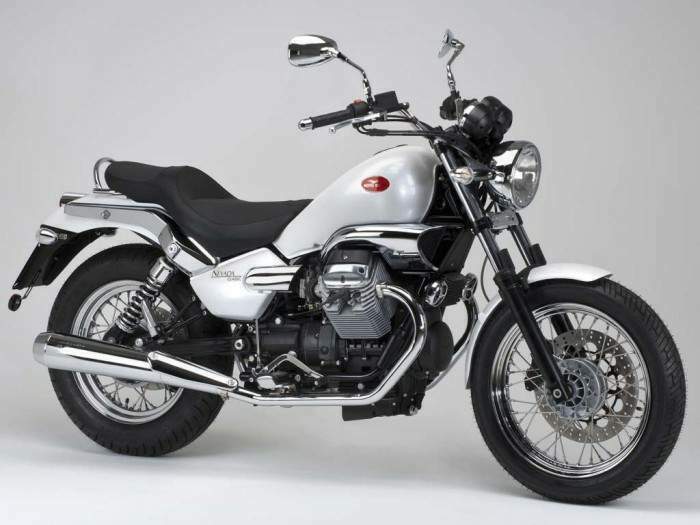

Moto Guzzi Nevada 750 Classic

Make Model	Moto Guzzi Nevada 750 Classic
Year	2008 - 09
Engine	Four stroke, 90° V twin, longitudinally mounted, OHV, 2 valves per cylinder
Capacity	744 cc / 45.4 cu-in
Bore x Stroke	80 x 74 mm
Cooling System	Air cooled
Compression Ratio	9.6:1
Lubrication	By lobes with pressure pump
Exhaust	Three-way catalyzer with Lambda sensor
Induction	Weber-Marelli electric injection
Ignition	Magneti Marelli electronic digital
Starting	Electric
Max Power	35.5 kW / 48 kW @ 6600 rpm
Max Torque	54.7 Nm / 40.3 lb-ft @ 3600 rpm
Clutch	Single disc, dry, with cush drive
Transmission	5 Speed
Final Drive	Shaft
Gear Ratio	1st 11/26 = 1 : 2,3636 2nd 14/23 = 1 : 1,6429 3rd 18/23 = 1 : 1,2778 4th 18/19 = 1 : 1,0556 5th 25/22 = 1 : 0,88
Frame	Detachable tubular duplex cradle in special high-strengh steel
Front Suspension	40mm Marzocchi hydraulic telescopic fork
Front Wheel Travel	130 mm / 5.1 in
Rear Suspension	Swinging fork in light alloy cast with two dampers and spring adjustable for preload and rebound
Rear Wheel Travel	130 mm / 5.1 in
Front Brakes	Single 320mm disc 4 piston caliper
Rear Brakes	Single 260mm disc 1 piston caliper
Front Tyre	100/90 V18
Rear Tyre	130/90 V16
Rake	27.5°
Trail	135 mm / 5.4 in
Dimensions	Height 1068 mm / 42.0 in Length 2166 mm / 85.3 in Width 825 mm / 32.5 in
Wheelbase	1467 mm / 57.8 in
Seat Height	767 mm / 30.0 in
Ground clearance	190 mm / 7.5 in
Dry Weight	184 kg / 405.7 lbs
Fuel Capacity	14 Litres / 3.7 US gal

The Nevada Classic 750 i.e. is an absolutely modern motorcycle. 87% of the bike, some 383 parts out of 441, have either been redesigned or replaced and the look is totally new, even if the bike maintains all the fascination of a thoroughbred custom. Side panels, shock absorber covers, seat, rear mudguard, tail light and even the rider footrests have been restyled. The resulting look is eye-catching and contemporary but still leaves that unique Nevada spirit shine on through. The brand new, ultra-modern instrumentation now includes an LCD display. The handlebars and grips have been redesigned, as has the clutch lever, which affords smoother, easier action. Riding ergonomics have been improved to give better control and easier handling in rush-hour traffic. The new profile seat has a height of only 760 mm, making for beautifully easy low speed manoeuvring in tight spaces.

THE CUSTOM BIKE FOR EVERYONE

Fantastic to see, easy to drive, easy to recognise with its retro look that is always popular, the Nevada Classic 750 is the custom bike par excellence. The philosophy of relaxing riding is represented excellently in this model whose design and technology has been constantly improved over the years.

Details such as the LCD display show that this motorbike has come a long way since it first appeared on the market. One of its strong points is still how easy it is to ride, together with the extent of control at low speed, aided by the nearness of the saddle to the ground: just 760mm. There are no problems, therefore, for city riding, where the motorcyclist’s balance makes him more agile.

The equipment on the motorbike is top-level, with the Marzocchi fork at the front and the dual, adjustable shock absorber on the rear axle. The brake system is extremely safe, with its 320mm diameter front disk with a clamp with 4 opposed pistons, aided by a rear 260mm disk. The engine’s positive characteristics are emphasised thanks to the precision of the electronic injection that has been remapped to reduce emissions. The new catalyst converter, with its higher concentration of noble metals (from 70 to 140 g/ft3) also contributes to results.

The Nevada Classic 750 also has new upholstery, with new designs and new colours. Racing Red; Guzzi Black, Sport Yellow and Pearly Blue/White.

Retro look

LCD display

Low seat height: just 760mm

Marzocchi fork at the front and the dual, adjustable shock absorber on the rear axle.

320mm diameter front disk with a clamp with 4 opposed pistons, aided by a rear 260mm disk.

New catalyst converter
