Moto Guzzi Audace
|
| . |
|
Make Model. |
Moto Guzzi Audace |
|
Year |
2017 |
|
Engine |
Four stroke, 90° V-twin, SOHC, 4 valves per cylinder |
|
Capacity |
1380 cc / 84.2 cu-in |
| Bore x Stroke | 104 x 81.2 mm |
| Cooling System | Air and oil cooled |
| Compression Ratio | 10.5:1 |
| Lubrication | Wet sump |
| Timing System Diagram | Intake valve opens 19° BTDC (1-mm checking clearance) intake valve closes 55° ABDC exhaust valve opens 49° BBDC exhaust valve closes 12° ATDC |
|
Fuel Supply |
Phased electronic multipoint sequential injection, Magneti Marelli IAW7SM; “ride by wire” Ø 52 mm throttle body, IWP 243 Magneti Marelli injectors, double oxygen sensor, integrated management of 3 engine mappings, traction control, cruise control |
| Ignition | Electronic |
| Spark Plugs | NGK LMAR8F, 2 per cylinder |
|
Starting |
Electric |
| Exhaust system | Stainless steel, 2-in-2 type, three-way catalytic converter with double oxygen sensor, Euro 4 |
| Battery | 12V - 18 Ah |
| Alternator | 12 V - 550 W |
|
Max Power |
71 kW / 96 hp @ 6500 rpm |
|
Max Torque |
121 Nm / 12.3 kgf-m / 89.2 ft/lb @ 3000 rpm |
| Clutch | Single-disc with integrated anti-vibration buffer |
|
Transmission |
6 speed with final overdrive |
| Final Drive | Shaft |
| Gear Ratio | 1st 17:38 = 1:2.235 / 2nd 20:34 = 1:1.700 / 3rd 23:31 = 1:1.348 / 4th 26:29 = 1:1.115 / 5th 31:30 = 1:0.968 / 6th 30:24 = 1:0.8 |
| Primary Drive | 26:35 = 1:1.346 |
| Final Drive Ratio | Double cardan joint and fixed bevel gear seat, drive ratio 10:36 = 1:3.6 |
| Frame | Steel tubing, closed double cradle with elastic kinematic engine mounting system to isolate vibrations. |
|
Front Suspension |
Standard fork, Ø45 mm, with radial caliper mounting bracket |
| Front Wheel Travel | 120 mm / 4.7 in |
|
Rear Suspension |
Swingarm with double shock absorber with adjustable extension and spring preload with remote tank |
| Rear Wheel Travel | 120 mm / 4.7 in |
|
Front Brakes |
2 x Ø320 mm stainless steel floating discs, Brembo radial calipers with 4 horizontally opposed pistons |
|
Rear Brakes |
Single Ø282 mm stainless steel fixed disc, Brembo floating caliper with 2 parallel pistons |
| Front wheel | Aluminium alloy 3.50” x 18” |
| Rear Wheel | Aluminium alloy 6.00” x 16” |
|
Front Tyre |
130/70 R18 |
|
Rear Tyre |
200/60 R16 |
| Trail | 155 mm / 6.1 in |
| Headstock Angle | 32° |
| Steering Angle | 38° |
| Dimensions |
Length: 2445 mm / 90.2 in Width: 940 mm / 37.0 in Height: 1180 mm / 46.5 in |
| Wheelbase | 1685 mm / 66.3 in |
| Seat Height | 740 mm / 29.1 in (Optimal 720 mm / 28.3 in) |
| Ground Clearance | 165 mm / 6.4 in |
|
Curb Weight |
299 kg / 659 lbs |
|
Fuel Capacity |
20.5 Litres / 4.7 US gal |
| Reserve | 5 Litres / 1.3 US gal |

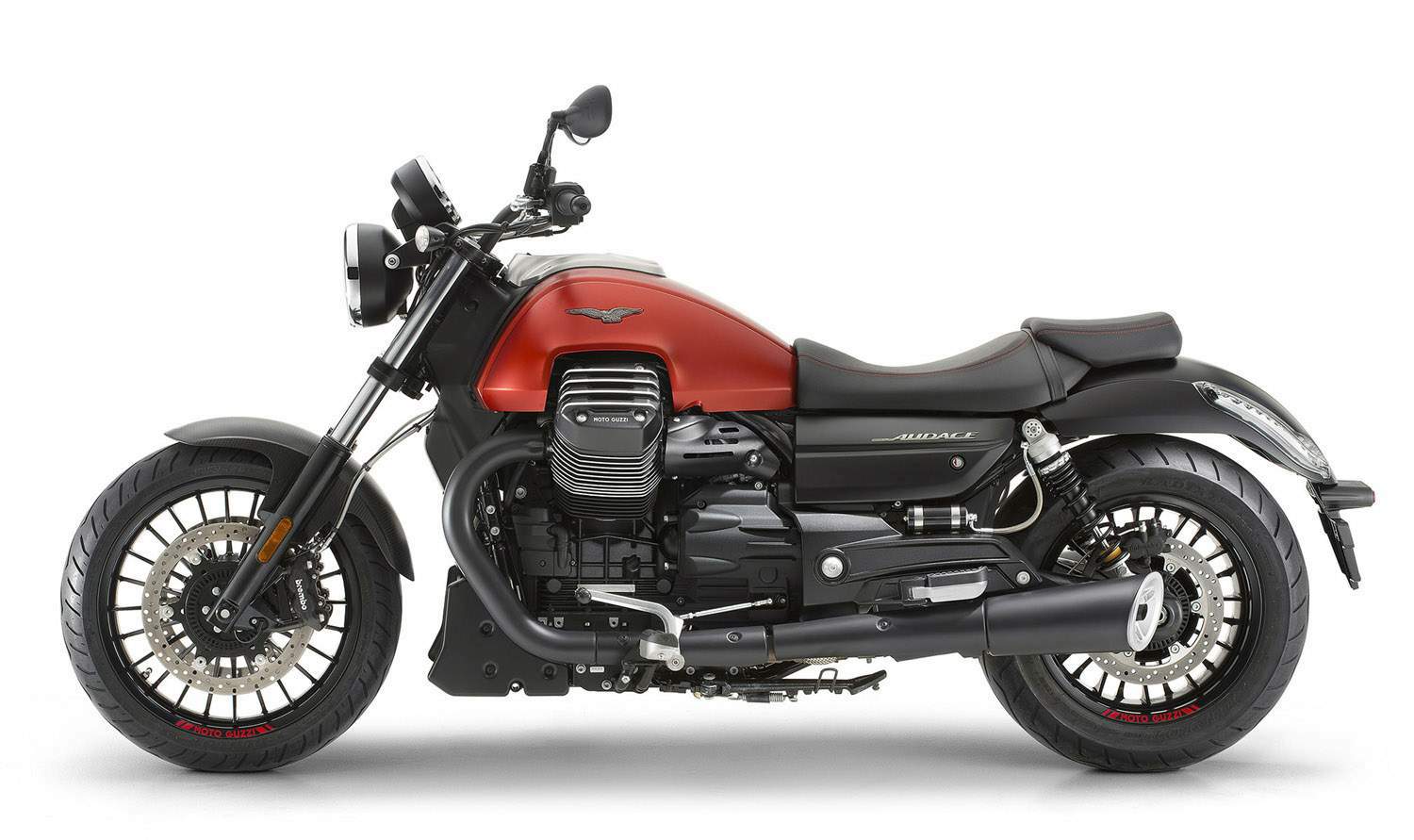

The Audace can be picked
out immediately by its front end, stylistically “lighter” thanks to
the circular headlight unit and the (real) carbon mudguard mounted
on a fork without coverings. There are several other new features
that contribute to enhance the muscular character of this bike: like
the oil cooler air-scoop, the metallic radiator grill and the brand
new total-black short megaphone exhaust. Also all chrome plating has
been eliminated, and every mechanical detail and each exposed
metallic part has been blacked-out. The platform floorboards and
rocker gear shift pedal mounted on all the other models in the range
have been replaced by sportier footpegs mounted further forward with
a classic gear shifter pedal.
Particular attention was given to the saddle, covered in “faux
leather” with exposed red stitching, lowered in terms of the seating
position and installation ready for the foldaway passenger seat. The
drag handlebar is also new which, thanks to the forward position of
the footpegs and the different seating height, create a longer and
more dominating riding position, compared to the California Custom.
Other stylistic changes to contribute to a more aggressive look can
be found in the details: the burnished valve covers, the rear shock
absorbers with separate gas reservoir, the light alloy wheels
personalized with the Moto Guzzi logo and the minimal black mirrors.
Powerful and aggressive, the Audace looks as if it is crouched down
on its haunches like a large feline ready to unleash its explosive
power on the asphalt, leaving the marks of its oversize 200/65 rear
tire. The generosity of the 90° V-twin 1400cc engine "Made in
Mandello" is well known by now and on the Audace at high revs is
livelier than ever; thanks to the new exhaust system with redesigned
fluid dynamics. Within the Moto Guzzi 1400 range the Audace will
certainly be the one that is most used with the “Veloce” map output
and the one where the MGTC traction control system will need to
intervene most often…

Every mechanical detail, each small exposed metallic part is dark. The Audace can be picked out immediately by its front end, made stylistically lighter by the circular headlight unit and the carbon mudguard.
The drag handlebar, the forward position of the footpegs and the
different saddle seating level create a more stretched out and
more dominating riding position.
The brand new undersump lug that gives the side view a gritty look, the metallic radiator grille and the short megaphone exhaust.
Audace Standard Features:
- 1400 V-TWIN producing explosive torque of 87 ft. lbs. at just 2750
rpm
- 96 hp at 6500 rpm
- Innovative elastic engine mounts for zero vibrations and total
riding comfort
- 6-speed gearbox
- Traction Control - (MGTC) Adjustable 3-stage
- Ride-by-wire, three engine maps: Touring, Sport, Rain
- Electronic cruise control
- ABS / Brembo brakes
- 5.4 gallon fuel capacity
- Special remote reservoir rear shocks
- Black rims with red Moto Guzzi logo
- Black rearview mirrors
BORN BAD
It attacks the asphalt and shows its charismatic personality with
every detail, popular with bikers of character.
Few frills, elongated riding position, drag bar handlebars and
muscular lines: this is the bike to ride alone, accompanied by the
roar of the powerful engine, without a destination.
Ostentatious, muscular and fierce, the Moto Guzzi Audace can be
picked out immediately by its front end, made stylistically lighter
by the circular headlight unit and the carbon mudguard mounted on a
fork without any telescope covering.
Audace has no chromium plating: every mechanical detail, each small
exposed metallic part is dark as night, an ideal condition for fully
enjoying a bike in solitude with the striking beauty of this new
Moto Guzzi 1400cc.
NEW RIDING EXPERIENCE-
Dark spirit, prefers dark mechanical details to chrome plating and renews its look with a lighter front shield, thanks to the circular headlight group and the new carbon mudguard. The short exhausts, the side panel with tail and the radiator protection grille emphasise its gritty spirit. The handlebars, the rearward footrests and the renewed saddle ergonomics make the riding experience a real hedonistic pleasure.
MAPS AND TRACTION CONTROL-The generosity of the 1400 cc "Made in Mandello" 90° V-twin is a
quality which is well known by now and on the Audace, thanks to the
exhaust system with redesigned fluid dynamics, is even more lively
at high revs, up to a torque of 121 Nm at 3,000 rpm. As a result,
thanks in part to an advantageous weight/power ratio, the Audace
jumps off the line with unexpected vigour.
The Audace will certainly be the Moto Guzzi most used with the
“Veloce” engine map and the one where the MGTC traction control
system will need to intervene most often. Whereas its large twin
cylinder engine is the absolute benchmark in its category for engine
capacity-performance-consumption ratio thanks to excellent
thermodynamic performance, the advanced Ride-by-wire multimap
electronic management allows the rider to choose from one of three
engine maps: Turismo, Veloce and Pioggia.
DESIGN DETAILS-
On the lines of the Audace light comes through only in the stark
contrast with the colour of the lateral strip that shows several
brand new details. Like the undersump lug that gives the side view a
gritty look, the metallic radiator grille and the short, megaphone
exhaust with die-cast aluminium support flange that, despite the
outlaw look, is high-tech to contain polluting emissions. In fact,
thanks to the use of a secondary air system and a specific catalytic
converter, the Audace is the first Euro 4 approved Moto Guzzi.
The side panel covers are light, as well as the passenger footpeg
bracket. The platform footboards are gone here - we are no longer on
a cruiser - as is the rocker gear shift control in order to make
room for sportier footpegs mounted farther back and the classic gear
shifter pedal.
Particular attention was given to the more sporty saddle, covered in
eco-leather with exposed red stitching, lowered in terms of the
seating position and installation ready for the foldaway passenger
seat (that can be removed when necessary). The design of the drag
handlebar, thanks to the forward position of the footpegs and the
different seating level, creates a longer and more dominating riding
position.
Another particularly elegant feature is the burnished valve covers,
the fully adjustable rear shock absorbers with separate gas bottle,
the alloy wheels personalised with the Moto Guzzi logo and the
decidedly minimal mirrors.

The innovative multimedia platform makes its début on the Audace
at the service of Moto Guzzi riders. MG-MP, available as optional
equipment, is the innovative multimedia system which allows you to
connect the bike to your smartphone and consequently to the web.
With this application, downloadable free from App Store and Google
Play, your smartphone (iPhone or Android) becomes an actual
sophisticated on board multifunctional computer and the link between
the vehicle and the Internet.
The wireless connection allows you to simultaneously see important
information about the vehicle on your smartphone screen so you will
always have your trip parameters under control. The touch screen on
your smartphone lets you view five parameters at a time, selected by
the rider from a vast menu including speedometer and tachometer,
engine power and torque, instant and average fuel consumption,
average speed and battery voltage, longitudinal acceleration and
extended trip computer. The “Eco Ride” helps to limit fuel
consumption and to maintain an eco-compatible riding style,
providing a summary assessment of the results achieved during the
trip.
You can also store your trip data and review it later on your
computer or directly on the app so you can analyse your route along
with the vehicle performance parameters.
When the fuel reserve light comes on MG-MP indicates the location of
the closest petrol stations; the system also helps you easily find
the vehicle when you are parked in an unfamiliar area, automatically
saving the position where it was last switched off.
MG-MP includes the “Grip Warning” feature which replicates the
traction control indications for maximum visibility and provides
information on your riding style in real time with relation to the
road surface. A dedicated warning light alerts the rider in the
event of poor grip. With the synergistic use of gyroscopes and
vehicle signals, your iPhone/iPod becomes a sophisticated roll angle
indicator on turns thanks to a proprietary algorithms developed
specifically for the new Moto Guzzi. You can set the thresholds for
roll angle, running speed and rpms so that when they are exceeded
the relative warning lights will come on or flash on the virtual
dashboard.
The original range of accessories for the Audace was designed to
meet the needs of style sensitive bikers who want to reinforce the
decisive and powerful image of their bikes, giving them an even more
muscle look (for example with the black anodised hand grips that are
installation-ready for black «corsa» ends, short shank black
mirrors, CNC billet aluminium sleek and lightweight brake and clutch
levers) or a more sporty look (with carbon look kit for tank side
covers, fuel cap cover and injectors cover, matt red cylinder heads
cover kit and completely aluminium footpegs).
The range also includes components dedicated to increasing comfort,
such as the mirror-polished stainless steel cylinders heat shield
kit.
AUDACE EAGLE MOTORCYCLE COVER
Made to measure cover for indoor use to protect your bike from
gathering dust when parked in the garage. It is made specifically
for the Audace in an elastic fabric with a special graphic.
"DARK" SHORT SHANK MIRRORS KIT
Made in anodized black billet aluminium. This pair of short shank
mirrors embodies the maximum in manufacturing technology expressed
in some special machining done on three axes. They are approved for
use in all countries.
"DARK" HAND GRIPS KIT
Made from black anodised billet aluminium, they enhance your bikes
handlebar, giving it a personalised and elegant look and they are
installation-ready for “Corsa" ends.
BLACK "CORSA" HAND GRIP ENDS
The "Corsa" hand grip ends, made from black anodised billet
aluminium, match the "Dark", hand grips, perfectly completing the
style and aesthetics of your bike.
"DARK" BLACK FRONT BRAKE LEVER
Made from black anodised billet aluminium, the dark front brake
lever, thanks to its feel and adjustments, increases riding comfort,
enhancing the look of the bike.
"DARK" BLACK CLUTCH LEVER
Made from black anodised billet aluminium, the dark clutch lever,
thanks to its feel and adjustments, increases riding comfort and
characterises the aesthetics of the Audace.
ALUMINIUM RIDER AND PASSENGER FOOTPEGS
High quality billet aluminium covers that replace the factory rubber
parts. The facing creates a specific design and guarantees maximum
grip in any riding conditions.
ALUMINIUM HEAD BUSHINGS SET
Set of four billet aluminium aesthetic spacers which replace the
fastening screws on the cylinder head covers. Polished stainless
steel screws are included.
ENGINE CRANKCASE HOLE COVERS – BLACK
Made from laser-cut and black anodised aluminium, these cover the
engine crankcase machining holes. The number "1400" is laser
inscribed.
CARBON LOOK TANK SIDE COVERS
The tank side covers lined with a special carbon look film
personalise the style of your bike, making it a true “custom”.
CARBON LOOK FUEL CAP COVER
The special fuel cap cover is also lined with a carbon look film for
extreme personalisation of every part.
PAIR OF CARBON LOOK INJECTOR COVERS
These covers designed for the injectors have a carbon look film
lining.
ELECTRONIC ANTITHEFT KIT
Compact, latest generation self powered alarm system with wireless
remote control Its features include: engine lock, built-in motion
sensor, high level of protection.
CYLINDER HEAT SHIELDS KIT
Each heat shield is made in mirror polished stainless steel with ABS
inserts that improve the design. They protect from the heat
generated by the cylinder in order to give you a more comfortable
ride.
CHROMIUM PLATED TANK SIDE COVERS
The chromium plated fuel tank side covers further personalise the
style of your bike.
HEADS GUARD KIT
Special lateral cylinder guards made in billet aluminium with a
mirror polished finish. They match the style and design of the new
Audace perfectly. The come complete with mirror polished stainless
steel mounts.
LICENSE PLATE BRACKET KIT AND USA LICENSE PLATE BRACKET KIT
Elegant approved license plate bracket made in stainless steel with
polished finish.
SWINGARM WASHERS
Special washers made in billet aluminium.
REAR BRAKE FLUID RESERVOIR COVER
Made in billet aluminium with polished finish, this personalises the
look of your bike. It completely covers the brake fuel reservoir
body, obviously not interfering with its operation. Easy to install.

|
Any corrections or more information on these motorcycles will be kindly appreciated. |
