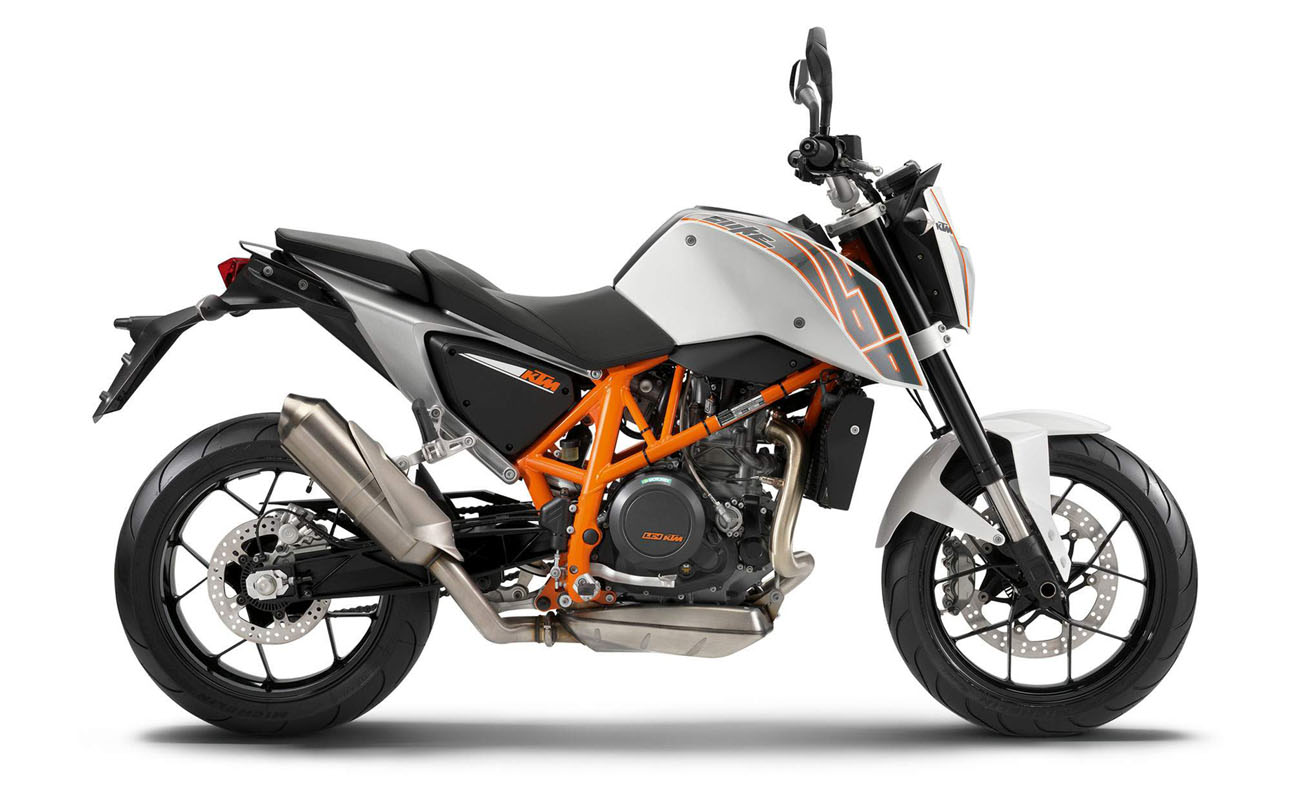

KTM 690 Duke

.

Make Model

KTM 690 Duke

Year

2013

Engine

Four stroke, single cylinder, SOHC, 4 valves

Capacity

690 cc / 42.1 cu in
Bore x Stroke 102 x 84.5 mm
Cooling System Liquid Cooled
Compression Ratio 12.6:1
Exhaust Stainless steel silencer with regulated catalytic converter
Lubrication Wet sump
Engine Oil Synthetic, 15W-50

Induction

Generation Keihin EMS with EPT (Electric Power Throttle)

Ignition

Kokusan DC-CDI

Spark Plug

NGK LKAR 8BI - 9 (inside plug)
NGK LMAR 7A - 9 (outside plug
Battery 12 V / 11.2 Ah
Starting Electric

Max Power

52.2 kW / 70 hp @ 7500 rpm

Max Torque

69.8 Nm / 7.1 kgf-m / 51.6 ft-lb @ 6550 rpm
Clutch APTC multi-disc wet clutch, hydraulically operated

Transmission

6 Speed
Primary Drive Ratio 36:79
Gear Ratios 1st 14:35 / 2nd 16:28 / 3rd 21:28 / 4th 21:23 / 5th 23:22 / 6th 23:20
Final Drive Ratio 16:40
Final Drive Chain X-Ring 5/8 x 5/16"
Frame Chromoly trellis frame, powder-coated, aluminium sub frame

Front Suspension

WP Upside-down forks, 4357 ROMA
Front Wheel Travel 135 mm / 5.3 in

Rear Suspension

WP monoshock, 4618 with Pro-lever deflector
Rear Wheel Travel 135 mm / 5.3 in

Front Brakes

Single 320 mm floating disc, radially screwed four-piston brake caliper

Rear Brakes

Single 240 mm floating disc, single piston caliper
Front Rim Cast aluminium wheels 3.5 x 17"
Rear Rim Cast aluminium wheels 5.5 x 17"

Front Tyre

120/70 - ZR17 M/C 58W TL

Rear Tyre

160/60 - ZR17 M/C 69W TL
Steering Head Angle 63.5°
Trail 115 mm / 4.5 in
Wheel base 1466 mm / 57.7 in
Ground Clearance 192 mm / 7.6 in
Seat Height 835 mm / 32.9 in

Dry Weight

149.5 kg / 330 in

GVWR

350 kg / 772 lbs

Engine Oil Capacity

1.7 L / 1.8 US qt / 1.5 Imp qt
Fuel Capacity 14 Litres / 3.7 US gal / 3.1 Imp gal
Fuel Reserve 3.2 L / 3.4 US qt / 2.8 Imp qt
Consumption Average 4.2 L/100 km / 23.9 km/l / 56.2 US mpg / 67.5 Imp mpg
Standing 1/4 Mile 12.3 sec
Top Speed 202.9 km/h / 126 mph
.

Back then, KTM revived the pure, unadulterated single-cylinder motorcycle in the form of the "original" Duke. Judging by the latest 690 Duke that stands before us today, much has been gained: smoothness, room for a pillion passenger, long-distance ability. But what it has never lost is its intensive and elemental ride dynamics. The most cutting-edge series production single-cylinder of our times and a precision chassis with a wealth of outstanding components turn every trip on the 690 Duke into an incomparable and unforgettable riding experience.

Key Features

Design Single-cylinder, 4-stroke, spark-ignition engine, liquid-cooled

Displacement 690 cm³

Performance 50 kW (67 hp)

Weight without fuel approx. 149.5 kg

ENGINE

The new Duke is equipped with the latest version of the legendary LC4: A whole 690 cm³ of displacement, twin ignition featuring plug-selective mapping for the best and most effective combustion, plus extended service intervals of 10,000 km and even lower fuel consumption – never has it been as elegant, cultivated, sporty and effective to be powered by one cylinder. And never has the need for more cylinders been more questionable. 50 kW (68 PS) provide, thanks also to ride-by-wire, extremely powerful and free-revving thrust at all engine speeds, hence making light work of the equally lightweight 690 Duke. It has adopted such well-known standard production goodies such as active engine casing ventilation and the slipper clutch that effectively prevents rear wheel chatter when down-shifting hard.

BALANCER SHAFT

The finely balanced crank drive of the 690 single-cylinder converts terrific combustion pressure into unrivalled single-power - thanks to its balancer shaft, which eliminates vibration even better than ever without having any detrimental effect on the life of the super-single.

INJECTION / ENGINE MANAGEMENT / RIDE-BY-WIRE

The electronic engine management system always gets optimum performance out of the ingenious LC4 engine. More advanced technology than ever is taken advantage of in 2012 for this purpose: Twin ignition with individual mapping for each spark plug ensures that the mixture is always burned effectively, irrespective of load and engine speed. And then genuine ride-by-wire, in other words electronically controlled throttle valve actuation without any mechanical linkage. So that the electronics always apply the power as perfectly and therefore smoothly as possible, above all on transition from throttle closed to throttle open. How good does that feel? Simply indescribable. So check it out!

CENTRALISATION OF MASSES

The Duke not only impresses with low weight and perfect chassis geometry; the centralisation of masses - for example, by positioning the brushed stainless steel pre-silencer under the engine - also contributes to its playful handling and razor-sharp precision.

ABS

The disengageable dual-circuit ABS system with 9M+ modulator tuned in cooperation with Bosch offers total protection against over-braking, while maintaining the full effect and perfect feedback of a genuine sports brake thanks to very fine sensors. Weighing no more than one kilogramme, the ABS system therefore allows extremely sporty braking. And prevents nose-overs actively and effectively.



FRAME AND SWINGARM

Lightweight components in a large, lightweight entirety: The 9 kg lightweight tubular space frame made from chrome-molybdenum steel and the 4 kg lightweight, high-quality, pin-jointed, die-cast swingarm impress with extreme levels of torsional stiffness, providing the less than 150 kg 690 Duke with excellent tracking stability.

SUSPENSION COMPONENTS

Well-equipped for every situation: The WP upside-down fork on the Duke with a 43 mm upright tube diameter and the pivot-arm articulated WP pressurised-gas monoshock excel with perfect tuning and an unbelievably broad spectrum of use for all demands, from relaxed cruising to racing around closed circuits.

NEW RIMS IN THE KTM DESIGN

New rims may not appear to be such an innovation at first sight nowadays. What new rims mean for a manufacturer perhaps becomes rather clearer measured against the present-day degree of perfection of practically all the parts of a motorbike: But major improvements don't just take a couple of minutes these days. KTM has nevertheless allowed the best technicians to play around with very clever computation software until an extremely lightweight, aesthetically elegant but still very stable and durable set of rims emerged from the casting die. Slightly lighter, but far less rotationally inert because the weight was saved predominantly at the rim ring. The result? Faster acceleration, shorter braking distance, quicker changes of direction – simply a faster motorbike. Cool, don't you think?

BRAKES

The Duke's extremely powerful and easily applied Brembo® brakes impress with outstanding controllability. At the front wheel, a radially-mounted, four-piston, fixed brake calliper bites onto a floating, 320 mm brake disc.

ERGONOMICS

The new 690 Duke inherits many of the benefits of its predecessor: for example, the low weight of less than 150 kg, the first-class handling and the outstanding brakes. Particularly pleasant is the place of work on the two-piece seat: Comfortable while still being set up for all dynamic riding situations, because the gathered sitting position and freedom of movement behind the ideally angled, wide aluminium handlebar provide perfect support for controlling the bike.
