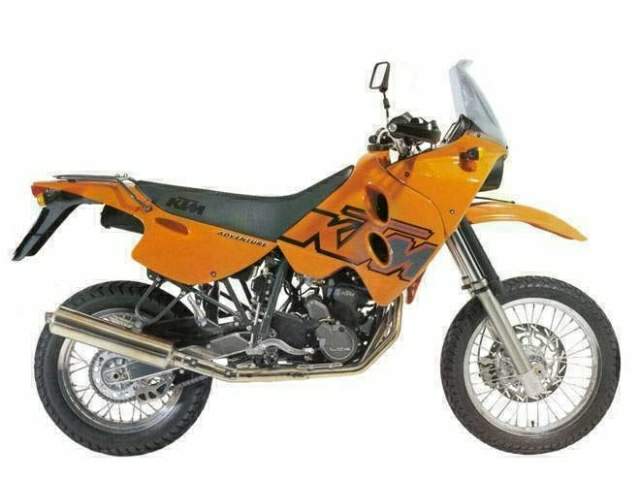

KTM 640 LC4 Adventure R R

.

Make Model

KTM 640 LC4 Adventure R

Year

2000 - 01

Engine

Four stroke, single Cylinder. SOHC, 4 Valve per cylinder,

Capacity

624.6 cc / 38.1 cu in
Bore x Stroke 101 x 78 mm
Compression Ratio 11.0:1
Cooling System Liquid cooled

Induction

Mikuni BST 40

Ignition

Contactless DC-CDI ignition with digital advanced system, KOKUSAN

Spark Plug

NGK DPR8 EA-9

Battery

12V 8Ah, maintenance free

Starting

Kick & electric

Max Power

35.7 kW / 49 hp @ 7500 rpm

Max Torque

52 Nm / 5.3 kgf-m / 38.4 lb-ft @ 5500 rpm

Clutch

Wet, multiplate

Transmission

5 Speed, claw shifted

Primary Drive Ratio

30:81

Gear Ratios

1st 14:35 / 2nd 15:24 / 3rd 18:21 / 4th 20:19 / 5th 22:18

Final Drive Ratio

16:40

Final Drive

Chain

Frame

Central chrome-moly-steel frame

Front Suspension

50 mm WP upside-down forks

Front Wheel Travel

300 mm / 11.8 in

Rear Suspension

WP monoshock

Rear Wheel Travel

320 mm / 12.6 in

Front Brakes

Single 300mm disc, 4piston floating caliper

Rear Brakes

Single 220mm disc, 1 piston floating caliper

Front Tyre

90/90 - 21 54S Enduro 3

Rear Tyre

140/80 - 18 70R Enduro 3
Steering Head Angle 62.5o
Wheelbase 1510 mm / 59.4 in
Ground Clearance 320 mm / 12.6 in
Seat Height 945 mm / 37.2 in

Dry Weight

154 kg / 340 lbs

GVWR

380 kg / 839 lbs

Fuel Capacity

28 L / 7.4 US gal / 6.2 Imp gal

Fuel Reserve

3.8 L / 1.0 US gal / 0.8 Imp gal
Manual

blackbears.ru

The KTM 640 Adventure is a dual-sport motorcycle made by KTM from 1998 until 2007.

The bike featured a single cylinder engine, 21" front and 18" rear wheels and a large fuel tank as standard. It experienced a number of minor changes over its lifespan.

In 1996 KTM introduced the 620 Adventure with a 609 cc engine. The bike received a new 625 cc engine for the 1998 model and was renamed the 640 Adventure-R.

For model year 2004 it experienced noticeable changes with a low front fender, twin front brake discs and the primary color changing from silver to orange.

Production ceased at the end of the 2007 after no further displacement changes.












Any corrections or more information on these motorcycles will be kindly appreciated.
