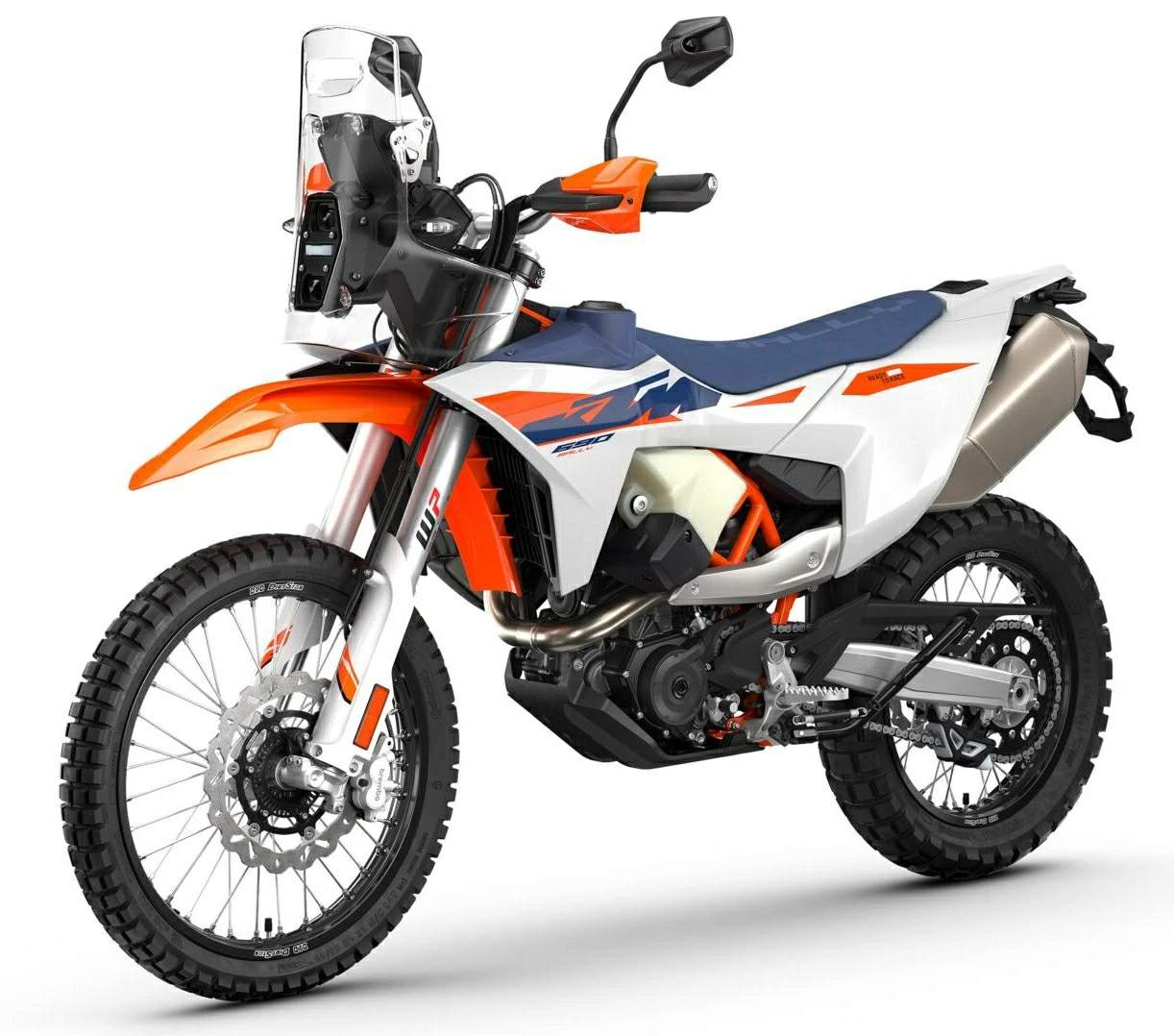

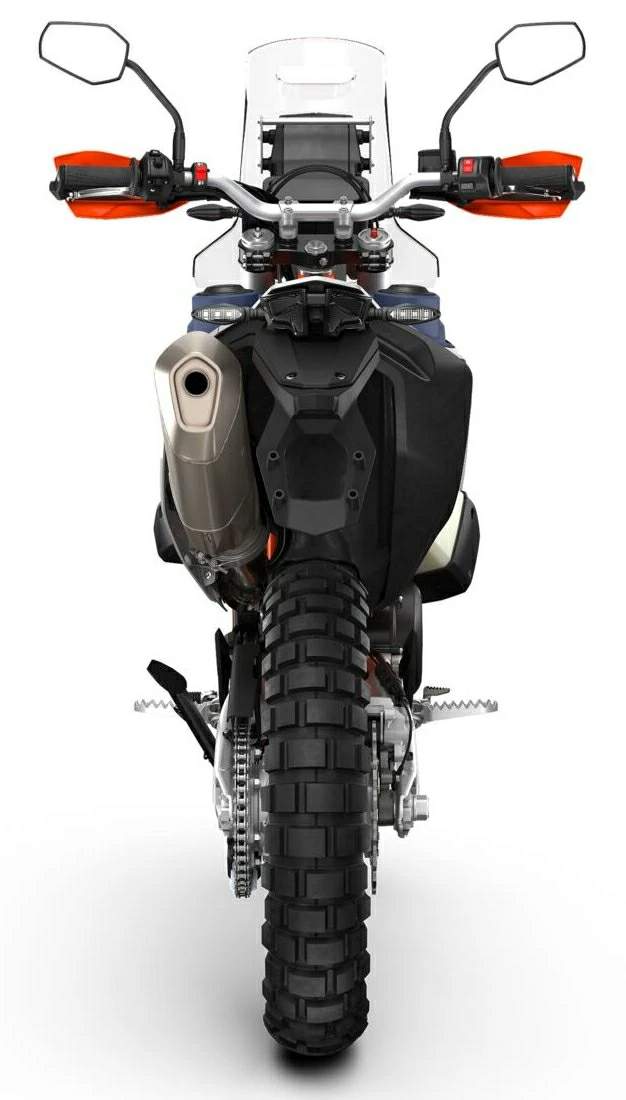

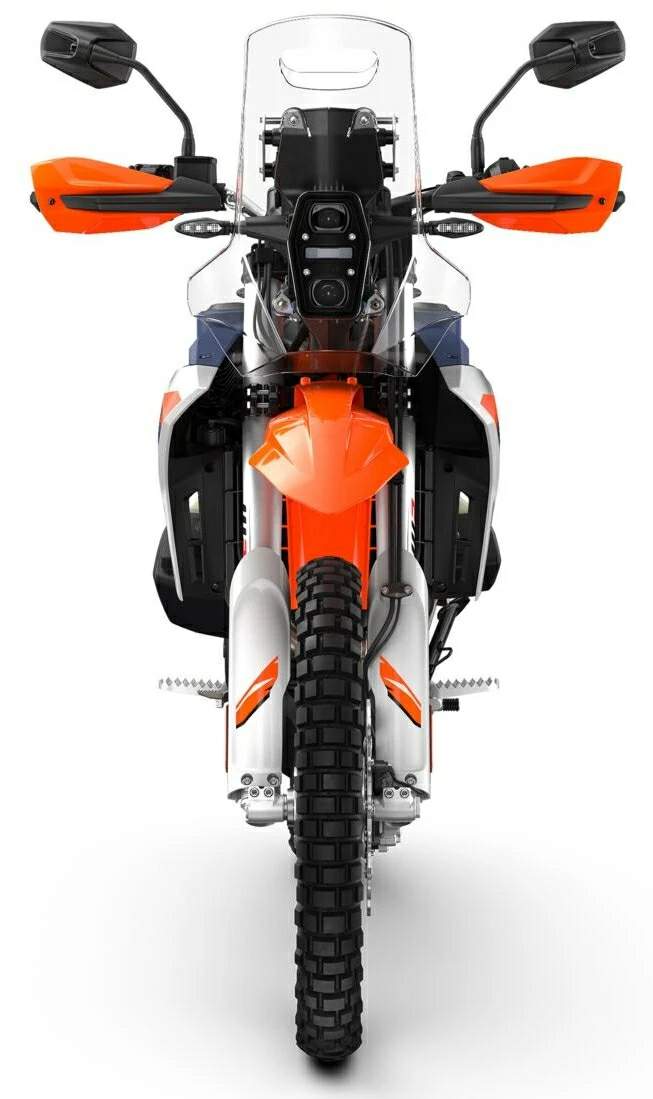

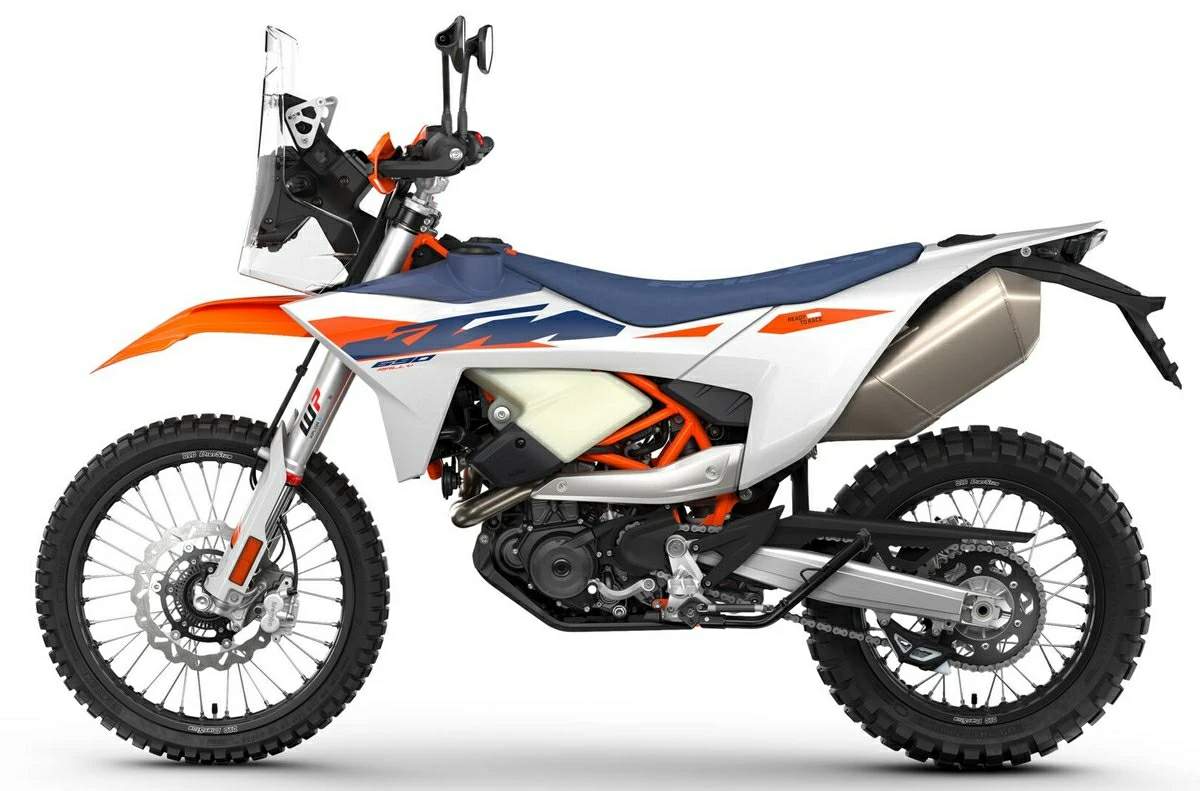

KTM 690 Rally

Make Model	KTM 690 Rally
Year	2027
Engine	Single cylinder, 4-stroke, SOHC, 4-valve
Capacity	692.7 cc / 42.27 cu in
Bore x Stroke	105 x 80 mm
Compression Ratio	12.7:1
Cooling System	Liquid cooled
Lubrication System	Pressure lubrication with 2 oil pumps
Exhaust	Stainless steel primary and secondary silencer
Induction	Keihin EFI (throttle body 50 mm)
Ignition	Keihin EMS with RBW, double ignition
Starting	Electric
Max Power	79 hp / 58.1 kW
Max Torque	73 Nm / 54 lb-ft
Clutch	PASC™ slipper clutch, hydraulically operated
Transmission	6-Speed
Final Drive	Chain, 520 X-ring
Frame	Chromium-molybdenum-steel trellis frame, powder coated
Sub Frame	Self-supporting plastic tank
Front Suspension	WP USD XPLOR 48 forks, compression and rebound adjustable
Front Wheel Travel	265 mm / 10.4 in
Rear Suspension	WP XPLOR shock absorber with Pro-Lever linkage, preload adjuster
Rear Wheel Travel	250 mm / 9.8 in
Front Brakes	Single 300 mm disc, Brembo 2 piston floating caliper
Rear Brakes	Single 240 mm disc, Brembo single piston floating caliper
ABS	Bosch 9.1 MP (incl. Cornering ABS and offroad mode, disengageable)
Front Wheel	Spoked wheels with aluminum rims, 1.85 × 21″
Rear Wheel	Spoked wheels with aluminum rims, 2.50 × 18″
Front Tyre	90/90 -21
Rear Tyre	140/80 -18
Steering Head Angle	62.3°
Trail	121 mm / 4.7 in
Wheelbase	1506 mm / 59.3 in
Ground Clearance	265 mm / 10.4 in
Seat Height	935 mm / 36.8 in
Wet Weight (without fuel)	162 kg / 357 lbs
Fuel Capacity	20 Litres / 5.3 US gal

From a Press Release by KTM:

KTM returns to its Rally Raid roots with the highly anticipated 2027 KTM 690 RALLY, reconnecting with a legacy built on long-distance oﬀ-road exploration and uncompromising terrain performance.

Positioned as the spiritual successor to the iconic KTM 640 ADVENTURE, the KTM 690 RALLY brings rally-inspired purpose back to the LC4 platform – an invitation to go further and ride longer. It enables riders not to find themselves, but to meet themselves beyond the familiar.

Designed for riders who understand that the real journey begins where the pavement ends, the KTM 690 RALLY is built to tackle demanding terrain and extended adventures. Away from routine and expectation, riders are left with what matters most: the terrain ahead, the distance to cover, and the experience that comes with it. Out there, distractions fade away and the focus shifts entirely to the ride itself. It is this spirit of exploration and discovery that lies at the heart of the KTM 690 RALLY, revealing a side of yourself not yet explored.

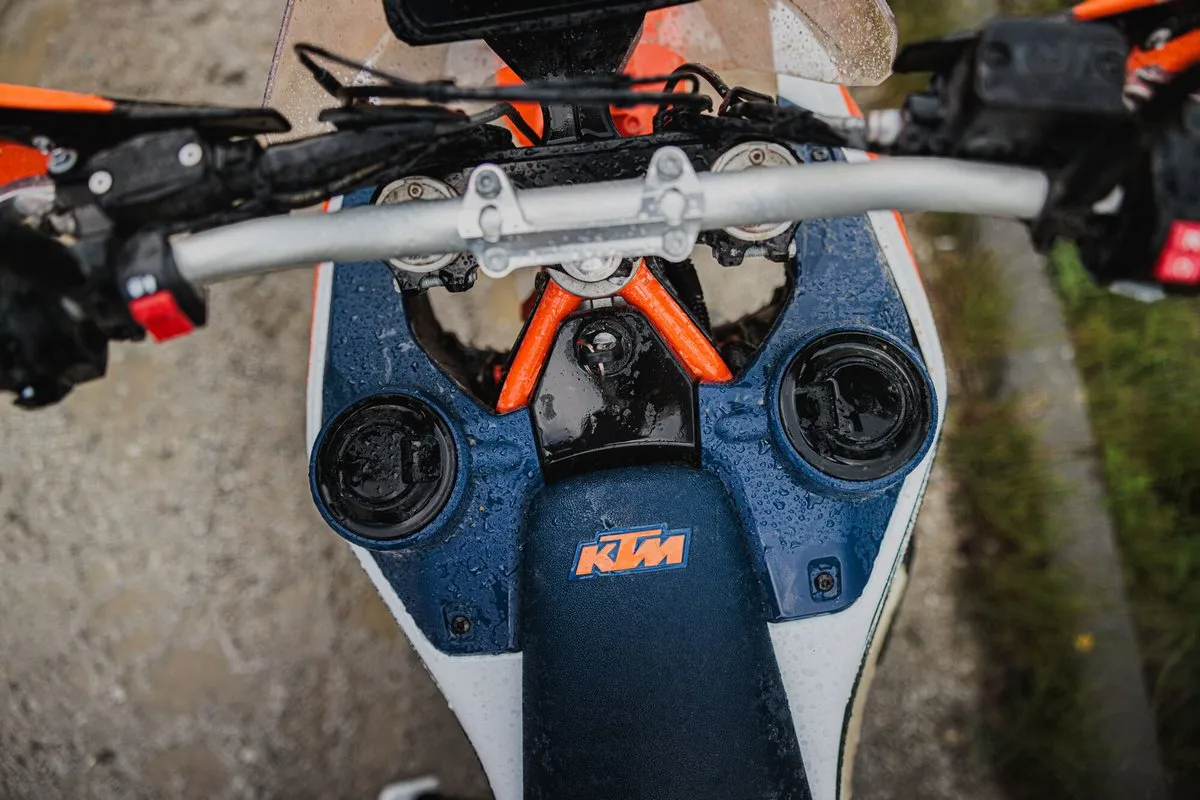

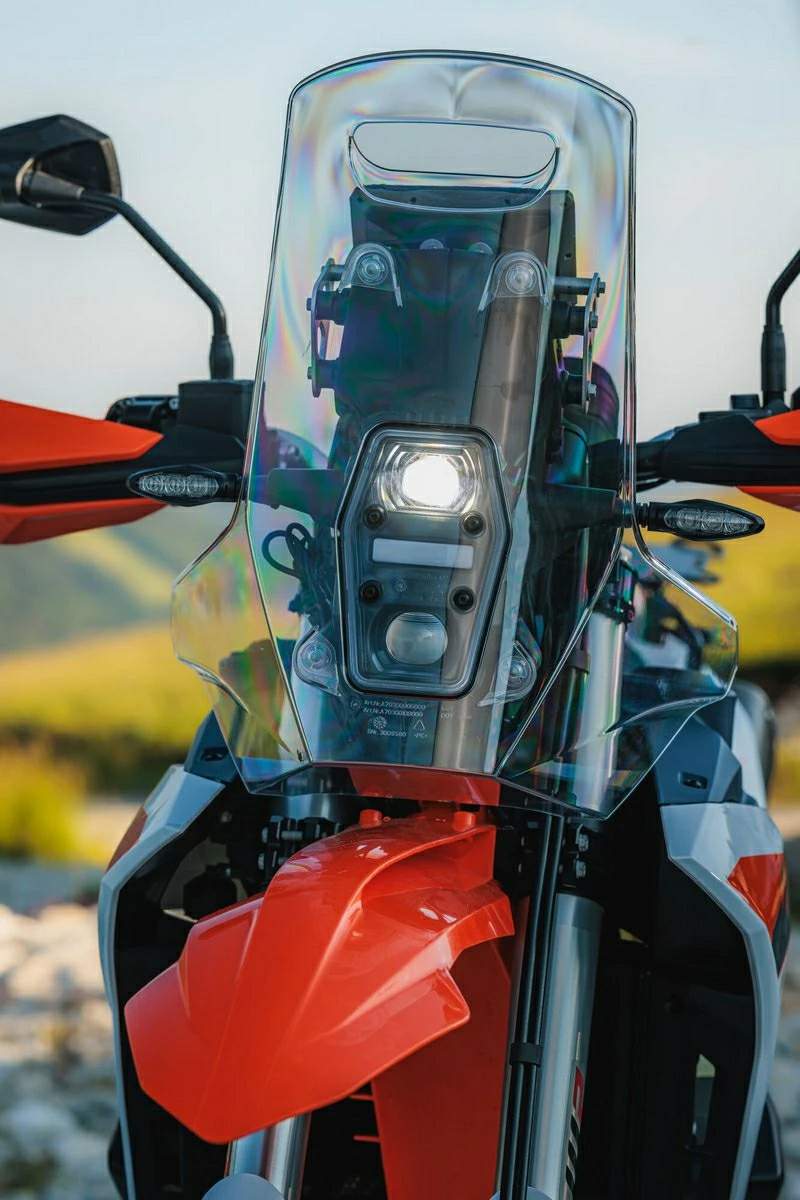

Built on the proven KTM 690 ENDURO R platform, the KTM 690 RALLY evolves its dual-sport foundation with a clear focus on extended range, stability, and long-distance usability. A purpose-built rally tower with integrated windshield creates a true rally cockpit, while dual front-mounted fuel tanks increase capacity to approximately 20 liters, enabling deeper exploration into remote environments with confidence.

Designed to perform across everything from technical oﬀ-road terrain to high-speed liaison sections, the KTM 690 RALLY bridges the gap between lightweight enduro agility and rally-level endurance. The machine is built not just to handle the journey, but to intensify it. With its purpose-built rally cockpit, increased fuel capacity and focus on long-distance usability, it enables riders to venture further into remote environments and experience adventure in its purest form.

Because out there, the trail reveals more than what lies ahead. In those moments, you do not find yourself – you meet yourself. For the first time.

The only question is – will you go out?
