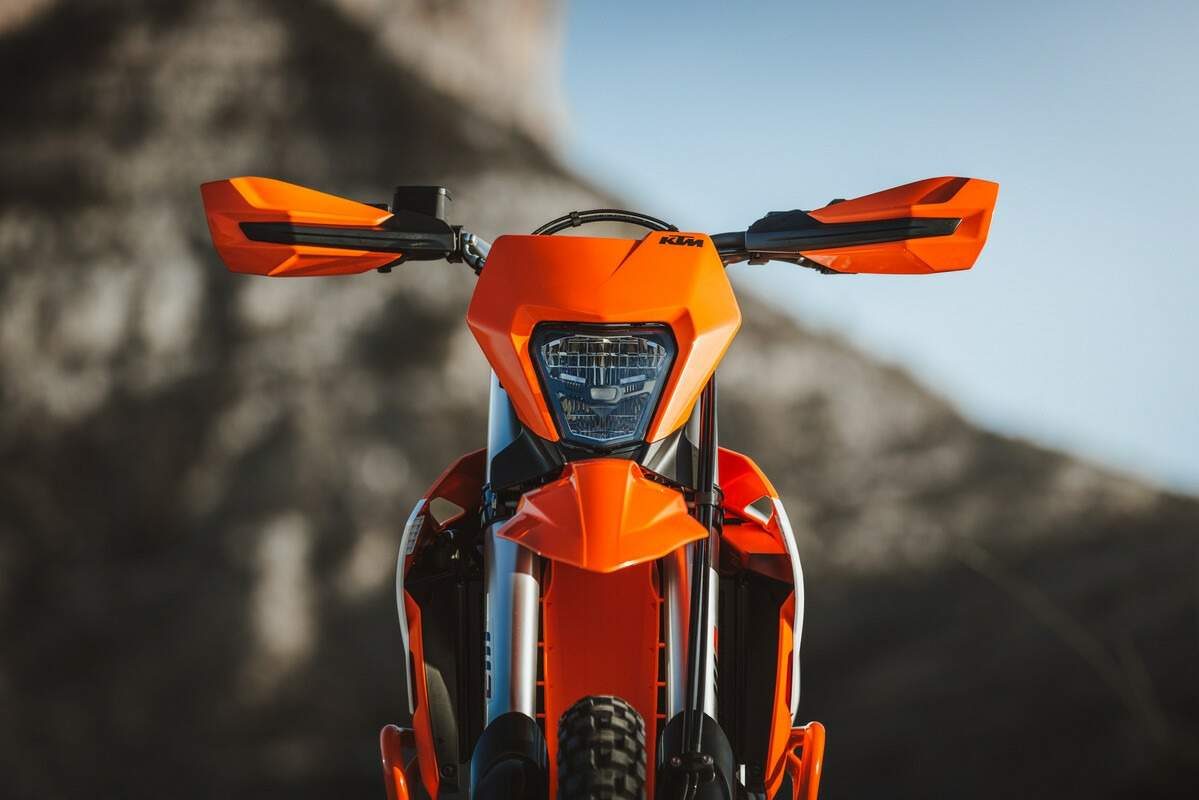

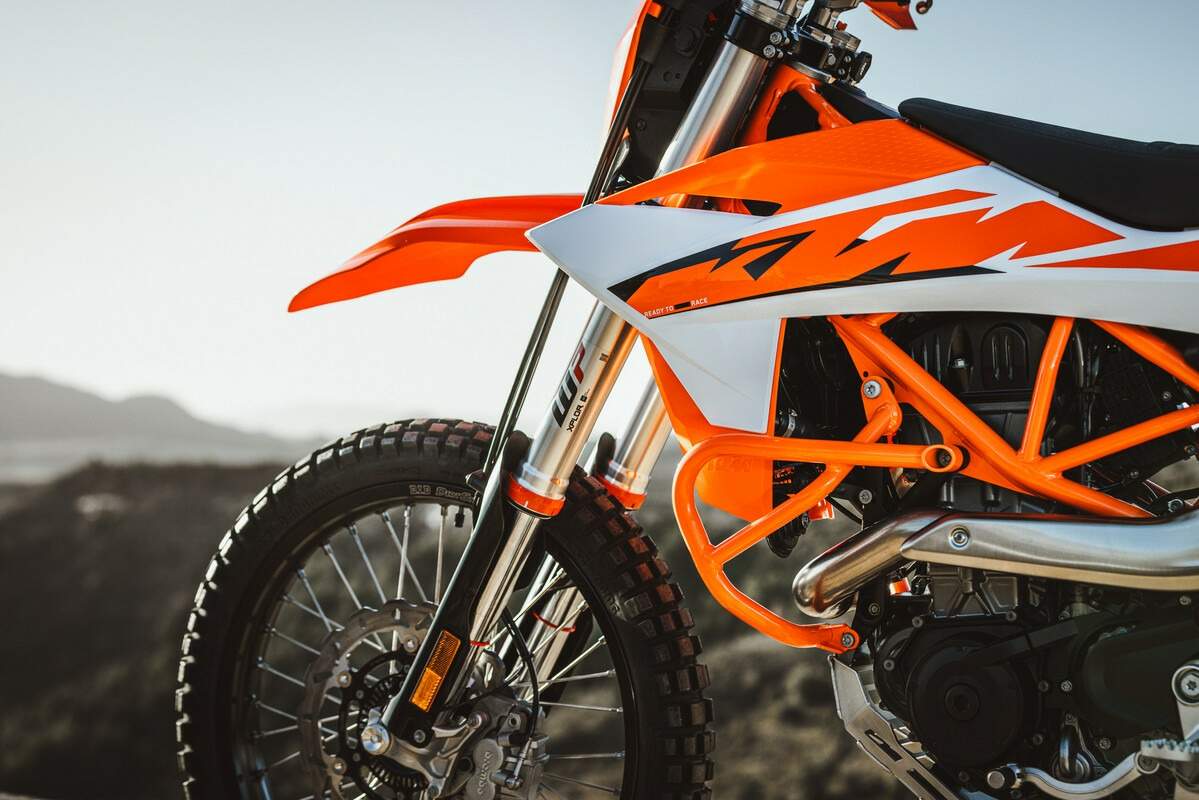

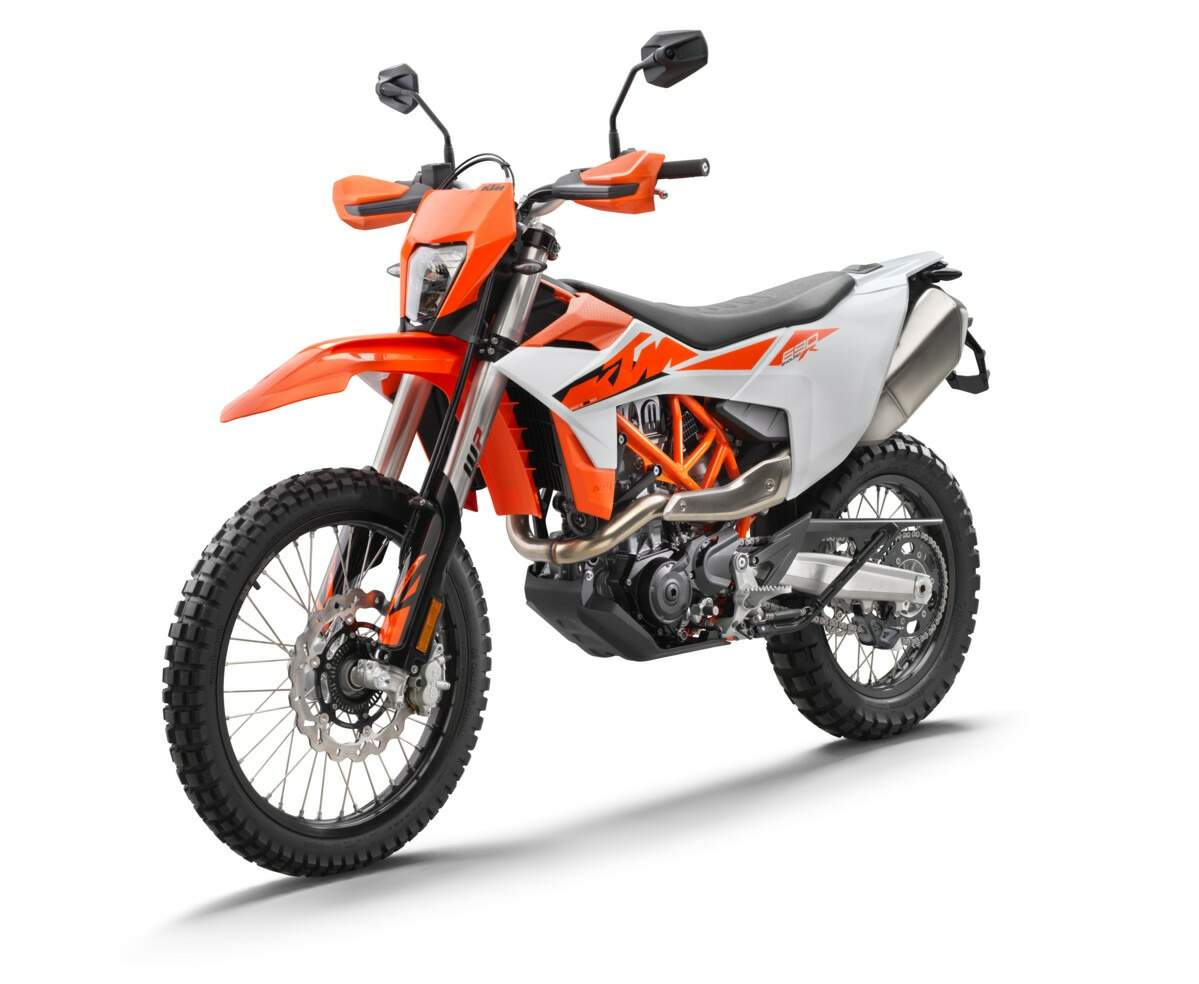

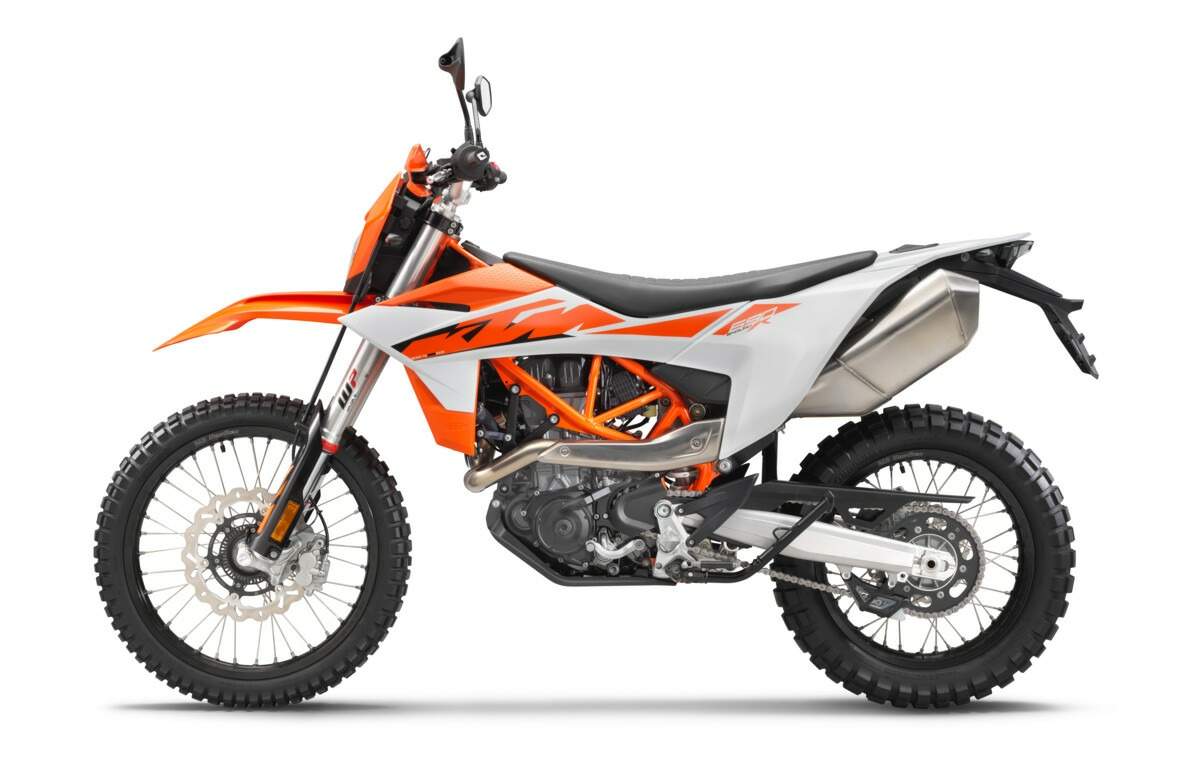

KTM 690 Enduro R

Make Model	KTM 690 Enduro R
Year	2026
Engine	Single cylinder, 4-stroke, SOHC, 4-valve
Capacity	692.7 cc / 42.27 cu in
Bore x Stroke
Compression Ratio
Cooling System	Liquid cooled
Lubrication System	Pressure lubrication with 2 oil pumps
Exhaust	Stainless steel primary and secondary silencer
Induction	Keihin EFI (throttle body 50 mm)
Ignition	Keihin EMS with RBW, double ignition
Starting	Electric
Max Power	79 hp / 58.1 kW
Max Torque	73 Nm / 54 lb-ft
Clutch	PASC™ slipper clutch, hydraulically operated
Transmission	6-Speed
Final Drive	Chain, 520 X-ring
Frame	Chromium-molybdenum-steel trellis frame, powder coated
Sub Frame	Self-supporting plastic tank
Front Suspension	WP USD XPLOR 48 forks, compression and rebound adjustable
Front Wheel Travel	265 mm / 10.4 in
Rear Suspension	WP XPLOR shock absorber with Pro-Lever linkage, preload adjuster
Rear Wheel Travel	250 mm / 9.8 in
Front Brakes	Single 300 mm disc, Brembo 2 piston floating caliper
Rear Brakes	Single 240 mm disc, Brembo single piston floating caliper
ABS	Bosch 9.1 MP (incl. Cornering ABS and offroad mode, disengageable)
Front Wheel	Spoked wheels with aluminum rims, 1.85 × 21″
Rear Wheel	Spoked wheels with aluminum rims, 2.50 × 18″
Front Tyre	90/90 -21
Rear Tyre	140/80 -18
Steering Head Angle	62.3°
Trail	120 mm / 4.7 in
Wheelbase	1506 mm / 59.3 in
Ground Clearance	265 mm / 10.4 in
Seat Height	935 mm / 36.8 in
Wet Weight	162 kg / 357 lbs
Fuel Capacity	13.3 Litres / 3.5 US gal

From a Press Release by KTM:

KTM is proud to introduce the next evolution of its LC4-powered legends - the 2026 KTM 690 ENDURO R and 2026 KTM 690 SMC R. Boasting bold styling, improved tech, and the most powerful single-cylinder engine available on the market, both machines are engineered for riders who live for the thrill - whether it's carving through mountain roads or conquering remote trails.

2026 KTM 690 ENDURO R - All Terrain. All The Time.
The 2026 KTM 690 ENDURO R continues its dual-sport legacy with comprehensive updates that boost off-road capability and on-road refinement. At its heart is the latest Euro 5+ compliant LC4 single-cylinder engine, now featuring a revised crankcase, clutch, and stator cover, along with a redesigned oil system for enhanced reliability and improved performance.

For 2026, the KTM 690 ENDURO R gains a new 4.2” full-color TFT display, redesigned switchgear, a USB-C charging port, and an LED headlight. On the electronics side, Cornering ABS, Cornering MTC, and the all-new Dynamic Slip Adjust (available in the optional RALLY Ride Mode) provide riders with real-time, terrain-adaptive traction control. Ergonomically sharper bodywork and updated suspension components add comfort and feedback on both trail and tarmac.

2026 KTM 690 SMC R - Stop Growing Up!
The KTM 690 SMC R has long been the benchmark in the Supermoto world, and for 2026, it’s been sharpened even further. A new, aggressive design wraps around the frame, emphasizing KTM’s race-bred DNA. As with the KTM 690 ENDURO R, the updated LC4 engine delivers increased performance and efficiency, while refined suspension tuning enhances road feedback and agility.

Riders now get a host of tech upgrades, including a full-color 4.2” TFT display, upgraded switchgear, and lean-angle sensitive rider aids like Cornering ABS and Cornering MTC. Selectable Ride Modes and customizable ABS Modes ensure that the bike can be tailored to every riding style—from city backroads to full send at the track. Seamless smartphone connectivity is available via KTMConnect.

Both bikes benefit from a full range of KTM PowerParts and KTM PowerWear, allowing riders to personalize their machines and gear for maximum performance and style, taking full advantage of the world’s most ferocious single-cylinder platform.
