KTM RC 390

.

Make Model

KTM RC 390

Year

2020

Engine

Four stroke, single cylinder, DOHC with finger followers, 4 Valve per cylinder

Capacity

373 cc / 22.7 cu-in
Bore x Stroke 89 x 60 mm
Cooling System Liquid Cooled
Compression Ratio 12.6:1

Induction

Bosch Injection

Lubrication Forced oil lubrication with 2 Eaton pumps
EMS Bosch EMS with RBW

Starting

Electric

Max Power

32 kW / 43 hp @ 9500 rpm

Max Torque

35.3 Nm / 26 lb-ft @7250 rpm
Clutch Wet multi-disc clutch / mechanically operated

Transmission

6 Speed
Final Drive Chain 5/8 x 1/4” X‑Ring
Frame Tubular space frame made from steel, powder-coated

Front Suspension

WP Suspension Up Side Down
Font Wheel Travel 120 mm / 4.7 in

Rear Suspension

WP Monoshock
Rear Wheel Travel 150 mm / 5.9 in

Front Brakes

Single 320 mm disc 4 piston radial caliper

Rear Brakes

Single 230 mm disc 1 piston caliper

Front Tyre

110/70 R17

Rear Tyre

150/60 R17
Rake  65 °
Trail 100mm / 3.9 in
Dimensions Length  2002 mm / 78.8 in
Width      873 mm / 34.4 in
Height   1267 mm / 49.9 in
Seat Height 820 mm / 32.2 in
Wheelbase 1340 mm / 52.7 in
Ground Clearance 179 mm / 7.0 in

Dry Weight

149 kg / 328.5 lbs

Fuel Capacity

10 Liters / 2.64 US gal
.

A sports bike in its purest form. Reduced to the essentials. Agile, fast, suitable for A2 driving licence and extremely sporty. Whether you are on country roads or the racetrack, the Moto3 genes are perceptible in every manoeuvre and convey a pure race feeling. The handling – simply spectacular. The performance – incredible. The power – thrilling.

ENGINE & EXHAUST

The KTM RC 390’s state-of-the-art, single-cylinder engine with twin overhead camshafts once again underlines KTM’s development strength. Tame the streets with its punchy torque, race the curves with its smooth but impressive power.

ENGINE

Phenomenal power
The KTM RC 390 engine not only delivers bountiful torque and punchy acceleration, but also good manners in everyday use, all with outstanding fuel economy. This lightweight, compact engine really packs a punch and with 32 kW (44 hp) it’s the sportiest option out there for A2 riders. Thanks to the ingenious intake design and the meticulous fuel injection system, the KTM RC 390 is ready to leave the rest of the city traffic behind at the twist of a wrist.

EXHAUST
Race-inspired system
The compact, three-chamber silencer is positioned close to the bike’s overall center of gravity. This helps keep the motorcycle centrally balanced and easy to maneuver in the tight and twisty urban streets.

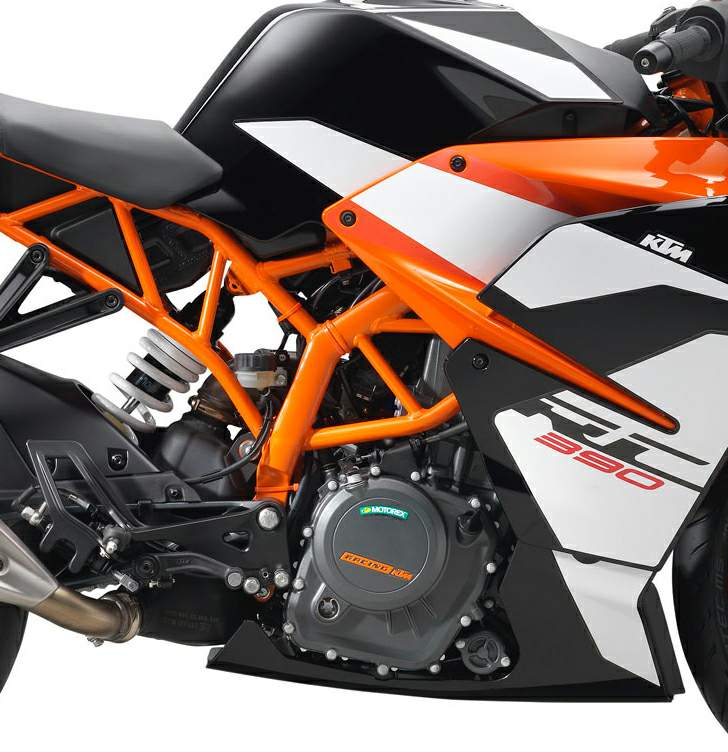

CHASSIS
The orange painted frame of the RC 390 has been engineered to be one of the best performing chassis in the segment. It’s been built to reward riders with impressive agility, sporty feedback, comfortable ergonomics and dynamic handling. The increase of the steering head angle to 66.5 degrees resulted in a shorter trail, shorter wheelbase and increased ground clearance. All these modifications release the racer in the RC and guarantee quick, responsive and playful handling.

SUSPENSION
Performance suspension

BRAKES
Ultimate braking
In cooperation with BREMBO, KTM developed a high-tech braking system that works in perfect harmony with the state-of-the-art ABS, allowing riders to always be in full control of their KTM RC 390. With a four piston radially bolted caliper and a huge 320 mm brake disc on the front, paired with a single piston floating caliper and a 230 mm disc on the rear, the RC 390 delivers exceptional pro-level braking, no matter how hard you’re riding.

FUEL TANK
Ergonomics meets style
The KTM RC 390 features a sleek, steel fuel tank with a 10 liter capacity (including a 1.5 liter reserve tank). The tank has been developed to perfectly match the supersport style of the KTM RC 390 with smooth rider ergonomics. Thanks to the economic engine, the KTM RC 390 offers considerable range with this tank, even when riding in full sport mode all day long.

ERGONOMICS & COMFORT
The KTM RC provides a racing-inspired body position and freedom of movement while preserving the comfort needed for every day usage, for you and your pillion. Unsurpassed operability and large contact surfaces ensure optimum control and feel for maximum cornering fun all day long.

HANDLEBAR
Racing profile bars
The clip-on bars and strategically positioned switches contribute greatly to the bike’s sporty and aggressive riding position, whilst also enhancing control for perfect lines through any corner.

SEATS
Supersport ergonomics
The two-part seat offers first class, supersport ergonomics with perfect support for both rider and pillion. A seat height of 820 mm enables riders to have a secure position, whilst also being high enough for circuit-style riding. The Pillion seat has been integrated into the bodywork so as not to compromise the supersport look of the KTM RC 390, whilst also ensuring excellent comfort for the passenger.

WINDSHIELD
Advanced aerodynamic protection.
The advanced design of the KTM RC 390’s windshield works with the aerodynamic optimization of the front end to ensure ultimate wind protection for riders who like to open it up on the open road.

FOOTPEGS
Race-ready footpegs
Crafted from high-grade, CNC-machined aircraft aluminum, these lightweight yet super-strong footpegs offer premium purchase for your feet when you need it most. The pegs are fully customizable with three positions available to accommodate for different rider shapes and riding styles.

BODYWORK & GRAPHICS
The sporty bodywork, footpegs and control levers not only provide a unique supersport-inspired look, but also help the RC master extreme cornering with greater lean angles.

TRIM PARTS
True supersport headlight
The powerful twin headlight provides superb visibility in low-light or dark conditions and perfectly matches the modern, supersport race look of the KTM RC 390.

SOFTWARE & ELECTRONICS
Highly sophisticated electronics enhance the potency of this RC. The high-end technical features include ABS and a ride-by-wire throttle system, reflecting the high-quality standards.

ACCESSORIES & LUGGAGE
Whether cruising the streets or racing the tarmac, intensify your RC 390 to suit your personal preferences with KTM’s wide range of accessories for KTM motorcycles. All KTM PowerParts are developed specifically for their chosen machine, guaranteeing KTM riders only get parts that perfectly complement their ride and provide that important ‘factory fit’ straight from the dealer.
