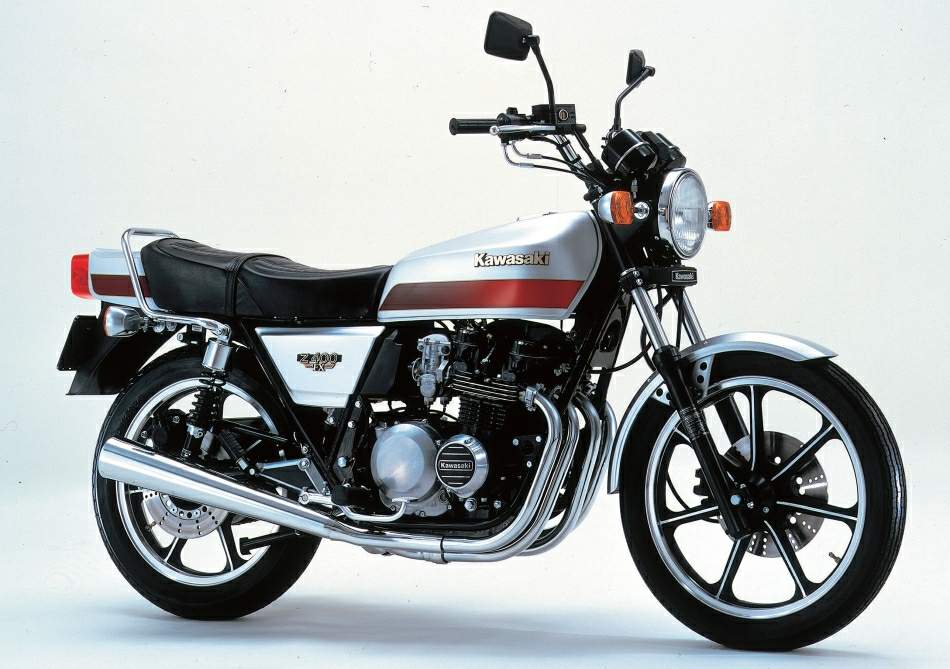

Kawasaki Z 400FX

.

Make Model

Kawasaki Z 400FX

Year

1980 - 82

Engine

Four stroke, transverse four cylinder, DOHC, 2 Valve per cylinder.

Capacity

399 cc / 24.3 cu-in
Bore x Stroke 52 х 47mm
Cooling System Air cooled
Compression Ratio 9.5:1

Induction

4 x TKK 21P Teir-Kei  carburetors

Ignition

Battery & coil

Starting Electric

Max Power

43 hp / 32 kW @ 10500 rpm

Max Torque

3.5 kgf-m / 25.3 lb-ft @ 8500 rpm

Transmission

6 Speed
Final Drive Chain
Gear Ratio 1st 2.57 (36/14) 2nd 1.78 (32/18) 3rd 1.38 (29/21) 4th 1.13 (27/24) 5th 0.96 (25/26) 6th 0.85 (23/27)

Front Suspension

Telescopic forks

Rear Suspension

Swinging arm fork with shock absorbers.

Front Brakes

Single 236mm disc

Rear Brakes

Single 140mm drum

Front Tyre

3.25-19

Rear Tyre

3.75-18
Wheelbase 1380 mm / 54.3 in
Ground Clearance 145 mm / 5.7 in

Dry Weight

189 kg / 416.6 lbs

Fuel Capacity

15 Litres / 3.9 US gal
