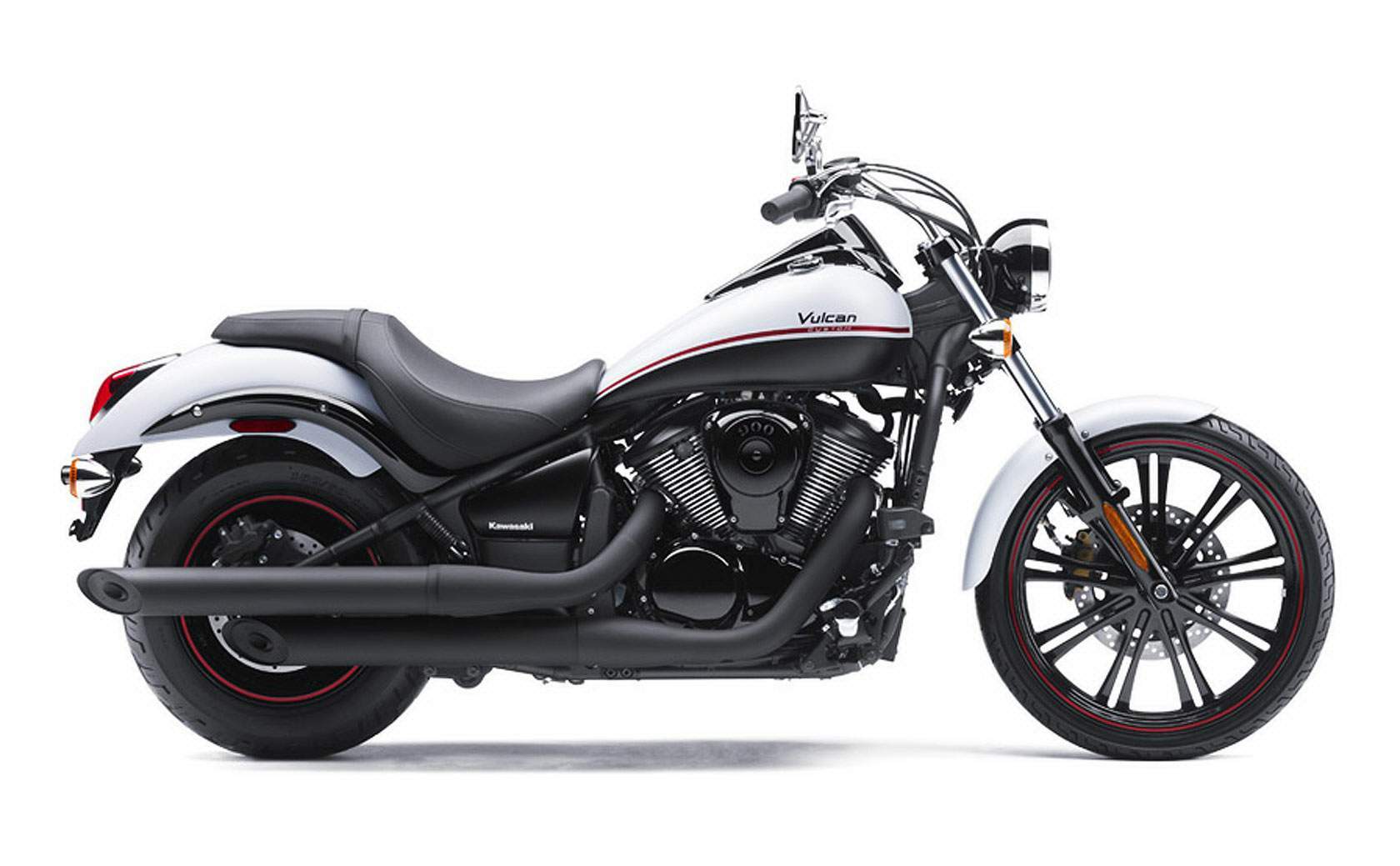

Kawasaki VN 900 Vulcan Custom S.E.

.

Make Model

Kawasaki VN 900 Vulcan Custom Special Edition

Year

2013 - 14

Engine

Four stroke, V-twin, SOHC, 4 valves per cylinder

Capacity

903 cc / 49 cu-in
Bore x Stroke 88.0 x 74.2 mm
Cooling System Liquid cooled
Compression Ratio 9.5:1

Induction

2x 34mm ø Fuel injection with dual throttles

Ignition

Digital
 Starting Electric

Max Power

37 kW / 50 hp @ 5700 rpm

Max Torque

78 Nm / 8.0 kg-fm @ 3700 rpm
Clutch Wet multi-disc, manual

Transmission

5 Speed
Final Drive Belt
Frame Double-cradle, steel

Front Suspension

41mm telescopic fork with 7-way preload
Front Wheel Travel 150 mm / 5.9 in

Rear Suspension

Uni-Trak with 7-way adjustable preload
Rear Wheel Travel 103 mm / 4.1 in

Front Brakes

Single 300mm disc

Rear Brakes

Single 270mm disc

Front Tyre

80/90 -21

Rear Tyre

180/70 -15
Dimensions Length 2405 mm / 94.7 ub
Width 894 mm / 35.2 in
Heigh 1120 mm / 44.1 in
Wheelbase 1646 mm / 64.8 in
Seat Height 685 mm / 27.0 in

Wet-Weight

277 kg / 610.8 lbs

Fuel Capacity

20 Litres / 5.3 US gal

Cruising is all about doing things in style and comfort, enjoying life's little luxuries and taking the time to smell the roses. So settle in, head out on the highway and cruise ... Kawasaki-style.

Cruising Perfection with an Extra Dose of Style

“Well, looks aren’t everything...” It’s easy to imagine the Vulcan 900 Custom’s competition comforting themselves with words to that effect, but one ride is all it takes to discover this cruiser has far more than just great looks on its side. This is one machine that manages to be both easy to ride and also powerful enough to more than hold its own against much larger cruisers. Of course, its stunning good looks, expert engineering and long-term dependability certainly don’t hurt!

The Vulcan 900 Custom’s appeal is more than just paint-deep. It has a fuel-injected 903cc V-twin that produces good roll-on acceleration that rivals the get-up-and-go of much larger motorcycles – with a smooth delivery that’s easy to manage. It’s wrapped in a nimble chassis that lets the 900 Custom turn and handle far better than any heavyweight cruiser.

The Vulcan 900 Custom’s unique, edgy design shows it can stand out from the cruising crowd. Kawasaki engineers and designers concentrated on delivering a motorcycle with a customized appearance typically found only on expensive two-wheel offerings. A massive rear tire, light-looking front end accentuated by a thin 21-inch cast wheel, and sculpted bodywork top the stand-out features of the Vulcan 900 Custom.

Perhaps one of the most striking examples of this Vulcan cruiser’s distinctive look is its large-diameter 21-inch front cast wheel – itself somewhat rare in the custom-building world. The wheel features spokes arranged in pairs for a special visual appeal. Balancing the lightweight look of the front end is a low, wide rear wheel featuring a 180mm tire on a 15-inch cast wheel that gives the rider the feeling of sitting on a one-of-a-kind, made-to-order motorcycle.

Bridging the visual contrast between the front and rear wheels is a sleek and subtle fuel tank. Its flowing lines easily lead the eye along the careful and delicate curves that blend together the highly customized form of this gem of mid-sized cruisers. The frame provides understated support for the Kawasaki artistry that is the appealing and gutsy, fuel-injected V-Twin Vulcan 900 Custom. Its stylish aesthetics grace a platform that’s perfect for customization with Kawasaki accessories.

Ready for anything from local streets to highway speeds, the Vulcan 900 Custom’s good power, easy maneuverability, and startling good looks make this Kawasaki the one to own.








Features

• 903cc V-twin offers an optimal balance of performance, style and manageability
• Stylish cast wheels – solid-look rear and “twin-spoke” front
• Forward-mounted foot controls for laid-back riding position
• Fat 180-series rear tire is largest in class
• Stylish instrumentation includes convenient fuel gauge
• 5.3-gallon fuel tank is largest in class
• Efficient and stylish belt drive for long life
• Digital fuel injection for precise throttle response and improved fuel economy

 903cc V-twin SOHC Engine
• Smooth and reliable engine tuned to deliver a healthy dose of torque at low rpm
• Gear-driven balancer allows the use of a single-pin crankshaft without excessive vibration
• Rubber mounted to reduce engine vibration at all speeds

Four-valve Cylinder Head
• Provides maximum valve area for optimum flow, creating more power and low-end torque
• Single overhead cam design is simple, lightweight and practical
• Long intake tracts narrow near the combustion chamber to increase intake flow speed for more efficient filling, increased torque and better low-end response

Liquid and Air Cooling
• Finned cylinders and heads combine with liquid cooling for exceptional thermal control
• Maintains consistent engine temperatures for long engine life and sustained power
• Automatic fan helps keep things cool

Dual Slash-cut Mufflers
• Big slash-cut mufflers look great and contain emission reducing honeycomb catalyzers

Positive Neutral Finder
• Just lift the shift pedal from first gear at a stop to easily find neutral, every time

Electronic Fuel Injection
• Superb performance and rideability thanks to dual throttle bodies with sub-throttles
• The ECU-controlled sub-throttles are located behind the main throttle valve, allowing the DFI® system to provide more precise throttle response, similar to a constant velocity carburetor
• Fine-atomizing fuel injectors produce a fine fuel mist for optimal acceleration, combustion and fuel consumption

Double Cradle Frame
• Very rigid, large-diameter box section backbone allows space for a larger fuel tank, and lightweight handling at low speeds
• Fork offset and frame geometry combine for light, low-effort handling at ultra-low speeds
• Long wheelbase contributes to a comfortable highway ride
• Triangular swingarm has a hardtail appearance, but utilizes a single shock hidden beneath the seat
• Long and low chassis for minimal seat height, maximum visual impact

Belt Drive
• Lower unsprung weight than shaft drive to improve ride quality and suspension action
• Low maintenance and low noise

41mm Front Fork
• Offers excellent rigidity and 5.9 inches of travel
• 33 degrees of rake and 7.2 inches of trail for excellent straight line tracking

Front and Rear Disc Brakes
• The 300mm front and 270mm rear brake rotors are gripped by twin-piston calipers for some of the best stopping power in the class

Custom Cast 21-inch Front Wheel
• The wheel’s 18 “spokes” are arranged in pairs
• Tapered and flanged in two directions, every line and surface of each 3D spoke is exquisitely curved

Wide Rear Tire
• 180mm rear tire provides added traction while projecting a powerful image
• Wider tire than that found on most large-displacement cruisers
• Custom cast 15-inch rear wheel contrasts the “light,” tall front wheel

Tank-mounted Speedometer with Turn Signal Indicators and Caution Lamps
• Provides riders crucial information at a glance
• Compact design matches the bike’s clean look

Sculpted Bodywork
• Fuel tank features a twin valley design, with a dynamic tension and presence all its own
• Designed to be pleasing to both the eye and to the touch, the tank is composed exclusively of curves with constantly varying radii; the twin valley design theme continues to the rear fender and its hand-sculpted contours
• Bottom of the rear fender features a relatively straight cut, to balance the lines of the motorcycle

Custom Features
• Chromed headlamp, headlamp mount, lower triple clamp and turn signals as well as footpegs, shift lever and rear brake lever
• Clean headlight design is compact and isolated without a central fork cover or headlamp bar
• Small, minimalist fender and lack of front fork covers also contribute to the slender appearance of the front end
• Sporty, straight-style handlebar adds to the bike’s custom styling. Instead of handlebar clamps, twin tubes elegantly curve back from the upper triple clamp. Both the handlebar and twin tubes are completely chromed
• Forward-mounted footpegs instead of floorboards add to the custom image and improve rider control
• One-piece “gunfighter” style seat is designed for comfortable rider and passenger accommodation and a custom-style look
• Standard toe-operated shift lever instead of a heel-toe shifter complements the forward footpegs for a more open rider position
