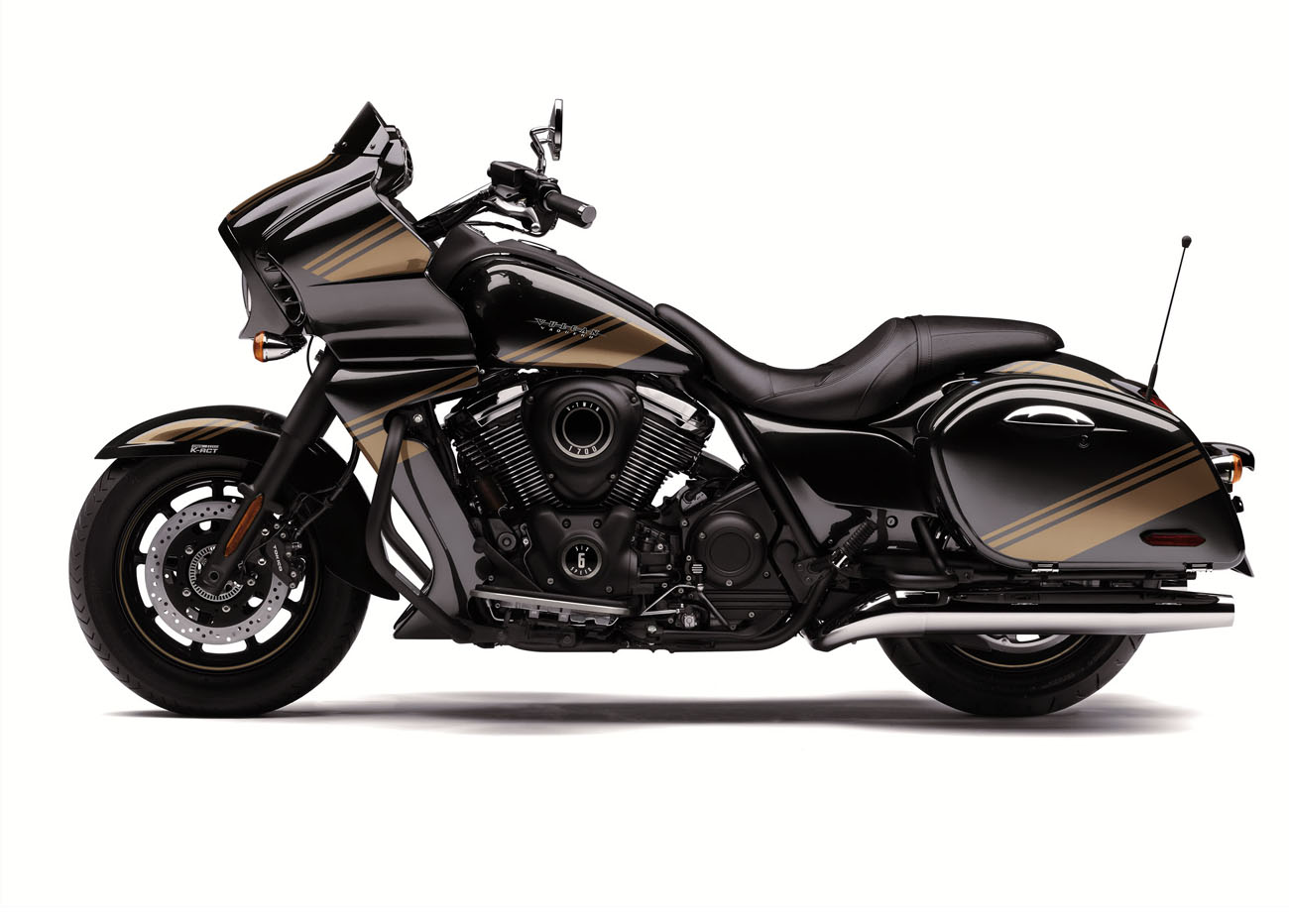

Kawasaki VN 1700 Vulcan Vaquero

.

Make Model

Kawasaki VN 1700 Vulcan Vaquero

Year

2019 - 20

Engine

Four stroke, V-twin cylinder, SOHC, 8 valve per cylinder

Capacity

1700 cc / 103.7 cu in
Bore x Stroke 102 x 104mm
Cooling System Liquid cooled
Compression Ratio 9.5:1

Induction

Digital fuel injection, dual 42mm throttle bodies

Ignition

Digital
Starting Electric

Max Power

61 kW / 82 hp @ 5000 rpm

Max Torque

146 Nm / 107 lb-ft @ 2750 rpm

Transmission

6 Speed with overdrive
Final Drive Carbon fiber belt
Gear Ratio 1st 3.077 (40/13) 2nd 1.900 (38/20) 3rd 1.407 (38/27) 4th 1.143 (32/28) 5th 0.967 (29/30)  6th 0.806 (29/36)
Clutch Wet multi-disc, manual
Frame Steel, double-cradle with box-section single-tube backbone

Front Suspension

43mm hydraulic fork

Front Wheel Travel 140 mm / 5.5 in

Rear Suspension

Swingarm with twin air-assisted shocks, with 4-way rebound damping
Rear Wheel Travel 80 mm / 3.2 in

Front Brakes

2x 300mm discs 2 piston calipers

Rear Brakes

Single 300mm disc 2 piston caliper

Front Tyre

130/90R16

Rear Tyre

170/70R16
Dimensions Length 2510 mm / 98.8 in
Width 970 mm / 38.2 in
Height 1290 mm / 50.8 in
Wheelbase 1665 mm /  65.6 in
Ground Clearance 145 mm / 5.7 in
Seat Height 730 mm / 28.7 in

Wet Weight

402 kg / 886 lbs

Fuel Capacity

20 Litres / 5.3 US gal
.

The features of the Vulcan® 1700 Vaquero® ABS bagger cruiser add up to the top-of-the-line bagger in its class, encompassing a perfect combination of functionality across a wide range of environments, from inner-city running to cruising down the open road.

It may look like a custom V-twin bagger, but the Vulcan® 1700 Vaquero® ABS cruiser is in a class of its own. A roaring 1,700cc engine featuring advanced Kawasaki technology offers a smooth, reassuring ride. The blacked-out engine, distinct bodywork styling and select chrome accents create a unique and bold appearance.

Kawasaki’s first bagger model follows a wide-and-low concept, its design flowing from the front to the rear of the bike. Along with its hard, sporty image, the Vulcan 1700 Vaquero is loaded with high-grade cruising essentials like Kawasaki’s advanced brake system K-ACT ABS, Electronic Cruise Control, and a high-spec iPod-compatible audio system.

The Vulcan® 1700 Vaquero® is based on the Vulcan® 1700 Voyager® and it features many original-design components like the engine shrouds, side covers, rear fender, mufflers and side opening saddlebags. The Vaquero’s numerous blacked-out parts contribute to a hard, aggressive image.

V-Twin Engine

Long stroke engine designed to deliver high levels of torque.
Liquid-cooled A/C generator reduces the temperature of generator stator coils and thus increases output to handle additional accessories.
Semi-dry sump(KP) design reduces overall engine height and keeps excess oil away from the crank to prevent power-robbing stirring loss. Oil is stored in the transmission, which eliminates the need for an oil tank. Triple oil pumps (2 scavenge and 1 feed pump) help reduce stirring loss and provide superb oil circulation.
Water jackets surround only the top quarter of the cylinders and the polished-edge fins match the cylinder heads while attractively tapering to the cylinder bases.
High-performance forged pistons(KP) are lightweight, stronger and more heat resistant than cast versions. Oil jets help cool the pistons for added durability.
Dual primary engine balancers (KP) and rubber engine mounts (KP) help isolate high-frequency vibration while providing the rider with the core power-pulse feeling of the muscular engine.
Single-pin crankshaft for that classic V-twin rumble and characteristic pulse.

Digital Fuel Injection (KP)

Dual 42mm throttle bodies with Atomizing Fuel Injectors produce a fine fuel mist for better combustion and fuel consumption.

Electronic Throttle Valve (ETV) (KP)

The throttle pulley operates an acceleration position sensor (APS) that uses the ECU to send a signal to a small motor that actually operates the throttle valves. This makes throttle pull very light for reduced rider fatigue and the more precise throttle control results in better performance, smoother running and increased fuel mileage.

Using a cable-operated APS eliminates expensive switch housing electronics that can be damaged and costly to replace should the motorcycle get tipped on its right side.

Electronic Cruise Control

Works in conjunction with the ETV to automatically maintain a set speed when in third gear or higher and when traveling between 30 and 85 mph.
Convenient controls located within easy thumb reach on the right handlebar.

TCBI with Digital Advance (KP)

Microprocessor controlled timing provides precise engine management.

6-Speed Transmission

Overdrive 6th gear reduces rpm at higher speeds and helps increase fuel mileage.
Gear position sensor communicates with the ECU to help reduce fuel consumption and adjust timing to provide better power feeling, and an indicator on the speedometer allows the rider to monitor current gear position at a glance.

Belt Drive

Lower unsprung weight than shaft drive to improve ride quality and suspension action.
Carbon fiber belt provides much more strength than Kevlar while allowing the belt to be narrower.
More efficient so more power reaches the rear wheel.
Low maintenance and low noise.

CHASSIS

Large steel box-section backbone frame is very rigid and helps contribute to high stability and lightweight handling at low speeds.
Low profile reduces seat height for an easier reach to the ground.

Dual Air-Assisted Rear Shocks

Air shocks provide a wide range of adjustment to match the load or riding preference.
Special spring rates to match the increased weight of the trunk and saddlebags.

Kawasaki Advanced Coactive-braking Technology (K-ACT)(KP)

K-ACT (Kawasaki Advanced Coactive-braking Technology) ABS is a linked brake system that ensures ideal brake force distribution for confident, highly effective braking.
Electronic system controls brake force distribution between the front and rear brakes to enhance overall braking performance, no matter how hard the front and/or rear brakes are applied.
Anti-lock Braking System (ABS) is incorporated into K-ACT to help prevent the wheels from locking during hard, straight-up braking for enhanced control.
For maximum controllability in tight corners or when making U-turns, K-ACT does not engage when braking is initiated at speeds below 12 mph. The ABS disengages at speeds below 4 mph.

Triple Disc Brakes

Dual 300mm front discs and a single 300mm rear disc stop with authority.

Frame-Mounted Fairing

Directs wind buffeting to the chassis to keep steering feel light and pure.

Full-Featured Audio System

Navigation audio prompt capability allows voice prompting audio to be heard through the speakers (or Kawasaki Genuine Accessory Helmet Headsets) when using Garmin Zumo 600/665 GPS. (Kawasaki Genuine Accessory GPS mount, adapter kit and GPS sold separately.)
AM/FM tuner with front fairing-mounted 40-watt speakers is standard equipment.
Easy-to-use audio controls are located within easy thumb reach on the left handlebar.
Standard audio system is equipped to easily expand with optional iPod™, XM™ tuner and CB radio attachments.

Electric Speedometer

Electric design reduces weight and eliminates the front wheel drive unit and cable for a cleaner look.
Analog instrument faces & evoke memories of the hot rods from the ‘60s.
Digital displays include odometer, trip meter, clock, fuel range and average mpg.
Gear position indicator makes it easy to determine which gear the transmission is in at a glance.

Classic Styling

LED tail light provides excellent visibility when activated, and makes a strong visual statement with chrome surround.
Tank, seat, fenders, saddlebags and details designed with a classic 1960‘s feel.
Adjustable front brake and clutch levers and master cylinders enhance rider comfort and styling.

36-month Warranty

Vulcan Vaquero model features a 36-month factory warranty.
