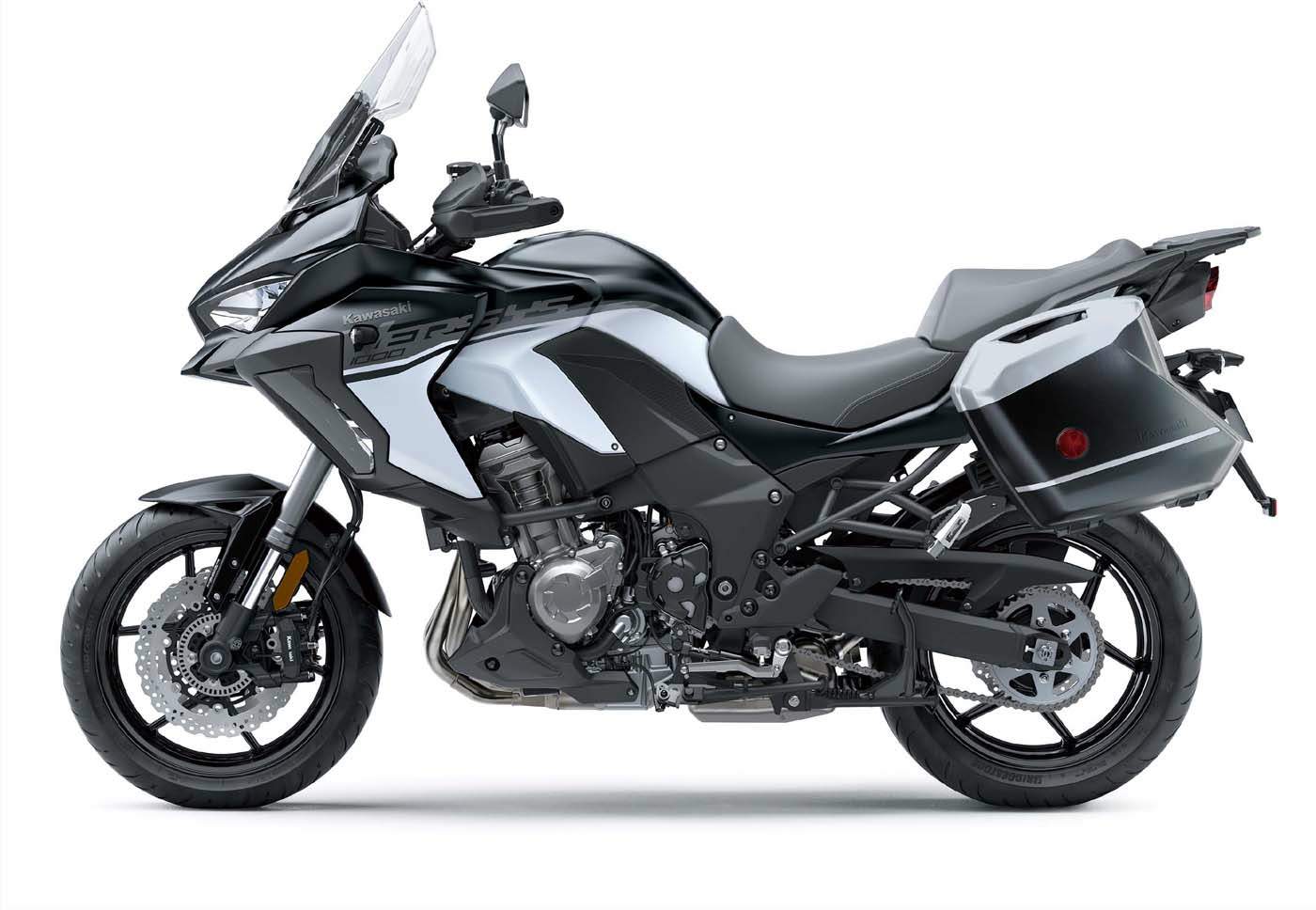

Kawasaki Versys 1000SE-LT+

.

Make Model

Kawasaki Versys 1000SE-LT+

Year

2019

Engine

Four stroke, transverse four cylinder, DOHC, 4 valves per cylinder.

Capacity

1043 cc / 63.6 cu-in
Bore x Stroke 77 x 56 mm
Cooling System Liquid cooled
Compression Ratio 10.3:1
Lubrication Forced lubrication, wet sump

Induction

Fuel injection: ø38 mm x 4 (Keihin) with oval sub-throttles

Ignition

Digital CBI
Starting Electric

Max Power

86.8 kW / 118 hp @ 9000 rpm

Max Torque

102 Nm / 10.4 kg-fm @ 7700 rpm
Clutch Wet multi-disc, manual

Transmission

6 Speed
Final Drive Chain
Primary Reduction Ratio 1.627 (83/51)
Gear Ratio 1st 2.692 (35/13)   2nd 1.950 (39/20)   3rd 1.529 (26/17)    4th 1.304 (30/23)   5th 1.136 (25/22)   6th 0.958 (23/24)
Final Reduction Ratio 2.867 (43/15)
Frame Aluminium twin-tube

Front Suspension

43 mm inverted fork with stepless rebound damping and spring preload adjustability .
Front Wheel Travel 150 mm / 5.9 in

Rear Suspension

Horizontal Back-link, gas-charged, with stepless rebound damping and remote spring preload adjustability .
Rear Wheel Travel 150 mm / 5.9 in

Front Brakes

2x 300mm discs 4 piston calipers

Rear Brakes

Single 250mm disc 1 piston caliper

Front Tyre

120/70 ZR17

Rear Tyre

180/55 ZR17
Rake 27°
Trail 107 mm / 4.2 in
Dimensions Length 2240 mm / 88.1 in
Width    895 mm / 35.2 in
Height 1400 mm / 55.1 in
Wheelbase 1520 mm / 59.8 in
Ground Clearance 150 mm / 5.9 in
Seat Height 840 mm / 33.0 in

Wet Weight

257 kg / 566 lbs

Fuel Capacity

21 Litres / 5.5 US gal
.

Kawasaki is a company that is synonymous with versatility, innovation, and the pursuit of absolute performance, and nothing embodies this philosophy more than the all-new 2019 Kawasaki Versys 1000 ABS LT SE. It is the most versatile adventure-style motorcycle Kawasaki has ever made; it is ready for any road, any time. For 2019, the all-new Kawasaki Versys SE LT+ features a 1,043cc in-line four cylinder power plant, utilizing the latest technology in engine tuning and design, as well as a high-performance chassis and a full suite of state of the art advanced rider support features.

The most versatile motorcycle for sport riding and touring just got better. The all-new 2019 Versys 1000 LT is packed with upgrades that strengthen its riding exhilaration and touring potential. Riders can choose between the standard Versys 1000 LT or the SE-model, which offers even more high-tech equipment including: Kawasaki Electronic Control Suspension (KECS), integrated riding modes, dual-direction KQS, LED cornering lights and a TFT dashboard with Bluetooth connectivity. Whether your preference is for sport riding or touring – or both – the Versys 1000 LT is your partner in adventure on the open road.

What makes the Versys 1000 ABS LT SE one of the most versatile motorcycles for riding solo or two-up, around the corner or around the globe, is the combination of a smooth and responsive in-line four engine tuned for flexibility, and a nimble chassis fitted with dynamic Kawasaki Electronic Controlled Suspension (KECS) that will leave riders with smiles for miles.

Developed to suit a wide range of riders, the Versys 1000 ABS LT SE platform provides riders a motorcycle that allows for Good Times™ to be had across a wide variety of street riding scenarios. The Versys 1000 ABS LT SE features several all-new performance-increasing updates to the engine, suspension, and ergonomics, as well as increased long-ride comfort and advanced rider support technology. Complementing the increased performance and handling advancements is all new, fresh, and unique Versys® styling, which showcases the balance of aesthetic appeal and functional design.

 The Versys 1000 ABS LT SE motorcycle is packed with premium class leading components and technology, such as Electronic Throttle Valves (ETV), Kawasaki Electronic Controlled Suspension (KECS) Showa front fork, and Kawasaki Cornering Management Function (KCMF) along with much more.

The Versys 1000 ABS LT SE features a powerful but playful liquid-cooled, DOHC, 16-valve 1,043cc in-line four engine, with a bore and stroke of 77.0 x 56.0 mm, which creates strong low-mid range torque and facilitates smooth power delivery. The engine has been tuned for flexibility and offers superb throttle response, strong torque throughout the rpm range. Electronic Throttle Valves (ETV) complement the engine performance and design for 2019. Other new features for 2019 include new fuel injection mapping, exhaust design, and a new catalytic converter design.

The all-new Electronic Throttle Valves enable the ECU to control the volume of both the fuel and the air that are delivered to the engine, by way of the fuel injectors and throttle valves. The optimal fuel and air inputs create a smooth, natural engine response and the ideal engine output. The ETV system has the accelerator position sensor located in the throttle assembly, eliminating the throttle cable.

Transmission

The Versys 1000 ABS LT SE utilizes gear ratios that were chosen to accommodate a wide range of riding situations, including sport riding, highway cruising or riding fully loaded with a passenger and luggage.

New for 2019 on the Versys 1000 ABS LT SE motorcycle is a contactless-type quick shifter that allows for ultra quick, full power upshifts and clutchless downshifts. The Kawasaki Quick Shifter (KQS) detects that the shift lever has been actuated, and sends a signal to the ECU to cut ignition so that the next gear can be engaged for clutchless shifting. During deceleration, the KQS system controls engine speed to perfectly match engine RPM, which smoothly engages the lower gear, allowing effortless downshifts.

Clutch

Complementing the transmission is an assist & slipper clutch, race-inspired technology that offers both a back-torque limiting function as well as a light feel at the lever.

The assist function is noticed by the lighter pull at the clutch lever, helping to reduce rider fatigue especially in stop and go traffic situations.

The slipper function is noticed when excessive engine braking occurs as a result of quick or accidental downshifts. The slipper cam comes into play, forcing the clutch hub and operating plate apart, which relieves pressure on the clutch plates to reduce back-torque and help prevent the rear tire from hopping and skidding.

Chassis

The frame of the Versys 1000 ABS LT SE is composed of a five-piece cast aluminum construction, consisting of steering stem, left and right main frames, and two cross pieces. The two main sections of frame components have open C-shaped cross sections and were die-cast to ensure a smooth surface finish. The lightweight, highly rigid frame uses the engine as a stressed member, which contributes to handling, offering a firm, planted feeling and light, nimble turning. The sub-frame is composed of a steel tube trellis design, which enables the high-payload. To create the sleek appearance, the frame was constructed with the fewest amount of welds possible.

Suspension

The Versys 1000 ABS LT SE motorcycle is equipped with 150 mm of long travel suspension, both front and rear. The 43 mm Showa cartridge fork and Showa BFRC lite rear shock utilize the latest in Kawasaki Electronically Controlled Suspension technology (KECS).

Compression and rebound damping for both the forks and shock are generated (and adjusted) electronically via the all-new KECS system that is controlled by a solenoid valve with direct actuation and allows for extremely quick reaction time. Riders can choose base settings from four modes: Sport, Road, Rain, and Rider mode (Manual). KECS then adjusts to the road surface environment in real time to provide the ideal damping, taking into account vehicle speed, and stroke speed. Deceleration is also accounted for to manage the natural pitching that occurs under braking. Riders can now electronically control the rear shock preload settings as well. KECS offers three different preload settings: rider only, rider with luggage, and rider with passenger and luggage; riders can fine-tune these settings with 10 levels of adjustment.

The forks and shock have built-in stroke sensors that provide real-time stroke speed and compression information. The sensor coils provide input to the KECS ECU every millisecond. This is complemented by information provided by the IMU (acceleration/deceleration) every 10 milliseconds, and the FI ECU (vehicle speed) every 10 milliseconds. The KECS ECU then directs current to the solenoids to adjust damping as required by the situation. This results in quick reaction time to road conditions and maintains a natural feeling that is crucial to the ride feeling at one with the motorcycle.

The KECS, coupled with a Showa 43 mm inverted cartridge fork and BFRC lite suspension components, delivers added confidence in rough road conditions and assures the tires feel planted when cornering.

Brakes & Wheels

The Versys 1000 ABS LT SE comes equipped with sporty, lightweight six spoke 17 inch wheels front and rear. For a bike with unlimited street riding potential, it was crucial to find tires that offer superb cornering performance for more fun in hills, great high-speed stability, and a strong on-road image to go with the sporty character.

Handling the stopping duties for the all-new Versys 1000 ABS LT SE is a full disc brake setup, featuring Kawasaki’s Intelligent anti-lock Brake System (KIBS) technology. The Radial-pump front brake master cylinder commands a pair of 4-piston radial-mount monobloc calipers to grip a pair of 310 mm brake discs, providing plenty of stopping power. The rear brake features a single piston, pin-slide caliper gripping a 250 mm disc.

KIBS (Kawasaki Intelligent anti-lock Brake System)

Kawasaki’s supersport-grade ABS is standard equipment on the Versys 1000 ABS LT SE motorcycle. This is based on the same system used on the Ninja® ZX™-10R and Ninja H2™ sportbikes, with programming and settings revised to suit both the street performance parameters and long-travel suspension of the Versys 1000 ABS LT SE. High-precision brake pressure control enables the system to avoid reduced brake performance due to excessive pressure drops, allowing lever feel to be maintained when KIBS is active, and helps ensure ABS pulses feel smooth.

Ergonomics

For 2019, the Versys 1000 ABS LT SE received several ergonomic features to enhance performance and comfort. At the front of the motorcycle, a new adjustable windscreen, vent layout, and cowl design all aid increasing performance and comfort. The new large windscreen height can now be adjusted from the rider’s seat, without tools, using two knobs on the inside of the screen to suit the rider’s height preference. The adjustable windscreen is equipped with a centrally located vent, which helps reduce the negative-pressure effect in the cockpit, increasing rider comfort at high speeds. The new upper cowling design and wider fairing provide increased wind protection, while still keeping fresh air routed to the areas of the engine bay that produce the most heat.

The wide handlebar and slim seat design along with low and forward footpeg position of the Versys 1000 ABS LT SE creates a spacious and confidence-inspiring rider triangle. The upright riding position accommodates a variety of riding styles, broadening the spectrum of riding enjoyment and also offers a high level of comfort, a great benefit for longer rides.

Kawasaki Quick Release 28 Liter Saddlebags

The saddlebag mounting system of the Versys 1000 ABS LT SE motorcycle utilizes the Kawasaki Quick Release mechanism, which allows for convenient, easy removal and installation of the saddlebags. Seamlessly integrating the saddlebags with the rear of the bike, the clean-mount system positions them close to the centerline of the motorcycle and thanks to its clean, clutter-free design, ensures the rear of the bike still looks good with the saddlebags removed.  The standard KQR™ 28 liter hard saddlebags are rated for up to 11 lbs storage weight and utilize the one-key system, which means they can be unlocked and removed with the ignition key. They are also color-matched to the body of the bike and have the Kawasaki logo stamped into their covers, ensuring a well-integrated, high-quality image. The Versys 1000 ABS LT SE can also accommodate a top case with the saddlebags, offering multiple configuration options.

As an adventure touring motorcycle, the construction of the Versys 1000 ABS LT SE required the use a of robust steel tubing to provide the sub-frame with the substantial 485 lbs payload capacity for carrying a passenger and luggage.

Styling

The styling and design of the Versys 1000 ABS LT SE features smooth, flowing lines throughout the chassis and bodywork, Highly Durable Paint and full LED lighting which helps to create a motorcycle that is sure to keep even the most-seasoned riders enticed.

The new design of the Versys 1000 ABS LT SE flows from the front of the bike to the rear. Its refreshed appearance of the front fairing and upper cowl signify the next step in the evolution of the Versys line of motorcycles. In the new design, the engine and sub-frame area were consciously presented as a styling element, as it showcases the trellis-style sub-frame. Also, in addition to the strategic use of colored pieces, the new design displays the balanced use of metal and composite materials, with each part’s material reflecting its functionality. A new front design with long, slim reflectors contributes to sporty looks while offering increased protection for the fork inner tubes. The new compact, sporty silencer showcases the sophisticated styling and image that has been added to the back of the bike.

Kawasaki’s new Highly Durable Paint and Highly Durable Matte Paint was chosen for all high touch areas including the fuel tank, side cowls, and side covers on the Versys 1000 ABS LT SE.  The Highly Durable Paint features a special coat that allows certain types of scratches to repair themselves, enabling the paint to maintain its high-quality finish. Soft and hard segments in the coat work together like a chemical spring, creating a trampoline effect that absorbs impacts. The Highly Durable Matte Paint is highly wear-resistant, enabling the paint’s beautiful matte finish to be maintained for years to come.

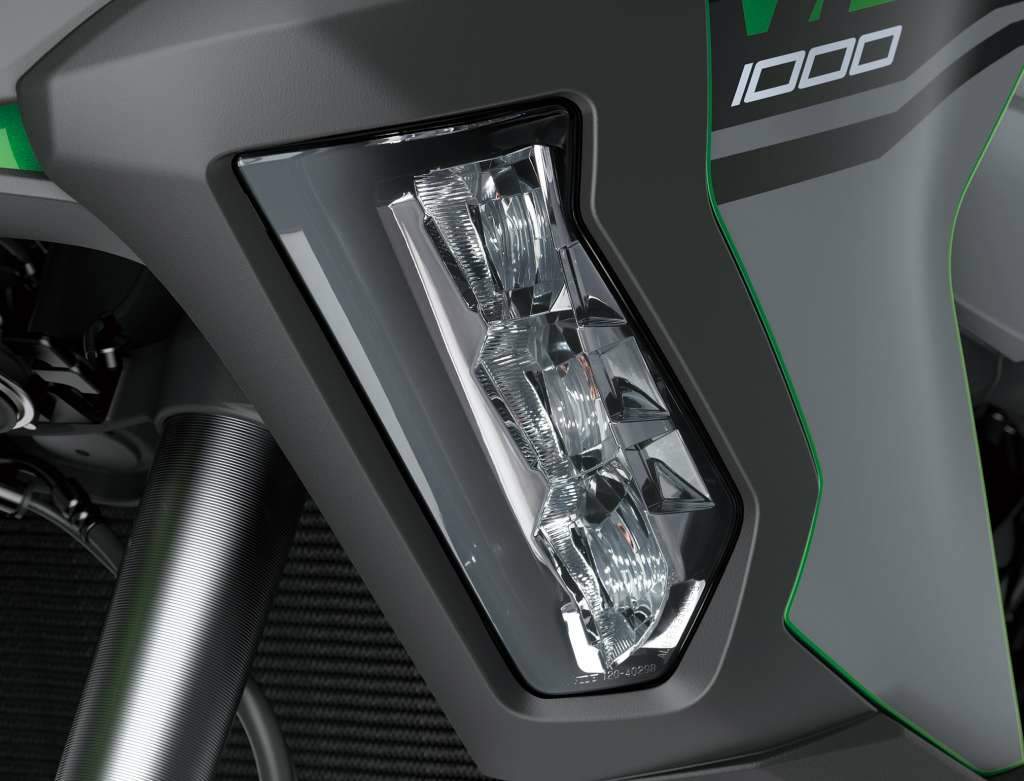

Complementing the sleek and elegant appearance of the Versys 1000 ABS LT SE is full LED lighting and cornering lights. Each of the new LED headlamps features low and high beams as well as a position lamp. The new headlamps offer significantly increased brightness. The LED cornering lights, which are built into the shrouds, help to illuminate the road when cornering. Each of the three lights has a fixed direction and is activated based on lean angle. As the bike leans over, the lights come on in order, creating a wider illuminated path in the direction the bike is heading.

TFT Color Instrumentation

New instrumentation with an advanced, high-tech design gives the cockpit of the Versys 1000 ABS LT SE a very high-class appearance and feel. The analogue-style tachometer is complemented by a high-grade full color TFT LCD screen, which automatically adjusts screen brightness to suit available light. The screen enables information to be displayed graphically. Two selectable display modes allow riders to prioritise the information they want to see depending on the kind of riding they are doing at the time. The first mode was designed with touring in mind; the easy-to-read, calm layout offers a substantial amount of information at a glance. The second mode was designed with sport riding in mind. Important information is prioritized and presented graphically for easy digestion: tracking information such as the G-forces through the feedback from the IMU, throttle and brake force application are illustrated visually rather than numerically. In addition to the digital speedometer and standard gear position indicator, display functions on the Versys 1000 ABS LT SE motorcycle include: fuel gauge, odometer, dual trip meters, current and average fuel consumption, remaining range, coolant temperature, intake air temperature, clock, Economical Riding Indicator, integrated riding modes, IMU indicator and smart phone connectivity.

Electronics & Rider Aids

The strength of Kawasaki’s cutting-edge electronics has always been the highly sophisticated programming that, using minimal hardware, gives the ECU an accurate real-time picture of what the chassis is doing and what the rider wants, to best support the rider’s intentions with natural feel.

Using the latest evolution of Kawasaki’s advanced modeling software including input from a compact Bosch IMU (Inertial Measurement Unit), Kawasaki Cornering Management Function (KCMF) monitors engine and chassis parameters throughout the corner to assist riders in tracing their intended line through the corner. The Versys 1000 ABS LT SE utilizes the input from multiple sensors to optimize ride quality via the Kawasaki Electronic Controlled Suspension (KECS) and the Kawasaki Intelligent anti-lock Braking System (KIBS).

The use of the latest Bosch compact IMU is new for the Versys 1000 ABS LT SE in 2019, and weighs in at only 40 grams. The IMU allows an additional layer of precision to be added to the already high-level components. The system uses minimal hardware but complex Kawasaki proprietary software. IMU enables inertia along six DOF (degrees of freedom) to be monitored. Acceleration along longitudinal, transverse and vertical axes, plus toll rate and pitch rate are measured. The sixth axis, yaw rate, is calculated by the ECU using Kawasaki original proprietary software developed through World Superbike racing experience. The motorcycle’s ECU gains an even clearer real-time picture of chassis orientation, and its software is uniquely predictive as it combines chassis orientation information with real time monitoring of the rider’s intentions to enable the control systems to maximize forward acceleration.

Power & Integrated Riding Mode Selection

The Versys 1000 ABS LT SE motorcycle allows riders to choose from Full Power or Low Power modes, setting power delivery to suit preference and conditions. While output at lower rpm is very similar, Low Power mode limits output to approximately 75% of Full Power and uses a milder throttle response. Reduction in both power and throttle response varies according to engine speed, throttle position, and gear position.

All-inclusive modes that link KTRC, Power Mode and KECS allow riders to efficiently set traction control, power delivery, and suspension characteristics to suit a given riding situation with a single adjustment. Riders can choose from four settings: Sport, Road, Rain or a Rider (Manual) setting. The Sport setting enables riders to enjoy sporty handling riding on winding roads. The Road setting provides comfortable riding characteristics over a wide range of situations, from city riding to highway cruising and rural roads. The Rain setting offers rider reassurance when riding on a low-traction surface. In the manual Rider mode, each of the systems can be customized.

KTRC (Kawasaki TRaction Control)

The Kawasaki TRaction Control (KTRC) featured on the Versys 1000 ABS LT SE motorcycle has three modes for riders to choose from that enable optimal performance for a wide range of riding conditions, offering either enhanced sport riding performance or the peace of mind under certain conditions to negotiate a variety of surfaces with confidence. Kawasaki’s advanced modelling software, complemented by input from the IMU, delivers this one of a kind precise control. The system can also be turned off if riders elect to do so.

Electronic Cruise Control

The Versys 1000 ABS LT SE is equipped with electronic cruise control, which improves the overall comfort for those long days on the road. The new cruise control system enables riders to set and maintain their desired speed with the simple press of a button. Once activated, the rider does not have to constantly apply the throttle to maintain speed. The cruise control helps to reduce rider fatigue when traveling long distances, allowing the rider to relax and enjoy cruising, contributing to a high level of riding comfort.

Smartphone Connectivity

Another Kawasaki first for the adventure and touring Versys line of motorcycles is the addition Smartphone Connectivity to the Versys 1000 ABS LT SE. A chip built into the instrument panel enables riders to connect to their motorcycle wirelessly. Using RIDEOLOGY THE APP, a number of instrument functions can be accessed, logged, and reviewed contributing to an enhanced motorcycling experience. The following information can be viewed:

  1. Vehicle Info

  • Check latest status update

  1. 2. Riding Log

  • Can be logged in detail, and played back for review

  • Route, Distance & Time traveled can be logged for review

  • Riding conditions can be recorded in detail

  1. 3. Tuning

  • Vehicle settings changes can be made on your smartphone

  • New settings can easily be applied to your bike before riding

  • Shift settings can be customized before riding

  • Ride Mode & Electronic Suspension settings can be preselected before riding

The app can also be used when away from the motorcycle. When riding (with the app ON), the bike and smartphone are always connected and riding log data is being recorded by the app. After your ride, the latest riding information is stored by the app and may be viewed on the smartphone. Any changes made via the app while the engine is off, or while out of range, will be implemented as soon as the ignition is turned on and the smartphone is in range with the app ON.
