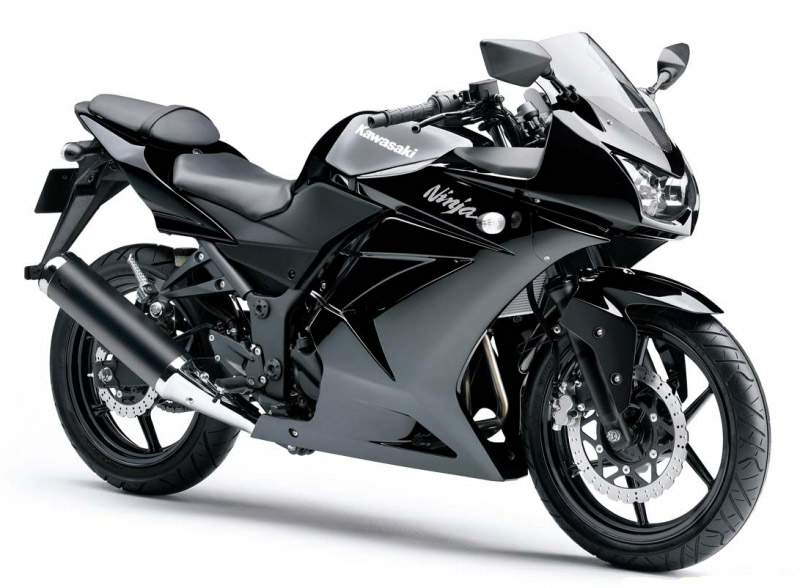

Kawasaki Ninja 250R

.

Make Model

Kawasaki Ninja 250R

Year

2010

Engine

Four stroke . parallel twin, DOHC, 4 valve per cylinder

Capacity

248 cc / 15.1 cu-in
Bore x Stroke 62 х 41.2mm
Cooling System Liquid cooled
Compression Ratio 11.6:1
Lubrication Wet sump
Engine Oil Semi-Synthetic

Induction

2x Keihin CVK30 carburetors

Ignition

TCBI with Digital Advance  /  electric
Starting Electric

Max Power

29.9 hp / 22 kW @ 10500 rpm

Max Torque

21.7 Nm / 2.21 kgf-m / 16.0 lb-ft @ 10000 rpm
Clutch Wet, cable operated

Transmission

6 Speed
Final Drive O-ring chain
Frame  Semi-double cradle, high-tensile steel,

Front Suspension

37mm hydraulic telescopic fork
Front Wheel Travel 119 mm / 4.7 in

Rear Suspension

Uni-Trak® with aluminum linkage
Rear Wheel Travel 130 mm / 5.1 in

Front Brakes

Single 260mm hydraulic petal disc 2 piston caliper

Rear Brakes

Single 220mm petal disc 2 piston caliper

Front Tyre

110/70-17

Rear Tyre

130/70-17
Rake 26°
Trail 84 mm / 33 in
Dimensions Length 2080 mm / 80.0 in.
Width 711 mm / 28.0 in.
Height 1115 mm / 43.1 in.
Wheelbase 1389 mm / 5.1 in.
Seat Height 780 mm / 29.3 in

Dry Weight

151 kg / 304 lbs.
Wet Weight 170 kg / 374.7 lbs

Fuel Capacity

18.2 Litres / 5.8 US gal

T he Ninja 250 has always been a great place for beginning riders to get started, but modern sportbike technology means the littlest Ninja is a great choice for more experienced riders as well — especially ones experienced at getting the most for their motorcycle dollar. While its twin-cylinder engine might be small, light and compact, its 8-valve head packs maximum power into every rpm. The 250R screams Ninja performance, from its sleek full fairing and 17-inch wheels, to its UNI-TRAK® rear suspension and triple petal-disc brakes.



The lightweight Ninja 250R’s secret of success is its winning formula: A rider-friendly engine, real world performance and an amiable chassis topped off with Ninja supersport styling. The icing on this small Kawasaki cake is the motorcycle’s ability to transcend skill levels and appeal to all riders from novice to seasoned veteran.

At the core of the Ninja 250R is an engine that thrives on high-rpm excitement. The gutsy 249cc parallel twin is tuned for a peppy, yet smooth and predictable power delivery. The beginner friendly low- and mid-range torque comes courtesy of its dual overhead camshafts and 2-into-1 exhaust system. A silky smooth six-speed transmission lets riders to exploit the 250R’s powerband without fanfare from that low-end grunt to the crowd pleasing and lively top-end rush. Last, but not least is the little Ninja’s silver lining — its excellent fuel economy.

Wrapping the 250R are the fairing and windscreen that not only look great, but deliver wind protection for a wide range of riding situations. Tucked in behind the windscreen are more rider-friendly features such as the easy-to-read instrument panel and neutral indicator.

A natural riding position and comfortable ergonomics combine with lightweight handling, easy controllability and great throttle response for pure pleasure on city streets. Part of this great handling and stability comes from the 17-inch wheels. Bringing the show to a stop are the large petal shaped 290mm front and 220mm rear rotors gripped by powerful two-piston hydraulic calipers. Like Kawasaki’s other Ninja models, the 250R is equipped with quality components and tuned for class-leading performance.

Lightweight and agile, the Ninja 250R boasts low ownership costs and is a dominating force in the entry-level sportbike category.

Authentic Kawasaki Accessories are available through Kawasaki dealers.

Features and Benefits:

DOHC 249cc Parallel Twin-cylinder Engine
- Compact parallel-twin design offers good mass centralization for superior handling
- Tuned to deliver smooth, step-free power with an emphasis on low- and mid-range power for rider-friendly response
- Pistons feature reinforced heads and strengthening in the pin boss area for increased durability
- Thick piston (longitudinally) rings help prevent oil consumption
- Combustion chamber design optimized to maximize combustion efficiency and reduce emissions
- Ample high-rpm performance will please riders using the full range of the engine

Cylinder head
- Intake and exhaust ports contribute to good off-idle response and smooth power delivery
- Valve timing and lift designed for strong low- and mid-range torque
- Direct valve actuation helps ensure reliable high-rpm operability
- Thin heads and stems on valves for reduced reciprocating weight

Carburetor
- Fine-tuned twin Keihin CVK30 carburetors offer good power feel and low fuel consumption

Reduced mechanical noise
- Automatic adjusting cam chain tensioner eliminates mechanical noise caused by a loose cam chain and reduces power-robbing friction loss
- Eliminating mechanical noise allows the use of a freer flowing exhaust for a better performance
- Complex construction with reinforcing ribs helps eliminate airbox reverberation and reduces intake noise
- Air filter accessible from the side, for easy replacement

Exhaust system
- 2-into-1 system contributes to the Ninja 250R's low- and mid-range torque and smooth, step-free power curve
- Slightly upswept silencer extensively tested to determine chamber size, connecting pipe length and diameter to achieve least noise and most power
- Meets strict emissions with dual catalyzers; one in the collector pipe and the other in the silencer
- Using two catalyzers minimizes the power loss
- Positioning the first catalyzer as close to the exhaust ports maximizes its efficiency as well

Liquid Cooling
- Latest generation Denso radiator offers superior cooling with minimal space and weight
- Ring-fan uses a quiet-running motor that also saves space
- Fins on the lower side of the crankcase further helps cool the engine

Six-speed Transmission / Clutch
- Involute splines reduce friction and backlash between gears and shafts for easier gear meshing and smooth shifting under power
- Spring-type clutch damper reduces jerkiness at very low speeds and minimizes shocks when rolling on and off the throttle for a smoother clutch feel
- Paper-base friction plates help increase clutch durability

Chassis
- Sturdy and durable diamond-style frame of thick-walled steel tubing offers confidence-inspiring stability at both high and low speeds
- Beefy swingarm bracket contributes to the frame's rigidity and helps achieve an ideal chassis stiffness balance
- Square-tube swingarm with a 60 x 30mm cross-section further adds to rigidity

Suspension
- 37mm telescopic front fork with firm settings contribute to the Ninja 250R's smooth, stable handling and enhanced ride control
- UNI-TRAK® rear suspension complements the rigid frame and provides great road holding ability
- Rear shock features 5-way adjustable preload, enabling ride height to be maintained whether riding solo or with a passenger

Wheels
- Features 17" wheels like its larger supersport brothers
- Low-profile sportbike tires on wide rims contribute to its easy, neutral handling at low speeds

Brakes
- Large-diameter, 290mm front petal disc and a balanced action two-piston caliper offer excellent braking performance and a natural, direct feeling at the lever
- Two-piston caliper grips the rear 220mm petal disc

Ergonomics
- Natural riding position with slightly forward-slanting seat and wide, raised handlebars

Bodywork
- Styling, fit and finish of striking full-fairing bodywork match its Ninja supersport siblings
- Aggressive dual-lamp headlight design, slim tail cowl and separate seats further enhance the supersport look
- Front cowling and windscreen offer the rider a substantial amount of wind protection
- Two helmet holders conveniently located under the rear seat
- Under-seat storage can hold a U-lock or similar device
- Two hooks under the tail and the rear passenger pegs provide anchor points for securing items to the rear of the bike

Instrumentation
- Instrument panel features an easy-to-read, large-face analog speedometer along with an analog tachometer, odometer, trip meter, fuel gauge and warning lights
