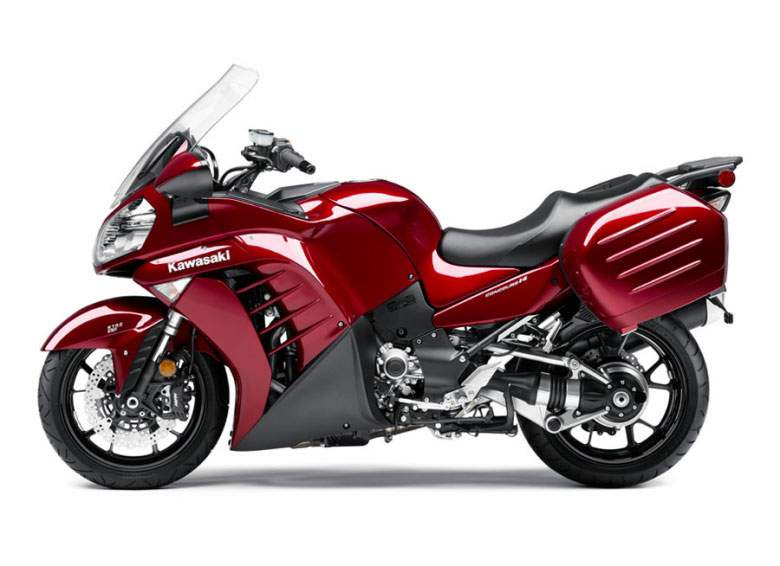

Kawasaki Concours 14

Make Model	Kawasaki GTR 1400 Concours 14
Year	2013 - 14
Engine	Four stroke, transverse four cylinders, DOHC, 4 valves per cylinder
Capacity	1352 cc / 82.5 cu-in
Bore x Stroke	84 x 61 mm
Cooling	Liquid cooled
Compression Ratio	10.7;1
Induction	Fuel injection: ø40 mm x 4
Lubrication	Forced lubrication, wet sump
Ignition	Digital
Starting	Electric
Max Power	114 kW / 155 hp @ 8800 rpm
Max Power Ram Air	118.4 kW /161 hp @ 8800 rpm
Max Torque	136Nm / 102.0 lb-ft / 13.9 kgƒ-m@ 6200 rpm
Clutch	Wet multi-disc manual
Transmission	6 Speed
Final Drive	Shaft
Gear Ratio	1st 3.333 (50/15) 2nd 2.415 (41/17) 3rd 1.900 (38/20) 4th 1.545 (34/22) 5th 1.292 (31/24) 6th 1.074 (29/27)
Frame	Monocoque pressed aluminum
Front Suspension	43 mm inverted fork with adjustable rebound damping and spring preload
Front Wheel Travel	113 mm / 4.4 in
Rear Suspension	Bottom link Unit-Trek with gas charged shock, Tetra lever rebound damping
Rear Wheel Travel	136 mm / 5.4 in
Front Brakes	2X 310mm discs 4 piston calipers
Rear Brakes	Single 270mm disc 2 piston caliper
Front Tyre	120/70- ZR17
Rear Tyre	190/50 -ZR17
Steering Angle, Left / Right	31° / 31°
Rake	26.1°
Trail	112 mm / 4.4 in
Dimensions	Length 2230 mm / 89.4 in. Width 790 mm / 31.4 in Height 1345 mm / 50.8 in. - 1465 mm / 31.4 in. (High position)
Wheelbase	1520 mm / 59.8 in
Ground Clearance	125 mm / 4.9 in
Seat Height	815 mm / 32.1 in.
Wet Weight	300 kg / 670.3 lbs - ABS 304 kg / 679.1 lbs
Fuel Capacity	22 Litres / 5.8 US gal
Consumption Average	15.3 km/lit
Standing ¼ Mile	11.2 sec / 202.1.km/h / 125.5 mph
Standing 1000m	20.8 sec / 238.1 km/h / 148 mph
Top Speed	253.6 km/h / 157.5 mph

The Touring Rig with a Sport Heart

Expertly mixing high performance and long-distance functionality, the Concours™ 14 ABS inspires riders to pull out their big maps and harness the full capabilities of this sport touring motorcycle. Continuing the 26-year tradition of sport touring, the Concours offers just the right ratio of technology, comfort and reliability that coax riders to soak up the miles.

This sport-oriented tourer can go the distance with the best world-class touring rigs yet still negotiate the twists and turns of America’s backroads in fine, Ninja-inspired tradition. Through canyons, over highways and even through the cities, the Concours is a category-defining motorcycle.

The Concours 14 boasts several features that enhance comfort, convenience and safety, solidifying its position atop the sport touring heap. Dynamic bodywork increases comfort by routing heat away from the rider and passenger. A tall, electrically adjustable windscreen creates a calm cockpit experience with help from ducts above the instrument panel, which balances pressure areas outside and inside the screen. Handgrip heaters come standard, providing comfort when the temperatures drop to disagreeably cold temperatures.

The Concours is packed with technological features that enhance the riding experience. The bike’s K-ACT (Kawasaki Advanced Coactive-braking Technology) braking system offers two modes of linked, anti-lock braking and great overall performance. A high-tech traction control system (KTRC: Kawasaki Traction Control) not only reduces wheelspin on slick surfaces, offering riders more confidence-inspiring feedback, but it can be easily switched off at the rider’s discretion.

The heart of the Concours sport-touring package is an amazing and thoroughly modern 1,352cc DOHC inline-four sourced from the legendary ZX™-14 sportbike. The Concours 14 engine generates excellent low- and mid-range power, all followed by a top-end rush that would turn most open-class sportbikes green with envy. A big part of its tremendously wide power delivery is due to its variable valve timing (VVT) system, which automatically alters camshaft profiles according to rpm to boost low-end and mid-range power without sacrificing top end. Advanced fuel injection, ram-air induction and decades of experience building the world’s most potent motorcycle engines add up to a simply amazing powerplant, one that makes the Concours 14 ABS a force to be reckoned with in the performance sport-touring segment – just as the original Concours was 26 years ago.

The Concours 14’s chassis is very much up to the challenge of controlling this prodigious powerplant. Its unique monocoque frame provides massive stiffness along with excellent handling characteristics and a high degree of rider feedback. Cradling the engine from the top, the frame’s compact structure keeps the bike narrow where it needs to be and allows optimum packaging of the bike’s vital systems. The Tetra-Lever shaft drive, which routes all that power to the rear wheel, uses a four-link design to offset the lifting and squatting tendencies of lesser shaft drive systems when the throttle is opened and closed, all of which results in true sportbike handling. Plus, the Tetra-Lever system is almost completely maintenance free. No mystery, then, why the Concours 14’s powertrain has earned critical acclaim around the world for its silky smooth power delivery.

That amazingly solid foundation is augmented by a carefully sculpted and highly comfortable saddle and all the creature comforts you’d expect from a top-shelf sport-tourer, including a pair of beautifully integrated, capacious and waterproof saddlebags. Concours 14 ABS: A high-speed touring ship with unquestionable supersport DNA. It’s got everything you need to go far – and have tons of fun doing it.

TRANSCONTINENTAL SUPERSPORT

Blistering speed … Precision handling … Touring comfort … 1400GTR ABS… Have your cake and eat it too !

Take one ZX-14 based 1400cm³ fuel-injected, dual RAM AIR four cylinder engine, add variable valve timing, shaft drive, Tetra-lever rear suspension, an electronically adjustable windshield, superbly comfortable ergonomics and a seamlessly integrated luggage system and what do you have? The world’s first transcontinental supersport motorcycle. Incredible acceleration, razor sharp handling and amazing high speed stability, all with the level of comfort you’d expect from a pure-bred long distance touring motorcycle. The 1400GTR fABS rom Kawasaki … who said you can’t have your cake and eat it too?

Flagship Tourer

Fueling your distance riding ambitions, the 1400GTR with unique to class variable hydraulic valve timing, linked brakes and advanced traction control shrinks maps and confidently crosses continents.

Kawasaki Concours 14 ABS Features and Benefits

• Ninja ZX-14-based 1,352cc inline-four with variable valve timing provides smooth power across a wide rev range
• Kawasaki Traction Control (KTRC) reduces engine output when wheelspin is detected, helping the rear tire to regain grip
• Kawasaki Coactive-braking Technology (K-ACT) links front and rear brakes and has two modes to suit different riding styles
• Aluminum monocoque frame is lightweight, narrow and rigid
• Tetra-Lever shaft drive offsets the lifting and squatting tendencies of shaft drive
• Fuel economy assistance mode prioritizes fuel savings, giving up to a 25 percent mileage boost
• Standard heated grips help provide comfort even in harsh conditions
• Convenient Kawasaki Intelligent Proximity Activation Starting System (KIPASS)
• Electrically adjustable windscreen has memory function and suits a variety of riders

1,352cc Four-cylinder, DOHC Engine with Variable Valve Timing (VVT)

• Tuned to provide smooth power across an extremely wide rev range, the Concours 14 has power to spare
• Variable valve timing improves the engine’s flexibility and efficiency by altering camshaft profiles to boost low-end and mid-range without sacrificing top-end power
• Its compact and narrow engine design minimizes weight for maximum handling and performance
• Chrome composite-plated aluminum cylinder bores are lightweight, durable and quickly carry heat away from the combustion chamber and piston for supreme durability under high loads

Gear-driven Dual Engine Balancers

• Already in perfect primary balance, the Concours inline four-cylinder engine uses dual secondary balancers to virtually eliminate unwanted vibrations for enhanced rider comfort

Ram Air Induction

• Ram air ducts provide a straight path for cool, high-pressure air to enter the airbox for maximum intake efficiency and power

Digital Fuel Injection

• A digital computer feeds the engine exactly the amount of fuel it needs for cleaner emissions and maximum fuel economy
• A 32-bit electronic control unit works with the dual throttle-valve system to further enhance throttle response and control

Digital Ignition

• Four individual spark plug-mounted ignition coils fire each spark plug independently to achieve optimum timing
• An idle speed control system included in the ECU provides easy starting and warm-up

KTRC Traction Control

• Kawasaki’s traction control system reduces engine output when wheelspin is detected, helping the rear tire to regain grip
• Advanced, 3-way control (airflow, ignition timing, fuel delivery) gives KTRC smooth operation, natural feel and the ability to operate on long stretches of rough roads
• KTRC adds no weight, since it uses the existing ECU and ABS sensors

Second Generation K-ACT ABS

• Second generation K-ACT (Kawasaki Advanced Coactive-braking Technology) ABS links front and rear brakes for most effective front-rear brake force distribution
• Small and lightweight K-ACT ABS unit with a high-spec ECU is capable of detailed calculations for ultra-smooth operation
• The rider can choose one of two modes to suit riding situation or rider preference: The linked effect from front brake lever actuation is largely the same in both modes, but the linked effect when actuating the rear brake pedal is quite different
• In Standard Mode, rider control is prioritized, with linked effect reduced at initial pedal stroke for natural sensation when sport riding
• In High Combined Mode, there’s a more pronounced linked effect from the beginning of the pedal stroke – ideal for touring and two-up highway use
• A low-battery mode maintains ABS function as best as possible when the battery charge is low. In low-battery mode, ABS timing and pressure relief functions are maintained, so brake effectiveness is preserved (although riders will notice that ABS operation is not as smooth). The K-ACT lamp will flash and “Low Battery” will be displayed on the LCD screen. The system resets when the engine is turned off

Fuel Economy Assistance Mode

• Activating fuel economy assistance mode changes the engine to a leaner map, which prioritizes fuel economy for as much as a 25 percent MPG boost
• Fuel economy assistance works in any gear as long as rpm is below 6000, throttle opening less than 30 percent and speed less than 80 mph

Advanced KIPASS

• Each Concours 14 comes with one key fob (kept in a pocket) and a small card-type key for emergency/backup use
• The card-type key includes an immobilizer function (but no remote activation) and is highly portable, measuring just 1.2 x 1.6 x 0.25 inch

Radial Pump Clutch Master Cylinder

• A hydraulic radial pump clutch master cylinder delivers smooth, precise clutch engagement

Monocoque Aluminum Frame

• Hollow aluminum box sections arch over the engine from the steering head to the swingarm pivot for a narrow, rigid and very light frame
• The rigidly mounted engine acts as a stressed frame member to increase the frame’s torsional rigidity while reducing weight
• Forward engine positioning, wheelbase length and front/rear weight balance were carefully designed to achieve high-speed stability and responsive handling

Radial-mount Petal-type Front Disc Brakes

• Radial design uses mounting points at the top and bottom of the caliper, with mounting bolts inserted through the rear of the caliper instead of the side/front for increased rigidity and improved braking feel
• Separate brake pads for each caliper piston provide increased cooling efficiency and more consistent brake feel under extreme conditions
• Petal design front and rear brake rotors provide enhanced cooling and better warp resistance
• Radial-pump front brake master cylinder improves brake performance and lever feel

Tetra-Lever Shaft Drive

• Unique four-link design offsets lifting and squatting tendencies of shaft drive when the throttle is opened and closed, significantly reduces driveline lash during sport riding, and provides smooth acceleration when exploiting the engine’s incredible power output
• Virtually maintenance-free, the Tetra-Lever system dramatically reduces routine maintenance requirements

Plenty of Storage

• Concours 14’s large-volume, easily detachable side cases are integrally designed to complement the rest of the machine. Water-resistant, they easily each hold a full-face helmet
• The cases are mounted as close as possible to the bike’s centerline and center of gravity, with lightweight construction that minimizes their influence on handling
• A lightweight rear carrier is designed to be compatible with an accessory top case
• An all-purpose 40-watt accessory socket is mounted on the dash, providing convenient access to power for electronics

Full Instrumentation

• Easy-to-read speedometer and tachometer, multi-function LCD digital display including an odometer, two trip meters, fuel gauge, gear position indicator, tire pressure indicator and a clock are just a partial listing of the Concours 14’s display capabilities
• Controller Area Network (CAN) interface between the gauges uses fewer wires and allows a greater volume of information to be exchanged than in traditional instrument panels
• Other key instrument functions include the K-ACT mode indicator, Economical Riding Indicator, and Fuel Economy Assistance Mode mark
• Multi-function display includes outside air temperature, whose sensor is located at the intake duct (the farthest point from the engine)
• The Mode Select button on the front of the left grip lets the rider change LCD modes without taking his/her hand off the grip, toggling through average fuel consumption, instant fuel consumption, remaining range, tire pressure, battery voltage and outside temperature

Comfort & Touring Potential

• Aggressive fairing with specially designed venting facilitates heat dissipation, greatly reducing the amount of hot air transmitted to the rider
• A tall windscreen with a wide upper portion reduces upper-body turbulence. The screen is electrically adjustable, with four programmable preset positions
• When the power is turned off, the windscreen goes to its lowest position. When the power is turned back on, the windscreen’s memory function returns it to the selected preset position
• Passages from windscreen slits direct air through the inner fairing to vents next to the instrument panel; alleviating the lower pressure helps prevent turbulence around the rider’s head
• An exhaust pipe guard attached to the upper part of the exhaust mid-pipe helps protect the rider from heat when stopped
• Stepless adjustable grip heaters are standard, with an easy-to-reach switch located in front of a lockable storage case on the inner left fairing panel
• This lockable storage case in the left fairing inner panel uses an electromagnetic lock to prevent entry when the engine is off
• Mirrors are positioned ideally to increase rear visibility and provide optimal hand protection from the wind
• Attachment hooks at the front of the tank facilitate securing a tank bag

Quality Fit and Finish & Design

• Top-shelf fit and finish results in a high quality and luxurious feel
• Stylish muffler end cap gives the silencer a compact appearance

Optional Accessories

• Engine guards, a large top case, tank bag, GPS bracket, a low seat and side spoilers – and much more – are on the list of authorized Kawasaki Accessories, available through your local Kawasaki dealer
