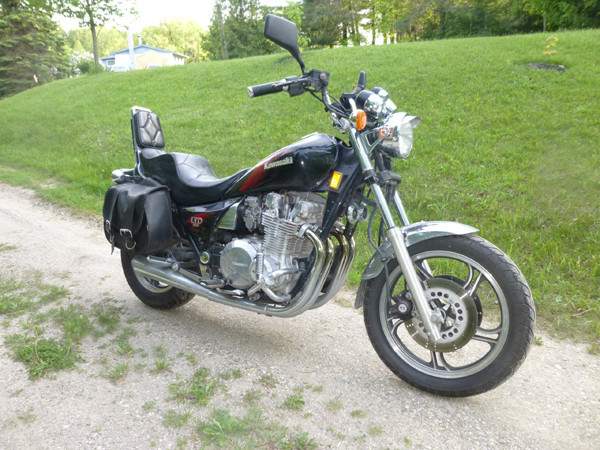

Kawasaki ZN 750 LTD

Make Model.	Kawasaki ZN 750 LTD
Year	1984 - 85
Engine	Four stroke, inline four, 2 valves per cylinder, DOHC
Capacity	750 cc / 45.8 cu in
Bore x Stroke	64 x 54 mm
Cooling System	Air cooled
Lubrication	Wet sump
Exhaust	Dual stainless steel megaphone pipes
Induction	Kehin CV34 x 4 carburetors
Ignition	CDI
Starting	Electric
Clutch	Wet, multiplate
Transmission	5-Speed
Final Drive	Shaft
Frame	Tubular, double cradle
Front Suspension	Telescopic fork
Front Wheel Travel	160 mm / 6.3"
Rear Suspension	Swingarm with dual air adjustable shocks
Rear Wheel Travel	100 mm / 3.9"
Front Brakes	Single disc, single piston caliper
Rear Brakes	Single disc
Front Tyre	110/90-18 61H
Rear Tyre	130/90-16 67H
Rake	29.8°
Trail	112 mm / 4.4 in
Dimensions	Length 2220 mm / 87.4 in Width 830 mm / 32.3 in Height 1210 mm / 47.6 in
Wheelbase	1510 mm / 59.4 in
Ground Clearance	150 mm / 5.9 in
Seat Height	755 mm / 29.7 in
Fuel Capacity	13.9 Litres / 3.7 US gal
