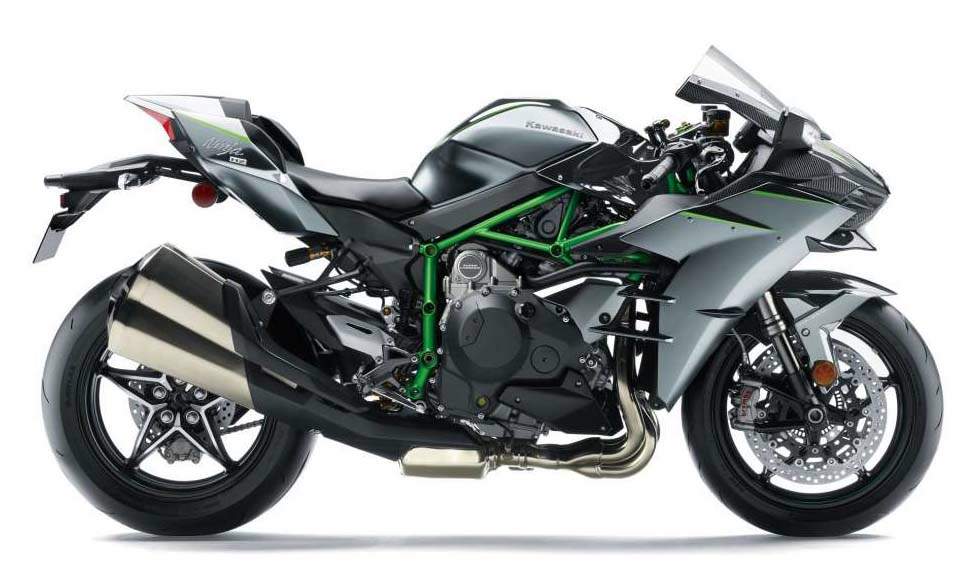

Kawasaki Ninja H2 Carbon

Make Model	Kawasaki H2 Carbon
Year	2017 - 18
Engine	Four Stroke, transverse four cylinder, DOHC, 16 valve, Supercharger Centrifugal, scroll-type
Capacity	998 cc / 60.9 cub in
Bore x Stroke	76 x 55 mm
Cooling System	Liquid cooled
Compression Ratio	8.5:1
Lubrication	Forced, wet sump with oil cooler
Exhaust	4-1-2
Induction	50 mm x 4 with dual injection,
Ignition	Digital
Starting	Electric
Max Power	200 hp / 146.0 kW @ 12500 rpm
Max Torque	133 Nm / 98.1 lb-ft @ 10500 rpm
Transmission	6-Speed
Final Drive	Chain
Frame	Trellis, high-tensile steel, with swingarm mounting plate
Front Suspension	43 mm Inverted fork with rebound and compression damping, spring preload adjustability and top-out springs
Front Wheel Travel	119 mm / 4.7 in
Rear Suspension	Uni-Trak® with gas-charged shock, piggyback reservoir, dual-range (high/low-speed) compression damping, rebound damping and preload adjustability, and top-out spring
Rear Wheel Travel	135 mm / 5.3 in
Front Brakes	Dual 330 mm discs, radial-mount, opposed 4-piston calipers, dual semi-floating
Rear Brakes	Single 250mm disc, opposed 2-piston calipers,
Front Tyre	120/70 ZR17 M/C (58W)
Rear Tyre	200/55 ZR17 M/C (78W)
Rake	24.4°
Trail	101.6 mm / 4.0 in
Dimensions	Length 2083 mm / 82.0 in Width 770 mm / 30.3 in Height 1125 mm / 44.3 in
Wheelbase	1455 mm / 57.3 in
Ground Clearance	130 mm / 5.1 in
Seat Height	826 mm / 32.5 in
Wet Weight	238 kg / 524.7 lbs
Fuel Capacity	17 Litres / 4.5 US gal

The Ninja H2™ streetbike’s supercharged engine creates unprecedented power for remarkable acceleration. The heavy growl of the boosted liter-class engine is a sound the streets won’t soon forget.

Designed to offer riding excitement at a level never before experienced, the unprecedented Ninja H2 combines the joy derived from sport riding and the kind of intense acceleration that made the 1971 H2 (750SS Mach IV) a worldwide sensation. Tapping into the technological know-how possessed by the KHI Group, it has elevated motorcycle technology to a new level.

The Ninja H2™ Carbon motorcycle design projects intense force becoming a product of functional beauty. Each and every angle is designed to contribute unprecedented performance and style.

• Developed by KHI, the Mirror Coated Matte Spark Black/Mirror Coated Spark Black paint of the fuel tank, fairing and seat cowl is the first-ever on a mass-production automobile or motorcycle

• The multi-layer composite paint includes a layer of pure silver formed by a chemical reaction, creating the mirrored effect

• In the shade, the dark base coat shows through the silver for a deep, 3D appearance. In the sun, the silver creates a brilliant metallic effect

Kawasaki set out to create a factory-built motorcycle, where Kawasaki engineers were able to pursue unadulterated performance without the limitations of street or racing homologation. The first four-stroke, supercharged motorcycle from a major manufacturer, the Kawasaki Ninja H2R produces once unheard of power for a factory-built motorcycle. It’s truly Built Beyond Belief.

In order to create a version that was not only street legal, but also street capable, the Kawasaki Ninja H2 sportbike was born, using engineering shared from the Ninja H2R. The Ninja H2 was developed using the technology from the Ninja H2R model, but worked within the street-legal and street-capable parameters.

Kawasaki introduced the limited production Ninja H2 Carbon motorcycle in 2017. The Ninja H2 Carbon motorcycle was based on the 2017 Ninja H2, enhanced with special features.

This incredible trio shares many of the technologically advanced components, including the 998cc inline four-cylinder engine, proprietary supercharger, trellis frame, compact superbike dimensions, aerodynamic bodywork, single-sided swingarm, powerful Brembo® brakes and much more.
