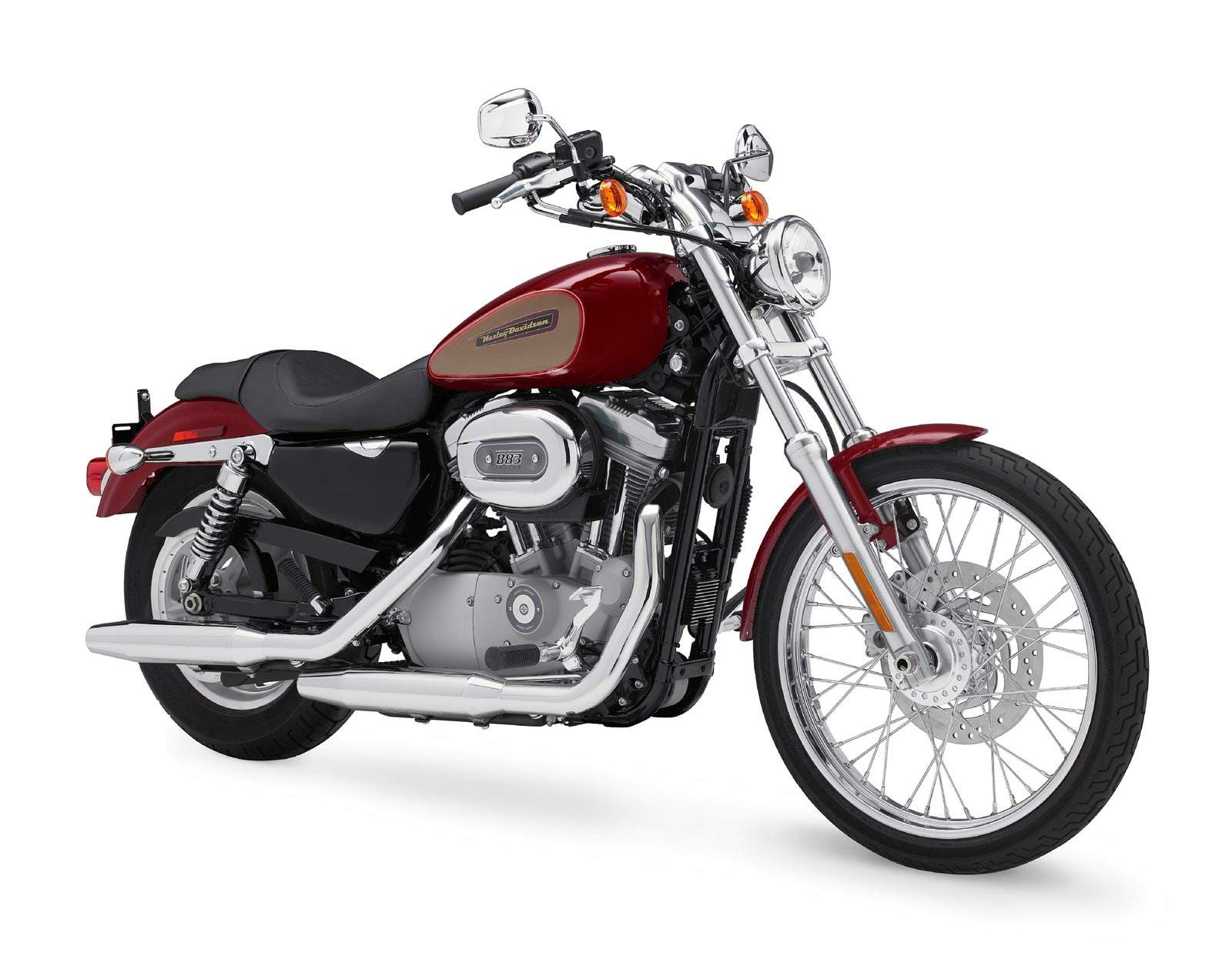

Harley Davidson XL 883C Sportster Custom

.

Make Model

Harley Davidson XL 883C Sportster Custom

Year

2008 - 09

Engine

Four stroke, 45° V-Twin, OHV, 2 valves per cylinder.

Capacity

883 cc / 53.9 cub in.
Bore x Stroke 76.2 x 96.8 mm
Cooling System Air cooled
Compression Ratio 8.8:1
induction Electronic Sequential Pot Fuel Injection

Ignition

Digital CDI
Starting Electric

Max Power

68 hp / 50.2 kW @ 4400 rpm

Max Torque

74.5 Nm / 55 lb-ft @ 3500 rpm

Clutch Multi-plate clutch with diaphragm spring in oil bath

Transmission

5 Speed
Final Drive Belt
Gear Ratio 1st 10.782 10.782 10.782
2nd 7.702 7.702 7.702
3rd 5.728 5.728 5.728
4th 4.748 4.748 4.748
5th 4.071 4.071 4.071
Frame Mild steel, tubular frame; circularsections; cast junctions
Swingarm Mild steel, rectangular tube sections, stamped junctions; MIG welded

Front Suspension

39mm Conventional cartridge forks

Rear Suspension

Dual shocks Coil-over; preload dual-adjustable

Front Brakes

Single 292mm disc 2 piston calipers

Rear Brakes

Single 292mm disc 1 piston calipers

Front Tyre

D402F MH90-21 54H

Rear Tyre

D401 150/80B16 71H
Rake  30.1°
Fork Angle  30.1°
Trail 120 mm / 4.7 in
Dimensions Length 2293.62 mm / 90.3
Width 830.58 mm / 32.7 in
Height 1160.78 mm / 45.7 in
Wheelbase 1534.1 mm / 60.4 in
Seat Height Laden2 673.1 mm / 26.5 in
Unladen 711.20 mm / 28 in
Ground Clearance 112 mm / 4.4 om

Dry Weight

256 kg / 565 lbs
Wet Weight 268 kg / 591 lbs

Fuel Capacity

17 Litres / 4.5 US gal

The Sportster 883 Custom offers a laid-back profile, with forward controls and pull-back handlebars. A laced 21-inch front wheel, a longer, 4.5-gallon fuel tank and a two-up seat give this Sportster a leaner, lower look. Ten paint combinations are offered for 2005 including solid, pearl and two-tone schemes.

Enhanced Suspension: The suspension is upgraded on the 883 Custom, 1200 Low and 1200 Custom. Springs and dampening rates have been recalibrated and new damping devices were installed to provide superior ride quality.

New Front Fenders: All Sportster models get a new low-profile front fender that hugs the tire for a streamlined, custom look.

Rubber-mounted XL Evolution 883cc engine
Silver powder-coated engine and with polished rocker boxes
New lighter Silver Solid Disc Cast Aluminum 16-inch rear wheel
Chrome Laced Steel 21-inch front wheel
New recalibrated suspension
New low profile front fender
Chrome low-rise handlebar on pullback riser
One-piece, two-up Sportster Classic seat
Chrome Staggered Shorty Dual exhaust
Low-Profile rear shocks
Forward foot controls
4.5-gallon fuel tank
Optional Smart Security System
