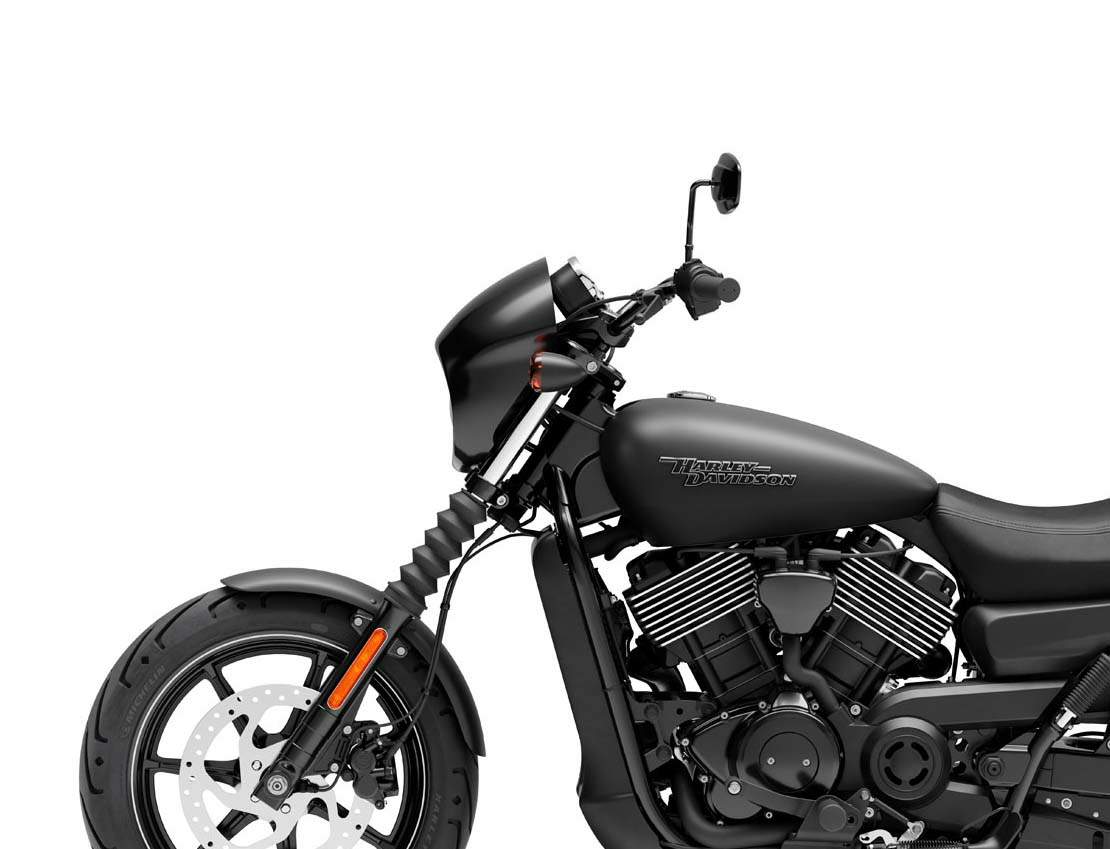

Harley Davidson XG Street 750

.

Make Model

Harley Davidson XG 750 Street

Year

2020

Engine

Four stroke, Revolution X™ 60° V-Twin, SOHC, 4 valves per cylinder.

Capacity

749 cc / 46 cub in.
Bore x Stroke 85 x 66 mm
Cooling System Liquid cooled
Compression Ratio 11.0:1
Oil Capacity  3.1 Litres / 3.3 US qt.

Induction

Mikuni Single Port Fuel Injection, 38 mm bore

Ignition

Electronic
Starting Electric

Max Torque

59 Nm / 6.0 kgf-m / 43.5 ft/lb @ 4000 rpm
Clutch Multi-plate with diaphragm spring in oil bath

Transmission

6 Speed
Final Drive Belt
Gear Ratio 1st 14.25 / 2nd 10.07 / 3rd 7.45 / 4th 5.99 / 5th 5.04 / 6th 4.53:1
Frame Mild tubular steel w/ rectangular backbone
Front Suspension Non-adjustable 37mm forks
Front Wheel Travel 140 mm / / 5.5 in
Rear Suspension Spring-preload adjustable dual shocks
Rear Wheel Travel 94 mm / 3.5 in

Front Brakes

Single disc, 2 piston caliper

Rear Brakes

Single disc, 2 piston caliper
Front Wheel Black, 7-Spoke Cast Aluminum with Machined Rim Highlights
Rear Wheel Black, 7-Spoke Cast Aluminum with Machined Rim Highlights

Front Tyre

100/80 R17

Rear Tyre

140/75 R15
Rake 32°
Trail 110 mm / 4.5 in.
Dimension Length  2225 mm / 87.6 in.
Wheelbase 1534 mm / 60.4 in.
Seat Height 720 mm / 25.7 in
Ground Clearance 145 mm / 5.7 in.

Dry Weight

223 kg / 492 lbs
Wet Weight 233 kg / 514 lbs

Fuel Capacity

13.1 Litres / 3.5 US gal

Built specifically to shred city streets, the Harley-Davidson Street® motorcycles are sleek and nimble with an authentic urban attitude.

Family Features:

Liquid-cooled Revolution X™ powertrain
Low seat height and broad handlebar sweep for confidence and manoeuvrability
Café-style speed screen, black front fork gaiters, all-black exhaust system and aggressive slash on the tail section
Smart Security System
Optional two-tone paint schemes

750cc Liquid-Cooled Revolution X™ Engine

The blacked-out, liquid-cooled V-Twin engine is built to conquer the hot and heavy traffic of urban streets. You can count on smooth response to the progressive throttle when you want to get through any hole that opens up in front of you.

Optional Anti-Lock Brakes (ABS)

The sophisticated, factory-installed ABS gives you confidence in the saddle knowing your bike’s going to behave when you need it.

Light Lift Off Force

Lifting the Harley-Davidson Street® 750 up off the side stand is easy, thanks to its low weight and low center of gravity. It makes pulling out from the curb feel as effortless as putting your thumb to the starter button.

Low Seat Height

The seat height is just 28-inches. And the frame and seat are narrow, which makes for an even easier reach. The advantages of a low seat also shine when the light turns green. It gives you a low center of gravity for confidence when you’re negotiating traffic or just slowly rolling through a parking lot looking for a spot.

Specially Tuned Shocks

Specifically tuned and dialed in for the weight of the bike, the geometry of the frame, and the position of the rider. You’ll experience a smooth ride and excellent handling when you encounter rough urban pavement.

Dark, Aggressive, Custom Look

Sports an all-black two-into-one exhaust, black cast aluminum wheels, blacked-out front end with a café inspired speed screen, and a chrome medallion made of steel on the fuel tank.
