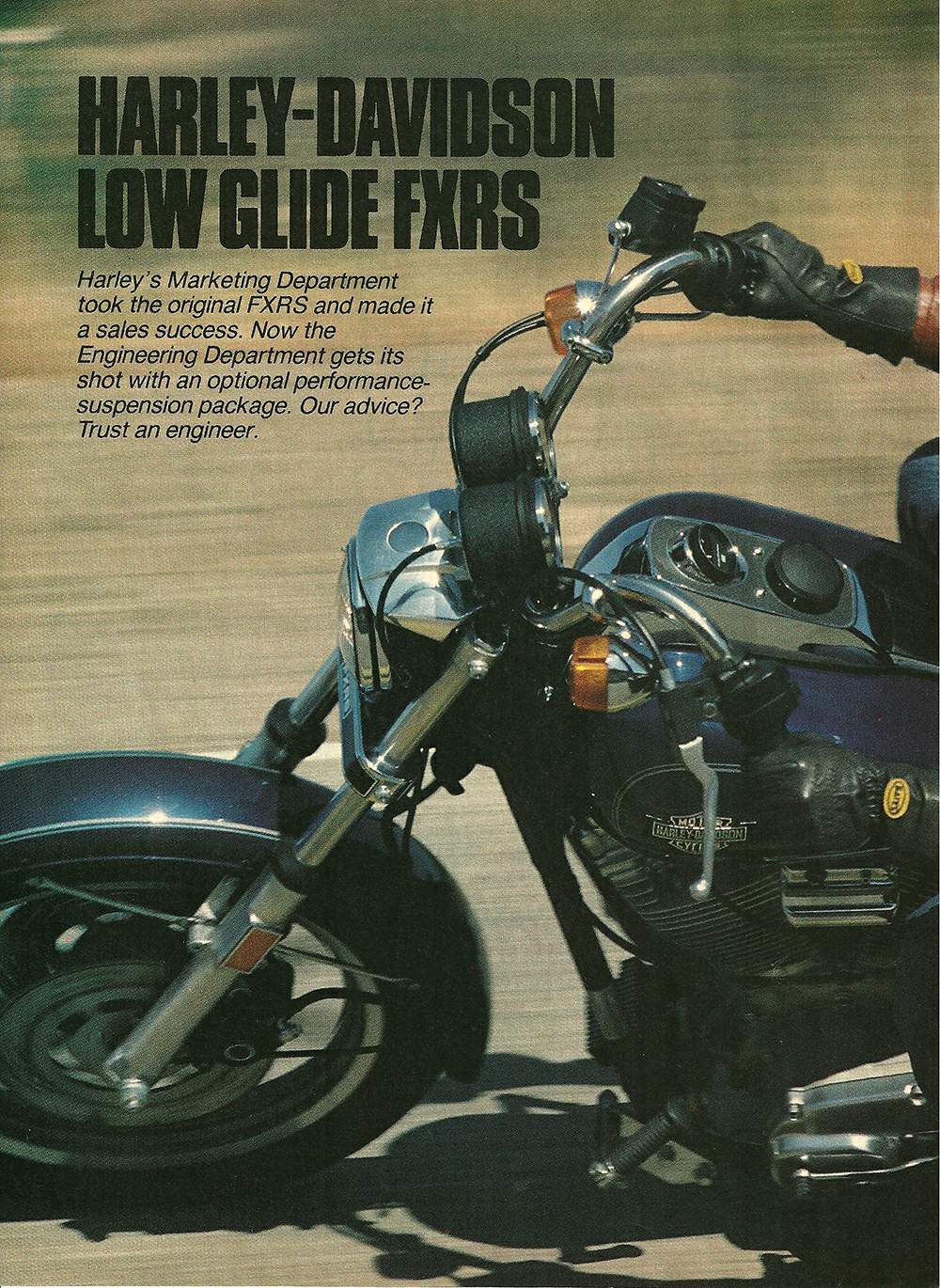

Harley Davidson FXRS 1340 Low Glide

.

Make Model

Harley Davidson FXRS 1340 Low Glide

Year

1984 - 85

Engine

Four stroke, 45° V-Twin, OHV, 2 valves per cylinder.

Capacity

1337 cc / 81.5 cu-in
Bore x Stroke 88.8 x 108.0 mm
Cooling System Air cooled
Compression Ratio 8.5:1

Induction

38mm Keihin carburetor

Ignition

Col battery
 Starting Electric

Max Power

58 hp / 43 kW @ 5800 rpm

Max Torque

90.8 Nm / 67 lb.-ft. @ 3600 rpm

Transmission

5 Speed
Final Drive Belt

Front Suspension

38mm Telescopic air assistance, 175mm wheel travel.

Rear Suspension

Dual shocks preload adjustable, 91mm wheel travel.

Front Brakes

Single 292mm disc 1 piston caliper

Rear Brakes

Single 292mm disc 1 piston caliper.

Front Tyre

100/90-19

Rear Tyre

130/90-16

Wet-Weight

 290 kg / 640 lbs

Fuel Capacity

16 Litres / 4.2 US gal

Consumption  average

21 km/lit

Braking 60 - 0 / 100 - 0

-  /  42.3 m

Standing ¼ Mile

14.2 sec / 92.6 mph
