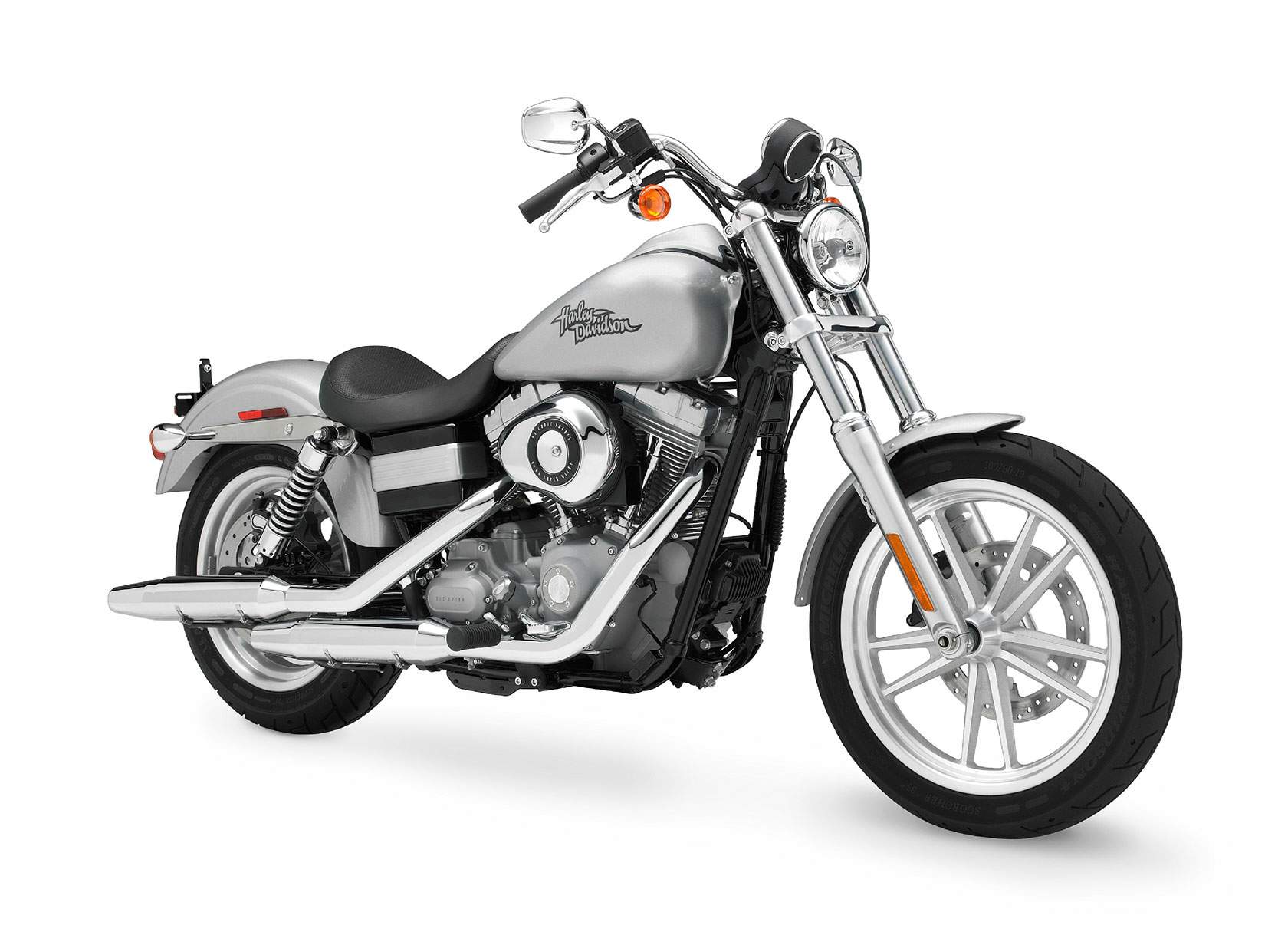

Harley Davidson FXD Dyna Super Glide

Make Model	Harley Davidson FXD Dyna Super Glide
Year	2010- 11
Engine	Four stroke, 45° V-Twin, Twin Cam 96 vibration isolation-mounted Valves Pushrod-operated overhead valves; w/ hydraulic self-adjusting lifters; two valves per cylinder
Capacity	1584 cc / 96 cu-in
Bore x Stroke	95.2 x 111.2 mm
Cooling System	Air cooled
Compression Ratio	9.2:1
Induction	Electronic Sequential Port Fuel Injection (ESPFI)
Ignition	Single-fire, non-wasted, map-controlled spark ignition
Starring	Electric
Max Torque	124.7 Nm / 92 ft. lbs @ 3000 rpm
Clutch	Multi-plate, wet
Transmission	6 Speed
Final Drive	Belt
Gear Ratio	1st 9.311 2nd 6.454 3rd 4.793 4th 3.882 5th 3.307 6th 2.790
Frame	Mild steel, tubular frame; rectangular section backbone; stamped, cast and forged junctions, forged fender supports; MIG welded
Front Suspension	49 mm with polished aluminum fork triple clamp and dual-rate springs,
Rear Suspension	Coil over shock ,
Front Brakes	Single 300mm disc 4 piston caliper
Rear Brakes	Single 292mm disc 4 piston caliper
Front Tyre	100/90-19 57H
Rear Tyre	160/70-17 73V
Rake	29°
Fork Angle	29°
Trail	120 mm / 4.7 in
Dimensions	Length 2357.12 mm / 92.80 in width 932.18 mm / 36.7 in Height 1231.90 mm / 48.5 in
Wheelbase	1630.6 ,, 64.2 in
Seat Height	Laden2 668.0 mm / 26.30 in Unladen 673.1 mm / 26.50 in
Ground Clearance	117 mm / 4.6 in
Dry Weight	286.68 kg / 632 lbs
Wet Weight	301 kg / 663 lbs
Fuel Capacity	17 7 Litres / 4.7 US gal

The Harley-Davidson Dyna family has its roots in the factory-custom revolution of the 1970s, and combines Big Twin performance with an extended FX front end. Dyna models deliver great handling and bold styling.

New Michelin® Scorcher™ tires with a new tread pattern
New Helical cut 5th gear for improved transmission sound
- Silver powder-coated engine with polished covers
- Chrome exhaust with dual staggered shorty mufflers
- 4.7-gallon Super Glide fuel tank
- Silver 10-spoke Cast Aluminum wheels
- Sport front fender with painted brace supports
- Wrap-around rear fender with polished stainless steel supports
- One-piece solo Dyna classic seat
- Stainless steel, pull-back handlebar
- Handlebar-mounted electronic speedometer

The Dyna® Super Glide® is either a pure Big Twin riding machine, or a blank canvas for a personalized, custom motorcycle. In each case, it offers classic styling and a sporty ride. The Super Glide is the most-affordable Harley-Davidson® Big Twin model.

The Harley-Davidson Dyna family has its roots in the factory-custom revolution of the 1970s, and combines Big Twin performance with an extended FX front end. Dyna models deliver great handling and bold styling.

- Rubber-mounted Twin Cam 96™ V-Twin engine with Electronic Sequential Port Fuel Injection (ESPFI)
- 6-speed Cruise Drive® transmission
- Exposed under-seat battery box
- Exposed rear coil-over shock absorbers
- Mid-mounted rider footpegs with brake and shift levers
- Optional Harley-Davidson® Smart Security System with hands-free security fob
