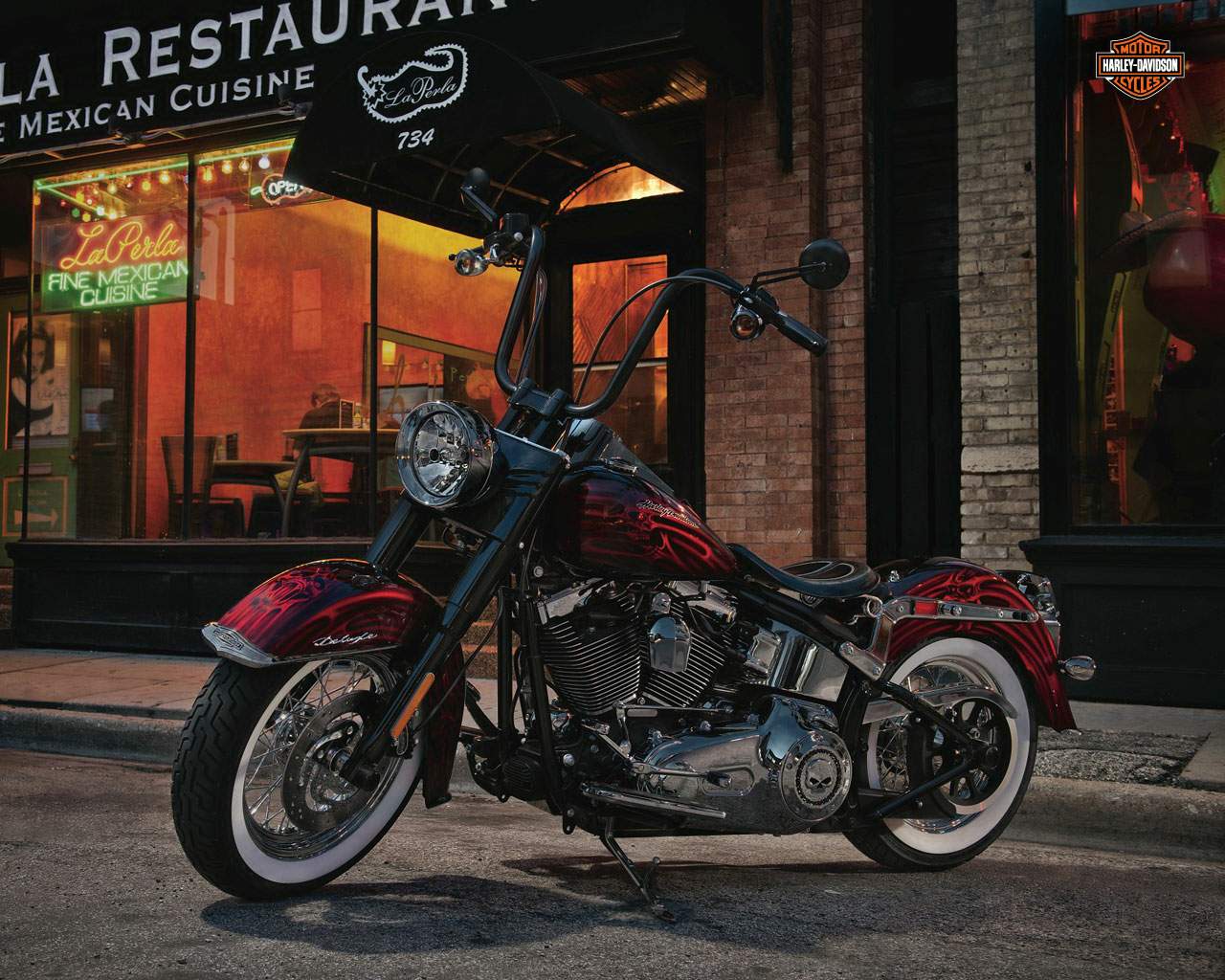

Harley Davidson FLSTN Softail Deluxe

.

Make Model

Harley Davidson FLSTN Softail Deluxe

Year

2012

Engine

Four stroke, V-Twin, Twin Cam 103™ Pushrod-operated, overhead valves with hydraulic, self-adjusting lifters; two valves per cylinder, with Integrated Oil-Cooler

Capacity

1690 cc / 103.1 cu-in
Bore x Stroke 98.4 x 111.1 mm
Cooling System Air cooled
Compression Ratio 9.6:1

Induction

Electronic Sequential Port Fuel Injection (ESPFI)

Ignition

Single-fire, non-wasted, map-controlled spark ignition
Starting Electric

Max Torque

132 Nm / 98.8 ft. lbs @ 3250 rpm
Clutch Multi-plate, wet

Transmission

6 Speed
Final Drive Belt
Gear Ratio 1st 9.311  2nd 6.454  3rd 4.793  4th 3.882  5th 3.307  6th 2.79
Frame Mild steel, tubular frame; rectangular section backbone; stamped, cast and forged junctions, forged fender supports; MIG welded

Front Suspension

41.3 mm telescopic, chrome dust covers

Rear Suspension

Hidden, horizontal-mounted, coil-over shock

Front Brakes

Single 292mm disc 4 piston caliper

Rear Brakes

Single 292mm disc 2 piston caliper

Front Tyre

MT90-16 72H

Rear Tyre

MU85B16 77H
Rake  32.1°
Trail 147 mm / 5.8 in
Dimensions Length  2400 mm / 94.4 in
Wheelbase 1635 mm / 64.2 in
Seat Height Laden    622 mm / 24.5 in
Unladen  670 mm / 25.9 in
Gross Vehicle Weight Rating 526.0 kg / 1160 lbs

Wet Weight

329.0 kg / 726 lbs
Ground Clearance 114 mm / 4.5 in
Oil Capacity 3.3 Litres

Fuel Capacity

18.9 Litres / 5.0 US gal

One of the most confidence-inspiring Big Twins, the Softail® Deluxe features an extremely low seat with "collapsing sides," pull back handlebar and riser, and easy-reach, extended kickstand. The powerful, counter-balanced Twin Cam 96B™ and 6-Speed Cruise Drive® transmission are appreciated by many riders. Exquisite style details round out every other corner of this bike, from the clean front light bar, to the tombstone taillight, to the chrome grab rail and luggage rack, to the laced wheels and wide whitewall tires. The addition of the new Security Package option means riders have the choice of adding anti-lock brakes, giving even more functionality to all this form.

New Rigid-mounted, counter-balanced Twin Cam 103B™ V-Twin engine with Electronic Sequential Port Fuel Injection (ESPFI)
New Tubeless Chrome Aluminum Profile Laced wheel option
New Paint color options

• Fuel tank sender for accurate fuel-level readings
• Black powder-coated powertrain with chrome covers
• Chrome over/under shotgun exhaust
• Chrome, Laced Steel wheels
• Wide whitewall tires
• MU85B-16 rear tire
• Chrome nostalgic seven-inch ball headlamp
• Chrome oil tank
• Chrome nostalgic tank console with electronic speedometer
• Stainless steel, low-rise handlebar
• Full-length rider footboards
• Two-piece, two-up Softail® seat with “collapsing” sides and removable pillion and chrome grab rails
• Integrated chrome luggage rack
• Tombstone taillight
• Full-coverage front and rear fenders with chrome accents
• 6-Speed Cruise Drive® Transmission
• Horseshoe oil tank
• Five-gallon fuel tank
• Optional Chrome Profile Laced Aluminum wheels
• Optional Original Equipment Custom Color paint program
