Harley Davidson Softail Fat Boy 114 30th Anniversary

.

Make Model

Harley Davidson Softail Fat Boy 114 30th Anniversary

Year

2020

Engine

Four stroke, V-Twin, 2 Milwaukee-Eight 114, Pushrod-operated, overhead valves with hydraulic, self-adjusting lifters, 4 valves per cylinder

Capacity

1868 cc / 114 cu-in
Bore x Stroke 102 x 114.3 mm
Cooling System Air cooled
Compression Ratio 10.5:1
Exhaust 2-into-2 staggered, catalyst in muffler

Induction

Electronic Sequential Port Fuel Injection (ESPFI)

Lubrication Pressurized, dry-sump with oil cooler
Ignition Single-fire, non-wasted, map-controlled spark ignition

Starting

Electric

Max Torque

161 Nm / 119 lb-ft @ 3000
Clutch Mechanical, 10 plate wet, assist & conventional

Transmission

6 Speed
Primary Drive Chain, 34/46 ratio
Final Drive Belt, 32/66 ratio
Gear Ratio 1st 9.311  /  2nd 6.454  /  3rd 4.793  /  4th 3.882  /  5th 3.307  /  6th 2.79

Lean Angle, Left

25.6º

Lean Angle, Right

25.6º
Frame Mild steel, tubular frame, rectangular section backbone, stamped, cast, and forged junctions, MIG welded, aluminum forged fender supports
Swingarm Mild steel, tubular sections, stamped x-member, forged axle junctions, MIG welded, removable belt spacer

Front Suspension

Dual bending valve 49mm telescopic with aluminum fork triple clamps, dual rate spring, "beer can" covers
Front Wheel Travel 130 mm / 5.1 in

Rear Suspension

Hidden, free piston, coil-over monoshock, 43mm stroke, toolless hydraulic preload adjustment
Rear Wheel Travel 86 mm / 3.4 in

Front Brakes

2x 300mm discs,  4 piston fixed caliper

Rear Brakes

Single 292mm disc,  2 piston floating caliper
ABS Standard
Wheels Satin Black, machined highlighted, Lakester cast aluminum
Front Wheel 18 x 4,5 in
Rear Wheel 18 x 8.0 in

Front Tyre

160/60R18,70V,BW

Rear Tyre

240/40R18,79V,BW
Rake (steering head) 30°
Trail 104 mm / 4.1 in
Dimensions Length  2370 mm / 93.3 in
Width     985 mm / 38.3 in
Height  1095 mm / 43.1 in
Wheelbase 1655 mm / 65.6 in
Ground Clearance 115 mm / 4.5 in
Seat Height Unladen  675 mm / 26.6 in
Laden     658 mm / 25.9 in

Dry Weight

304 kg kg / 671 lbs

Wet Weight

317 kg / 699 lbs

Fuel Capacity

18.9 Litres / US 5.0 gal

The Limited-Production Fat Boy 114 with Special Styling Will Be Serialized

MILWAUKEE (February 3, 2020) – Harley-Davidson celebrates an icon with the introduction of the Fat Boy® 30th Anniversary motorcycle. Cloaked in dark finishes with bronze highlights and powered by a blacked-out Milwaukee-Eight® 114 engine, production of the 30th Anniversary Fat Boy will be limited to 2,500 examples, each serialized with a number plate affixed to the fuel tank console.

The Fat Boy was a perfectly outrageous name for a motorcycle that at its 1990 introduction was brilliantly bodacious.

“The Fat Boy took the look, proportions and silhouette of a 1949 Hydra-Glide motorcycle and completely modernized it for a new generation of riders,” explains Brad Richards, Harley-Davidson Vice President of Styling and Design. “Those riders appreciated our post-war design DNA but also found themselves drawn to the clean simplicity of contemporary industrial design. Each of these elements was captured in the new 2018 version of the Fat Boy model. For this 30th Anniversary model we wanted to create something very special, so we leaned into the popularity of darker finishes and a limited run/serialized strategy to make the bike truly unique and exclusive.”


Fat Boy 30th Anniversary Model

The Fat Boy 30th Anniversary motorcycle celebrates the three-decade impact of the original model with a bold reinterpretation executed in dark finishes paired with a single color option, Vivid Black. The cast-aluminum Lakester wheels are finished in Satin Black with machined highlights. The blacked-out Milwaukee-Eight 114 powertrain is finished with engine covers in gloss black and subtle bronze-tone lower rocker covers and timer cover script. The exhaust finished in a Black Onyx, a durable physical vapor deposition paint finish that reveals the underlying chrome in bright light.

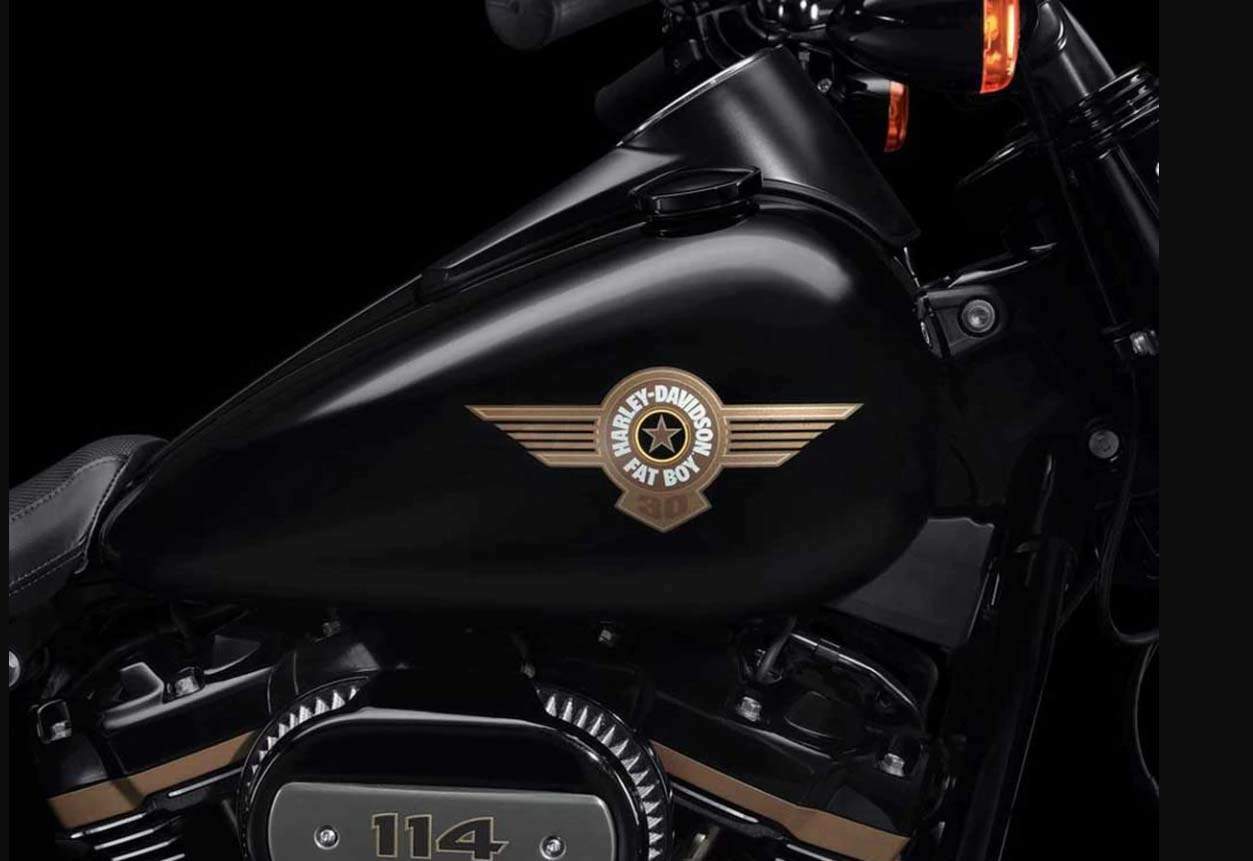

A Vivid Black headlamp nacelle, handlebar and controls complete the over-all dark look that is distinctive from the regular production model. A new bronze-tone waterslide Fat Boy tank logo complements the black finish and other bronze details that set the Fat Boy 30th Anniversary apart from the regular-production model.


Based on the Harley-Davidson® Softail® platform launched in 2018, the Fat Boy motorcycle re-defines an icon with power and presence. The entire Fat Boy front end is massive and topped with an LED headlamp in a newly shaped nacelle. The Lakester disc aluminum wheels update that defining Fat Boy style point. The 160mm front tire is balanced by a signature 240mm rear tire that delivers a factory custom look.

The Softail frame and suspension combine to form a chassis that’s stiff and lightweight, for agility and performance that will exceed the expectations of the most-demanding cruiser riders. The mono-shock rear suspension preserves the signature “hard tail” lines of the Softail chassis and places a single coil-over shock absorber below the seat at the optimal angle for a smooth ride and outstanding handling. Remote hydraulic pre-load adjustment is accomplished by simply turning a knob located below the seat, making it easy to dial in the ride and handling for rider weight.

The Milwaukee-Eight 114 V-Twin engine, the most-powerful Softail powertrain option, delivers inspiring performance and classic Harley-Davidson look-sound-feel. The rigid-mounted powertrain further enhances chassis stiffness. Dual engine counter-balancers are tuned to reduce primary vibration at idle speed.


Dealer-installed Screamin’ Eagle® Performance Parts Stage Upgrades from Harley-Davidson Genuine Motor Parts & Accessories are available to boost engine performance even further.

Base price for the Fat Boy 30th Anniversary model is $21,949*.

*Price listed is the Manufacturer’s Suggested Retail Price for base model. Options are available at additional cost. Price excludes tax, title, licensing, registration fees, destination charges, added accessories, and additional dealer charges, if any, and are subject to change. Harley-Davidson reimburses dealers for performing manufacturer-specified pre-delivery inspection and setup tasks. Dealer prices may vary.

Birth of an Icon

Introduced in 1989 as a 1990 model, the original Fat Boy was designed by legendary Harley-Davidson stylists Willie G. Davidson and Louie Netz and combined a fresh, contemporary look with classic Harley-Davidson styling cues. To achieve a “milled from billet” look the bike was finished in monochromatic Fine Silver Metallic with a matching powder coated frame, and rolled on aluminum disc wheels – the rear exposed by the Softail chassis – that would become the defining characteristic of the Fat Boy model. The look was beefy for the time, from the fat front tire covered with a trimmed fender to the wide handlebar and a seven-inch headlamp in a massive chrome housing perched on a polished FL-style nacelle. Davidson designed the winged tank logo, which has been an enduring feature of the Fat Boy model.

In 1991 the Harley-Davidson Fat Boy motorcycle entered popular culture with its featured appearance in the motion picture “Terminator 2: Judgment Day,” in which actor Arnold Schwarzenegger rides a Fat Boy motorcycle through Los Angeles in a dramatic chase scene. The movie was a global sensation, helping cement the Fat Boy model as an iconic representative of the Harley-Davidson brand in many markets, especially Europe.


About That Name

Only Harley-Davidson would have the confidence to name a motorcycle Fat Boy. Here’s how it happened, according to an account by Willie G. Davidson from his book “100 Years of Harley-Davidson”:

You’re probably wondering how we came up with a name like “Fat Boy,” and I’ve heard a lot of tales about this, nearly all of which are untrue. Here’s the real story: it’s tough to come up with names that will be popular on the street. We always have to ask ourselves, “What’s the street going to name this?” and work from there. We were looking for something unusual and maybe even a little irreverent, because there’s something sort of cool about poking fun at your products from time to time. To me, and to a lot of other insiders who’d seen it, the bike had a massive “fat” look. So the folks in marketing came up with the name “Fat Boy” – and the street picked it up.

The Fat Boy model received regular styling updates until 2018, when an all-new Fat Boy model was rolled out on the reinvented Softail chassis, powered by the Milwaukee-Eight engine. The current Fat Boy model turns up the volume on all of the distinctive Fat Boy cues, from the aluminum disc wheels to the massive headlamp and nacelle. The Fat Boy remains one of the most physically imposing motorcycles in the Harley-Davidson portfolio.
