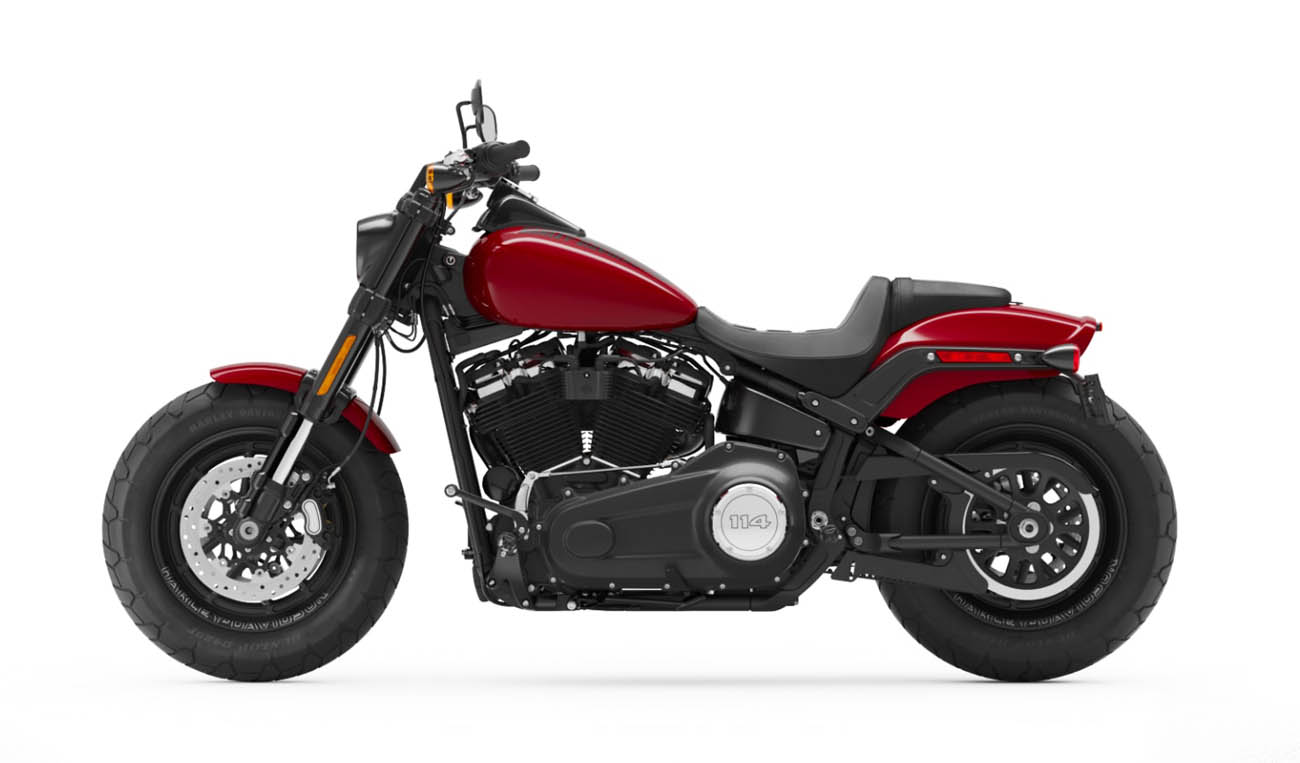

2020 - 2021 Harley Davidson Softail Fat Bob 114

Make Model	Harley Davidson Softail Fat Bob 114
Year	2020 - 21
Engine	Four stroke, V-Twin, 2 Milwaukee-Eight® 114, Pushrod-operated, overhead valves with hydraulic, self-adjusting lifters, 4 valves per cylinder
Capacity	1868 cc / 113.9 cu-in
Bore x Stroke	102 x 114.3 mm
Cooling System	Air cooled
Compression Ratio	10.5:1
Exhaust	2-into-1-into-2 dual side, catalyst in muffler
Induction	Fuel System Electronic Sequential Port Fuel Injection (ESPFI)
Lubrication	Pressurized, dry-sump with oil cooler
Ignition	Single-fire, non-wasted, map-controlled spark ignition
Starting	Electric
Max Torque	155 Nm / 114.3 lb-ft @ 3500
Clutch	Multi-plate, wet
Transmission	6 Speed
Primary Drive	Chain, 34/46 ratio
Final Drive	Belt
Gear Ratio	1st 9.311 / 2nd 6.454 / 3rd 4.793 / 4th 3.882 / 5th 3.307 / 6th 2.79
Lean Angle, Left	32°
Lean Angle, Right	31°
Front Suspension	Showa Inverted forks
Rear Suspension	Mono Shock
Front Brakes	2 x disc, 4 piston caliper
Rear Brakes	Single disc, 2 piston floating caliper
Front Wheel	Denim black, Structure cast aluminum with laser etched graphics
Rear Wheel	Denim black, Structure cast aluminium with laser etched graphics
Front Tyre	150/80-16,71H,BW
Rear Tyre	180/70B16,77H,BW
Rake (steering head)	28°
Trail	132 mm / 5.2 in
Dimensions	Length 2340 mm / 92.1 in
Wheelbase	1615 mm / 63.5 in
Seat Height	Unladen 710 mm / 27.9 in
Ground Clearance	120 mm / 4.7 in
Dry Weight	296 kg / 652.5 lbs
Wet Weight	306 kg / 674.6 lbs
Fuel Capacity	13.6 Litres / US 3.6 gal

From the modern, aggressive look of its 2-1-2 upswept exhaust and asphalt-devouring fat tires to the massive torque of the Milwaukee-Eight® 114 engine to the ride of the Softail® frame, to inverted front forks and easily adjustable rear suspension, the Fat Bob® 114 is built to shake up the status quo. This is for the rider that wants to break new ground at a high rate of speed.

The Fat Bob® 114 motorcycle features aggressive, unapologetic styling, mind-blowing performance and handling, premium finishes, and the massive torque of the Milwaukee-Eight® engine.

One look at the Low Rider S is all it takes to see how far the Softail® family has come. It’s the latest in a new revolution of custom motorcycles we launched in 2018. With every Softail, you get a lighter frame, responsive new suspension, and the power of the Milwaukee-Eight® v-twin engine. In keeping with the custom tradition, each model has its own attitude and style. Ranging from the blacked-out nostalgia of the Heritage Classic to the futuristic edge of the Fat Bob® and FXDR 114 models. Find the one that fits your style. You’re in for one hell of a ride.

The Milwaukee-Eight® engine is not short on power. And these high-performance dual disc brakes help you keep that power in check when you need to.

Bold aluminum wheels with fat, aggressive tires that give you asphalt-eating traction.

A powerful, smooth-running engine with crisp throttle response and a pure, soul-satisfying rumble. Available in 107 and 114 engine displacements.

A bold headlight design that gives you great visibility at night and during the day makes sure all eyes are focused on you.

Inverted race-style front fork design, with single-cartridge technology that improves response to steering input and braking and handling performance.
