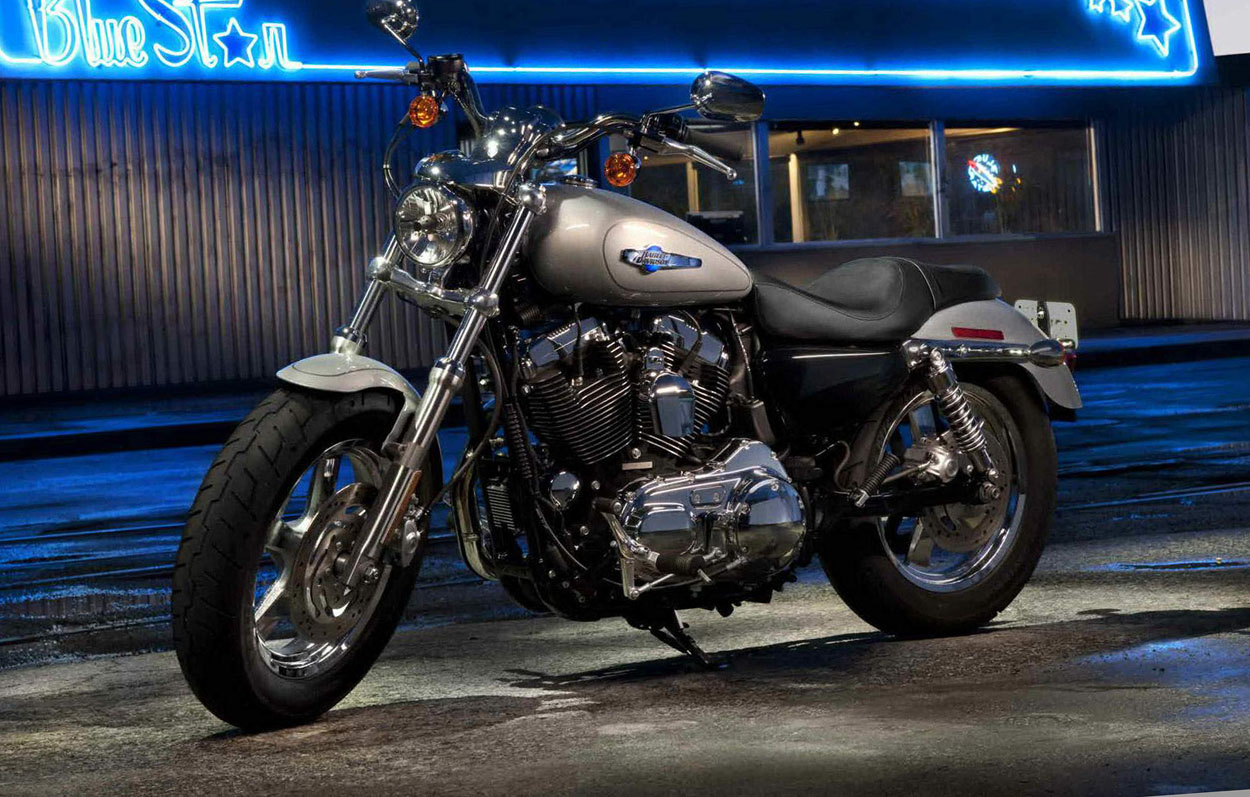

Harley Davidson XL1200C Custom Sportster

.

Make Model

Harley Davidson XL 1200C Sportster Custom

Year

2013

Engine

Four stroke, 45° V-Twin, OHV, 2 valves per cylinder.

Capacity

1199 cc / 73.2 cub in.
Bore x Stroke 88.8 x 96.8 mm
Cooling System Air cooled,
Compression Ratio 9.7:1

Induction

Electronic Sequential Port Fuel Injection (ESPFI)

Ignition

Digital CDI
Starting Electric

Max Torque

79 ft/lbs./ 107 Nm @ 3500 rpm

Transmission

5 Speed
Final Drive Belt
Gear Ratio 1st 9.315   2nd 6.653   3rd 4.948   4th 4.102   5th 3.517
Frame Mild steel, tubular frame; circular sections; cast junctions
Swingarm Mild steel, rectangular tube sections, stamped junctions; MIG welded

Front Suspension

39mm Fork,
Front Wheel Travel 144 mm / 5.6 in

Rear Suspension

Coil-over; preload dual-adjustable,
Rear Wheel Travel 54 mm / 2.1 in

Front Brakes

Single 300mm discs 2 38mm piston caliper

Rear Brakes

Single 300mm discs 2 38mm piston caliper
Front Wheel Chrome, 5-Spoke Cast Aluminum
Rear Wheel Chrome, 5-Spoke Cast Aluminum

Front Tyre

D402F MH90-21 54H

Rear Tyre

D401 150/80B16 71H
Rake 30°
Trail 107 mm / 4.2 in
Dimensions Length  2225 mm / 87.6 in
Wheelbase 1520 / 59.8 in
Seat Height Laden2 26.6 in / 675.64 mm
Unladen 28.5 in / 723.9 mm
Ground Clearance 110 mm / 4.3 in

Wet Weight

264 kg / 582 lbs

Oil Capacity (w/filter)  2.6 Litres

Fuel Capacity

17 Litres / 4.5 US gal

A wide front end and chunky 16-inch tire give the Harley-Davidson 1200 Custom a strong and contemporary stance that features a pull-back handlebar and a reshaped LED tail lamp. While these elements combine to give the 1200 Custom an exciting look, the 1200 Custom also debuted H-D1 factory customization, an opportunity that allows the customer to choose from seven option categories to optimize fit, function and style. By selecting from available factory-installed wheels, handlebars, seats, paint, foot control position, security system, and engine finish, the customer can create a 1200 Custom that is a truly personalized motorcycle. The 1200 Custom offers a different look, but is Sportster to the core, while offering a combination of bold styling, nimble handling and the irresistible beat of American V-Twin performance.

A highlight of each 110th Anniversary Edition model are solid bronze fuel tank badges, plated in black nickel and then distressed to highlight the bronze. A bright gold-tone Bar and Shield cloisonné is inserted in the main body of the "single wing" badge while each motorcycle will carry other model-specific anniversary badging, trim and a serialization badge.

NEW 110th Anniversary Edition includes exclusive Anniversary Vintage Bronze/Anniversary Vintage Black paint scheme, solid bronze 110th Anniversary tank medallions, solid bronze air cleaner cover trim ring, chrome-plated timer cover with cloisonné insert, chrome-plated derby cover with forged solid bronze trim ring, serialization badge, and H-D® Smart Security System

NEW Paint color options

• Black side covers to match bodywork finish
• Chrome, 5-spoke cast aluminum wheels front and rear
• Michelin® Scorcher® “31” tires
• Wider fork spacing and polished triple clamps
• Reshaped classic Sportster “eyebrow” over the headlamp
• Taillight is smaller and has a new shape with a bright, low-maintenance LED element
• Front suspension rates are re-tuned to match the new tire/wheel combination. 39 mm front fork with 30 degrees rake.
• Pull-back handlebar mounted on a curved riser incorporates an LED warning light display
• Polished forward foot controls
• Two-up seat is standard with 26.5 inch laden seat height
• 4.5-gallon fuel tank offers long riding range
• Powertrain finished in black powdercoat with chrome covers

A beefy front end, wide triple clamps, big fat tires on Chrome 5-spoke Cast Aluminum wheels; the Sportster® 1200 Custom combines all the agility and kick of a Sportster® model with the big, fat attitude of a custom cruiser.

Clean styling lines, chrome trim and eyebrow and a stylized LED taillight combine with a fat, strong stance to give the 1200 Custom an “inyour-face” presence. The front-end suspension and geometry work together to provide truly balanced handling. And, with the H-D1™ factory customization process, customers can personalize their 1200 Custom with seat, handlebar, foot control, wheel, security, paint and engine finish options straight from the factory. The Sportster® 1200 Custom proves, once again, that NO ONE does fat custom like Harley-Davidson.

• Evolution® V-Twin powertrain with Electronic Sequential Port Fuel Injection (ESPFI)
• Rubber-mounted powertrain to reduce vibration
• 5-speed transmission
• Dual staggered exhaust
• Disc brakes
• Handlebar-mounted electronic speedometer
• Optional Harley-Davidson® Smart Security System with hands-free security fob

H-D1™ Factory Customization

Make it yours from the start. Now with H-D1™ factory customization, your personalized 1200 Custom motorcycle is built just for you from the Harley-Davidson factory. It's easy: use the online H-D1™ Bike Builder tool to configure a bike that fits your style and personality. Select from extended paint offerings and genuine H-D engines, wheels, seats, handlebars, footpeg positions and security. Bring your plan to your Harley-Davidson dealer for consultation and to place your order. Our employees go to work, building your motorcycle, according to your design, and in about 4 weeks* your masterpiece will be ready for you at your dealer.

Fat Front End

Leading the way for the 1200 Custom motorcycle is a fat, in-your-face front end. The thick triple clamp and beefy front tire wrapped around a 16-inch 5-spoke chrome cast wheel will not be denied. Take a look and you'll see the true custom character of a Sportster® motorcycle, but just a little fatter and a little more custom.

110th Anniversary Gas Tank Medallion (Optional)

Each Anniversary Edition Harley-Davidson is a unique masterpiece, with its very own work of art marking it as part of this historic celebration. Forged of solid bronze and plated with black nickel, each Anniversary medallion is then distressed to highlight the bronze. And since no two can ever distress the same, each becomes a completely unique commemorative "sculpture." The finishing touch is a bold gold Cloisonné showing the Harley-Davidson Bar and Shield. (Available only on 110th Anniversary Edition models)

110th Anniversary Serialization Plaque (Optional)

Our Anniversary Edition bikes are few and far between, and the proof is stamped in steel. Forged in a unique style and placed in a different location for each model, the Serialization Plaque displays your Anniversary Edition production number, marking it as an exclusive part of motorcycle history and making it clear that your ride is one of a rare breed and a true one of kind. (Available only on 110th Anniversary Edition models)

110th Anniversary Edition "Living Art" Finishes (Optional)

It takes more than details to make a motorcycle a milestone—they've got to tell your story as well as ours. From saddle inserts and medallions to engine element covers, we’ve carefully crafted the Anniversary Special Edition models' commemorative details from premium materials that can transform and age in response to your life on the road. Your ride becomes a true piece of "living art" that reflects your one-of-a-kind style, embodies our 110-year legacy of freedom and individuality and just gets better with every mile of road you travel. (Available only on 110th Anniversary Edition models)

110th Anniversary Paint Styling (Optional)



All of our Anniversary Edition Models sport a characteristic two-tone color combination that sets them apart. Rich Vintage Bronze and Antique Vintage Black finish is topped with a special clear coat for a look that's just classic, pure and simple. (Available only on 110th Anniversary Edition models)

Chrome 5-Spoke Cast Wheels

When it comes to custom, standout wheels are a must. The 1200 Custom motorcycle features brilliant chrome 5-spoke wheels that cast striking reflections wherever you go. Custom style for a custom ride. The 110th Anniversary Edition comes sporting the classy but slightly-sinister looking Contrast Chrome wheels, for a touch of dark that sets off the shine.

Rear LED Lighting

Low profile in style, but big and bright when you need it most. The rear LED beam on the 1200 Custom motorcycle fits the contours of the rear fender perfectly, and the array of fast-acting red LED lamps grabs everyone's attention both during the day and at night. License plate mounts are slotted nearby to offer a convenient and noticeable spot for your tag.

Premium Paint

Up to two times thicker than the competition, custom quality paint comes standard on all Harley-Davidson® motorcycles. Clearcoat layering up to five mils deep. Bigger metal flakes. Unique effects. Skimping simply is not in our vocabulary.

Hand Finished Fuel Tank

All Harley-Davidson® fuel tanks are finished by hand—that''s what makes them stand out. Their seamless design and unmatched style are unique among all motorcycles on the road. The tanks are one of the first and last things people notice when they lay their eyes on a Harley-Davidson® motorcycle—so we make it worth their time.

Evolution® Engine Heritage

The Evolution® engine—known in certain crowds as the Blockhead—was first bolted to the frame of a Harley-Davidson® motorcycle back in 1984. Born from legendary Shovelhead and Ironhead engines, the Evolution® engine broke new ground in displacement innovation while maintaining the hunger for power, durability and proven reliability that The Motor Company was built on.

Evolution® Engine Innovation

Air-cooled and durable as hell, the 1200cc Evolution® engine is yet another nod to the unwavering work ethic that drives advancements in motor technology at Harley-Davidson. Aluminum heads and cylinders lighten the load of the bike and improve air-cooling efficiency. Electronic fuel injection says goodbye to carburetors and boasts increased reliability and less routine maintenance. Bottom line: the rubber-mounted Evolution® engine runs hard and rides smooth for thousands of miles so you can just worry about taking in the freedom of the open road.

Pure Harley-Davidson Styling

Feast your eyes on the 1200cc Evolution® engine and there's no mistaking its roots. This is authentic Harley-Davidson style through and through with an attention to detail you won't find from any other motorcycle company. Black powder-coated cylinders and cylinder heads are topped off with chrome rocker covers, while chrome pushrods highlight the iconic V-Twin. It's a jewel machined out of metal. Pure. Dripping with power. From the classic edge of the cooling fins to the clean lines of cases and covers—the 1200c Evolution® engine makes an ironclad statement to holding on to what's right and staying true to what satisfies the rider.

H-D® Smart Security System (Optional - Standard on 110th Anniversary Edition)

The factory installed next-generation security system features a hands-free fob that automatically arms and disarms the vehicle electronic security functions as you approach and walk away from the bike. Stick the fob on your ignition key ring and let it do all the work. It's this attention to details and security that make Harley-Davidson® motorcycles unique.

Artfully Hidden Technology

Harley-Davidson leverages the latest in technology without compromising style and function. That means we hide electronics. The whole wiring harness is skillfully routed behind the jewels of the bike—the tank, engine and all the other eye-popping features you want to see. It's just another way The Motor Company goes the extra mile to give its bikes that premium, top-of-the-line fit and finish.

Intuitive Controls

Hand controls on a Harley-Davidson® motorcycle are incredibly intuitive. The turn signals are self-canceling and, based on the speed and angle of the motorcycle, they know how long to stay on. Engaging the controls quickly becomes second nature so you can focus less on turning off your signal and more on basking in the freedom of the ride.

Michelin® Scorcher™ Tires

Michelin® Scorcher™ Tires provide the superior performance, sensational grip, impressive durability and excellent handling expected on a race-bred bike. The exclusive deep-cut tread design improves grip and water evacuation capability. Grip performance and durability is also enhanced by the tire's rubber compounds, which use the latest generation of Michelin synthetic polymers. Under the rear rubber, aramid belts are used to stabilize your ride, which helps inspire confidence in handling.

Tuned to Be Ridden

Harley-Davidson® motorcycles are different from any other bike out on the road. There''s a balance to them. The steering, the maneuverability—it''s all in concert. And each Harley-Davidson® model is tuned differently to create a unique riding experience for each individual no matter which bike they swing their leg over. Let''s face it, we didn''t get to where we are by being like everyone else.

Pull-Back Handlebar

Sink into the saddle and let your arms fall naturally to the grips. The 1200 Custom motorcycle is equipped with a pull-back handlebar that creates a comfortable, laidback cruising position. Stainless steel for a tough custom look, and about one inch closer to your chest, you're ready to take on the road ahead.

Forward-Mounted Controls


With the custom forward-mounted controls on the 1200 Custom motorcycle, you can kick back a little and stretch your legs for the ultimate cruise through town or across the state line. It's time to take in the open road the way you were meant to—on a two-wheeled machine that keeps it as real as you do.

Two-Up Custom Seat

The 1200 Custom motorcycle sports a sleek one-piece, two-up classic seat that has all the premium material, stitching and style you expect from Harley-Davidson, the motorcycle makers who've been putting their own seats in the saddle for over a hundred years. It's a great seat to go solo, and has plenty of room to bring along a friend.

Seat Engineering and Design

The seat is home for Harley-Davidson® motorcycle riders. They want a seat that has unique style without sacrificing comfort. Because of that, Harley-Davidson invests a lot of time in researching, designing and testing seats so that every bike has just the right saddle.
