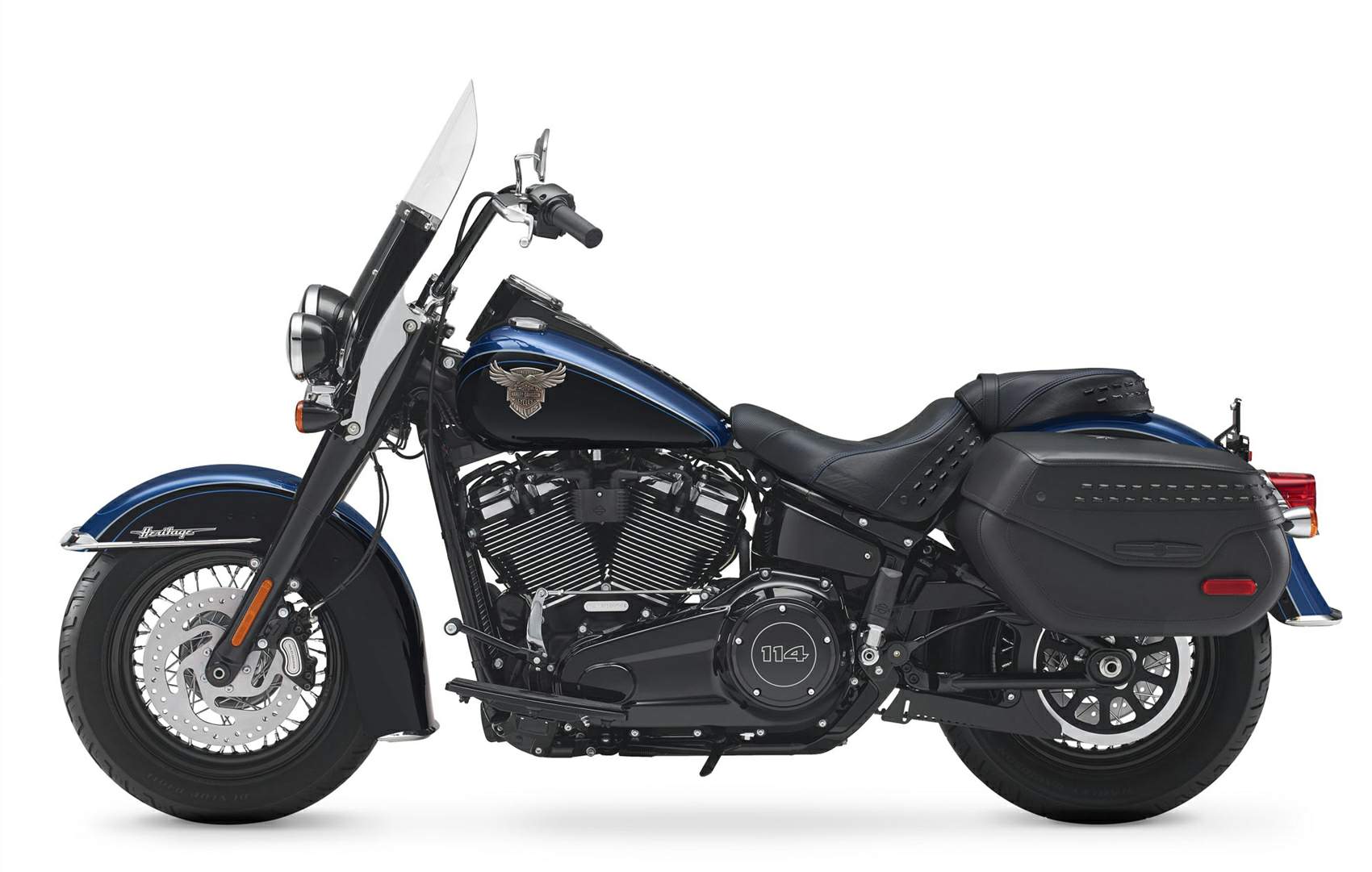

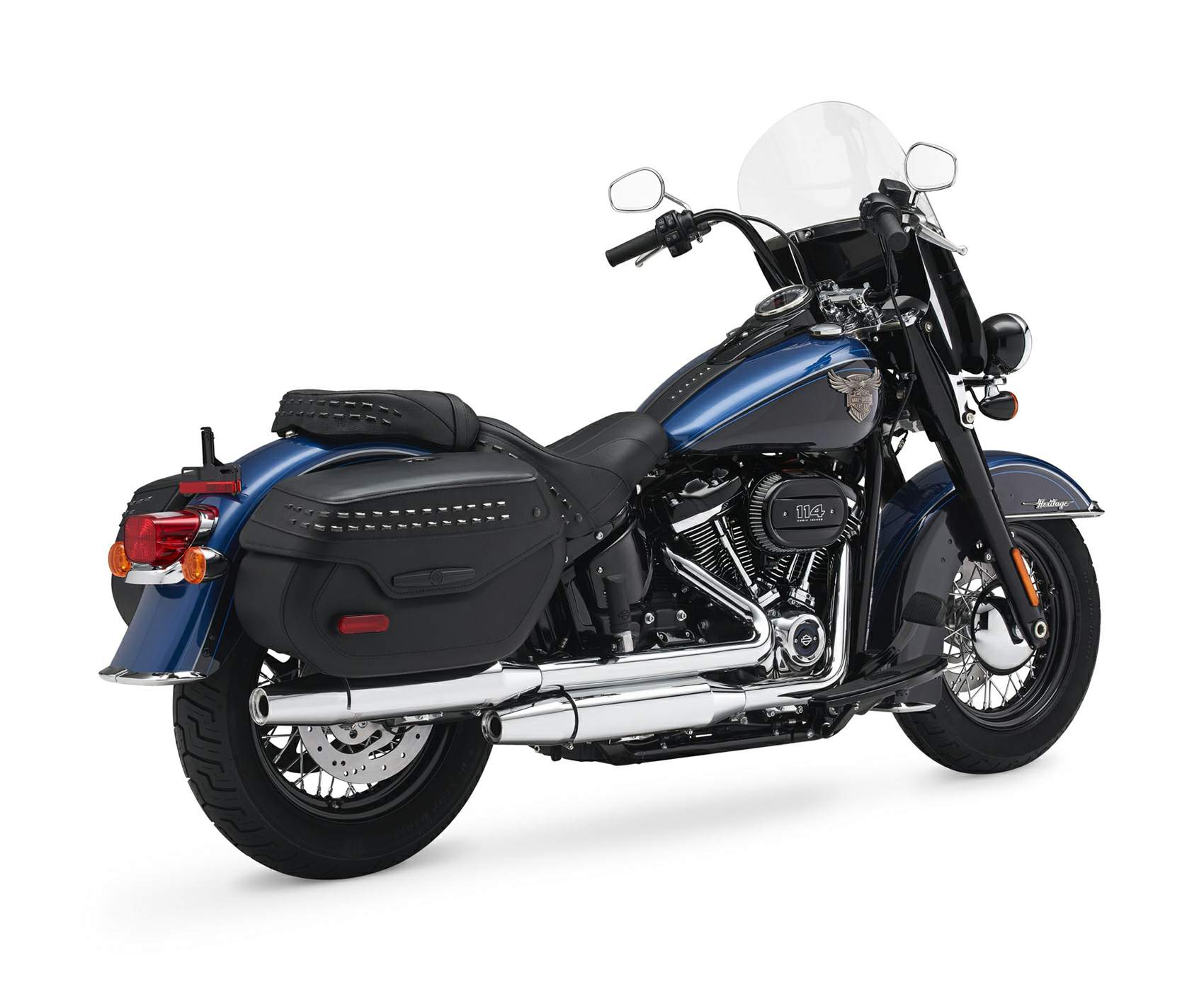

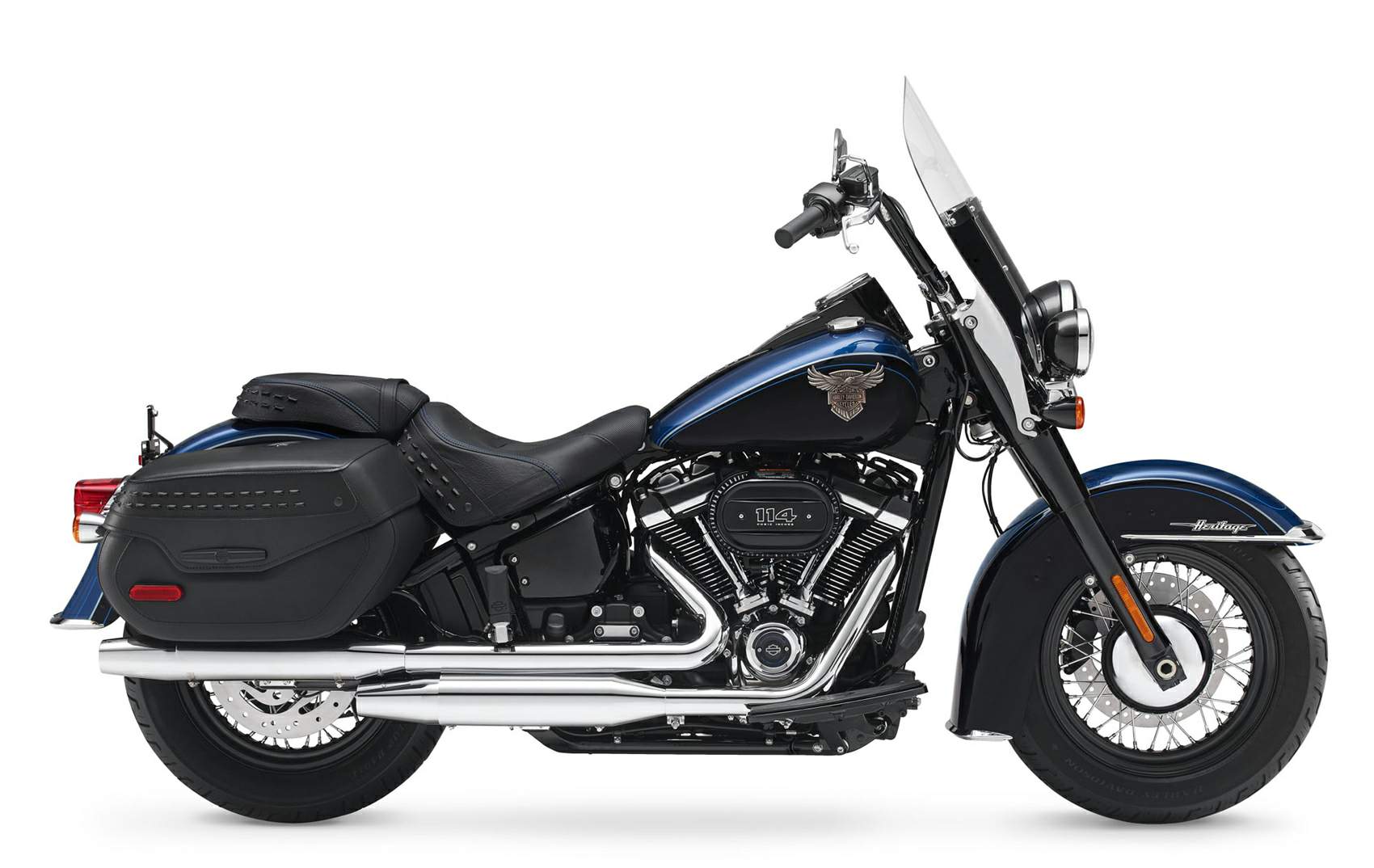

Harley Davidson Softail Heritage Classic 114 - 115th Anniversary

.

Make Model

Harley Davidson Softail Heritage Classic 114 - 115th Anniversary

Year

2018 -

Engine

Four stroke, V-Twin, Milwaukee-Eight® 114, pushrod-operated, overhead valves with hydraulic, self-adjusting lifters, 4 valves per cylinder

Capacity

1868 cc / 113.9 cu-in
Bore x Stroke 102 x 114 mm
Cooling System Air cooled
Compression Ratio 10.5:1
Exhaust 2-into-2 shorty dual, catalyst in muffler

Induction

Fuel System Electronic Sequential Port Fuel Injection (ESPFI)

Lubrication Pressurized, dry-sump with oil cooler
Ignition Single-fire, non-wasted, map-controlled spark ignition

Starting

Electric

Max Torque

161 Nm / 119 lb-ft @ 3000
Clutch Mechanical, 10 plate wet, assist & conventional

Transmission

6 Speed
Final Drive Belt, 32/66 ratio
Primary Drive Chain, 34/46 ratio
Gear Ratio 1st 9.311 / 2nd 6.454 / 3rd 4.793 / 4th 3.882 / 5th 3.307 / 6th 2.79:1
Frame Mild steel, tubular frame, rectangular section backbone, stamped, cast, and forged junctions, MIG welded, aluminum forged fender supports
Swingarm Mild steel, tubular sections, stamped x-member, forged axle junctions, MIG welded, removable belt spacer

Front Suspension

Dual-bending valve 49 mm telescopic with aluminum fork triple clamps, dual rate spring, "beer can" covers
Front Wheel Travel 130mm / 5.1 in

Rear Suspension

Hidden, free piston, coil-over monoshock, 56mm stroke; hydraulic preload adjustment
Rear Wheel Travel 112mm / 4.4

Front Brakes

Single 300 mm disc, 4 piston fixed caliper

Rear Brakes

Single 292 mm disc, 2 piston floating caliper
ABS Standard
Wheels Gloss Black, Steel Laced

Front Tyre

130/90B16,73H,BW

Rear Tyre

150/80B16,77H,BW
Rake 30°
Trail 140 mm / 4.7 in
Dimensions Length:  2415 mm / 95.1 in
Width:     930 mm / 36.6 in
Height:  1370 mm / 53.9 in
Wheelbase 1630 mm / 64.2 in
Seat Height Laden:     668 mm / 26.3 in
Unladen: 680 mm / 26.8 in
Ground Clearance 120 mm / 4.7 in

Dry Weight

316 kg / 697 lbs

Wet Weight

330 kg / 728 lbs

Fuel Capacity

18.9 Litres / 5 US gal

Bikes don’t get any truer to their roots than this. The 115th Anniversary Heritage Classic 114 is the original outlaw motorcycle decked out for those who want to do the 115th Anniversary big. Limited-edition and exclusively numbered.

The Heritage Classic motorcycle used to be a homage to ‘50s chrome nostalgia. Take a look at the new one, and you’ll see it’s anything but that.

Harley-Davidson Softail Story – The next custom revolution

Authentic innovation meets true Harley-Davidson soul in the reinvented Softail® family. The most powerful, agile, and responsive cruisers in Harley-Davidson history feature a lighter and stiffer frame, high-performance suspension and the smooth, unrelenting torque of a fully counter-balanced Milwaukee-Eight® V-Twin engine. Each Softail® model has a distinctive look and attitude that stays true to the roots of Harley-Davidson® custom motorcycle design.

115TH ANNIVERSARY EDITIONS
Two Limited Edition 115th Anniversary paint schemes will be available on select 2018 models.
The divergent styles will appeal to a broader audience of customers and, to add exclusivity to each model, all paint sets will be serialized.

115TH ANNIVERSARY TWO-TONE
Available only on Tri-Glide®, Ultra Limited, Street Glide®, Fat Boy® 114, and Heritage Classic 114 models.

Featuring:
Exclusive Legend Blue/Vivid Black two-tone paint scheme
Triple pinstripe
115th Anniversary multi-metal tank cloisonné
Eagle holding the Bar and Shield in its talons
Perforated seat with blue stitching and embossed “HDMC”
115th Anniversary script on console, timer cover and air cleaner
Serialization on trim

It's the new Vintage
Dark classic style with a modern edge, from the full fenders to the blacked-out Milwaukee-Eight® V-Twin engine.

Built for fast getaways
Reduced weight, awesome acceleration, and totally reinvigorated ride.

THROW A LEG OVER AND RUMBLE OFF INTO THE SUNSET

NEW FOR 2018
Available in 107 and 114 engine displacements

THE DARK CLASSIC OF THE MODERN ERA

Lockable and Sealed Saddlebags
A sleek look on the outside and roomy on the inside with enough space to stash your riding essentials. The lids open with one touch.

All-New Softail® Frame
A lighter, stiffer frame (compared to previous Softail® and Dyna® models) that takes the idea of form and function to a place it’s never been before. It’s the look of a hard tail from a bygone era that delivers a thoroughly modern ride.

Milwaukee-Eight® Big Twin Engine
A powerful, smooth-running engine with crisp throttle response and a pure, soul-satisfying rumble. Available in 107 and 114 engine displacements.

Signature LED Forward Lighting
Darkness-defying lighting that give you greater visibility at night.

Detachable Windscreen
Go from touring to cruising in a heartbeat. Leave the screen on for a clean envelope of air over the long haul. Or remove it in seconds for a completely new look and ride.

Standard Cruise Control
You can easily dial in your speed to give your wrist a break and keep on hauling down the road.

High Performance Front Suspension
New Showa® SDBV® suspension technology provides the performance of a racing-style cartridge fork for reduced weight with linear damping characteristics.

High Performance Rear Mono Shock
All-new easily adjustable mono-shock rear suspension allows for dynamic cornering capability while preserving the hardtail look.
