2025 Harley Davidson Low Rider ST FXLRST

Make Model	Harley Davidson Low Rider ST FXLRST
Year	2025
Engine	Four stroke, V-Twin, 2 Milwaukee-Eight 117 custom, Pushrod-operated, overhead valves with hydraulic, self-adjusting lifters, 4 valves per cylinder
Capacity	1923 cc / 117 cu in
Bore x Stroke	103.5 x 114.3 in
Cooling System	Air cooled
Compression Ratio	10.3:1
Exhaust	2-into-1d, catalyst in header
Induction	Electronic Sequential Port Fuel Injection (ESPFI)
Lubrication	Pressurized, dry-sump with oil cooler
Ignition	Single-fire, non-wasted, map-controlled spark ignition
Starting	Electric
Max Power	85 kW / 114Hp @ 5000 rpm
Max Torque	174 Nm / 128 lb-ft @ 4000 rpm
Clutch	Mechanical, 10 plate wet, assist & conventional
Transmission	6 Speed
Primary Drive	Chain, 34/46 ratio
Final Drive	Belt, 32/66 ratio
Gear Ratio	1st 9.311 / 2nd 6.454 / 3rd 4.793 / 4th 3.882 / 5th 3.307 / 6th 2.79
Lean Angle, Left	31.3º
Lean Angle, Right	31.3º
Frame	Mild steel, tubular frame, rectangular section backbone, stamped, cast, and forged junctions, MIG welded, aluminum forged fender supports
Swingarm	Mild steel, tubular sections, stamped x-member, forged axle junctions, MIG welded, aluminium forged fender supports
Front Suspension	Single cartridge 43 mm inverted with aluminum fork triple clamps; triple rate spring
Front Wheel Travel	130 mm / 5.1 in
Rear Suspension	Hidden, free piston, coil-over monoshock, 56mm stroke, hydraulic preload adjustment
Rear Wheel Travel	112 mm / 4.4 in
Front Brakes	2 x 300mm discs, 4 piston fixed caliper
Rear Brakes	Single 292mm disc, 2 piston floating caliper
ABS	Standard
Wheels	Chrome or Black, Radiate Cast Aluminium
Front Wheel	19 x 2,5 in
Rear Wheel	16 x 5.0 in
Front Tyre	110/90R19,62H,BW
Rear Tyre	180/70R16,77H,BW
Rake (steering head)	28°
Trail	145 mm / 5.7 in
Dimensions	Length: 2360 mm / 92.9 in Width: 890 mm / 35 in Height: 1290 mm / 50.8 in
Wheelbase	1615 mm / 63.6 in
Ground Clearance	145 mm / 5.7 in
Seat Height	Unladen 715 mm / 28.1 in Laden 686 mm / 27 in
Dry Weight	311 kg kg / 686 lbs
Wet Weight	323 kg / 712 lbs
Fuel Capacity	18.9 Litres / US 5.0 gal

From Harley website:

Heritage-inspired tank graphics and an FXRT-style fairing look retro, but the Low Rider ST is a modern performance motorcycle with a new Milwaukee-Eight® 117 High Output V-Twin Engine.

Design
FXRT roots, reimagined. The Low Rider ST cuts a fierce profile with a West Coast–inspired fairing and new all-LED lighting. A modern take on a classic silhouette that blurs the line between retro cool and today’s comfort and performance.

Inspired by West Coast customizers who embrace the classic FXRT fairing, the Low Rider ST’s lightweight, frame-mounted fairing is developed using computational fluid dynamics (CFD) to improve airflow—helping reduce wind fatigue for a more comfortable, stable ride.

A 146 mm headlight, redesigned taillight, and LED turn signals improve visibility and signalling on the road.

Premium paint and retro-inspired graphics highlight H-D’s iconic design heritage.
The slim solo seat holds you in place during aggressive acceleration and cornering.

Performance

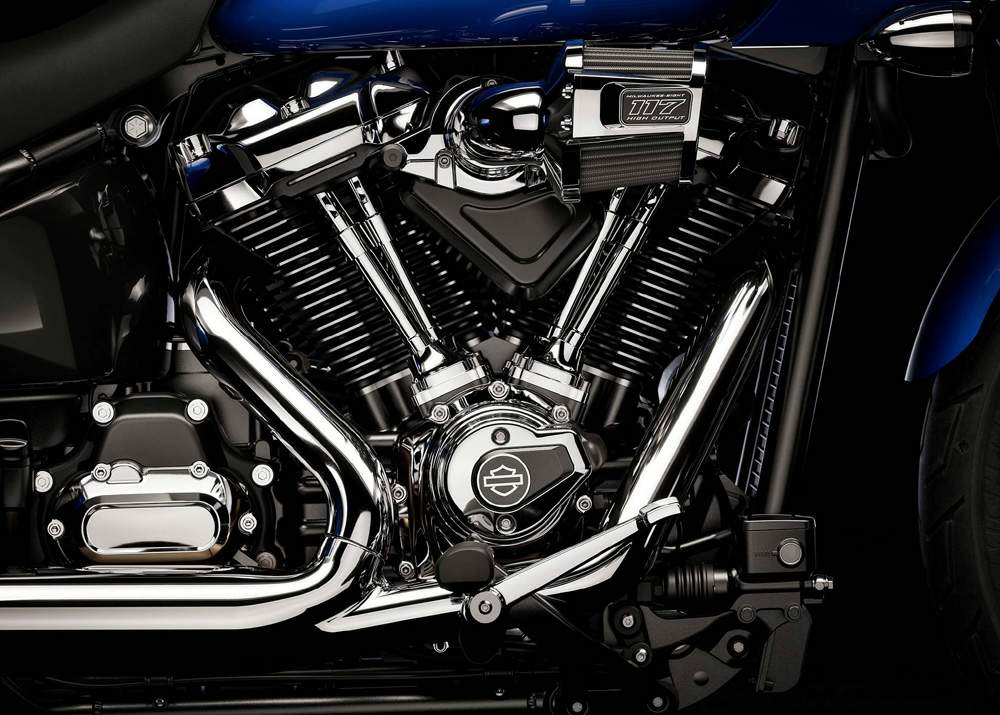

More power delivered quickly from the new Milwaukee-Eight® 117 H.O. V-Twin Engine with Heavy Breather intake and a redesigned two-into-one exhaust.

A tall monoshock kicks up the rear end and provides extra cornering clearance when you are pushing the limits.

Improved mid- and top-end performance from the Milwaukee-Eight® 117 H.O., which lets you stay on the gas longer during hard acceleration, with redline pushed from 5,600 rpm to 5,900 rpm.

A sleek and refined exhaust line brings saddlebag symmetry, extra storage, and a timeless, cohesive look—setting the stage for customization upgrades.

Forward-facing air intake maximizes flow and provides intake tuning length to improve charging efficiency and peak torque.

Innovation
Customize your ride with three available ride modes and the full suite of Rider Safety Enhancements, all accessible through a new four-inch instrument display.

New hand controls feature Ride Mode selection, a repositioned flash-to-pass switch near the left forefinger, and an adjustable brake lever.

An analog speedometer with a built-in multi-function digital display provides key ride data, including a gear shift indicator and new selectable Ride Modes (Road, Rain, and Sport), so you can fine-tune your ride like never before.

USB-C charging keeps your devices powered, so you can ride farther while using navigation, listening to music, and staying connected through your Bluetooth® headset.

Rider Safety Enhancements
Harley-Davidson’s Rider Safety Enhancements is all about giving you that extra peace of mind when things get a little unpredictable. It’s a set of smart tech that steps in during tricky situations, helping the bike handle traction while you’re accelerating, braking, or slowing down. With the Cornering Rider Safety Enhancements, the bike even adjusts for cornering, keeping things smooth and steady without you having to think twice.
- Anti-lock Brake System (ABS)
- Traction Control System (TCS)
- Drag-Torque Slip Control System (DSCS)
- Tire Pressure Monitoring System (TPMS)
- Cornering Enhanced Anti-lock Brake System (C-ABS)
- Cornering Enhanced Traction Control System (C-TCS)
- Cornering Drag-Torque Slip Control System (C-DSCS)
