Harley Davidson Hydra Glide Revival


Make Model

Harley Davidson Hydra-Glide Revival


Produciton 1750 units


Four stroke, V-Twin, Milwaukee-Eight 114, Pushrod-operated, overhead valves with hydraulic, self-adjusting lifters, 4 valves per cylinder


1868 cc / 114 cu in
Bore x Stroke 102 x 114 mm
Cooling System Air cooled
Compression Ratio 10.5:1
Exhaust Chrome, 2-into-2 shorty dual; catalist in muffler


Electronic Sequential Port Fuel Injection (ESPFI)

Lubrication Pressurized, dry-sump with oil cooler


Single-fire, non-wasted, map-controlled spark ignition
Starting Electric

Max Torque

161 Nm / 119 lb-ft @ 3000 rpm
Clutch Multi-plate, wet


6 Speed
Primary Drive Chain, 34/46 ratio
Final Drive Belt
Gear Ratio 1st 9.311  2nd 6.454  3rd 4.793  4th 3.882  5th 3.307  6th 2.79
Lean Angle Right 27.4°
Lean Angle Left 27.4°

Front Suspension

Dual-bending valve 49 mm telescopic with aluminum fork triple clamps; dual rate spring; "beer can" covers

Travel Front 130 mm / 5.1 in

Rear Suspension

Hidden, free piston, coil-over monoshock; 43mm stroke; cam-style preload adjustment

Rear Travel 86.4 mm / 3.4 in

Front Brakes

2 x 300mm discs, 4 piston fixed

Rear Brakes

Single 292mm disc, 2 piston floating
ABS Standard
Wheels Front Chrome, steel laced
Wheels Rear Chrome, steel laced

Front Tyre

BW 130/90B16 73H

Rear Tyre

BW 150/80B16 77H

Rake 30°
Trail 145 mm / 5.7 in
Dimensions Length 2415 mm / 95.1 in
Wheelbase 1631 mm / 64.2 in
Seat Height Laden     663 mm / 26.1 in
Ground Clearance 119 mm / 4.7 in
Dry Weight 322.5 kg / 711 lbs

Wet Weight

336.6 kg / 742 lb

Fuel Capacity

18.9 Litres / 5 US gal

With wartime utilitarianism in the rearview mirror, Harley-Davidson entered the 1950s with the 74-cubic-inch Panhead powertrain, the Hydra-Glide telescopic front end, and refreshing colour schemes that brought new energy to the only surviving American motorcycle manufacturer. One of the most beloved models was the 1956 FLH, which featured a red base colour with a white stripe, known as the “slash” two-tone colour scheme. Now, 75 years after the 1949 introduction of the Hydra-Glide front end, Harley-Davidson is reviving this icon of the Panhead era in serialized limited production.

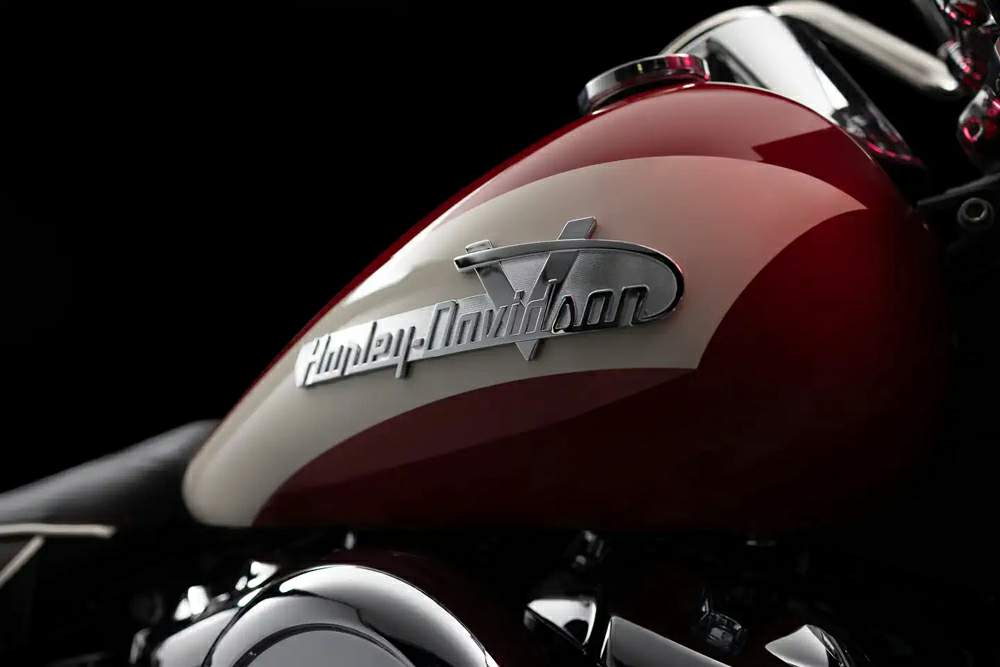

The Hydra-Glide Revival model is finished in custom Redline Red paint with a Birch White panel on fuel tank sides, the same design featured on 1956 models. Details include chrome “Harley-Davidson V” tank badges inspired by 1955-56 tank badges and “Hydra-Glide” script badges located on the front fender skirt. The serialized “Hydra-Glide Revival” insert on the handlebar riser cap and Icons Motorcycle Collection graphic on the rear fender identify this limited-production model.

Additional styling features include instrument graphics inspired by those on the 1954-55 speedometer. The two-tone 21-inch (53.3 cm) high detachable windshield features a colour-matched lower portion in Redline Red. A chrome round air cleaner cover and chrome steel laced wheels add to the nostalgic look. Front and rear fender trim, engine guard, fork covers, powertrain and exhaust are finished in brilliant chrome.

A solo saddle is finished with a fringed and decorated leather valance, white seam piping and red contrast stitching, and a chrome rail for a nostalgic look. A matching black leather tank strap is embellished with studs and a concho. Leather and vinyl saddlebags are detailed with chrome conchos with acrylic red centres, chrome studs and leather fringe, white seam piping and red contrast stitching. The saddlebags are water-resistant, have keyed locks for security, and have a rigid liner so they will hold their shape season after season.

Nostalgic Look, Modern Performance
The bike features a counter-balanced Milwaukee-Eight® 114 V-Twin engine tuned with a Screamin’ Eagle® High-Flow air cleaner to deliver power with authority. For the rider focused on performance, this engine accepts all applicable Harley-Davidson® Screamin’ Eagle® Stage Upgrade kits.

The Softail® chassis hides adjustable mono-shock rear suspension below the seat for dynamic cornering capability and riding comfort while preserving a classic hardtail profile. Electronic cruise control holds a steady speed for comfort on long rides. LED headlamp and auxiliary lamps provide outstanding forward illumination. Standard Anti-Lock Braking System (ABS) offers confident control in a variety of riding conditions.

Tobacco Fade Enthusiast Motorcycle Collection
Together the beat of rock ‘n roll and the syncopated rhythm of a V-Twin engine stir the souls of Harley® riders. The 2024 Tobacco Fade Enthusiast Motorcycle Collection celebrates the burst of collective energy released by live music at the corner tavern, at a motorcycle rally, or the live stage at the Harley-Davidson Homecoming™ Festival. The Tobacco Fade paint and graphics scheme, inspired by the classic sunburst wood finish first seen on rock and roll guitars, bass, and drums of the 1960s, make this a special motorcycle for any music lover.

Enthusiast Motorcycle Collection models celebrate Harley-Davidson riders and are inspired by their stories and legacies. This collection of Harley-Davidson® motorcycles is available in limited quantities – no more than 2,000 per model – across a curated selection of three motorcycle models.

The Tobacco Fade paint treatment is applied by Harley-Davidson using state-of-the art precision paint tools designed to execute faded panel detailing. A rich caramel-coloured pinstripe accents the tone of the metallic gold panel floating just outside the sunburst fade. The fuel tank medallion is inspired by the shape and grooves of a vinyl record, while a graphic on the front fender shaped like a guitar pick, inspired by rock band and instrument logos, speaks directly to the details in the tank medallion.

Tobacco Fade Enthusiast Collection includes:

Low Rider® ST Model
Strap down your bedroll and make a run for the border. The Harley-Davidson® Low Rider® ST model is an American V-Twin sport-touring bike for the rider who digs clean-and-lean West Coast style and craves the outrageous performance of the Milwaukee-Eight® 117 V-Twin powertrain. The Low Rider® ST model connects these riders with pure Harley-Davidson attitude. Mechanical features are identical to 2024 Low Rider® ST model.

Ultra Limited® Model
Experience premium touring performance with zero compromises in a long-haul touring motorcycle. Classic-style batwing fairing, 4-speaker audio, Tour-Pak® luggage carrier, ultimate comfort for rider and passenger. Mechanical features are identical to 2024 Ultra Limited® model.

Tri Glide® Ultra
A long-haul touring trike that calls you to go the distance with all the torque, style, premium infotainment and cargo space three wheels can hold. The ultimate in two-up comfort for adventurers who show no signs of stopping. Mechanical features are identical to 2024 Tri Glide® Ultra model.

Special Styling Features on Each Model
- Tobacco Fade premium paint
- Record-inspired fuel tank medallion unique to this scheme
- Stylized guitar pick graphic on front fender
- Enthusiast Collection branded logo on top of Tour-Pak® luggage carrier or rear fender

A summary of key features

The renowned two-tone “slash” paint scheme from the 1956 models is reintroduced in Redline Red and Birch White.

Inspired by a custom 1956 FLH, the solo seat and saddle bags are fringed and embellished with candy-coloured rosettes, white seam piping, and red contrast stitching.

The Hydra-Glide Revival’s detachable, two-tone windshield is period correct and colour matched in Redline Red.

Limited to 1,750 bikes, each individual motorcycle has a serialized “Hydra-Glide Revival” emblem on the handlebar riser cap, as well as an “Icons Motorcycle Collection” graphic on the rear fender.

The 74-cubic-inch Panhead motor was a marvel at the birth of the American highway but is no match for today’s Milwaukee-Eight 114 V-twin, which delivers modern performance and that classic Harley-Davidson look, sound, and feel.

While cruise control made its debut in the ‘50s, it wasn’t featured on the original Hydra-Glide, but we’re sure it would’ve been appreciated by beatniks and other wayfaring riders.

Any old-school hotrodder will tell you to “let that motor breathe,” which is why the Screamin’ Eagle High-Flow Air Cleaner comes standard on the Hydra-Glide Revival.

The lowered, hidden mono-shock suspension of the modern Softail chassis provides that vintage rigid look without any need for an antique kidney belt.
