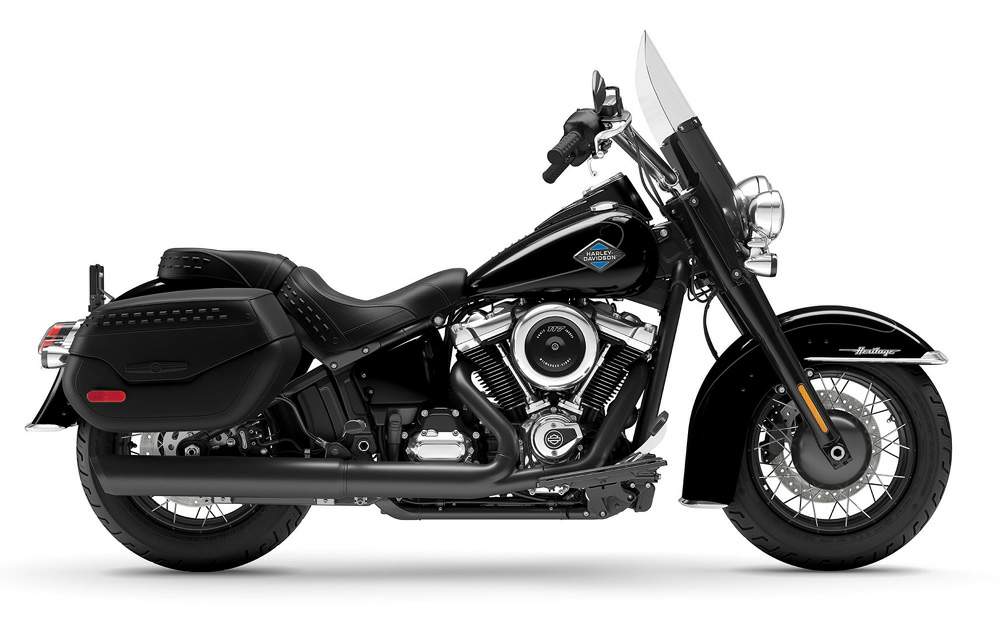

2025 Harley Davidson Softail Heritage Classic 117

Make Model	Harley Davidson Softail Heritage Classic 117
Year	2025
Engine	Four stroke, V-Twin, 2 Milwaukee-Eight 117 custom, Pushrod-operated, overhead valves with hydraulic, self-adjusting lifters, 4 valves per cylinder
Capacity	1923 cc / 117 cu in
Bore x Stroke	103.5 x 114.3 in
Cooling System	Air cooled
Compression Ratio	10.3:1
Exhaust	2-into-1, catalyst in header
Induction	Electronic Sequential Port Fuel Injection (ESPFI)
Lubrication	Pressurized, dry-sump with oil cooler
Ignition	Single-fire, non-wasted, map-controlled spark ignition
Starting	Electric
Max Power	73 kW / 98 Hp @ 4600 rpm
Max Torque	163 Nm / 120 lb-ft @ 2500 rpm
Clutch	Mechanical, 10 plate wet, assist & conventional
Transmission	6 Speed
Final Drive	Belt, 32/66 ratio
Primary Drive	Chain, 34/46 ratio
Gear Ratio	1st 9.311 / 2nd 6.454 / 3rd 4.793 / 4th 3.882 / 5th 3.307 / 6th 2.79:1
Frame	Mild steel, tubular frame, rectangular section backbone, stamped, cast, and forged junctions, MIG welded, aluminum forged fender supports
Swingarm	Mild steel, tubular sections, stamped x-member, forged axle junctions, MIG welded, removable belt spacer
Front Suspension	Dual-bending valve 49 mm telescopic with aluminum fork triple clamps, dual rate spring, "beer can" covers
Front Wheel Travel	130mm / 5.1 in
Rear Suspension	Hidden, free piston, coil-over monoshock, 56mm stroke; hydraulic preload adjustment
Rear Wheel Travel	112mm / 4.4
Front Brakes	Single 300 mm disc, 4 piston fixed caliper
Rear Brakes	Single 292 mm disc, 2 piston floating caliper
ABS	Standard
Wheels	Gloss black, 9-spoke cast aluminum
Front Wheel	3.0 x 16 in
Rear Wheel	3.0 x 16 in
Front Tyre	130/90B16,73H,BW
Rear Tyre	150/80B16,77H,BW
Rake	30°
Trail	140 mm / 4.7 in
Lean Angle (left and right)	27.4°
Dimensions	Length: 2415 mm / 95.1 in Width: 930 mm / 36.6 in Height: 1370 mm / 53.9 in
Wheelbase	1630 mm / 64.2 in
Seat Height	Laden: 668 mm / 26.3 in Unladen: 680 mm / 26.8 in
Ground Clearance	120 mm / 4.7 in
Dry Weight	316 kg / 697 lbs
Wet Weight	330 kg / 728 lbs
Fuel Capacity	18.9 Litres / 5 US gal

Classic cruiser vibes meet hot rod swagger—the Heritage Classic lets you switch things up fast, giving you the versatility to roll out for a weekend trip or strip it down for a laid-back ride around town.

Design
With nostalgic fuel tank medallion, leather-wrapped saddlebags with blackened-nickel studs, and optional laced wheels, old-school cool meets modern design.

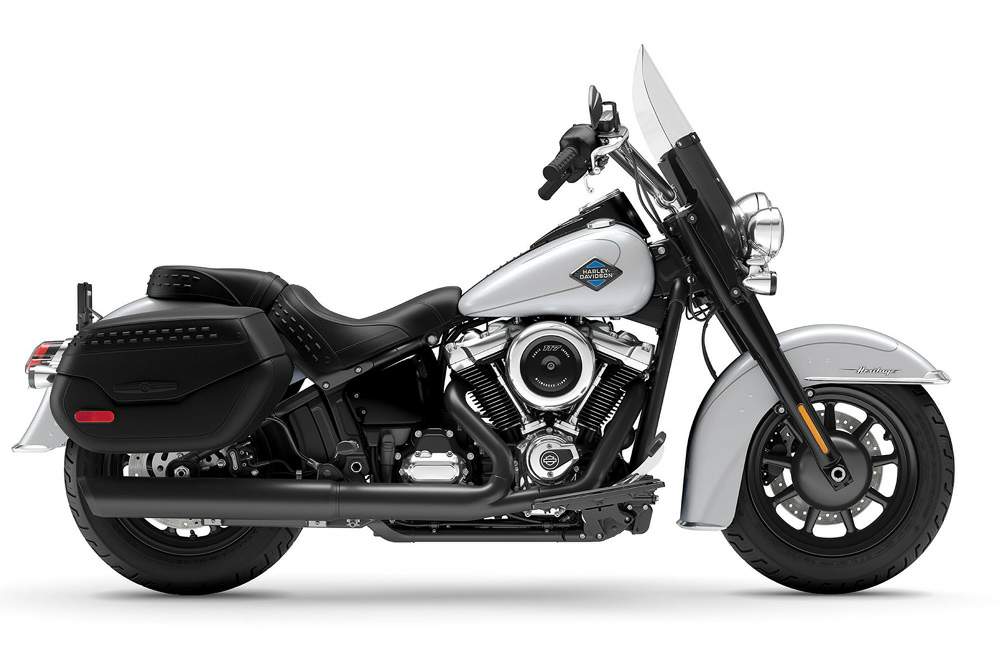

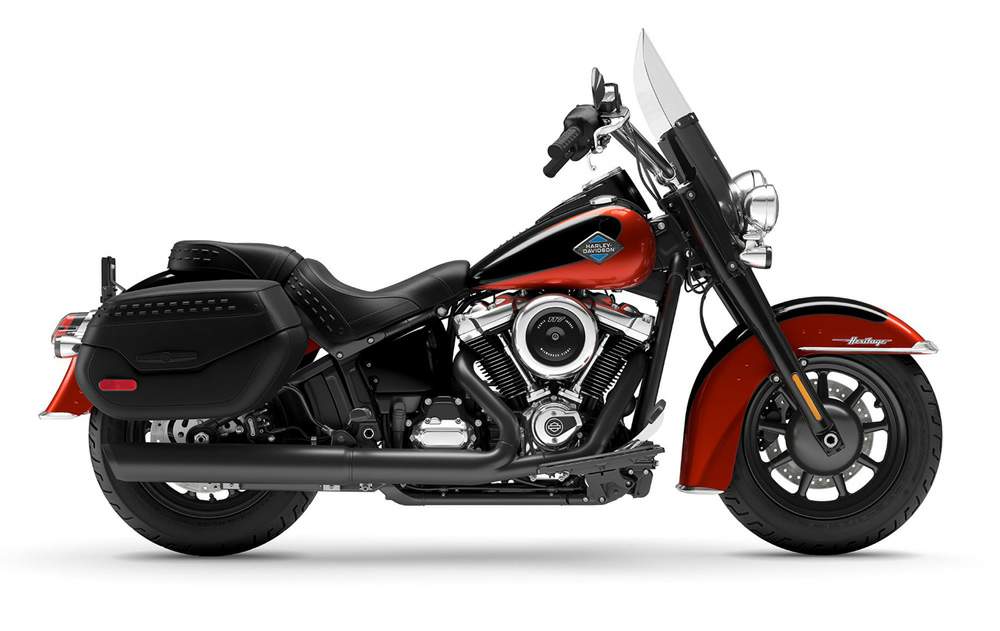

From deep, lustrous black to two-toned Whiskey Fire/Vivid Black, the 2025 Heritage Classic is available in a colour that matches your personal style and complements the classic rounded fuel tank and medallion.

Leather-studded style with the versatility of hard-framed, weather-proof bags that have keyed locks and top-loading convenience.

See and be seen with bright white LED headlight, bold auxiliary lights, and LED turn signals and brake light.

Optional 16-Inch laced wheels provide an old school, nostalgic look with the minimal maintenance of tubeless design.

Performance
The round air cleaner has a classic look, but it feeds a modern new Milwaukee-Eight® 117 Classic V-Twin Engine tuned to deliver torque in the lower rev range for incredible passing power and exhilarating acceleration.

Effortless highway cruising with plenty of passing power, thanks to the new, larger displacement Milwaukee-Eight® 117 Classic V-Twin Engine.

Compact, lightweight design tuned for performance and sound while providing a low, sweeping visual line with nostalgic style.

Classic intake shape matches throwback design while updated filter maximizes airflow and performance.

Updated monoshock features under-the-seat preload adjustment to adapt for an added passenger or loaded-up saddlebags quickly and easily.

Innovation
Intuitive and subtly integrated tech improves your ride without muddying style or interrupting your experience.

Five-inch display features a large, easy-to-read analog gauge positioned above an LCD screen. Hand controls enhance ergonomics and give you quick access to new selectable Ride Modes (Road, Rain, Sport), so you can fine-tune your ride like never before.

Updated hand controls accommodate the addition of Ride Modes, Traction Control, and Cruise Control.

USB-C charging keeps your devices powered, so you can ride farther while using navigation, listening to music, and staying connected through your Bluetooth® headset.

Rider Safety Enhancements
Harley-Davidson’s Rider Safety Enhancements is all about giving you that extra peace of mind when things get a little unpredictable. It’s a set of smart tech that steps in during tricky situations, helping the bike handle traction while you’re accelerating, braking, or slowing down. With the Cornering Rider Safety Enhancements, the bike even adjusts for cornering, keeping things smooth and steady without you having to think twice.
- Anti-lock Brake System (ABS)
- Traction Control System (TCS)
- Drag-Torque Slip Control System (DSCS)
- Tire Pressure Monitoring System (TPMS)
- Cornering Enhanced Anti-lock Brake System (C-ABS)
- Cornering Enhanced Traction Control System (C-TCS)
- Cornering Drag-Torque Slip Control System (C-DSCS)
